VigilLink VLDT-A2AM150 2-Channel 150 Watt Class D Audio Amplifier with Dante and Built-in Audio DSP - 4 / 8 Ohm

Name: VigilLink VLDT-A2AM150 2-Channel 150 Watt Class D Audio Amplifier with Dante and Built-in Audio DSP - 4 / 8 Ohm
Brand: VigilLink
SKU: VGL-VLDT-A2AM150
Price: 1339.00 USD
Availability: PreSale

ITEM #: VGL-VLDT-A2AM150 MFG #: VLDT-A2AM150

VigilLink

Our Price:

$1,339.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLDT-A2AM150 - Overview

Welcome to the pinnacle of audio excellence with VigilLink's VLDT-A2AM150 cutting-edge two-channel amplifier, crafted using state-of-the-art class D amplifier technology. Unleashing a powerful symphony, this amplifier is your key to energizing low impedance (4Ω/8Ω) stereo systems, boasting a formidable 2 x 75 Watt output. For unparalleled versatility, it seamlessly bridges into constant voltage territories (100V and 70V), delivering a maximum output power of 150 Watt. Elevating your audio experience, it integrates Dante 2 channel digital inputs and outputs, alongside balanced or unbalanced line level analog inputs and outputs.

Control meets convenience with a range of options, from RS-232 to LAN and a user-friendly Web GUI. Immerse yourself in the sonic perfection enhanced by built-in DSP, the intelligence of auto-standby, and unmatched durability. Designed for the expansive landscape of AV installations, this amplifier redefines possibilities, promising a symphony of quality, control, and endurance for your audio aspirations.

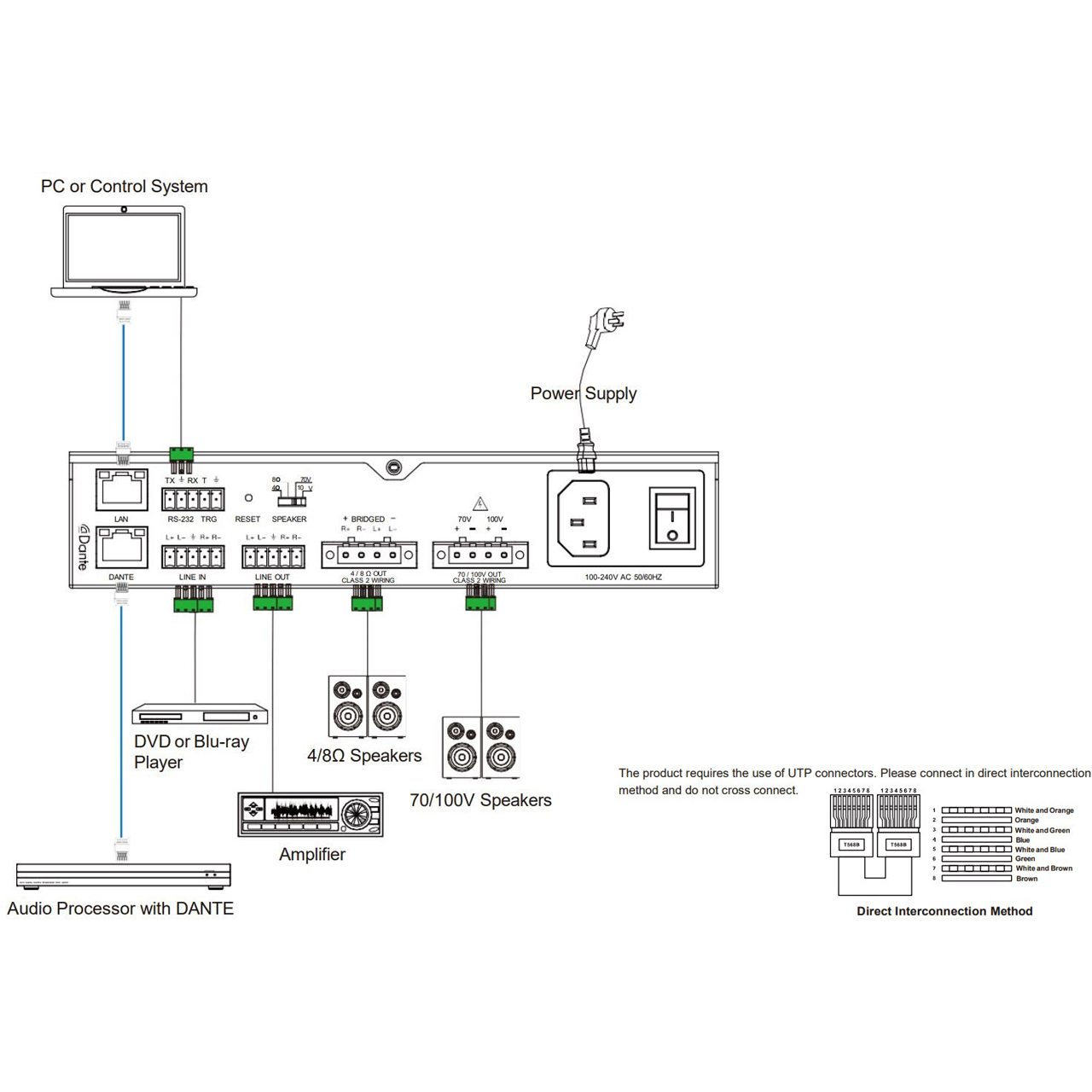

Please Note: The product requires the use of UTP connectors. Please connect in direct interconnection method and do not cross connect.

Features:
- Dante 2 channel digital audio, balanced or unbalanced line-level analog inputs
- Dante 2 channel digital audio, balanced or unbalanced line-level analog, and AMP outputs
- Built-in audio DSP processor
- Switching between Lo-Z and Hi-Z can be achieved by adapting it to various types of speaker installation.
- In Lo-Z output mode, single-channel 150 Watt or two-channel 2 x 75 Watt 4Ω/8Ω can be selected.
- Single-channel 150 Watt with 70V/100V can be selected in Hi-Z output mode.
- Independent input gain, output EQ, and volume control
- 48KHz sampling rate, 24bit independent A/D and D/A converters
- 5-12V trigger input
- Auto standby
- Flexible control via RS-232, LAN, and Web GUI
- Half rack design/one rack design
Specifications:
- Input:
  - 1x Dante Network audio input
  - 1x LINE balanced stereo 0dBu/10kΩ input
- Output:
  - 1x Dante Network audio output
  - 1x Stereo or constant voltage 70V/100V speaker output
  - 1x LINE balanced stereo output
- Input Sensitivity: Full [email protected] (0dBu)
- Output Power (DC power supply):
  - 2x 75W@4Ω/8Ω
  - 1x 150W@8Ω
  - 1x 150W@70V/100V
- Maximum Voltage Gain: 27 - 30dB SE/39 - 42dB BTL
- Amplifier Type: Class D
- Frequency Response: 20Hz - 20kHz @ ±3dB
- Signal to Noise Ratio: 87dB, 20Hz - 10kHz
- THD+N: THD+N (1KHz@1W) 0.04%
- Control: RS-232, Web GUI
- Audio Formats:
  - LINE IN [Analog audio, Balanced 2CH, Max input level 2VRMS]
  - LINE OUT [Analog audio, Balanced 2CH, Max output level 2VRMS]
  - DANTE [Digital audio 2x2 in/out, PCM 2CH 44.1K-96KHz 16/24Bit]
  - AMP OUT [Analog audio, Balanced 2CH, Max output level 24.5VRMS]
  - 70V/100V AMP OUT [Analog audio, Unbalanced 1CH, Max output level 70V/100VRMS]
- ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

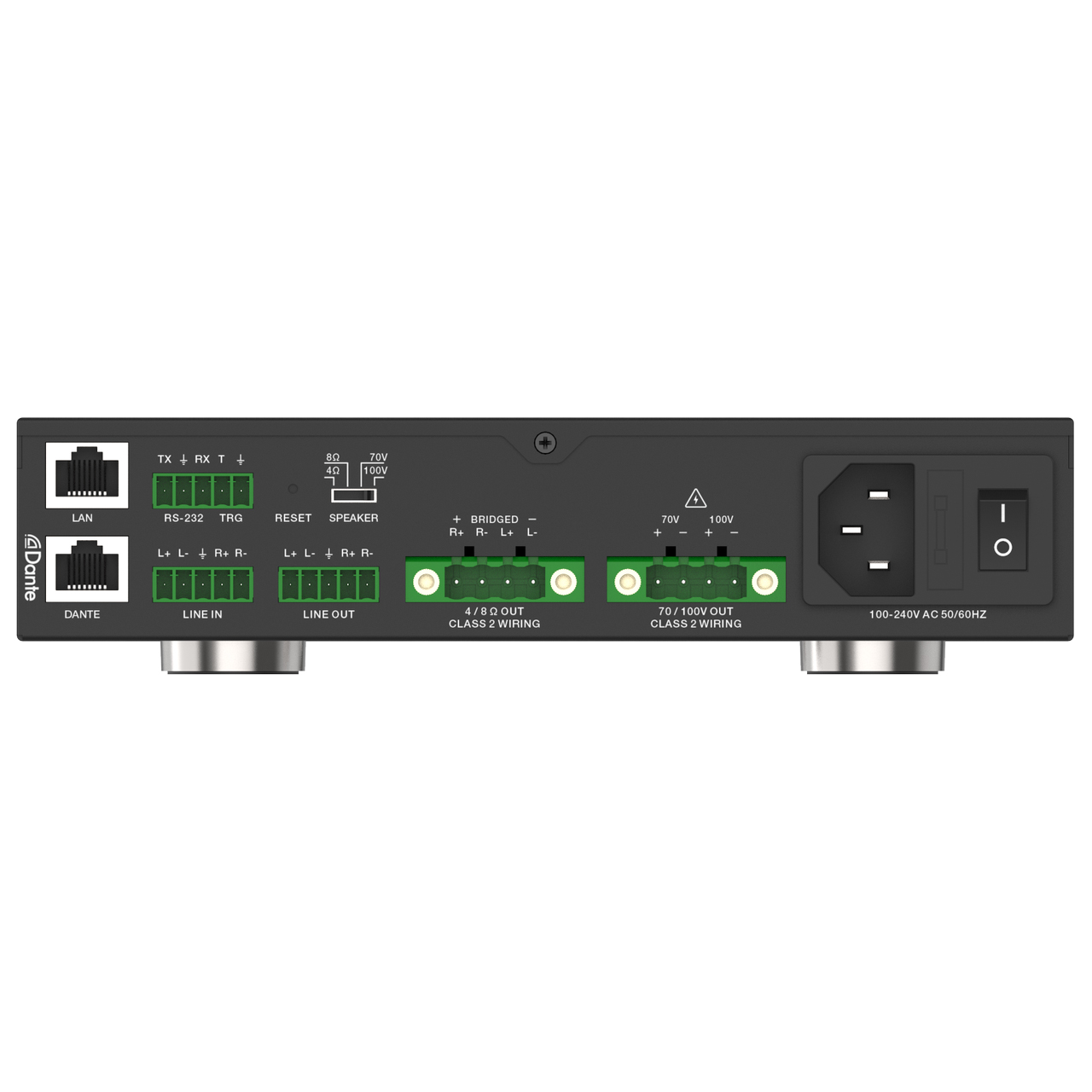

  Connections
- Inputs:
  - 1x LINE IN [5pin-3.81mm Phoenix Connector]
  - 1x DANTE [RJ45 connector]
- Outputs:
  - 1x LINE OUT [5pin-3.81mm Phoenix Connector]
  - 1x 4/8Ω AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm]
  - 1x 70V/100V AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm]
- Controls:
  - 1x RS-232/TRG [5pin-3.81mm phoenix connector] [TRG: 5-12V trigger input to turn on/off the amplifier]
  - 1x LAN [RJ45 connector]

  Mechanical
- Housing: Front panel: Aluminum; Rear case: Metal Enclosure
- Color: Black
- Dimensions: 8.27" x 9.45" x 1.73" (240mm x 210mm x 44mm)
- Weight: 5.5lbs (1.88kg)
- Power Supply: DC Input: AC 100V - 240V 50/60Hz
- Power Consumption: 240W (Max)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (No condensation)
Item Includes:
- 1x 150W Class D Amplifier
- 3x 5pin-3.81mm Phoenix Connector (male)
- 2x 4pin-5.08mm Phoenix Connector (male)
- 6x Mounting Ear
- 24x Machine Screw
- 1x AC (100-240V) Multinational Power Cord (1.5 meters)
- 1x User Manual
