VLDT-WP44AB - Overview

Introducing the VigilLink VLDT-WP44AB Dante 4x4 Wall Plate - an innovative solution that seamlessly integrates Bluetooth and analog audio with a digital Dante® networked audio system. This standard US Decora 2 Gang-sized wall plate offers versatile multi-input/output capabilities, featuring 2 channels of Bluetooth and 2 channels of unbalanced audio inputs, totaling 4 channels converted to Dante® digital audio. On the output side, it converts 4 channels of Dante® audio to 4 channels of unbalanced audio outputs. The flexibility extends further, allowing it to function as 4 channels of unbalanced audio inputs converted to Dante® digital audio, 4 channels of Dante® audio converted to 2 channels of Bluetooth outputs, and 2 channels of unbalanced audio outputs.

Control is at your fingertips with front panel buttons, API commands via TCP/IP, and a built-in web server/GUI for Bluetooth configuration and input/output control. The product's software configuration enables customization of Bluetooth names for multiuser deployments. Power options include PoE (Power over Ethernet) or a local 12V DC power supply supporting AES67 RTP audio transport. The VigilLink Dante 4x4 Wall Plate is the ultimate BYOD interface, enabling any Bluetooth device to stream audio to a Dante® audio system wirelessly.

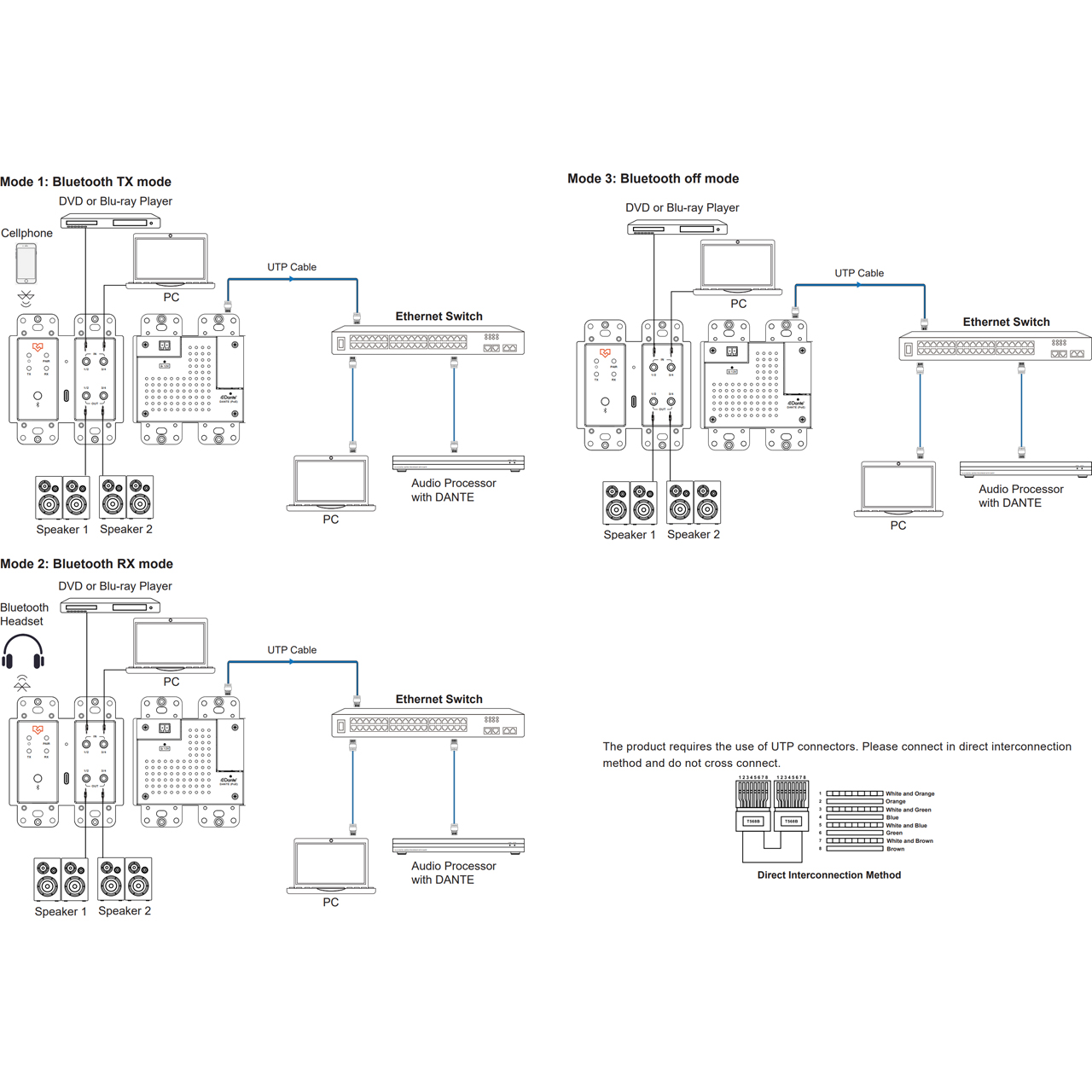

Please Note: The product requires the use of UTP connectors. Please connect in direct interconnection method and do not cross connect.

  • Features:

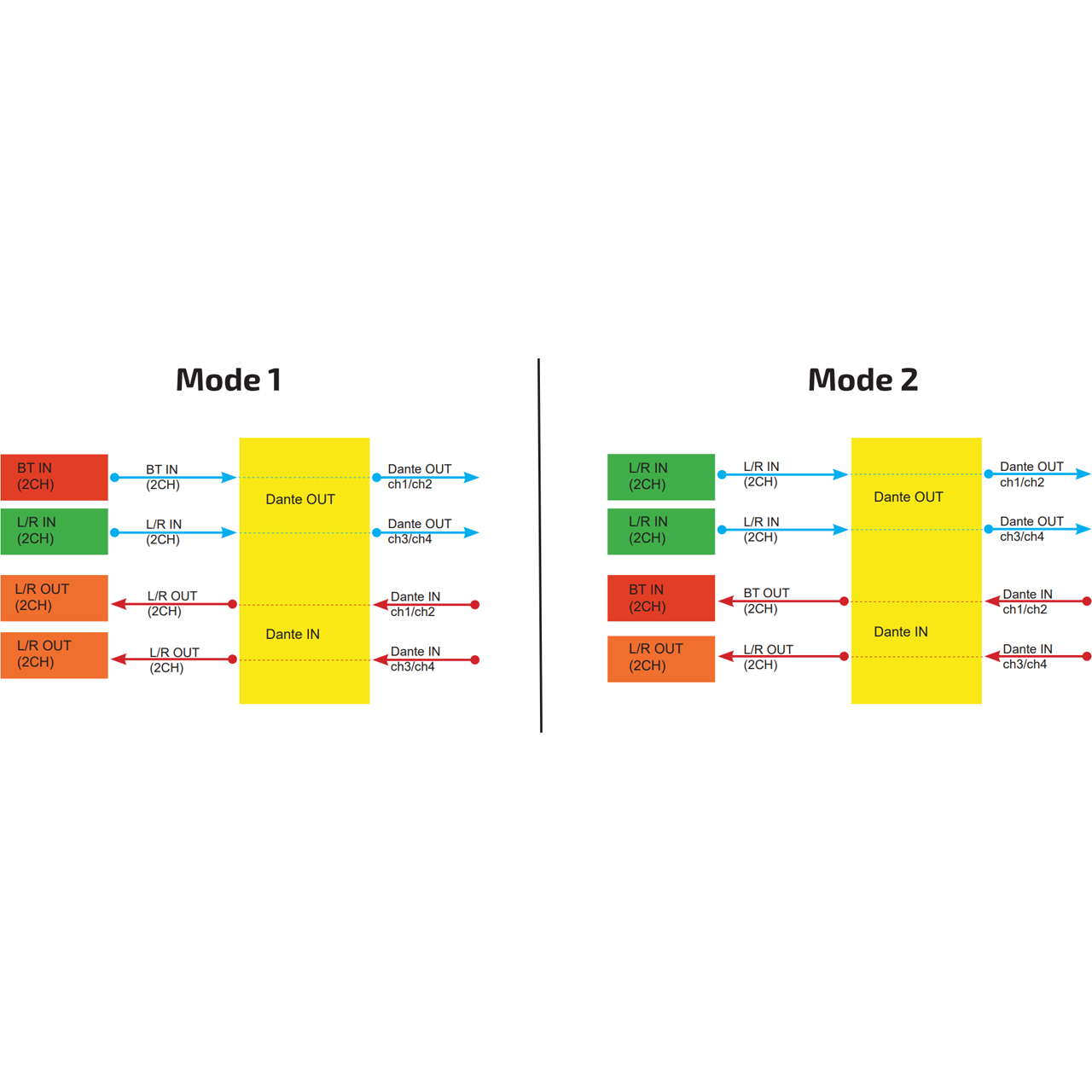

    • Dual Working Modes:
      - Mode 1: Transforms 2-channel Bluetooth and 2-channel un-balanced audio inputs to Dante® audio while providing 4-channel un-balanced audio outputs.
      - Mode 2: Converts 4-channel un-balanced audio inputs to Dante® audio, with 2-channel Bluetooth and 2-channel un-balanced audio outputs for added flexibility.
    • Configurable Bluetooth Naming: Easily discover the device thanks to customizable Bluetooth naming, ensuring effortless integration into your network.
    • Precise Control: Adjust input sensitivity from +10dBu to -10dBV via intuitive control software and fine-tune output gain within the range of +10dBu to -10dBV using the same software.
    • Audio Excellence: Supports Dante® at 44.1, 48, and 96kHz sample rates with options for 16, 24, or 32-bit audio depth. Configure Dante® device latency (choose between 1, 2, or 5ms) seamlessly using Dante® Controller. Enables AES67 RTP audio transport for versatile audio distribution.


  • Specifications:

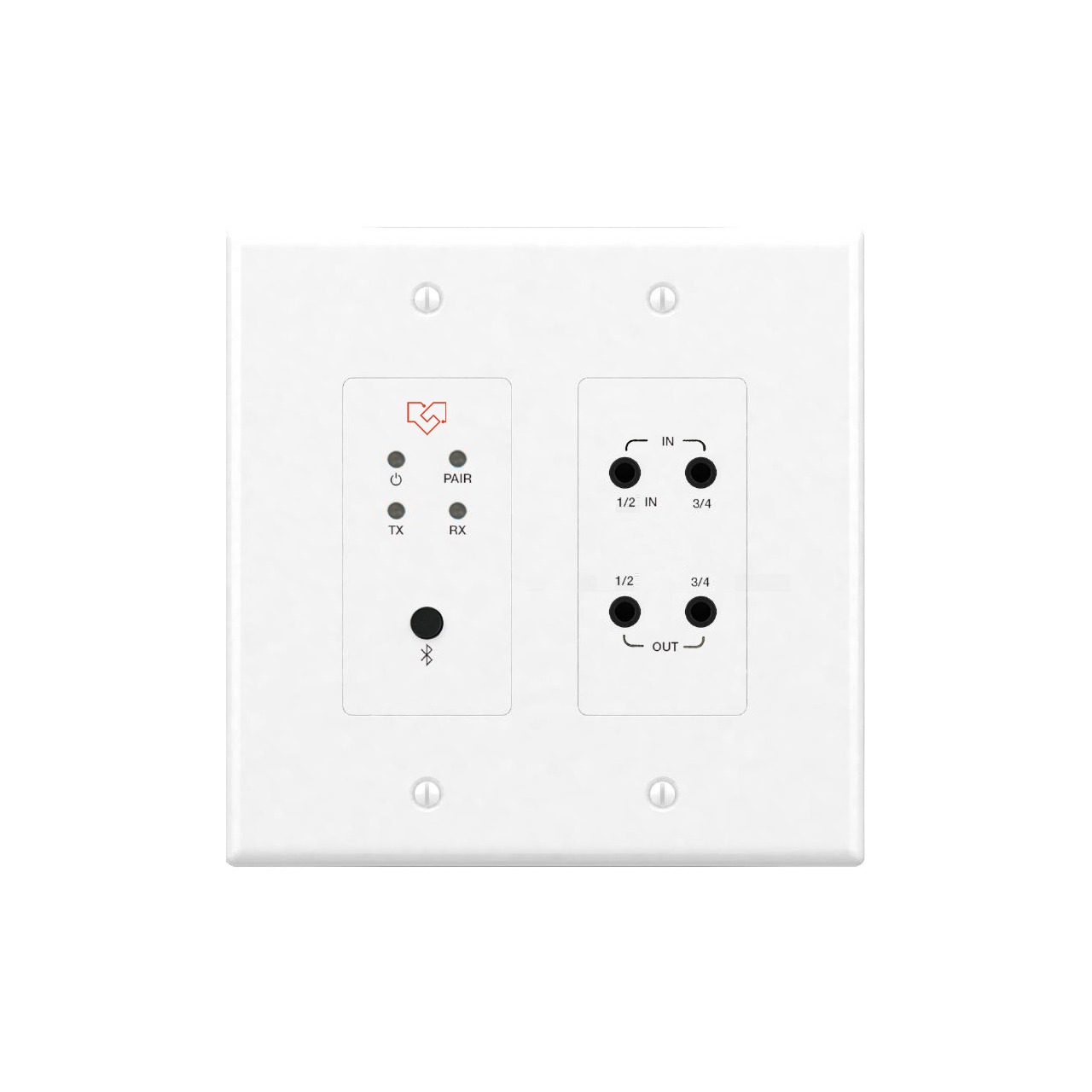

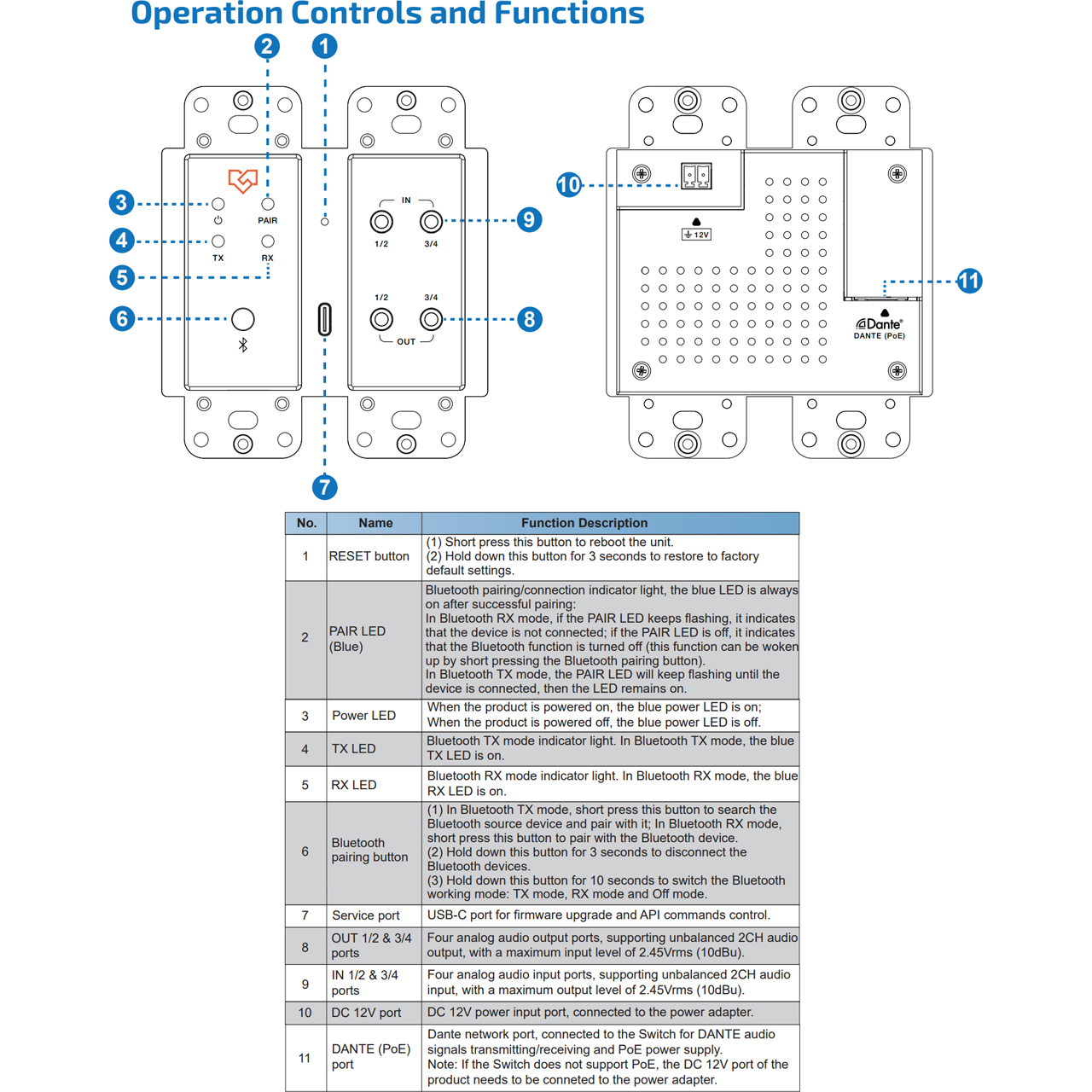

      Front Panel
    • 1x POWER LED [Blue with shielding case]
    • 1x PAIR LED [Blue with shielding case] [Bluetooth pairing/connection LED]
    • 1x TX LED [Blue with shielding case] [Bluetooth TX mode LED]
    • 1x RX LED [Blue with shielding case] [Bluetooth RX mode LED]
    • 1x PAIR [Button] [Press to activate Bluetooth Pairing mode]
    • 1x Bluetooth in/out [Digital Audio, Internal Antenna] [Bluetooth V5.0, SBC/MP3/AAC/APT-X /APTX-LL/APTX-HD, 44.1K-48KHz 16/24Bit]
    • 1x IN 3/4 [Analog Audio Input, 3.5mm Audio Jack] [LINE audio, Un-balanced 2CH, Max input level 10dBu]
    • 1x OUT 1/2 (IN 1/2) [Analog Audio Output/Input, 3.5mm Audio Jack] [LINE audio, Un-balanced 2CH, Max output/input level 10dBu]
    • 1x OUT 1/2 (IN 1/2) LED [Analog Audio Output/Input LED]
    • 1x OUT 3/4 [Analog Audio Output, 3.5mm Audio Jack] [LINE audio, Un-balanced 2CH, Max output level 10dBu]

      Connections
    • Audio Port Inputs:
      - 1x Bluetooth IN (Wireless)
      - 2x L/R IN (3.5mm)
      - 1x DANTE IN (RJ45)
    • Audio Format Inputs:
      - Bluetooth V5.0: SBC/MP3/AAC/APT-X /APTX-LL/APTX-HD, 44.1K-48KHz 16/24Bit
      - L/R: Analog audio, Max input level 10dBu
      - DANTE: LPCM 2 channels, 24 bits @ 44.1-96 kHz / channel
    • Audio Port Outputs:
      - 1x Bluetooth OUT (Wireless)
      - 2x L/R OUT (3.5mm)
      - 1x DANTE OUT (RJ45)
    • Audio Format Outputs:
      - Bluetooth V5.0: SBC/MP3/AAC/APT-X /APTX-LL/APTX-HD, 44.1K-48KHz 16/24Bit
      - L/R: Analog audio, Max output level 10dBu
      - DANTE: LPCM 2 channels, 24 bits @ 44.1-96 kHz / channel

      Control
    • Control Method: Button, TCP/IP, Web GUI

      Mechanical
    • Housing: Plastic (front panel and cover), Iron (rear enclosure)
    • Color: White
    • Operating Temperature: 32°F - 113°F (0°C - 45°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 70°C)
    • Operating Humidity: 10% - 90%, non-condensing
    • Storage Humidity: 10% - 90%, non-condensing

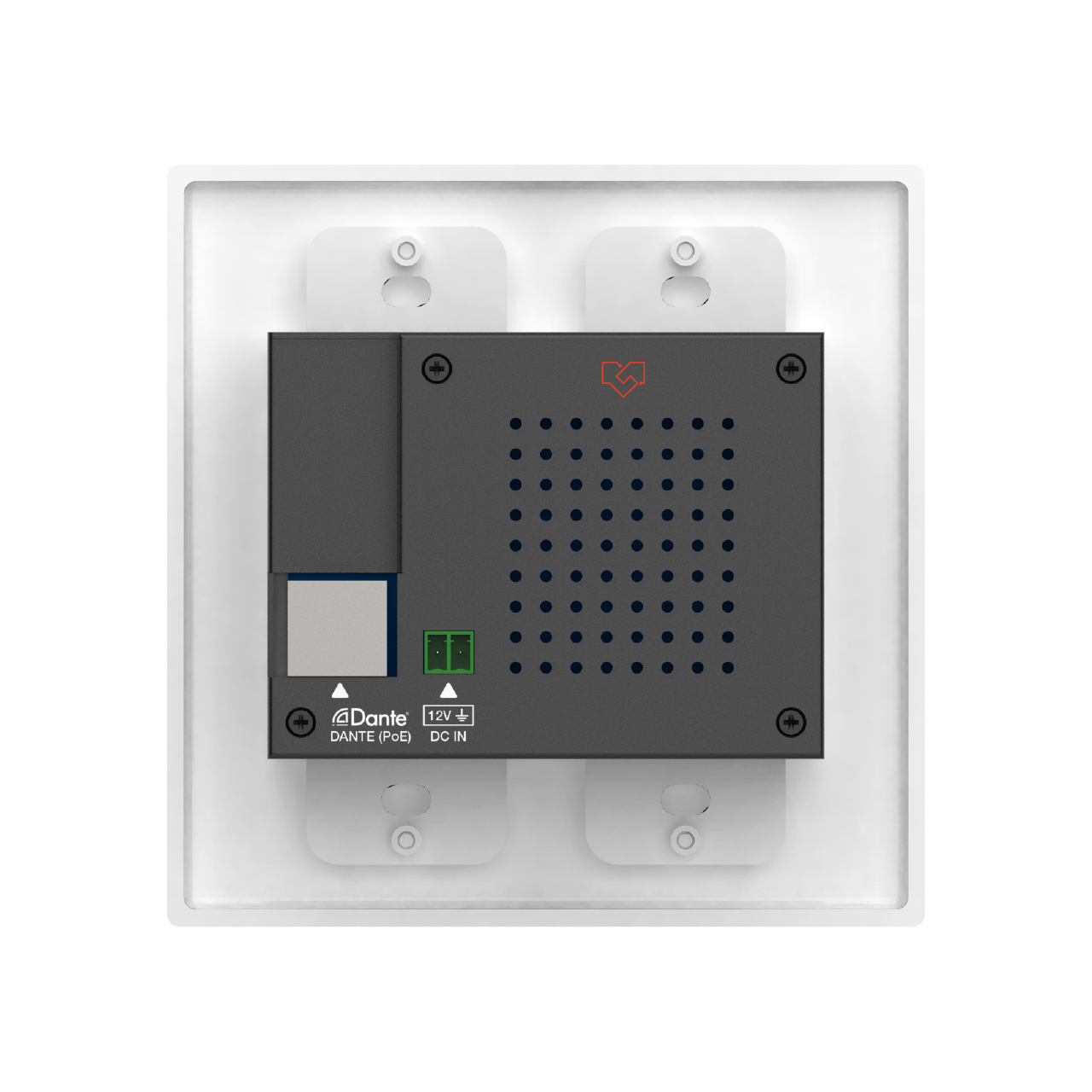

    • Power: PoE Class 0 IEEE 802.3a) or local 12VDC/0.5A
    • Power Consumption (Maximum): TBD
    • ESD Protection: Human body model: ±8 kV (air-gap discharge), ±4 kV (contact discharge)
    • Surge Protection: Voltage: ±1 kV
    • Dimensions: 4.13" x 1.69" x 3.61" (91.8mm x 43mm x 105mm)
    • Weight: 1.1lbs (230g)
    • Certification: CE, RoHS compliant


  • Item Includes:

    • 1x Dante 4x4 Wall Plate
    • 1x Faceplate
    • 1x 2pin-3.5mm Phoenix Connector (male)
    • 4x American Standard Slotted Semi-countersunk Head Screws 6#-32
    • 4x American 6#-32 screws
    • 1x User Manual
