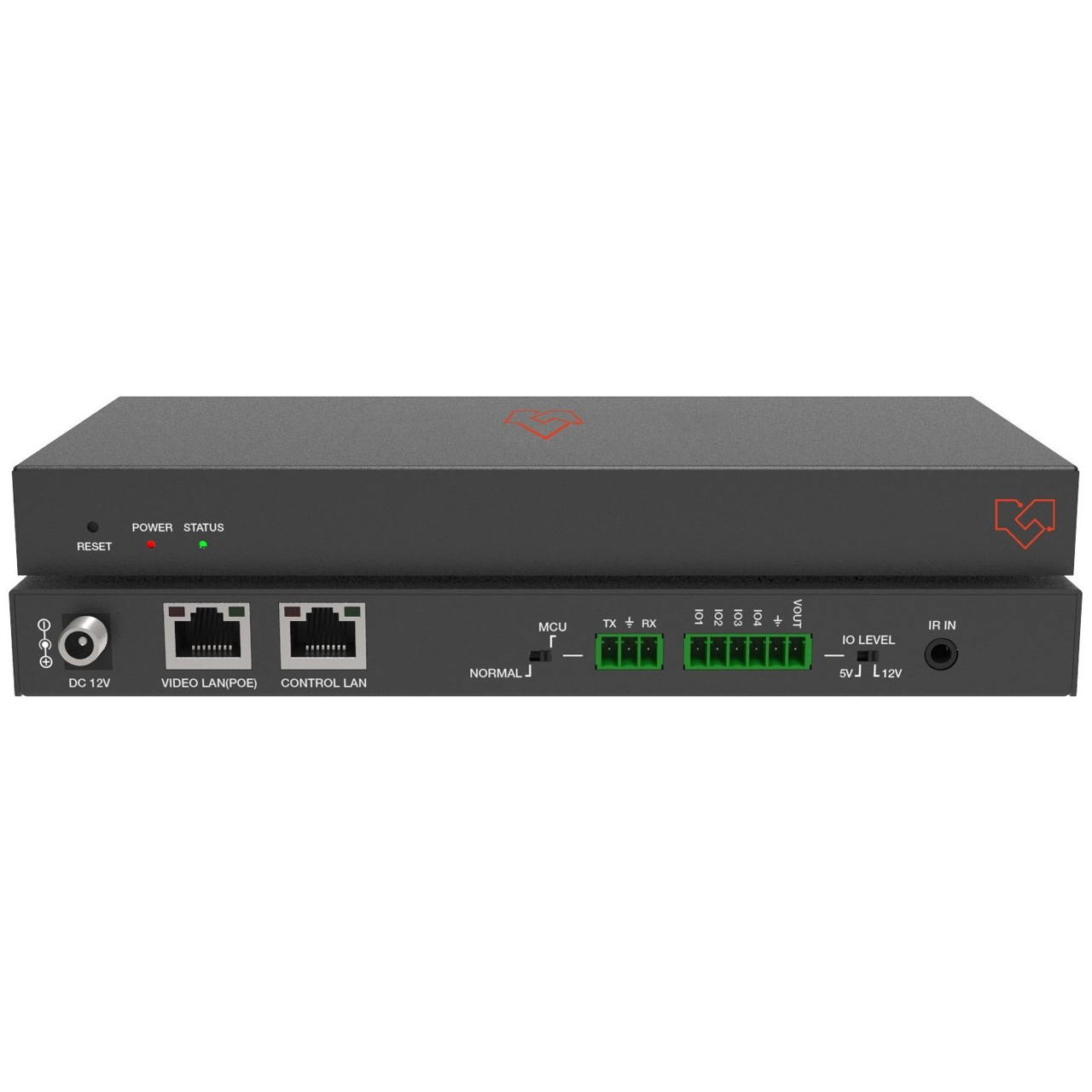

VigilLink VLIP-JP1G-CTRL AV over IP Controller for JPEG 2000 - Supports Dual 100m Network Ports

Name: VigilLink VLIP-JP1G-CTRL AV over IP Controller for JPEG 2000 - Supports Dual 100m Network Ports
Brand: VigilLink
SKU: VGL-VLIPJP1GCTRL
Price: 500.00 USD
Availability: PreSale

ITEM #: VGL-VLIPJP1GCTRL MFG #: VLIP-JP1G-CTRL

VigilLink

Our Price:

$500.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLIP-JP1G-CTRL - Overview

The VigilLink VLIP-JP1G-CTRL Video over IP Controller controls and manages JPEG2000 IP products. It supports dual 100M network ports, which can realize dual-network isolation of the Control network and Multicast video distribution network. Built-in Web GUI, TCP, and RS-232 control are supported. It supports POE function and wide band 12V IR signal receiving. This IP Controller has the flexibility to be widely applied to the growing need for IP products in today's digital world, commonly used in more and more different scenarios.

Features:
- Easy to create projects and control the system
- IP Configurations Flexibility - supports three types: Auto, DHCP, and Manual
- Security compatibility - HTTPS, SSH, SFTP
- Built-in web GUI control interface. Simple Drag & Drop operations
- Toggle on/off - User Image preview module
- Supports video, audio, RS-232, IR, and KVM control. Access to management of the distributed system
- Isolate controls and multicast networks with dual network ports (VIDEO LAN port supports POE function)
- Supports third-party central control with LAN/RS-232 port control
- Supports IR signal receiving (3.5mm audio jack, 12V level)
- 4 channel GPIO control ports (5V/12V optional level)
- Multiple circuits protection, plus lightning protection, and ESD design
- Reliable system design, ensuring 24/7 usage for vital work
Specifications:
- Network Bandwidth: 100M
- Transmission Distance: 100m CAT 5E/6/6A/7
- Control Ports:
  - 2x 100M LAN [RJ45 connector] [VIDEO LAN support POE]
  - 1x IR IN [3.5mm audio jack, 12V level]
  - 1x DIGITAL I/O [6-pin 3.81mm phoenix connector]
  - 1x RS-232 [3-pin 3.81mm phoenix connector]
- Dimensions (WxDxH): 8.03 In x 3.86 In x .83 In (204mm x 98mm x 21mm)
- Housing: Metal Enclosure
- Color: Black
- Weight: 1.12 lbs (509g)
- Power Supply: 12V/1A
- Power Consumption: 4.5W
- Operating Temperature: 32 °F ~ 104 °F / 0 °C ~ 40 °C
- Storage Temperature: -4 °F ~ 140 °F / -20 °C ~ 60 °C
- Relative Humidity: 20~90% RH (No condensation)
Item Includes:
- 1x Video over IP Controller
- 1x 20kHz-60kHz 12V IR Receiver Cable (1.5 meters)
- 1x 3-pin 3.81mm Phoenix Connector (Male)
- 1x 6-pin 3.81mm Phoenix Connector (Male)
- 2x Mounting Ears
- 4x Machine Screws (KM3*6)
- 1x 12V/1A Locking Power Adaptor
Warranty:
- 6 Year Warranty
