VigilLink VLIP-JP4K6K-EC JPEG2000 4K60 over IP 1Gb Encoder with Video Wall Processing - KVM/IR/RS-232 Supported

Name: VigilLink VLIP-JP4K6K-EC JPEG2000 4K60 over IP 1Gb Encoder with Video Wall Processing - KVM/IR/RS-232 Supported
Brand: VigilLink
SKU: VGL-VLIPJP4K6KEC
Price: 1260.00 USD
Availability: PreSale

ITEM #: VGL-VLIPJP4K6KEC MFG #: VLIP-JP4K6K-EC

VigilLink

Our Price:

$1,260.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLIP-JP4K6K-EC - Overview

The VigilLink VLIP-JP4K6K-EC is based on JPEG2000 technology. It integrates the Copper port and Fiber port within a single box. Encoder input supports up to 4K60 4:4:4, audio embedding, or extracting. Decoder output supports up to 4K60 4:4:4 audio extracting. The VLIP-JP4K6K-EC supports ARC/eARC/SPDIF/Analog audio return function, USB2.0/KVM/Camera, 1G Ethernet, bidirectional RS-232, two-way IR, and PO function. Guest mode controls of RS-232, IR, and CEC are supported. Built-in two two-channel ports and two-channel I/O ports for contact control.

It features a built-in MJPEG Substream, which supports plenty of API commands to achieve flexible configurations.

The system is based on Linux for software development and provides flexible control methods based on the intelligent networking of a 1G Ethernet Switch.

Features:
- HDMI 2.0b, HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Input and output video resolution is up to 4K60 4:4:4
- Signal transmission distance can be extended up to 328ft / 100m via CAT5E/6/6A/7 cable
- Transmit video, analog/digital audio, IR , RS-232, CEC and USB over Ethernet
- Integrate Copper port and Fiber port within a single box
- ARC/eARC/SPDIF/Analog audio return function
- Channel configuration via front panel buttons and LED screen
- Built-in two channel RELAY ports and two channel I/O ports for contact control
- Support unicast and multicast functions

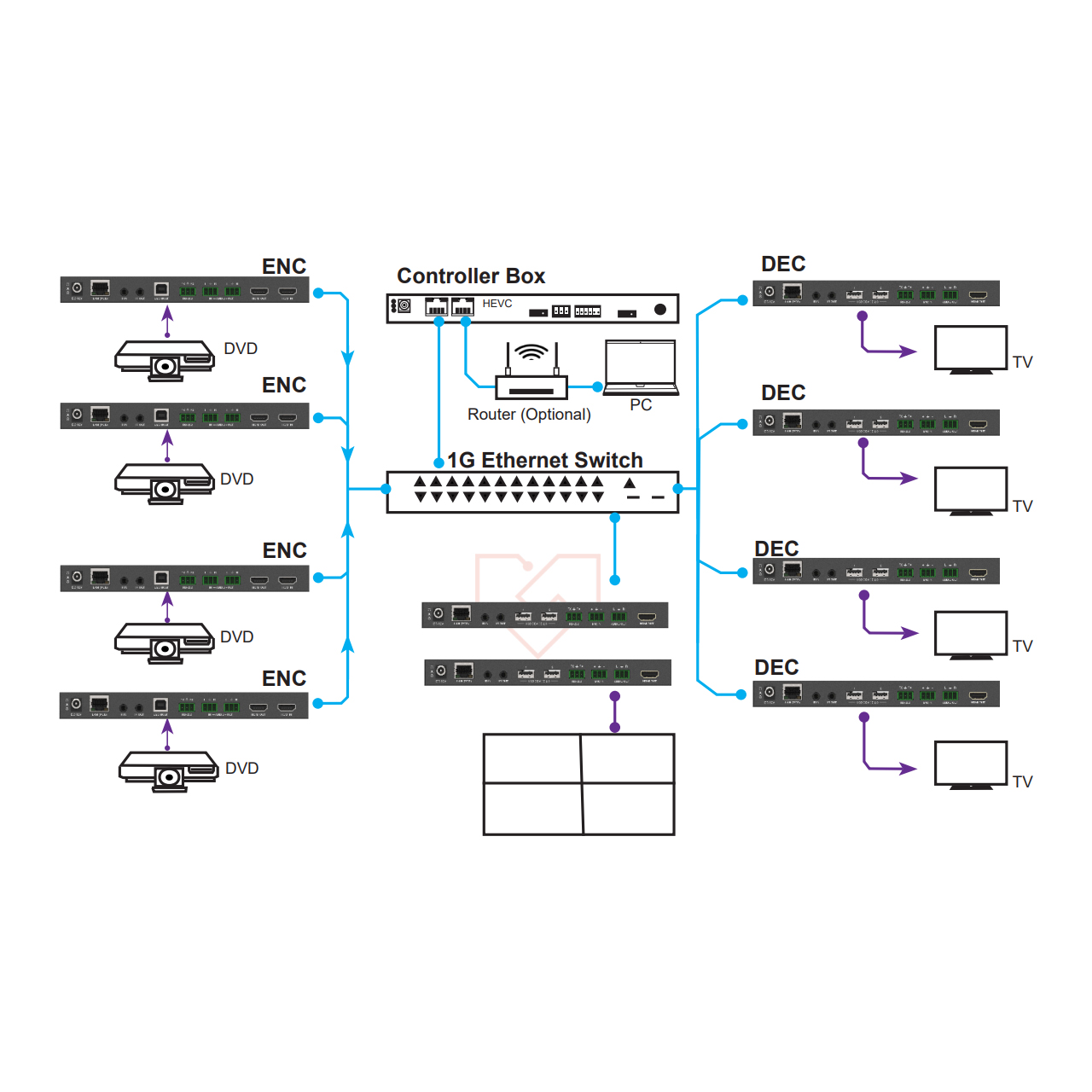

- Support point-to-point, video matrix and video wall functions (video wall supports up to 9x9)
- Intelligent video wall class management
- Support MJPEG Substream real-time preview
- 1G Ethernet Switch
- Support POE function
- Built-in web page configuration and control, Telnet and SSH as well
- HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby
- True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
- Smart networking design for easy and flexible installation
Specifications:
- Technical
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2
- Video Bandwidth: 18Gbps
- Video Compression Standard: JPEG2000
- Video Network Bandwidth: 1G
- Video Resolution: Up to 4K@60Hz 4:4:4
- Color Depth:
  - Input: 8/10/12-bit
  - Output: 8-bit
- Color Space: RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
- HDMI Audio Formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
- Transmission Distance: 100M CAT5E/6/6A/7
- IR Level: Default 12V, optional 5V
- IR Frequency: Wideband 20K - 60KHZ
- ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

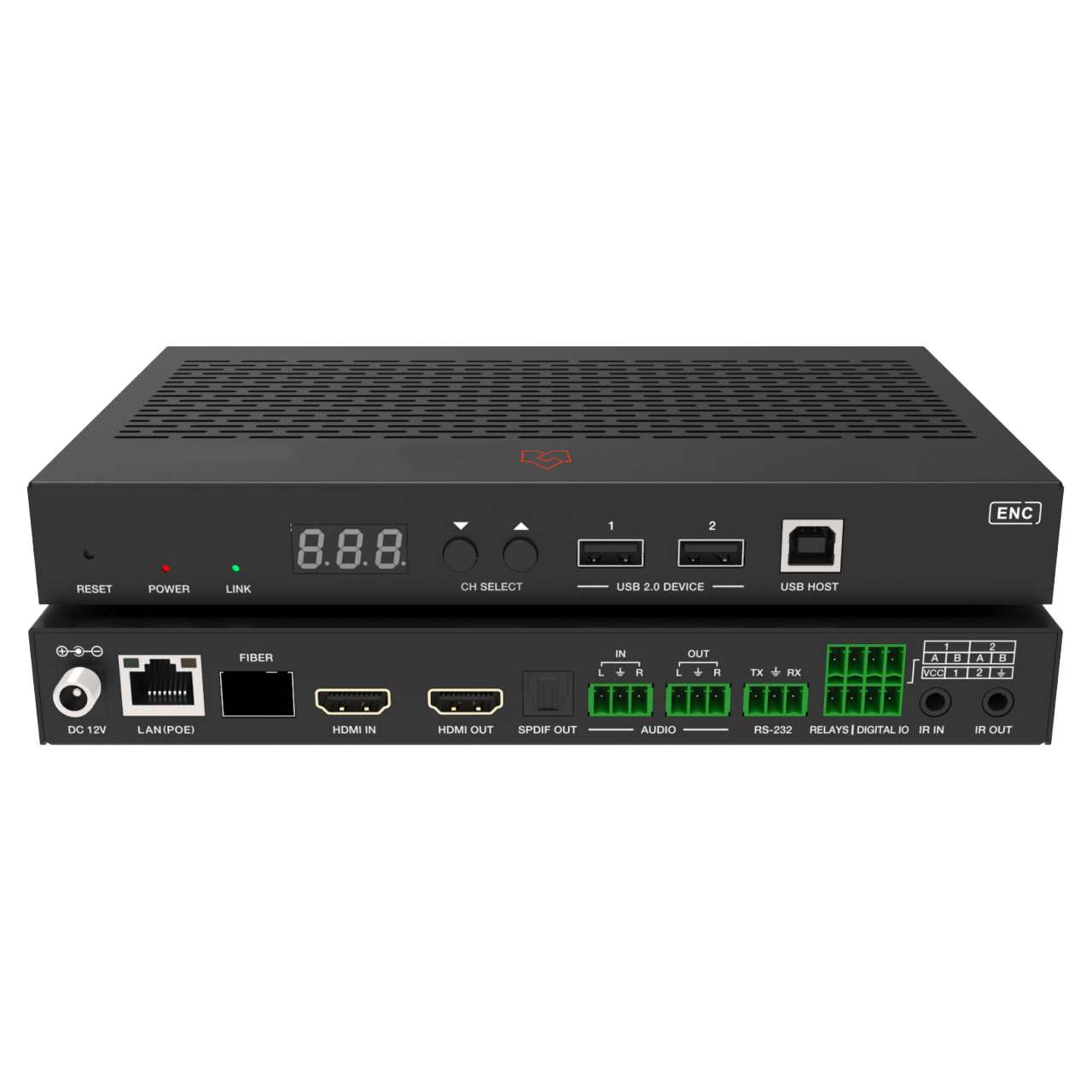

  Connection
- Input:
  - 1x HDMI IN (Type A, 19-pin male)
  - 1x L/R AUDIO IN (3-pin 3.81mm Phoenix connector)
- Output:
  - 1x HDMI OUT (Type A, 19-pin female)
  - 1x L/R AUDIO OUT (3-pin 3.81mm Phoenix connector)
  - 1x SPDIF OUT (Optical audio connector)
- Control:
  - 1x RS-232 (3-pin 3.81mm Phoenix connector)
  - 1x LAN (POE) (RJ45 jack)
  - 1x FIBER (Optical fiber slot)
  - 1x USB 2.0 HOST (Type B, 4-pin female)
  - 2x USB 2.0 DEVICE (Type-A, 4pin female)
  - 2x RELAYS (3.81mm Phoenix connector)
  - 2x DIGITAL IO (3.81mm Phoenix connector)
  - 2x DIGITAL IO (3.81mm Phoenix connector)
  - 1x IR IN (3.5mm Audio Jack)
  - 1x IR OUT (3.5mm Audio Jack)

  Mechanical
- Housing: Metal enclosure
- Color: Black
- Dimensions: 8.03 In (204mm) W x 5.35 In (136mm) D x 1 In (25.5mm) H
- Weight: 1.39lbs (631g)
- Power Supply:
  - Input: AC100 - 240V 50/60Hz,
  - Output: DC 12V/1A
  (US/EU standards, CE/FCC/UL certified)
- Power Consumption: 8.52W (Max.)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20 - 90% RH (No condensation)
Item Includes:
- 1x 4K60 over IP 1GbE Encoder
- 1x IR Receiver cable (1.5 meters)
- 1x IR Blaster cable (1.5 meters)
- 3x 3-pin 3.81mm Phoenix connector
- 2x 4-pin 3.81mm Phoenix connector
- 1x 12V/2.5A Locking Power adapter
- 2x Mounting ear
- 4x Machine screw (KM3*4)
- 1x User Manual
Warranty:
- 6 Year Warranty
