VITEC 17928 MGW Diamond-H1 OG - HDMI / DVI - 2x HD or 1x4K Channel Encoder

Name: VITEC 17928 MGW Diamond-H1 OG - HDMI / DVI - 2x HD or 1x4K Channel Encoder
Brand: VITEC Inc.
SKU: VIT-MGW-DMDH1OG
Price: 8600.00 USD
Availability: PreSale

ITEM #: VIT-MGW-DMDH1OG MFG #: 17928

VITEC Inc.

Our Price:

$8,600.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

17928 - Overview

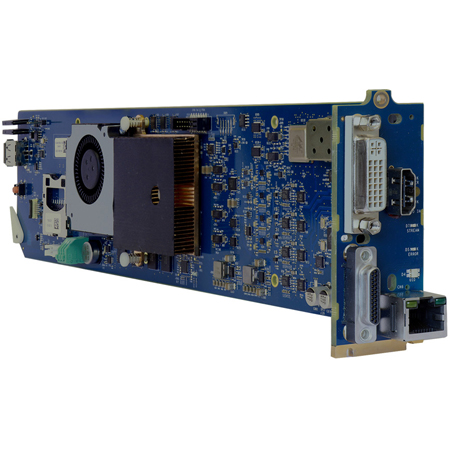

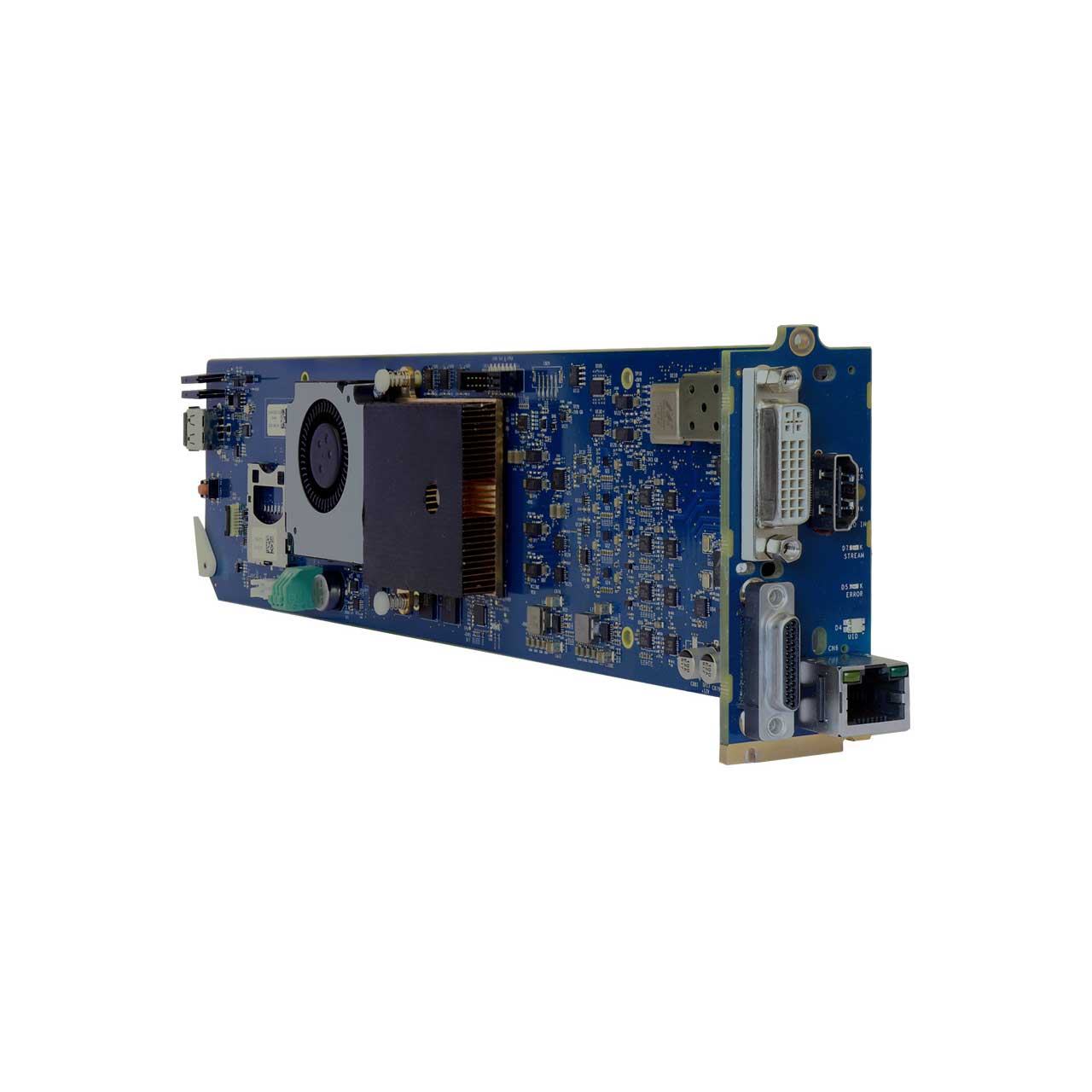

VITEC 17928 MGW Diamond-H1 OG is an openGear 4K HEVC video encoder card that is ideal for IPTV distribution or Direct-to-Web applications. It features a powerful encoding engine with the ability to deliver up to four streams simultaneously. MGW Diamond-H1 OG is available as an openGear card for easy integration with production studios, broadcast facilities or enterprise server room environments.

MGW Diamond-H1 OG captures up to 2x 4K/UHD/HD/SD sources from HDMI, DVI-I or RGBHV inputs and streams up to 4 live channels, addressing diverse applications in enterprise, broadcast,and sports markets. With support for Ultra High Definition (UHD) and High Dynamic Range (Roadmap), MGW Diamond-H1 OG delivers exceptional 4K60p picture quality taking advantage of a richer color gamut than other standard HD/4K encoders.

Ready for Direct-to-Web applications, MGW Diamond-Hx OG can capture HDMI feeds and publish to Content Delivery Network servers (CDN such as YouTube™, Akamai™, Facebook™) for large scale distribution. Featuring advanced transport protocol protection with Zixi, SRT, RIST and Pro-MPEG, as well as AES encryption, video feeds can be reliably and securely delivered over the internet for broadcast quality contribution.

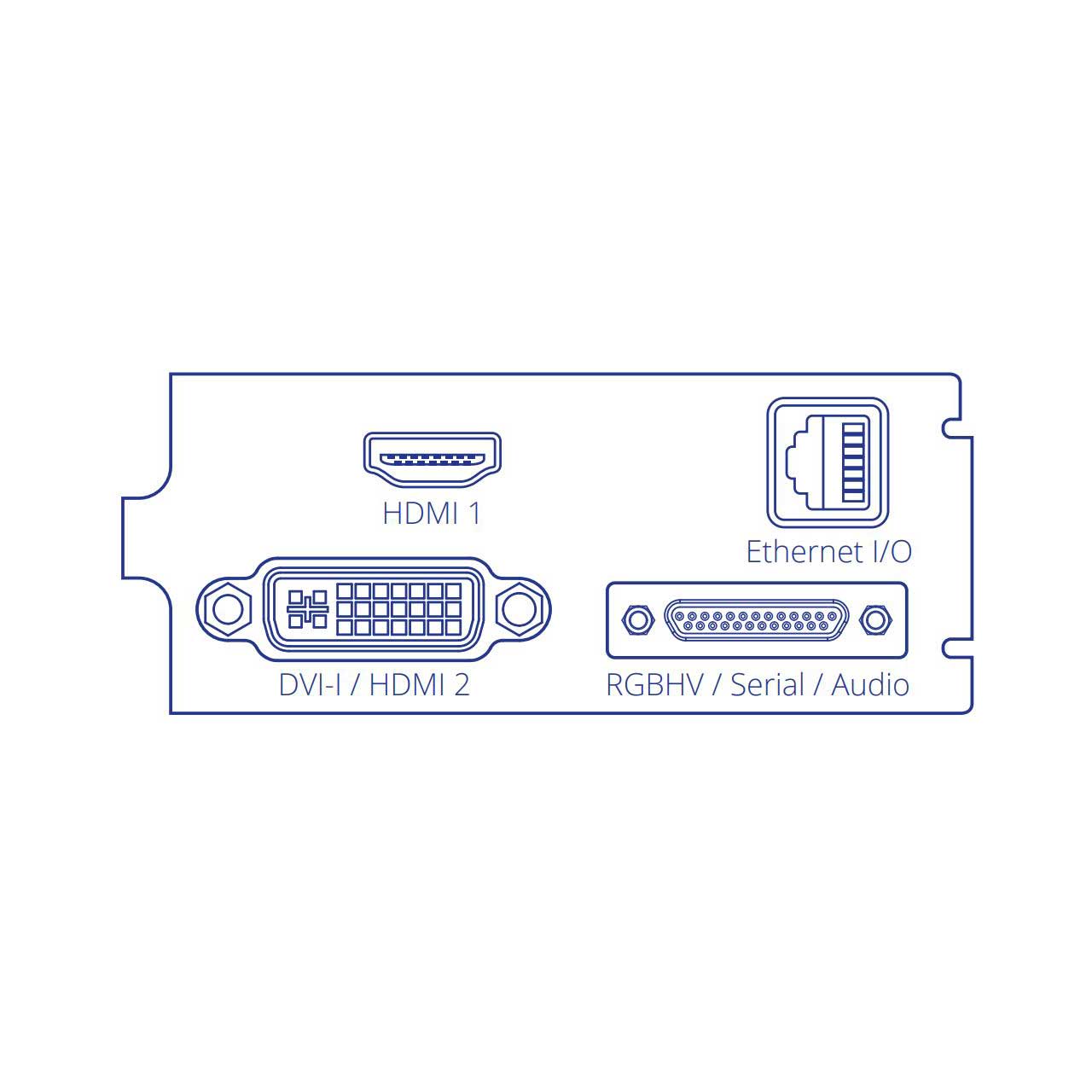

MGW Diamond-H1 OG captures video from 1 x HDMI and 1 x DVI or RGBHV inputs.

Features:
- Low latency streaming from 2x HDMI, DVI-I or RGBHV sources simultaneously
- Ultra High Definition (4K)
- Encoder available as 2 x HDMI inputs or 1 x HDMI and 1 x DVI/RGBHV inputs
- Up to 4 output streams
- Next generation HEVC(H.265) compression support to reduce network bandwidth utilization by up to 50% compared to H.264
- Stream protection for reliable video/audio and metadata transmission (Zixi, SRT, RIST and Pro-MPEG)

  Applications
- Multi-site and Multi-channel IP Video contribution
- IPTV Distribution from analog/digital video sources
- Direct-to-Web from HDMI sources
- Streaming video to desktop/laptop, TV and mobile devices over bandwidth-constrained pipes
- Distribution of TV content / PC screen on an organizational network
Specifications:
- Video Inputs
- SDI / Composite Inputs (HD-BNC)
- Supported standards: 12G-SDI (SMPTE 2082-1), 4x3G-SDI (SMPTE 425-5 Level A / Two-Sample Interleave)
- 3G/HD/SD-SDI: (SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, 425M Level A only)
- Analog Composite / RS-170 (NTSC, PAL, PAL-M)
- Quad channel mode in 3G-SDI, HD-SDI, SD-SDI and Composite

  Input Resolutions / Frame Rates
- 4096x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (4K DCI)
- 3840x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (UHD)
- 2048x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
- 1920x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
- 1920x1080i @ 60, 59.94, 50 Hz
- 1280x720p @ 60, 59.94, 50, 30, 29.97, 25 Hz
- 720x480/576i @ 60, 59.94, 50 Hz (NTSC, PAL, PAL-M)

  Audio Inputs
- SDI Embedded audio (stereo and mono)
- 4x Analog unbalanced audio (Stereo and Mono)

  Audio Output
- Up to x32 audio encoding channels
- Codec: MPEG-4 AAC-LC (ISO/IEC 14496-3)
- Stereo and Mono modes
- Bit Rate: 32Kbps - 256Kbps in Stereo, 16Kbps - 128Kbps in Mono
- Sampling Rate: 16 kHz - 48 kHz

  Ancillary Data Support
- Timecode (SMPTE12M-2)
- Closed captions: CEA-708 / CEA-608, Transport: ANSI/SCTE 128, ATSC A/72
- [CC in HEVC user data]
- High Dynamic Range (HDR) : HDR10 (SMPTE ST 2084/ITU-R BT.2100), HLG (ITU-R BT.2100) from SDI (SMPTE ST 2108)

  Network Protocols
- UDP TS: MPEG Transport Stream over UDP
- RTP TS: MPEG Transport Stream over RTP
- RTP ES (RTSP): Elementary stream over RTP
- Zixi™ Stream protection: Zixi™ P2P and Broadcaster modes, Zixi™ ABR streaming (Adaptive Bitrate), Zixi™ Low latency
- RTP TS with ProMPEG Forward Error Correction (SMPTE 2022)
- SRT (Caller, Listener and RendezVous)
- RIST Main and Simple profile
- RTMP & RTMPS (H.264)
- Unicast and Multicast (IGMPv3) streaming
- HTTPS, NTP, SSH, SAP

  Network Interfaces
- 1x Gigabit Ethernet ports for streaming and/or management (10/100/1000 Base-T, Auto Detect, Half/Full Duplex)
- 1x SFP port for Gigabit Ethernet over RJ45 or Fiber
- DHCP / Static IP address, IPv4 and IPv6 support

  Environmental / Regulation
- Operating Temperatures: -4° F to +131°F (-20° to +55°C)
- Relative Humidity: 5% to 95% (non-condensing)
- EMC Standards: FCC part 15 / ICES-003 Class A and CE
- Power: 12VDC, 14W (Typical), 17W (Max)
- TAA Compliant

  Physical
- Compatible with OGX and OG3 openGear frames
- Full Rear I/O Module (2 slots) for up to 10 cards within a 2RU openGear chassis
Item Includes:
- 1x 17928 MGW Diamond-H1 OG - HDMI / DVI - 2x HD or 1x4K Channel Encoder (Main and Rear I/O openGear modules)
