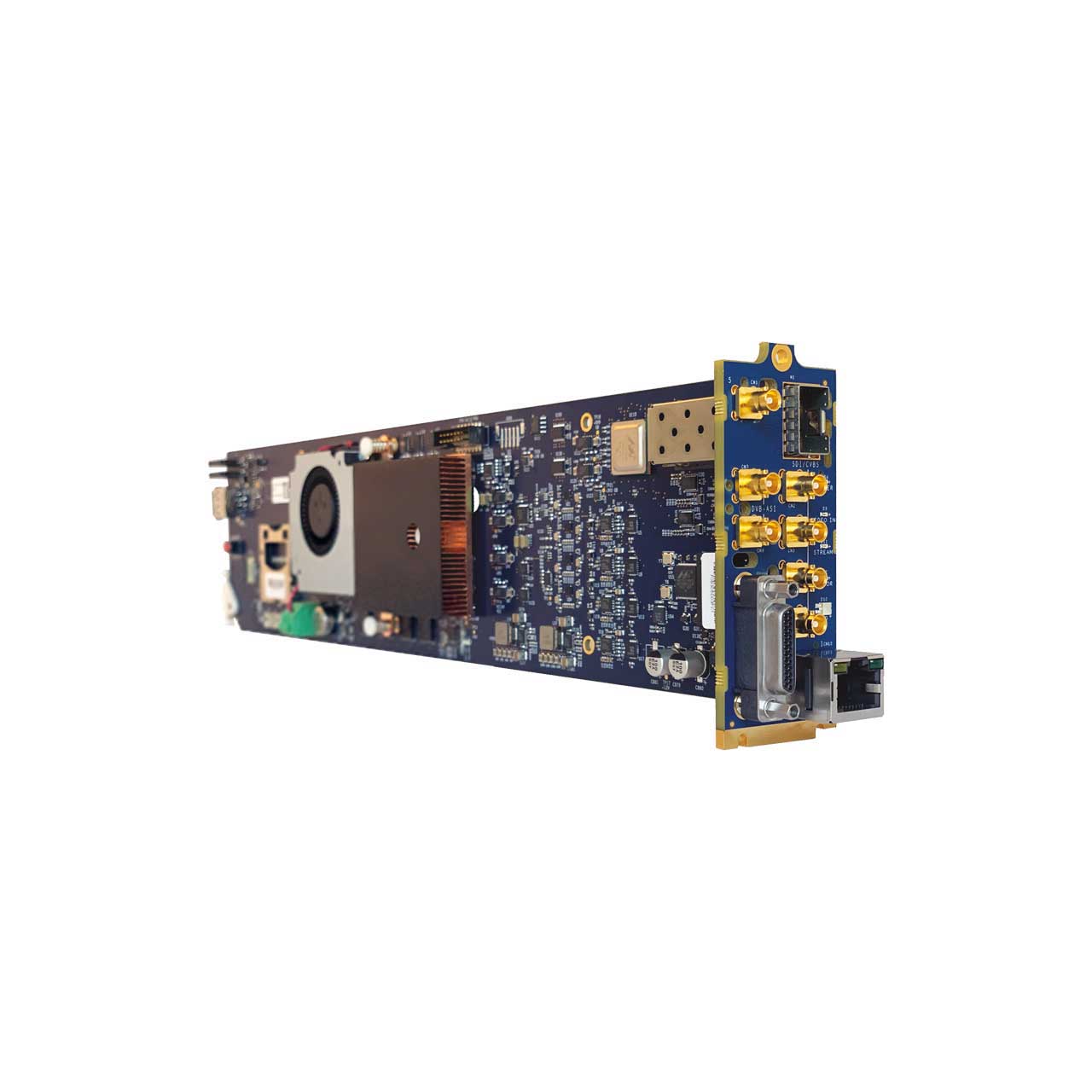

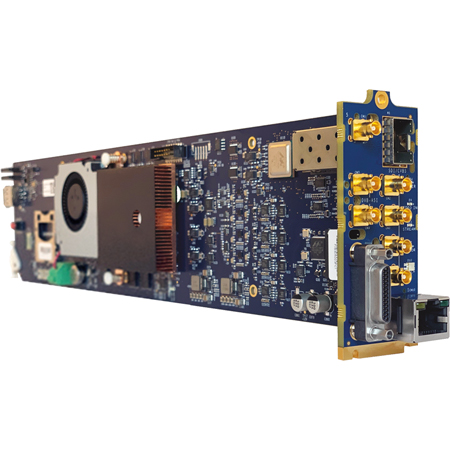

VITEC 17643 MGW Diamond OG - 4x HD or 1x4K Channel - HEVC/H.264 Encoder

17643 - Overview

• Features:

  • Low latency streaming from 4x SDI/Composite sources simultaneously
  • Support for Ultra High Definition (4K) and High Definition Range (HDR)
  • Up to 8x output streams
  • HEVC (H.265) compression support to reduce network bandwidth utilization by up to 50% compared to H.264
  • Stream protection for reliable video/audio and metadata transmission (Zixi, SRT, RIST and Pro-MPEG)

    Applications
  • Multi-site and/or Multi-channel IP Video contribution
  • Dense IPTV distribution with up to x40 HD or x10 4K channels a 2RU (openGear card)
  • Remote contribution
  • Streaming Intelligence, Surveillance and
  • Reconnaissance (ISR) video feeds from ground
  • and airborne vehicles over RF or satellite link (portable appliance)
  • Streaming video to desktop/laptop,
  • TV and mobile devices over
  • bandwidth-constrained pipes


• Specifications:

  • Video Inputs
  • SDI / Composite Inputs (HD-BNC)
  • Supported standards: 12G-SDI (SMPTE 2082-1), 4x3G-SDI (SMPTE 425-5 Level A / Two-Sample Interleave), 3G/HD/SD-SDI (SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, 425M Level A only)
  • Analog Composite / RS-170 (NTSC, PAL, PAL-M)
  • Quad channel mode in 3G-SDI, HD-SDI, SD-SDI and Composite

    Video Output
  • Simultaneous HEVC and H.264 IP Video encoding of 4x independent channels (up to 1080p60 per channel)
  • Up to 8 output streams with independent resolution (downscaling), frame rate and bitrate
  • Up to 1x 4K60p output stream

    Audio Inputs
  • SDI Embedded audio (stereo and mono)
  • 4x Analog unbalanced audio (Stereo and Mono)

    Audio Output
  • Up to x32 audio encoding channels
  • Codec: MPEG-4 AAC-LC (ISO/IEC 14496-3)
  • Stereo and Mono modes
  • Bit Rate: 32Kbps - 256Kbps in Stereo, 16Kbps - 128Kbps in Mono
  • Sampling Rate: 16 kHz - 48 kHz

    Input Resolutions / Frame Rates
  • 4096x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (4K DCI)
  • 3840x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (UHD)
  • 2048x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
  • 1920x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
  • 1920x1080i @ 60, 59.94, 50 Hz
  • 1280x720p @ 60, 59.94, 50, 30, 29.97, 25 Hz
  • 720x480/576i @ 60, 59.94, 50 Hz (NTSC, PAL, PAL-M)

    HEVC (H.265) MPEG-H HEVC (ISO/IEC 23008-2)
  • Main / Main 10 and Main 4:2:2 - up to 4:2:2 10-bits
  • Level up to Level 5.2, Main and High Tier
  • Selectable GOP structure and size: I, IP, IBP, IBBP, I(3)BP, I(4)BP
  • Bit Rate: 36Kbps to 80Mbps
  • Frame Rate: 1-60 fps.
  • Configurable frame rate from 60 down to 1fps.
  • Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)
  • Output Resolutions:
  • Configurable from CIF up to 3840x2160p60
  • Encoding latency less than 55ms

    H.264 (MPEG-4 AVC Part 10) - ISO\IEC 14496-10 MPEG-4 AVC - Rec. ITU-T H.264
  • Modes: Baseline Profile L3, Main Profile L3 and L4, High Profile L4 and L4.2
  • Bit Rate: 64Kbps to 80Mbps
  • Selectable GOP structure and size: I, IP, IBP, IBBP, I(3)BP, I(4)BP
  • Frame Rate: 1-60 fps.
  • Configurable frame rate from 60 down to 1fps.
  • Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)
  • Output Resolutions: Configurable from CIF up to 3840x2160p60
  • Encoding latency less than 55ms

    Ancillary Data Support
  • Timecode (SMPTE12M-2)
  • Closed captions: CEA-708 / CEA-608, Transport: ANSI/SCTE 128, ATSC A/72 [CC in HEVC user data]
  • High Dynamic Range (HDR) : HDR10 (SMPTE ST 2084/ITU-R BT.2100), HLG (ITU-R BT.2100) from SDI (SMPTE ST 2108)

    Network Protocols
  • UDP TS: MPEG Transport Stream over UDP
  • RTP TS: MPEG Transport Stream over RTP
  • RTP ES (RTSP): Elementary stream over RTP
  • Zixi™ Stream protection: Zixi™ P2P and Broadcaster mode - Zixi™ ABR streaming (Adaptive Bitrate), Zixi™ Low latency
  • RTP TS with ProMPEG Forward Error Correction (SMPTE 2022)
  • SRT (Caller, Listener and RendezVous)
  • RIST Main and Simple profile
  • RTMP & RTMPS (H.264)
  • Unicast and Multicast (IGMPv3) streaming
  • HTTPS, NTP, SSH, SAP

    Encryption
  • Real-time AES encryption for video, audio and metadata
  • 128 and 256 bit encryption key support
  • Interoperability with AES compliant systems such as VITEC EZ TV and Avedia (ArtioView/ArtoSign) IPTV & Digital Signage Platforms

    Network Interfaces
  • 1x Gigabit Ethernet ports for streaming and/or management (10/100/1000 Base-T, Auto Detect, Half/Full Duplex)
  • 1x SFP port for Gigabit Ethernet over RJ45 or Fiber
  • DHCP / Static IP address, IPv4 and IPv6 support

    Environmental / Regulation
  • Operating Temperatures: -4° F to +131° F (-20° C to +55° C)
  • Relative Humidity: 5% to 95% (non-condensing)
  • EMC Standards: FCC part 15 / ICES-003 Class A and CE
  • Power: 12VDC, 14W (Typical), 17W (Max)
  • TAA Compliant

    Physical
  • Compatible with OGX and OG3 openGear frames

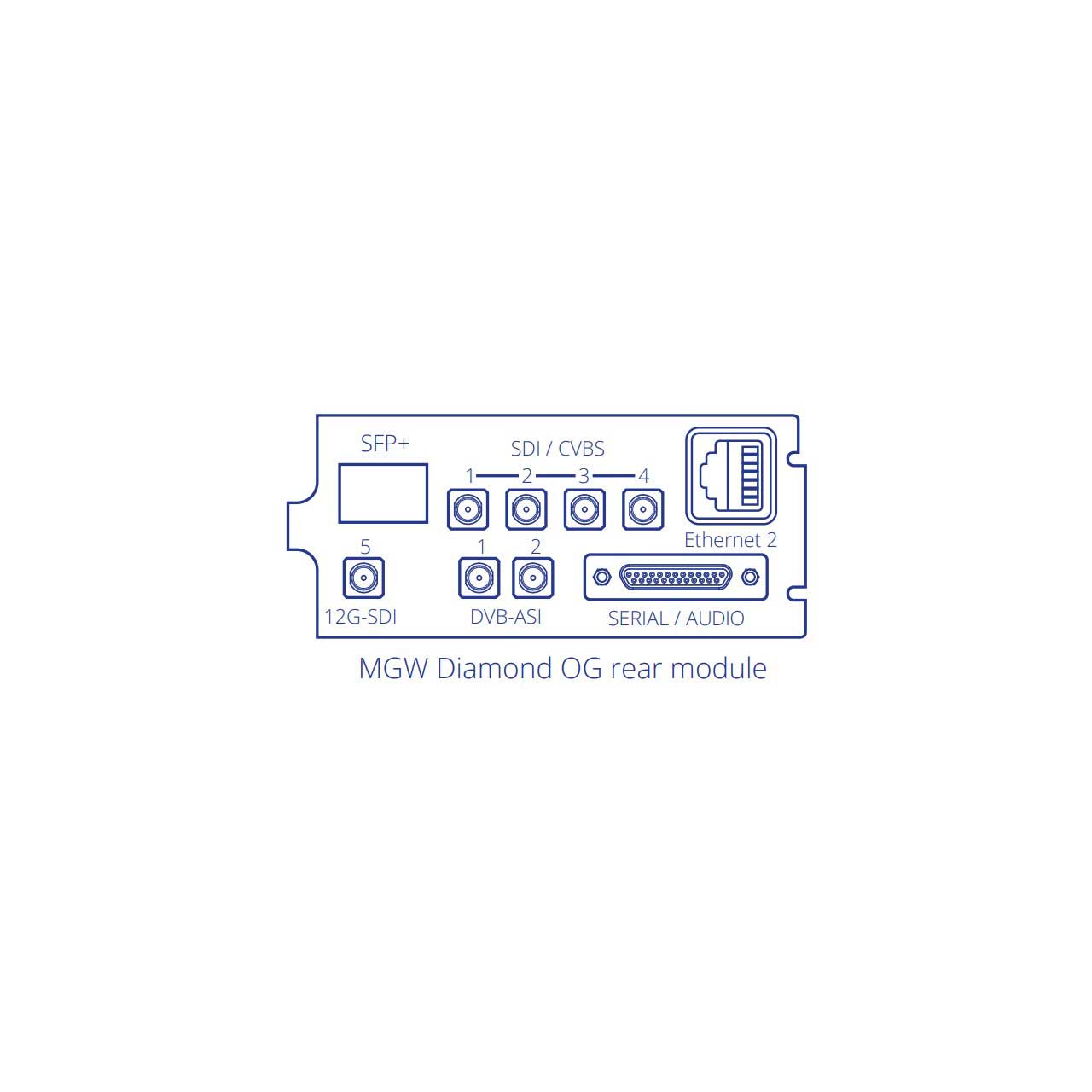

  • Full Rear I/O Module (2 slots) for upgrade


• Item Includes:

  • 1x MGW Diamond OG 4K and Multi-Channel SD/HD HEVC Encoder
