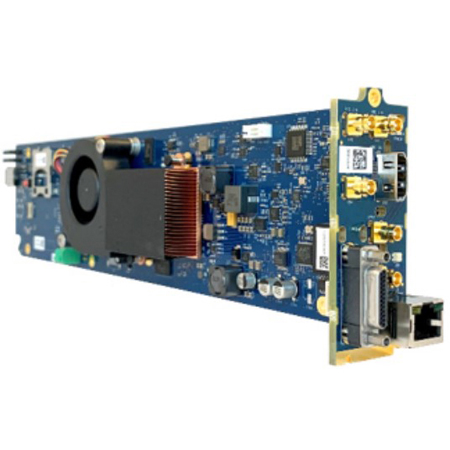

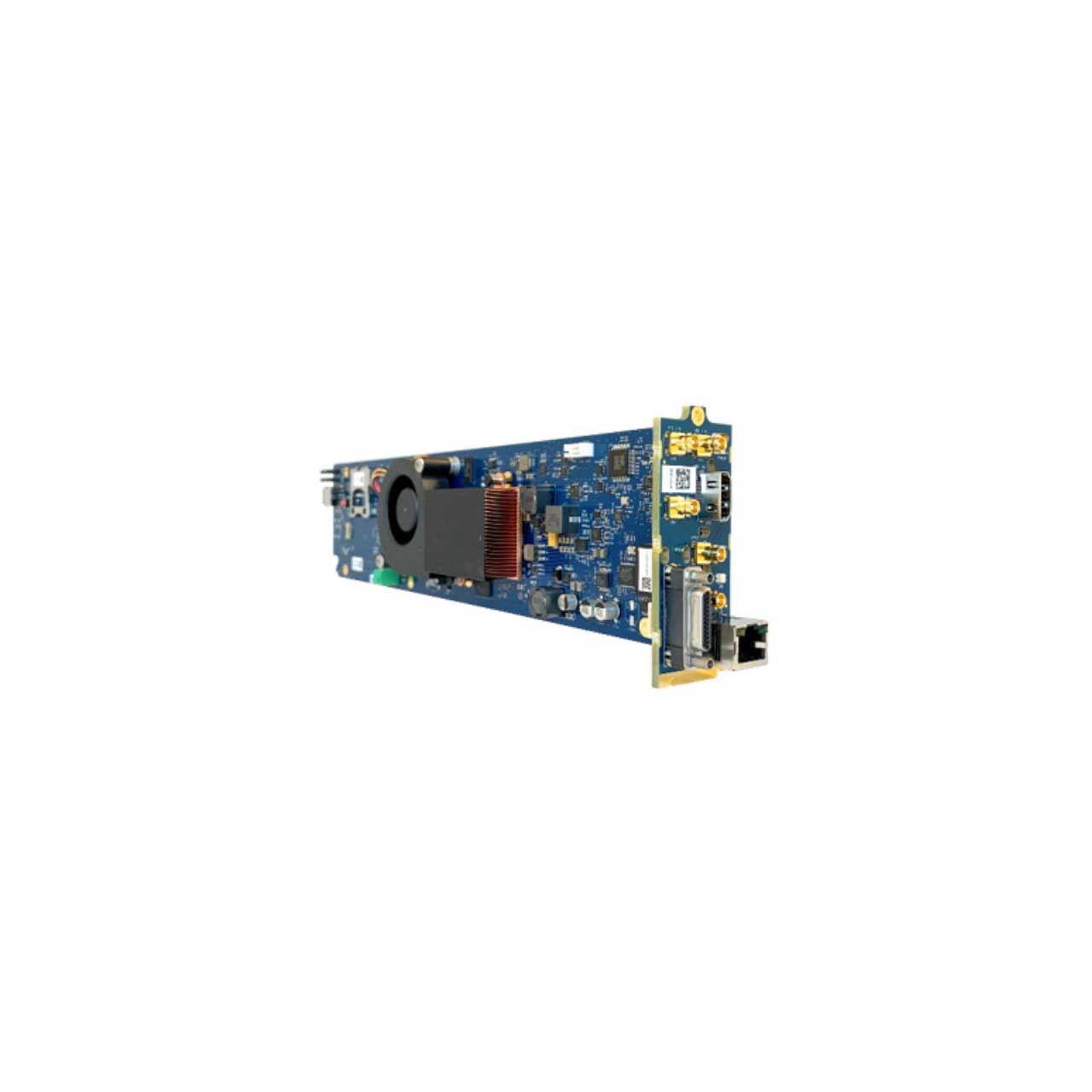

VITEC 17597 MGW Ace OG - Professional Low Latency 4K HEVC & HD H.264 Decoder

17597 - Overview

• Features:

  • HEVC & H.264 low latency decoding of HD/SD IP feeds
  • Broadcast quality decoding up to 4:2:2, 10 bits
  • Reliable, low-latency stream delivery with built-in Zixi, SRT and ProMPEG stream protection
  • Rich, Industry standard video and audio output interfaces to match any setup
  • Time-synchronized playback across several decoders
  • Closed captioning, DVB-ASI and Genlock support
  • Audio Talkback / IFB for easy communication between teams
  • Professional Portable 4K HEVC & H.264 Decoder
  • Compact portable design with 19" 1RU rack mount kit option
  • Available as a compact portable appliance or as an openGear card

    Applications
  • DSNG contribution decode over satellite, cellular networks and more
  • Remote / At Home production (REMI) over dedicated transmission links or the Internet
  • Point-to-Point live contribution on private or public networks
  • Low Latency Point-to-Point contribution over the Internet using Zixi or ProMPEG
  • Situational Awareness and Full Motion Video (FMV) display on video walls and monitors
  • HEVC and H.264 IP feed monitoring over SDI / HDMI or Composite


• Specifications:

  • Input Video Decoder HEVC, H.264 & MPEG-2
  • MPEG-H HEVC (ISO/IEC 23008-2):
  • Profile/Level: up to Main 422 [email protected] High Tier
  • Ultra Low Latency mode (licensed)
  • Color sampling / Bit-depth: up to 4:2:2 / 10 bits
  • Bit Rate: up to 100Mbps
  • Frame Rate: 1-60 fps.
  • Input Resolutions: from CIF up to 3840x2160
  • MPEG-4 AVC/H.264
  • (ISO/IEC 14496-10 MPEG-4 AVC Rec. ITU-T H.264)
  • Profile / Level: up to [email protected]
  • Color sampling / Bit-depth: up to 4:2:2 / 10 bits
  • Bit Rate: up to 100Mbps
  • Frame Rate: 1-60 fps
  • Input Resolutions: from CIF up to 1920x1080
  • MPEG-2 (ISO/IEC 13818 ITU-T Rec. H.222.0)
  • Profile / Level: up to HP@HL
  • Color sampling / Bit-depth: up to 4:2:2
  • Bit Rate: up to 100Mbps
  • Frame Rate: 1-60 fps
  • Input Resolutions: from CIF up to 1920x1080
    Input Audio Decoder
  • AC-3 and E-AC-3 Decode: Up to x2 PIDs decoded simultaneously (x1 under licence), Stereo Downmix capability
  • MPEG-4 AAC-LC (ISO/IEC 14496-3) and AAC-ELD Decode: Up to x16 audio channels (x8 channels licensed), Sample Rate: 48kHz, Bit Rate: 16-192kbs
  • MPEG-1 Layer 2 (ISO/IEC 11172-3): Up to x16 audio channels (x8 channels licensed), Sample Rate: 48kHz, Bit Rate: 64-256kbs
  • AC-3, E-AC-3 and Dolby-E Passthrough

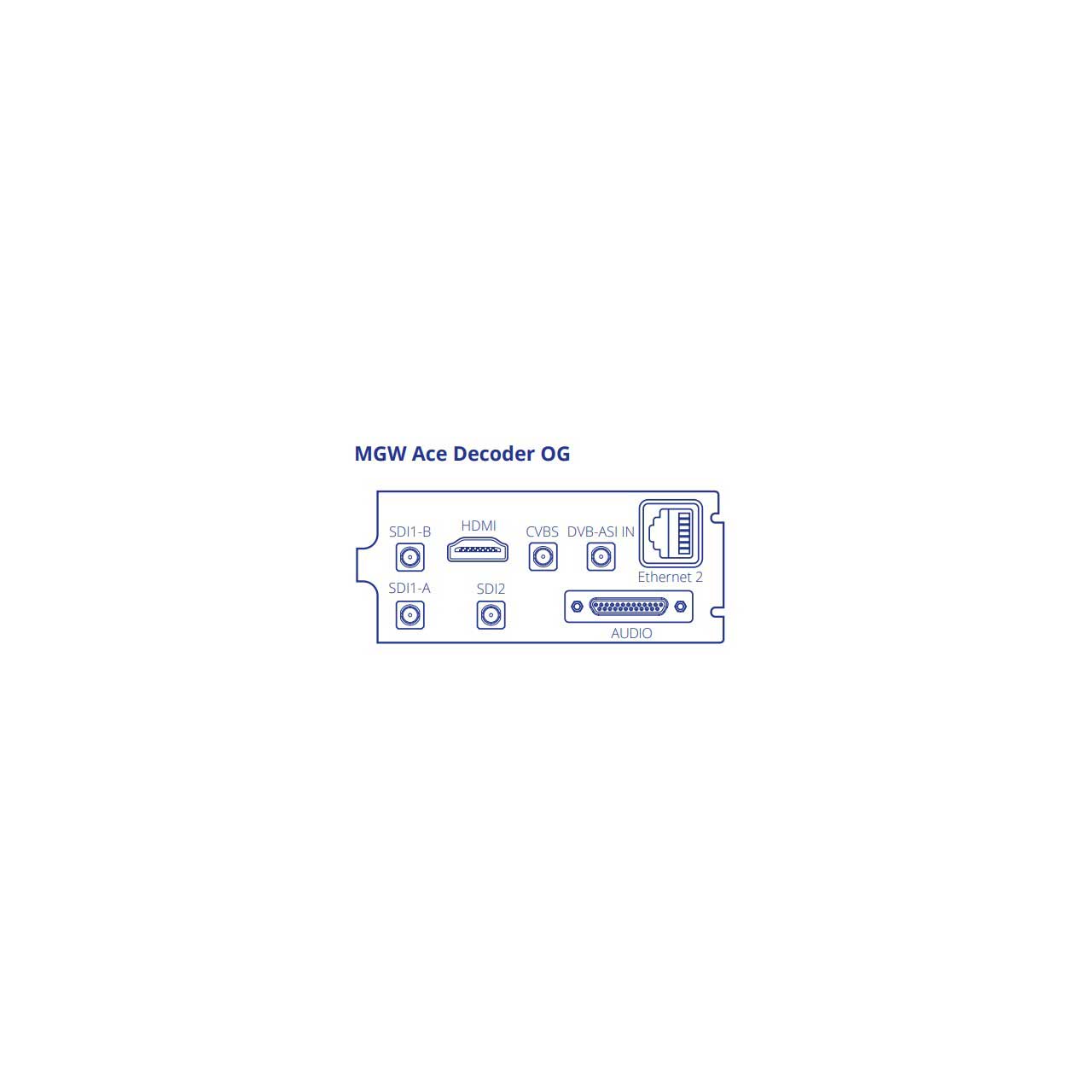

    Video Outputs
  • 1x 12G-SDI (SMPTE 2082-1), 2x on openGear board
  • version
  • 1x 3G/HD-SDI/SD-SDI (SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M-A)
  • 1x HDMI 2.0
  • 1x Composite (CVBS)
    Output Resolutions / Frame Rates
  • 4096x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (4K -DCI)
  • 3840x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (UHD)
  • 2048x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
  • 1920x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.976
  • 1920x1080i @ 60, 59.94, 50 Hz
  • 1280x720p @ 60, 59.94, 50, 30, 29.97, 25
  • 720x480i @ 59.94 Hz (NTSC)
  • 720x576i @ 50 Hz (PAL)
    Audio Outputs (Rear Panel)
  • SDI embedded audio (PCM support)
  • HDMI embedded audio (PCM support)
  • 2x AES3 digital audio (BNC Female)
  • 1x analog unbalanced stereo audio, AC-coupled (RCA Female)
  • 1x Balanced analog stereo audio (XLR Male)

    Environment / Regulation
  • Operating Temperature: 32° - 122°F (0° - 50°C)
  • Relative Humidity: 5% - 95% (non-condensing)
  • Power Input (MGW Ace Decoder): 20-50VDC
  • Power consumption (Typical): 22W
  • MTBF: Ground - 32.98 years, Airborne Inhabited
  • Cargo - 16.40 years
  • (as per MIL-HDBK-217F, 20°C, Operation time 100%)
  • Not controlled under ITAR
  • TAA Compliant

  • Physical
  • Compatible with OGX and OG3 openGear frames
  • Full Rear I/O module (2 slots) for up to 10 cards within a 2RU openGear chassis


• Item Includes:

  • 1x MGW Ace Decoder OG
