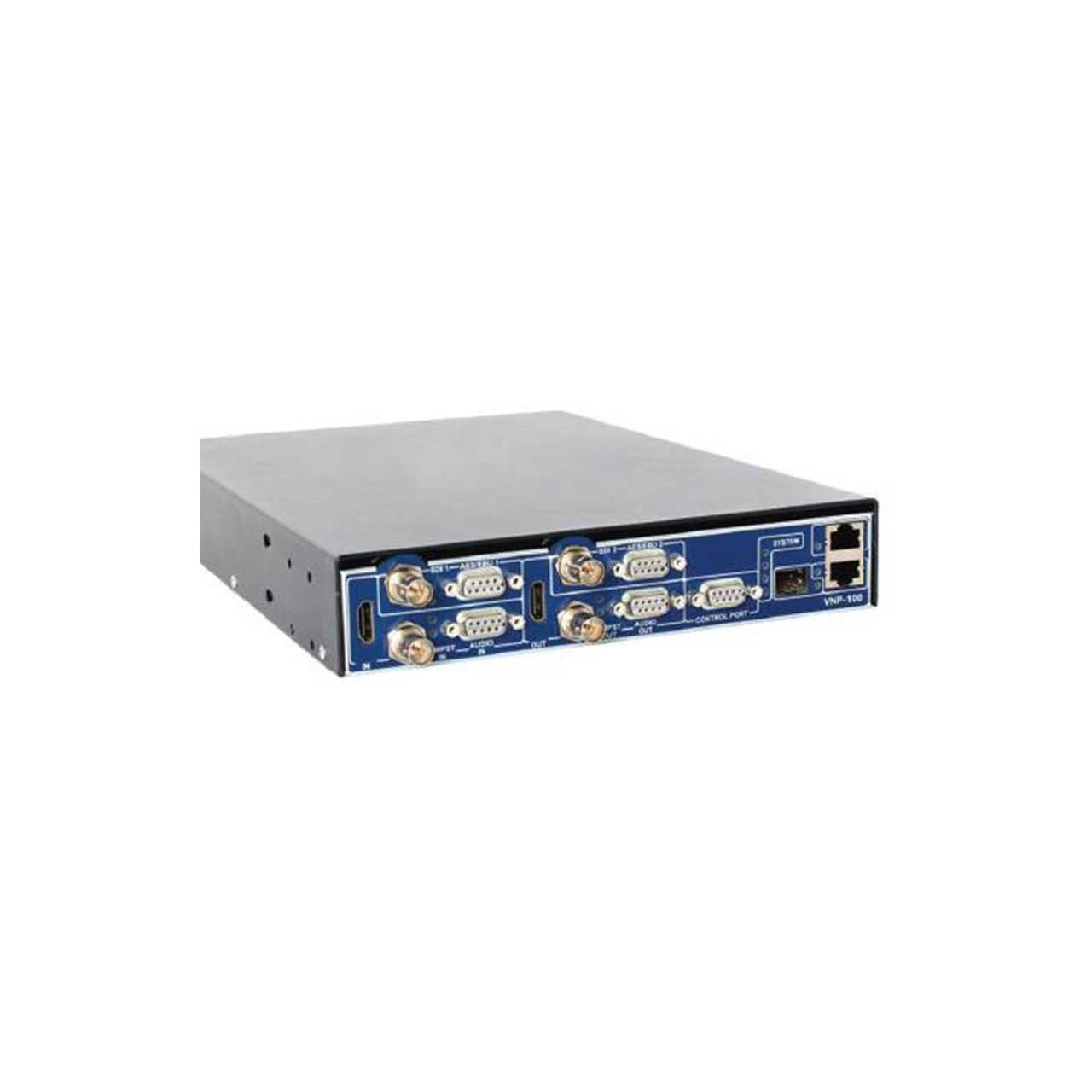

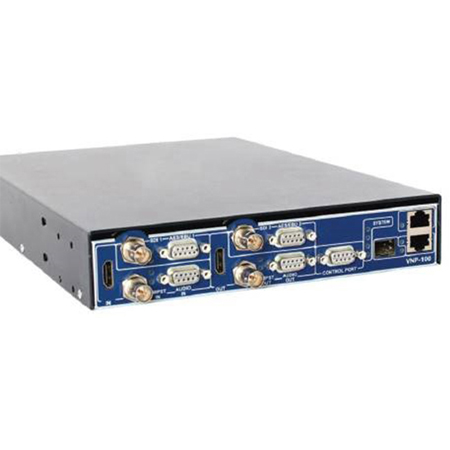

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the VIT-VNP-400-DD

17885 - Overview

Broadcast Quality Video & Audio Processing
The VITEC 17885 VNP-400 is a standalone Dual H.264 Contribution Decoder that facilitates uni-directional and bi-directional transmission of real-time video and audio signals over IP Networks including the Internet. The system enables multiple user-selectable compression algorithms, depending on Software and License configuration options. The system also enables transmission of DVB/ASI signals over 1/10Gbps IP networks.

Multiple Video/Audio User Interfaces
As a Decoder, the VNP400 reconstructs the source encoded video signal with accompanying audio from an IP packet stream.

The recovered video and audio signals are available as SD/HD/3G-SDI or HDMI video signals with up to 8 embedded audio pairs, or as baseband NTSC/PAL composite video signals with baseband audio signals, as well as AES/EBU digital audio signals.

Flexible System Configurations
The VNP-400 can support multiple decoders, or an encoder / decoder (codec) configuration to enable unidirectional or bidirectional operation. This flexibility enables high channel density in a small "foot-print" (up to 4 HD and 2 SD V/A channels per 1 RU). The VNP-400 is upgradable by software and supports Transcoding and Gateway functionality between SMPTE 2022-6, H.264 (MP, HP, 8/10-bit 420/422P), MPEG-2 (MP, HP, 422P) and JPEG2000 streams

  • Features:

    • H.264, MPEG-2 and JPEG2000 Broadcast quality encoder/decoder
    • Support for 4:2:2 10-bit
    • Ultra Low Latency mode
    • Capture from 3G/HD/SD-SDI, HDMI or Composite
    • Highly flexible codec: Encoder/Decoder, Dual Encoder or Dual Decoder
    • Dual redundant power supply
    • Compact form factor (1RU half width)

      Applications
    • Satellite News Gathering and Field Broadcasting
    • Broadcast Contribution over IP or ASI
    • Remote production with return video feed for monitoring
    • Remote / At Home production over The Internet
    • Full-Duplex streaming


  • Specifications:

    • System Interfaces
    • Serial Digital Interface (SDI):
    • Density: 2 x BNC: 2 In / 2 Out / 1 In+1 Out, user configured
    • Video Formats: SDI, HD-SDI, 3G-SDI, DVB/ASI
    • Embedded Audio: 8 Stereo Channels per SDI

      Composite Video Interface
    • Composite In: BNC, 75 ohm, unbalanced
    • Composite Out: BNC, 75 ohm, unbalanced
    • Format: 1Vp-p Video (PAL B/D/G/H/I/M/N & NTSC M)

      HDMI Video Interface
    • HDMI In: HDMI Type A Receptacle
    • HDMI Out: HDMI Type A Receptacle
    • Format: 720x480i30 to 1920x1080p60
    • Embedded Audio: 4 Stereo Channels

      Digital AES/EBU Audio Interface
    • Density: 2 ports: 2 In / 2 Out / 1 In+1 Out, user configured
    • Format: AES/EBU, balanced 110 ohm
    • Connector: 2 x DB-9 (2 Ports)

      Analog Audio Interface
    • Density: 1 stereo input, 1 stereo output
    • Format: balanced
    • Impedance: > 10K ohm (input), 25 ohm (output)
    • Max input level: +21 dBu
    • Connector: Input (DB-9) and Output (DB-9)

      Ethernet Network Interface
    • One pluggable SFP+ module: 1/10Gb/s Base-X
    • Two RJ45: 10/100/1000Base-T
    • Internal L2 Switch provides Bridge capability

      Serial Data Interface
    • Density: 1 port, Bi-directional (RS232/422)
    • Connector: DB-9

      End-to-End Latency (Encode/Decode)
    • H.264/AVC-I 50/100 / MPEG-2 (SDI, HD-SDI): 250ms
    • H.264/AVC-I 50/100 / MPEG-2 (3G-SDI): 750ms
    • JPEG 2000 Compression (ISO/IEC 15444, TR-01): < 2 frames
    • Uncompressed (SMPTE2022-6): < 2 lines

      VBI Ancillary Data Services
    • Closed Caption EIA 608, EIA 708
    • VITC (SMPTE 12M)
    • Active Format Description (AFD)
    • DPI (Digital Program Insertion): SCTE35/SCTE104

      Physical Characteristics
    • Size: 1RU, ½-width 19". Two units fit in a 19":
    • Dimensions (H x W x D): 1.75 x 8.50 x 10.00" (4.45 x 21.59 x 25.54 cm)

      Environmental Conditions
    • Operating Temperature: 32° to 104°F (0 to 40°C)
    • Storage Temperature: -40F to 158F (-40 to 70°C)
    • Relative Humidity: 5% to 90% (Non-Condensing)

      Dual Power Supply
    • 100 - 264V VAC (47 - 63Hz) < 70W


  • Item Includes:

    • 2x 17883 VNP-400 H.264 Contribution Encoder
