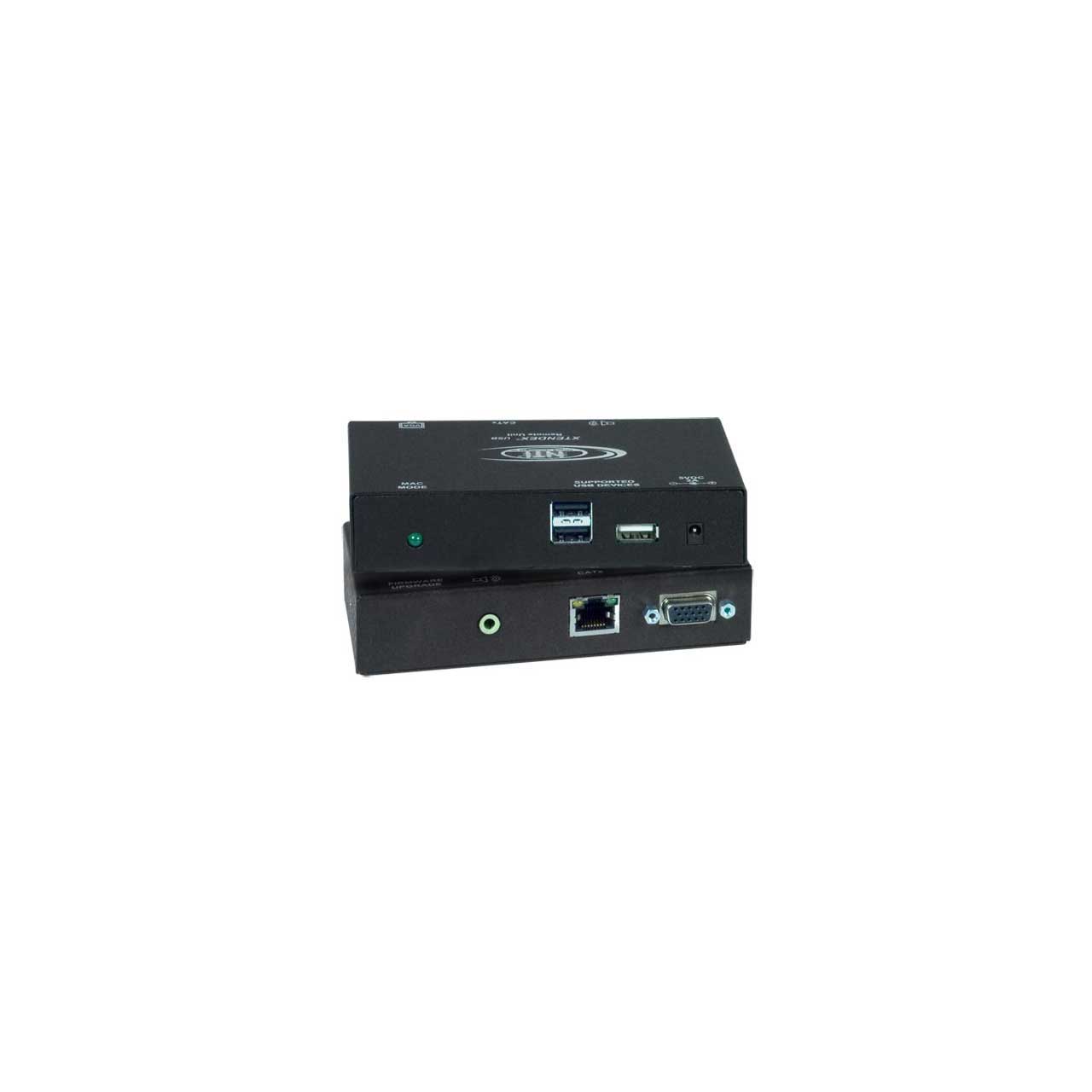

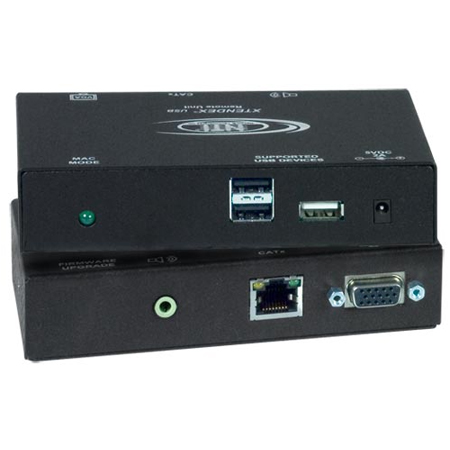

NTI VOPEX-C5USBVA-8 8-Port USB KVM + Audio Splitter

VOPEX-C5USBVA-8 - Overview

• Features:

  • Industry-leading ultra-high resolutions up to 2048x1536
  • Compatible with USB computers (PC, SUN, MAC)
  • Access one computer from multiple locations
  • Provides local KVM access
  • The local USB ports can also be used to connect printers, scanners, security cameras, etc
  • Multiple users can enter data into the same program
  • Easily expandable. Add remote units as you add users
  • Supports DDC emulation and mixing
  • DDC mixing provides a table of resolutions that are common to each connected monitor)
  • Compliant with USB 2.0 (low/full speed) standards
  • Automatically adjust video quality and color skew for crystal clear video with longer cables
  • Supports Plug-n-Play specifications
  • Built-in surge protection
  • Optional support for remote USB touch screen monitors, CAC card readers, or interactive whiteboards
  • High quality, rugged steel construction with durable powder coat finish
  • Flash upgradeable


• Specifications:

  • Host Connection
  • One male 15-pin HD connector
  • Input impedance: 75 Ohms
  • One female USB Type B connector
  • One female 3.5mm stereo audio connector (audio in)
  • Supports a USB computer (PC, SUN, MAC)
  • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11
  • Optional support for remote USB touch screen monitors, CAC card readers, or interactive whiteboards (VOPEX-C5USBVUA-4/8)
  • Must use remote units with additional USB port (ST-C5USBVU-R1000S or ST-C5USBVUA-R-1000S)

    Local Access
  • Crisp and clear 2048x1536 video resolution
  • One female 15-pin HD connector
  • One 3.5mm stereo audio plug (audio out)
  • Two female USB Type A connectors
  • Connect any type of USB device - fully transparent USB connection
  • USB maximum data rate: 12 Mbps

    Audio
  • Frequency response: 20 Hz to 20 kHz, ±1 dB
  • Signal-to-Noise Ratio (SNR): 76 dBA
  • Total Harmonic Distortion and Noise (THD+N): 0.017%
  • Stereo crosstalk: -70 dB
  • Input impedance: 10k Ohms
  • Line level output; supports multimedia speakers
  • CD quality output
  • Maximum I/O levels for audio: 3.1vp-p (line level)

    Cables
  • 3-foot VGA cable included
  • 3-foot audio cable included
  • 1-meter (3.28 ft) USB Type A male to Type B male cable included
  • 5-foot CAT5 patch cable and DB9F-RJ45F adapter included for firmware upgrade
  • Use CAT5/5e/6 solid UTP/STP straight through cable for TIA/EIA568B wiring terminated with standard Rj45 connectors (not included)

    Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC
  • adapter included)

    Dimensions (WxDxH)
  • 4-Port: 7.35x5.0x1.09 in (187x127x28 mm)
  • 8-Port: 7.35x5.0x1.7 in (187x127x43 mm)

    Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and storage relative humidity: 5 to 90% non-condensing RH

    Regulatory approvals
  • CE, RoHS
  • TAA compliant


• Warranty:

  • 2 Year
