VS-1616A - Overview

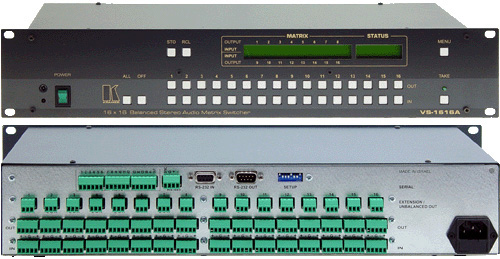

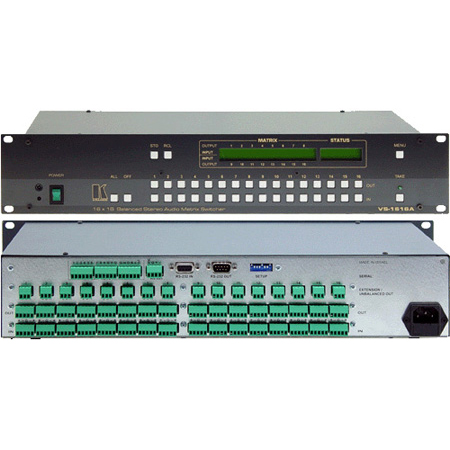

The Kramer VS-1616A is a high performance 16x16 audio matrix switcher for balanced audio stereo signals on detachable terminal block connectors. It is compatible with both balanced and unbalanced inputs, and provides both balanced and unbalanced outputs. It is a true matrix, allowing the user to route any input to any or all outputs simultaneously.

Perfect for:
Broadcast studios for On-air switching and signal routing.
Video audio production studios, for connecting various sources to acceptors.
Non-linear editing suites

  • Features:

    • Expandable to 96x96 Using Multiple Units.
    • S/N Ratio - 82.2dB unweighted (1Vpp).
    • Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
    • Take Button - Executes multiple switches all at once.

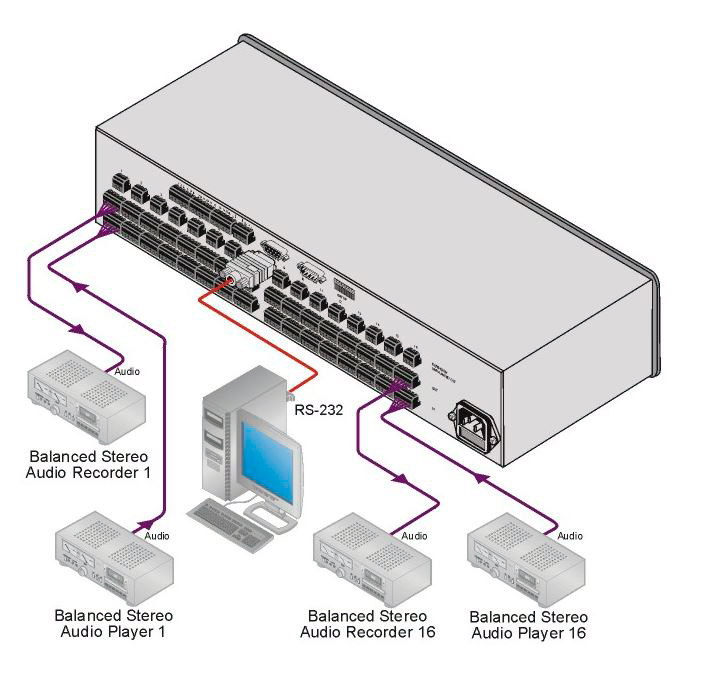

    • Control - Front panel, RS-232 (K-Router™Windows™-based Kramer software is included), RS-485, contact closure, & IR remote (available upon request).


  • Specifications:

    • INPUTS
    • 16 balanced stereo audio, +4dBu/10kΩ on detachable terminal blocks

      OUTPUTS
    • 16 balanced stereo audio, +4dBu/50Ω on detachable terminal blocks

      MAX. OUTPUT LEVEL
    • 20Vpp

      BANDWIDTH (-3DB)
    • 100kHz

      S/N RATIO
    • 82.2dB unweighted

      CROSSTALK
    • -80dB @1kHz

      COUPLING
    • AC

      AUDIO THD + NOISE
    • 0.04%

      AUDIO 2ND HARMONIC
    • 0.002% @1kHz

      CONTROL
    • Front panel buttons, RS-232, RS-485, contact closure, & IR remote (available upon request)

      INDICATORS
    • 8-character display on the front panel

      POWER CONSUMPTION
    • 115/230V AC, 50/60Hz, 23VA


  • Item Includes:

    • VS-1616 Switcher
    • Power cord
    • Windows®-based Kramer control software
    • Null-modem adapter


  • Warranty:

    • Limited 7 Year Warranty


  • GTIN:

    7291063004736
