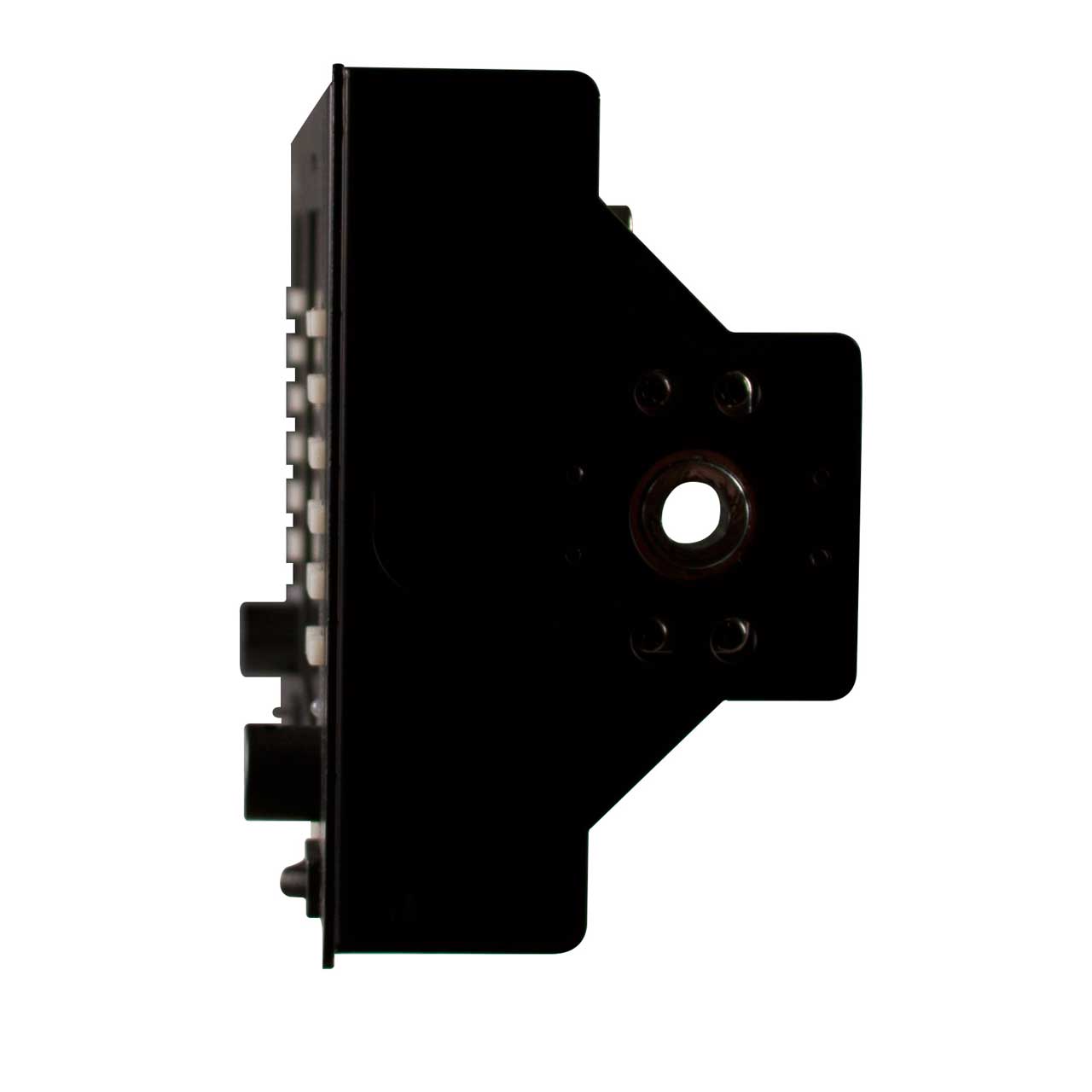

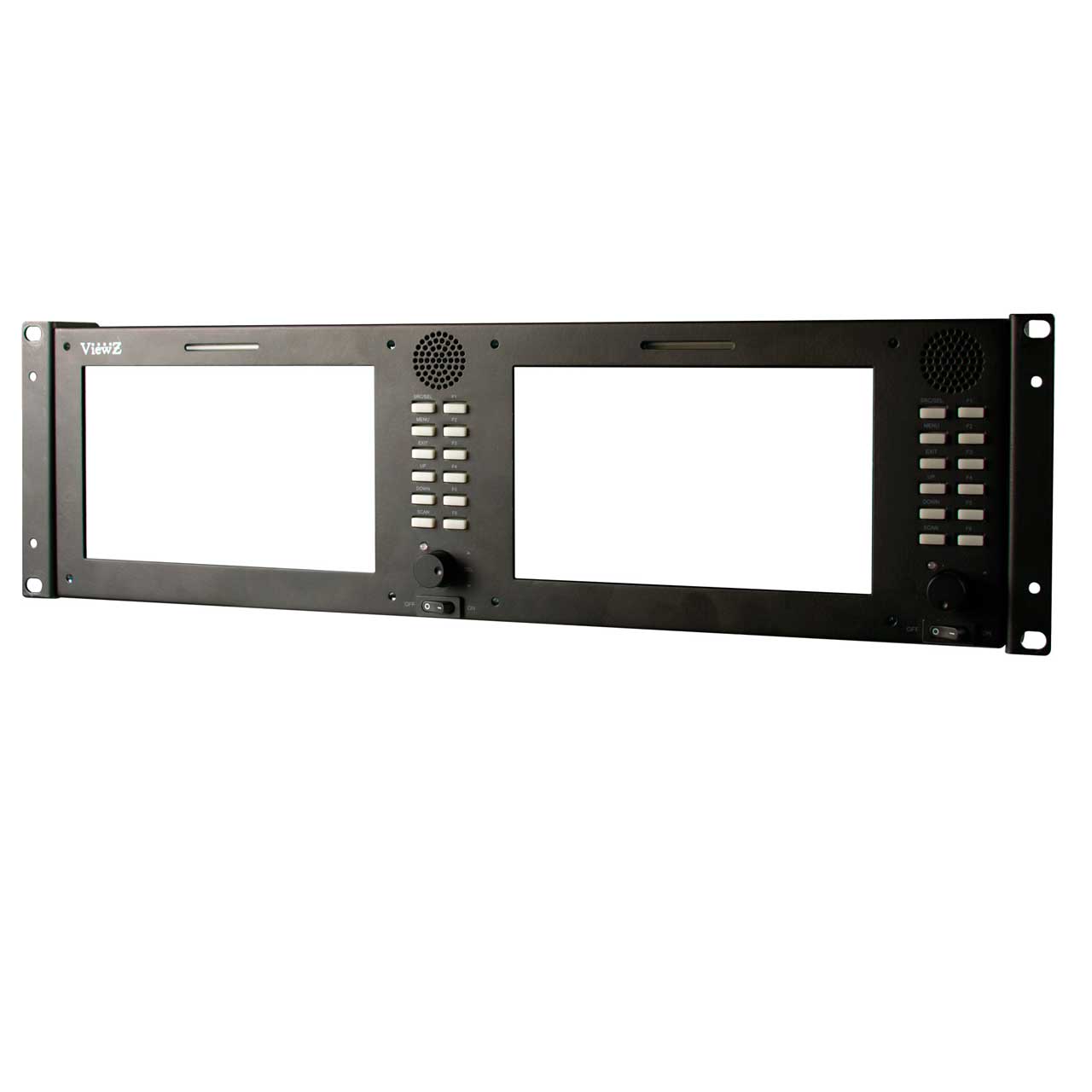

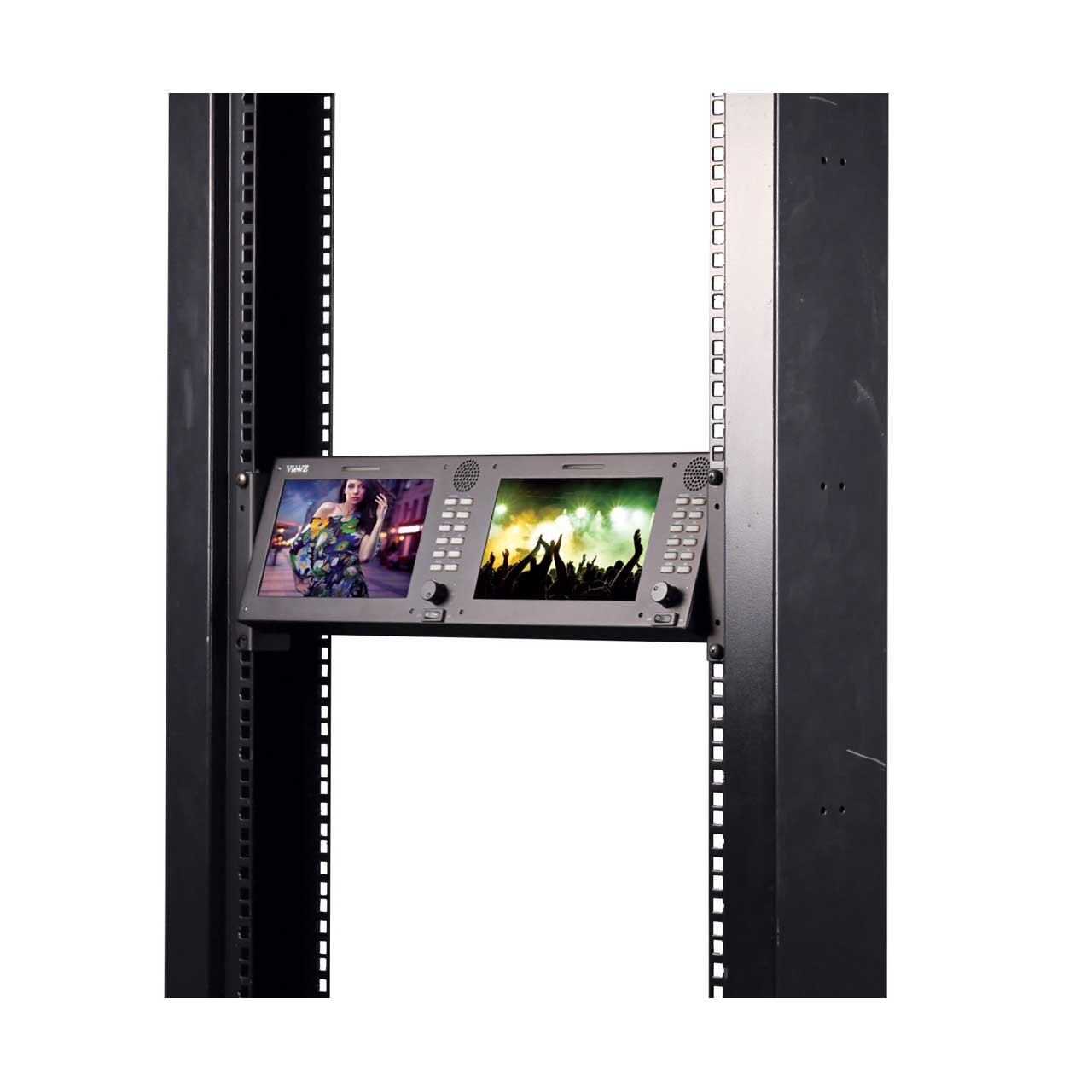

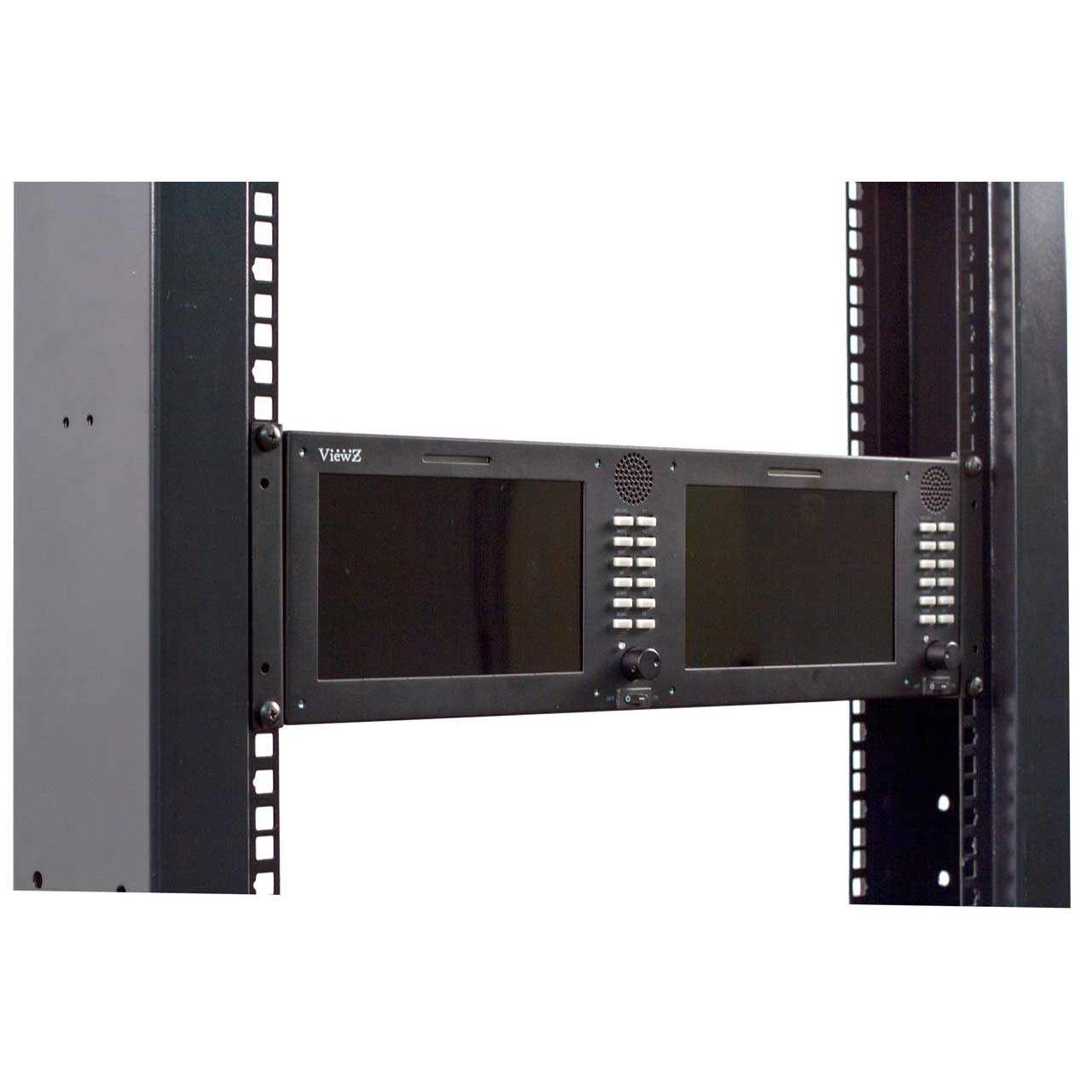

ViewZ VZ-070RM-3G Dual (Two) 7-Inch HD Broadcast IPS 8-Bit Rackmount Monitor

VZ-070RM-3G - Overview

• Features:

  • De-Embedded Audio Level Meter(16ch)
  • Maximum Brightness (On/Off)
  • IPS LED Backlight Panel
  • False Color(SD/HD SDI)
  • Motion and Edge adaptive De-Interlacing up to 1080p
  • RJ-45 Remote Control
  • Selectable Hot Key
  • Tally Lamp Red, Green Support
  • Peaking, Keylock
  • Screen Color Mode: Blue, Red, Green & Mono
  • HDMI to SDI Convert Out
  • SDI to HDMI Convert and Display Out
  • Low Power Consumption


• Specifications:

  • 3G-SDI: 3-Gbps (3G)-SDI, higher resolution (FHD) of picture quality required Serial Digital Interface (SDI) for 1080p.
  • Waveform: Display the Luma(Y), Chroma(Cb/Cr) and RGB Components of the input video signal as a form of waves
  • Vector Scope: Display an X-Y plot of two signal, which can reseal details about the relationship between two signals
  • Jog Dial: Use JOG dial button (or the Up and Down cursor buttons) to highlight the function, display the items and change the setting value you want to change.
  • UMD : This model supports UMD (Under Monitor Display) function which displays Ancillary data at the foot of the screen
  • H/V Delay: Viewing of the blanking area and sync/burst signal by displaying the horizontal and vertical intervals in the center of the screen
  • Marker: 4:3, 14:9, 15:9 and 16:9 area line marker display
  • Timecode Display: Time code (SMPTE or SMPTE code) is an electronic signal which is used to identify a precise location in digital systems and on time-based media like audio or video tape.
  • SMPTE 425M-AB: 1080p / 60,59.94,50,30,29.97,25,24,23.98sf, 1920 x 1080i / 60,59.94,50
  • SMPTE 274M: 1920 x 1080p / 30,29.97,25,24,23.98sf, 1920 x 1080i / 60,59.94,50
  • SMPTE 260M: 1280 x 1035i / 60,59.94
  • SMPTE 296M: 1280 x 720p / 60,59.94,50
  • ITU-R BT.601: 720 x 576i / 50
  • 2K Format: 2048 x 1080 (24p/psf, 23.98p/psf)
  • Screen Size: 7" (IPS)
  • Max. Resolution: 1024 x 600 pixel
  • Pixel Pitch: 0.05 mm x 0.15 mm
  • Brightness: 400 cd/m° (Typical)
  • Contrast Ratio: 800 : 1
  • Aspect Ratio: 16 : 9
  • Viewing Angle (H/V): 170° / 170°
  • Color Depth: 16.7 M (8bit)
  • SDI In / Out: 1/ 1 * 2 units
  • HDMI In / Out: 1 / 1 * 2 units
  • Component (Y, Pb, Pr) In (RCA Jack): 3 * 2 units
  • AV (Composite) In / Out (RCA Jack): 3 / 1 * 2 units
  • RS-485 In / Out: 1 / 1 * 2 units
  • PC Audio In / Out (Analog Stereo): 1 / 1 * 2 units
  • Audio In / Out (16ch De-Embedded Audio Selected Output): 1 / 1 * 2 units
  • Built in speaker: 2W x 1
  • Outline Dimension (W x H x D) (inch): 19" x 5.2" x 3.1"
  • Outline Dimension (W x H x D) (mm): 483mm x 132mm x 80mm
  • Net Weight: 5.5lbs / 2.5kg


• Item Includes:

  • Monitor
  • Manual
  • DC12V XLR Power Supply


• GTIN:

  0853177002090
