WILLIAMS AV DWS INT 3 300 Digi-Wave Language Interpretation System - Li-Ion

DWS INT 3 300 - Overview

• Features:

  • Can accommodate floor (or common) language, plus one language, expandable up to 14 languages
  • Quick set-up
  • No base station, console or mixing board needed.
  • Lightweight — saves on shipping costs
  • Expandable solution — can grow with your needs
  • 2.4GHz operation — legal for use in most countries
  • All-day operation on a single, full charge
  • Any number of listeners (with DLR 360 receivers)
  • IC-2 Interpreter’s Control Console(s) also can be integrated for interpreter’s booth.


• Specifications:

  • Dimensions: 4.07"W x 2.43"H x 0.44"D
  • Weight: 2.9 oz (82 g) including battery
  • Color: Black/Silver (Front/Back)
  • Case Material: Black ABS plastic
  • Battery type: Lithium Polymer with smart charge built into transceiver; 2000 mAH
  • Battery life: Up to 14 hrs talk time per charge Current consumption range: 39 mA @ idle to 94 mA w/1 Ch Tx and 3 Ch Rx
  • Power Save: Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
  • Charge time: 5 hrs. TFP 045 with cable and international adapters
  • Optional Chargers: 2-bay CHG 102, 12-bay CHG 1012, TFP 045
  • Simultaneous Channels/Groups/Talkers: Up to 15 simultaneous channels (0-14) (Interpretation mode) Up to 4 simultaneous groups (2 way mode) Up to 4 simultaneous talkers per group (2-way mode) Up to 6 simultaneous talkers per group (2-way Intercom mode)
  • Operating frequencies: 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
  • Audio Frequency response (-3dB Knee Level): Conference Mode, Interpreter Mode: 140 – 11.5 KHz Intercom Mode: 140 – 7.6 KHz
  • SNR: 74 dB (A-weighted, Maximum output)
  • THD: 0.33 %
  • Microphone input: Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (tip/sleeve) with electret microphone bias, adjustable gain with 63dB range.
  • Headphone output: 3.5 mm phone jack; 33 ω load
  • Audio output: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Internal speaker (disabled when haedphone jack in use) <20mW @ 10% THD/RL = 33ω
  • Range: Up to 200 ft outdoors and 300 ft indoors (depending upon environmental conditions)
  • Modulation: FSK
  • RF output: 14 dBm Typical
  • Security: 87 bit encryption, Secure Key Code, Setup Lock (SLOC)
  • Controls: Front panel push buttons for volume up/down, group select, menu access and selection, timer, time, MIC on/off, power on/off, tone control SLOC access and Secure Key access. System reset button (rear panel)
  • Outputs: 3.5 mm stereo/mono headphone jack; 30 pin charging jack with audio out to base stations
  • Side tone: -12 dB below volume, tone variation [ST:0 = Off, ST:1 = -6 dB, ST:2 = -12 dB]
  • Indicators: LCD (Group, channel, volume level, battery status, mode, number of people with talk button on)
  • LED’s: (charge status) Red LED around talk button when enabled.
  • Docking Connector: 30-pin Connector for charging and audio in/out
  • Compatible Receiver: DLR 360 only
  • Approvals: FCC, Industry Canada, CE, RoHS, WEEE, RCM

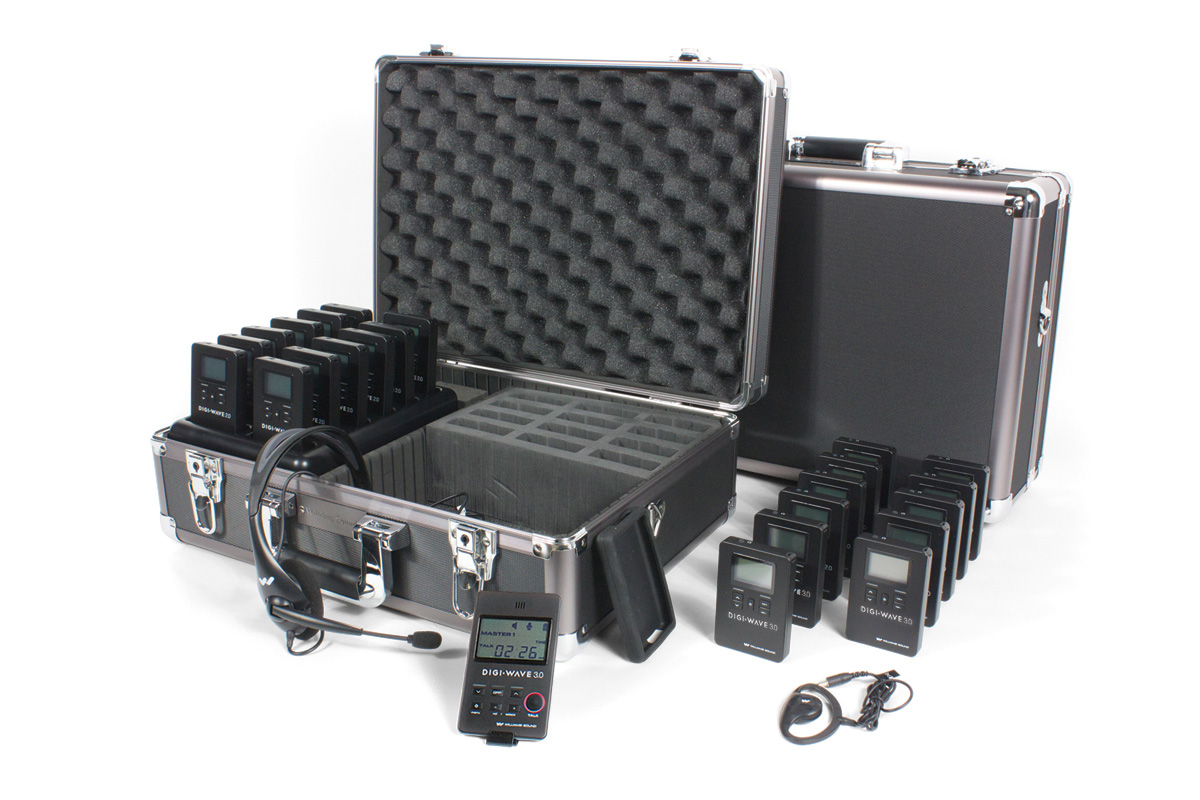

• Item Includes:

  • 2x - DLT 300 transceivers*
  • 20x - DLR 360 receivers
  • 20x - BAT 010-2 AAA alkaline batteries

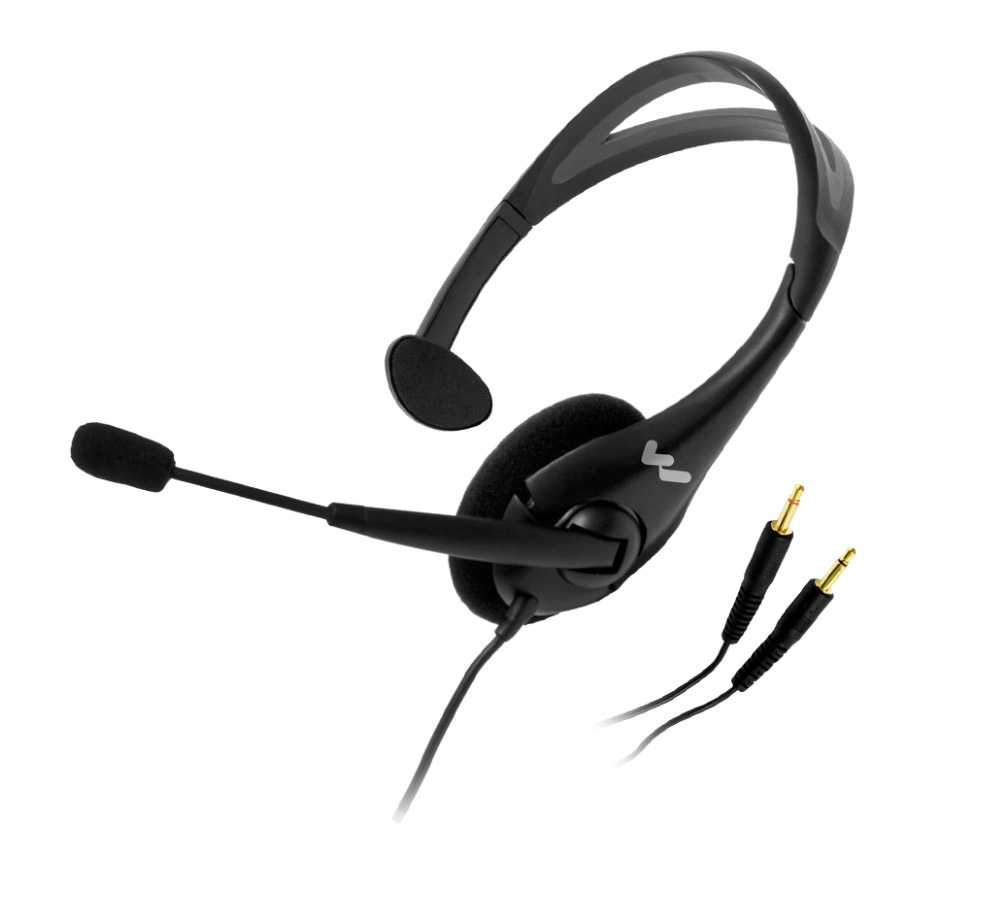

  • 2x - MIC 044 2P headset microphones
  • 20x - EAR 022 surround earphones

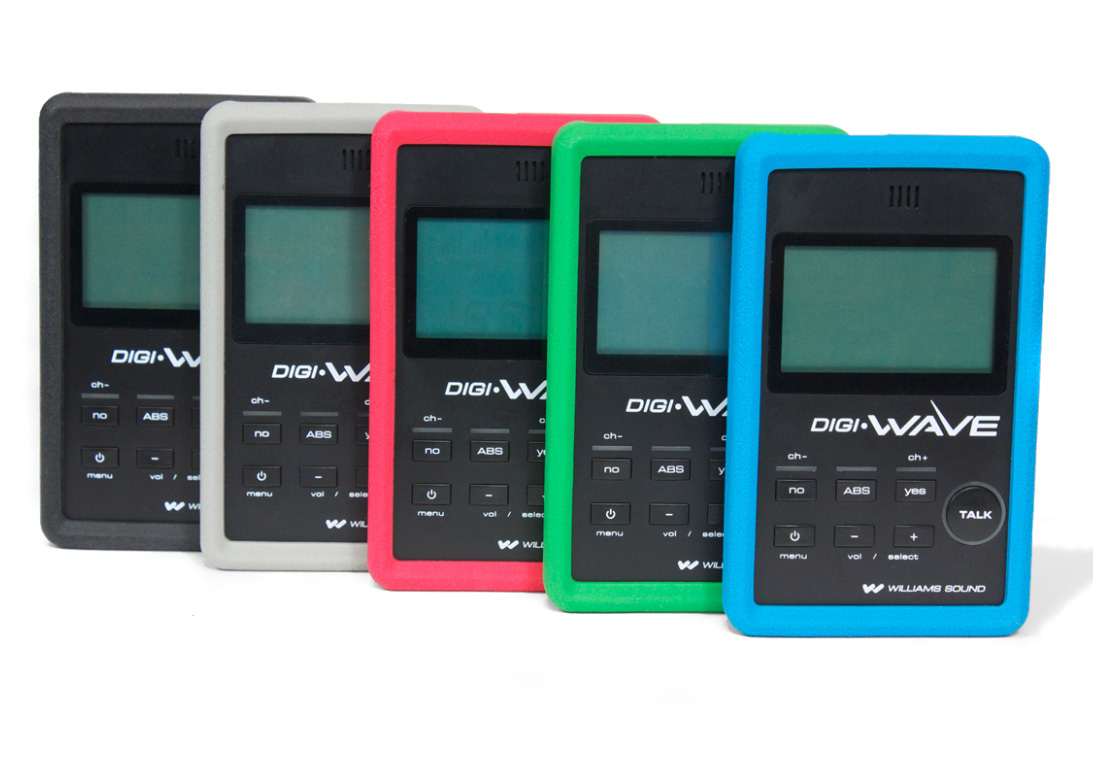

  • 2x - CCS 044 silicone skins

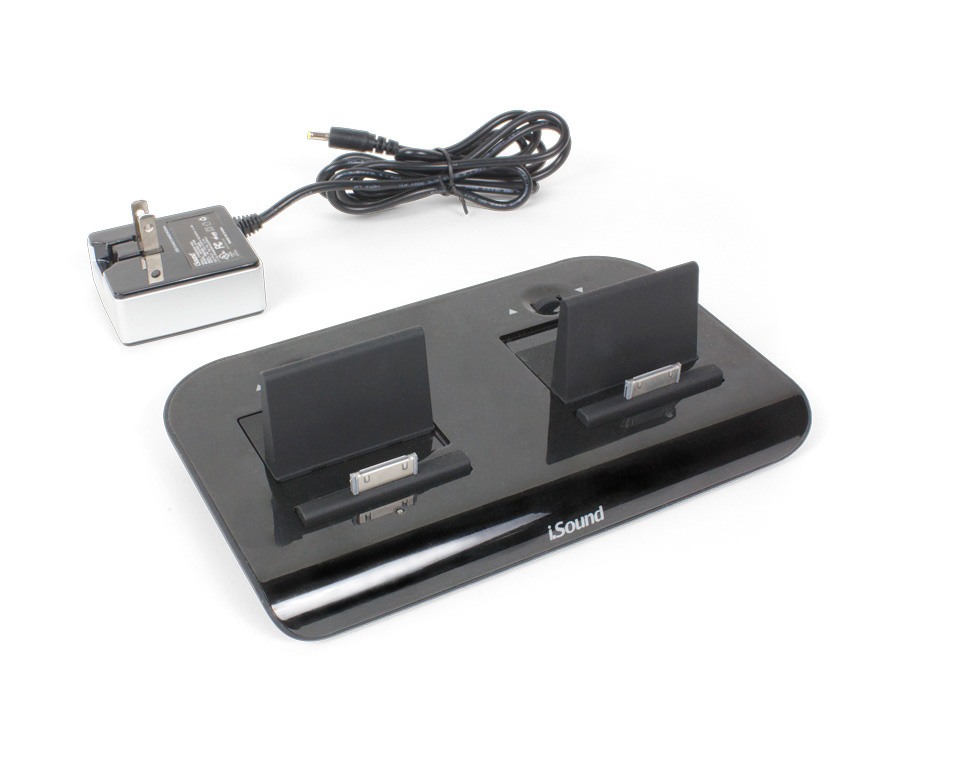

  • 1x - CHG 102 Digi-Wave 2-bay charger

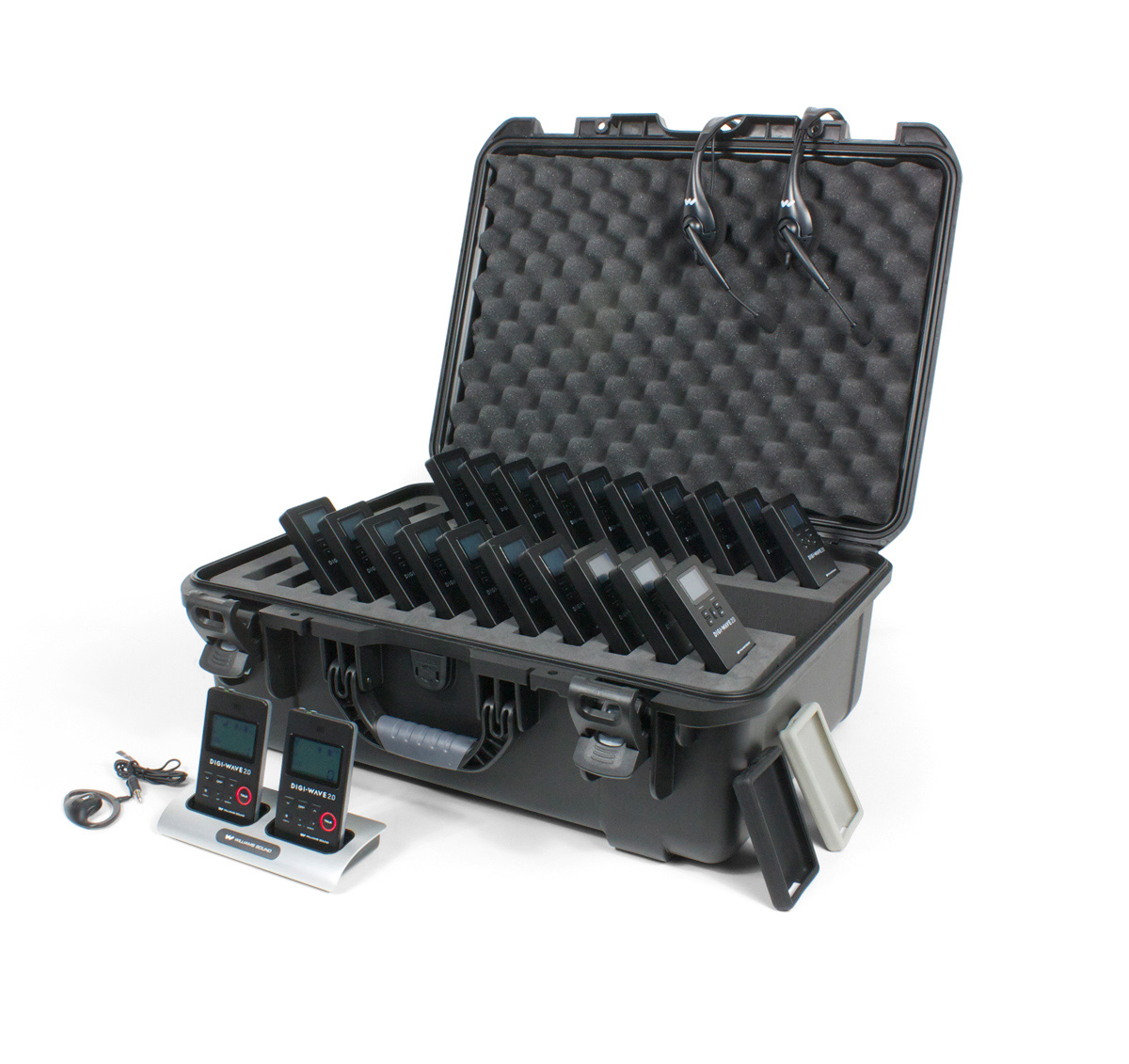

  • 1x - CCS 042 DW system carry case
    *Each DLT 300 is packaged with an individual charger.


• Warranty:

  • 2 Years
