WILLIAMS AV FM 557 PRO D Plus Large-area Dual FM and Wi-Fi Assistive Listening System with Dante & 4 FM R37 Receivers

ITEM #: WLS-FM-557-PRO-D MFG #: FM 557 PRO D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,750.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FM 557 PRO D - Overview

WILLIAMS AV FM 557 FM Plus Large-area Dual FM and Wi-Fi assistive listening system with 4 FM R37 receivers and FM T55 transmitter. The WILLIAMS AV FM T55 Plus integrates professional WaveCAST Wi-Fi audio server technology into a Williams Sound FM assistive listening system. End users can now listen with either an FM receiver or with their own smartphone (via the WaveCAST Listening App). Along with this flexibility comes exceptional audio quality, as the FM Plus is built on a professional digital audio (DSP) platform. Added plus: Its optional Dante interface provides integrators with a full audio networking solution.

The FM Plus is designed to support those who want to use their own smartphones and headphones for a more discreet assistive listening experience. Simplicity is also available for those who want a more traditional assistive listening system with a dedicated FM receiver and headset. Venues no longer need to choose between providing FM or Wi-Fi assistive listening systems. FM Plus supports both the new iOS and Android WaveCAST Apps -- in addition to all of the current and legacy Williams Sound FM receivers operating on the 72-76 MHz bandwidth.

The FM Plus can have most settings changed via the front panel interface, or the hosted web interface. A remote programming guide is available upon request.

This version is not Dante compatible. For Dante compatibility, see the FM T55 D.

The FM Plus uses the WaveCAST app to provide an easy-to-use, intuitive user interface. It is available in iOS or Android. Listeners easily select channel and volume level once their personal device is connected to the Wi-Fi network. The app does not work on FM Broadcasts.

Note: The FM + connects to the installation location's Wi-Fi Network. It does not provide a network on its own. The Wi-Fi network will need to be installed and established before the FM + can be used.

  • Features:

    • Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
    • Channel-lock capability
    • Battery-saving sleep mode
    • Low-battery indicator
    • Field tunable

  • Specifications:

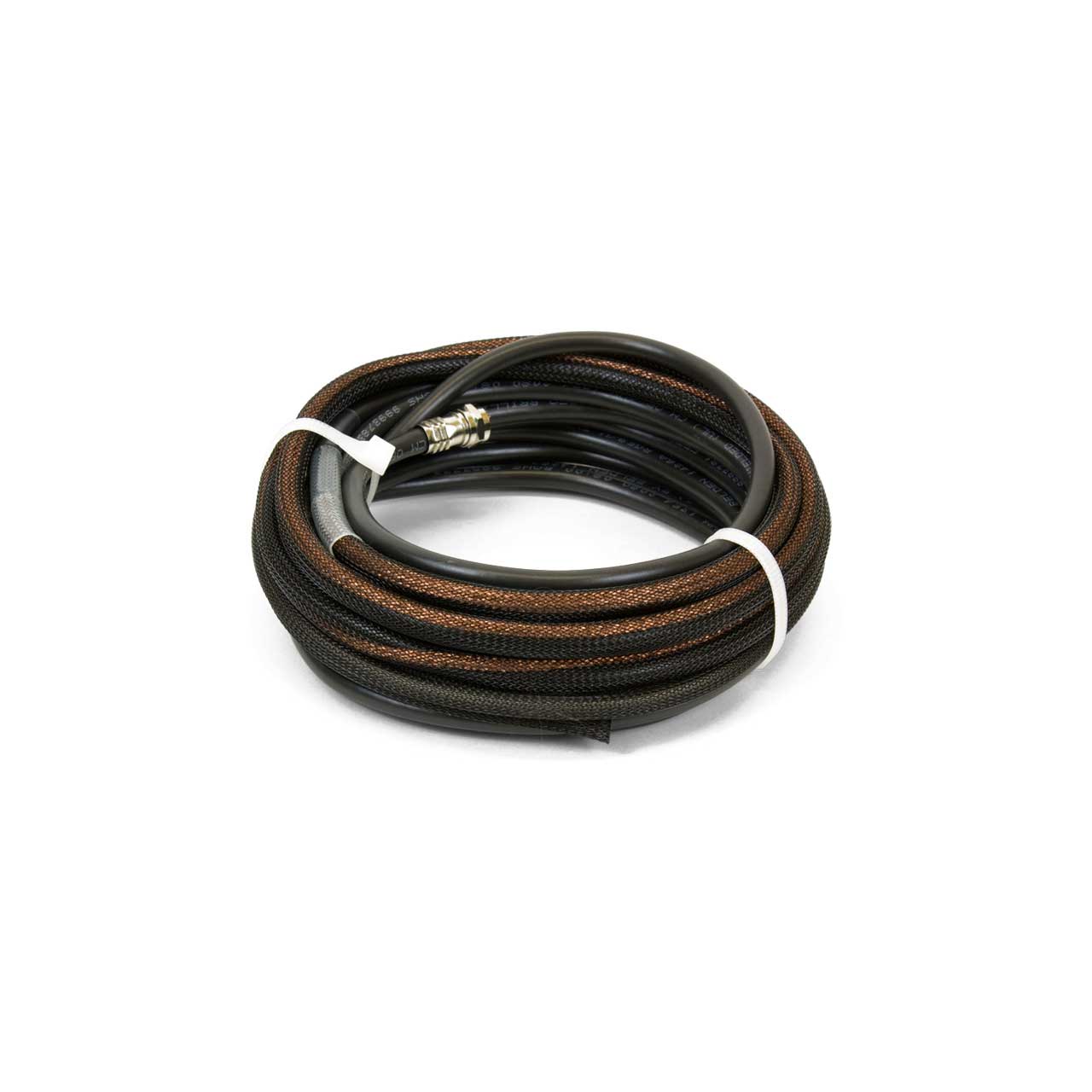

    • ant 005
    • Use with: PPA T45,PPA T45NET, PPA T27 Transmitters
    • Connector type: F-connector
    • Cable type: RG 59 coax
    • Nominal Impedance: 75 Ohm
    • Total Cable Length: 22 ft
    • Active Antenna Length: 80 in

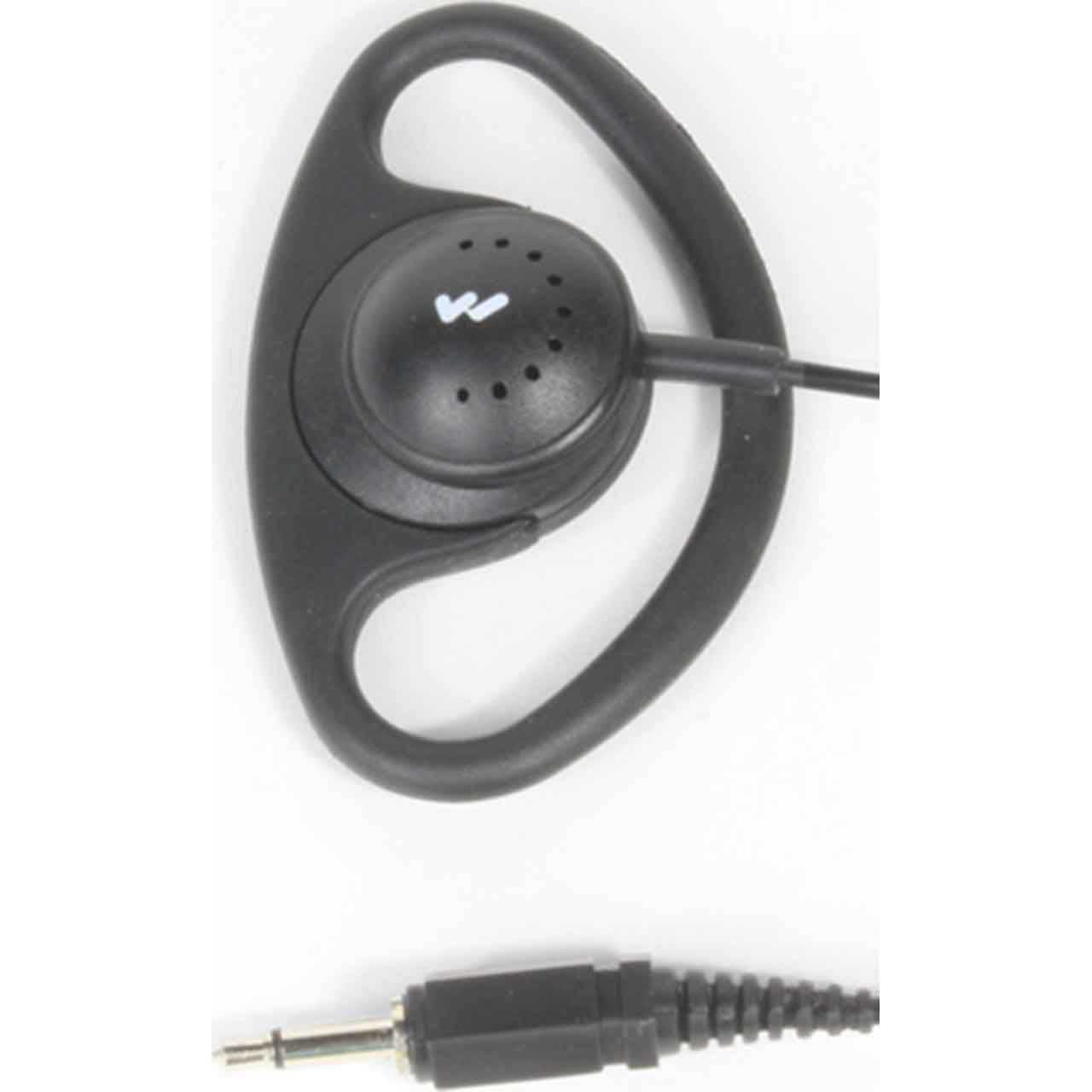

      ear 022
    • Style: Around-ear speaker
    • Plug: 3.5mm mono
    • Cord: 39"
    • Driver Size: 23 mm
    • Nominal Impedance: 32Ω
    • Freq. Response: 20 - 20kHz
    • Weight: 15g
    • Max Power Input: 30 mW
    • Sensitivity: 118 dB @ 1kHz

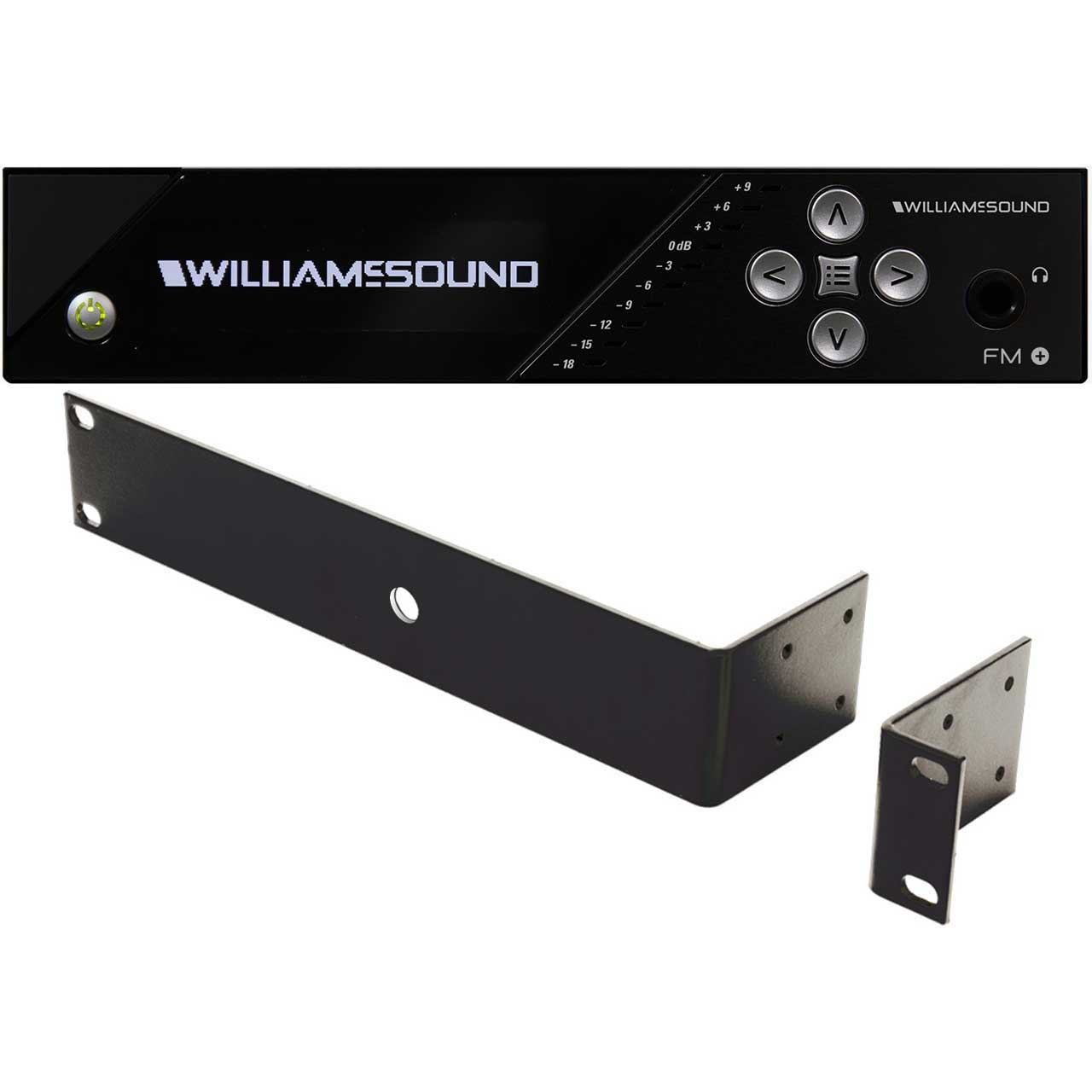

      fm t55
    • Dimensions: 8.45" W x 8.25" D x 1.72"H (21.5 cm x 21 cm x 4.4 cm)
    • Weight Transmitter: 3.2 lbs (1.45 kg)
    • Dante: Only available on FM T55 D
    • Color: Black/Silver with silver legends on the front, white legends on the back
    • Rack Moun: tSt&ard 19” Rack, one EIA rack space high, 1/2 space wide
    • Power Supply: Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
    • Temperature RangeOperating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C)
    • Ethernet: RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address
      RF Section
    • Operating Frequencies: 72.1-75.9 MHz , 17 wideb& channels (selectable)
    • Frequency Accuracy: ± 2 ppm stability, 0-50°C
    • Deviation: ± 75 kHz maximum
    • Pre-Emphasis: 75 microsec
    • RF?Field Strength: Does not exceed 80 mV/m at 3 m
    • Compatible Antennas: ANT 005, ANT 021, ANT 024, or ANT 025
    • Transmission Range: Up to 1000 ft (304 m) with ANT 005 coaxial antenna mounted on rear chassis connector
    • RF Outputs: (1x) #10-32 stud connector in center of unit (pcb mounted) (1x) F-connector on rear chassis
      Audio Section
    • Audio Processor Functions: DSP based; Compression: 1: 1, 1.5: 1 or 2: 1; High-pass & Low-pass Filter Frequency control
    • Frequency Response: 31-16000 Hz, ±3 dB (re: 1 kHz, ±3 dB) (“Music” Audio Preset)
    • Signal-to-Noise Ratio: 67 dB (typical) Transmited RF
    • Total Harmonic Distortion: Less than 0.25% @ 1 kHz (RF output)
    • Common Mode Rejection: Greater than 57 dB @ 1 kHz, Mic or Line
    • Audio Inputs: (1x) Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level
    • Line Output: RCA jack (black), -10 dBV (.32 VRMS); Output impedance 100 ohms at +9dB
    • Microphone: -55 dBV (1.7 mV RMS)-22 dBV (80 mV RMS)+20 dBV (10.0 V RMS)
    • Line: -25 dBV (55 mV RMS)+16 dBV (6.3 V RMS)+20 dBV (10.0 V RMS)
    • Approvals:FCC, RoHS3, WEEE, Industry Canada
      idp 008
    • 10-3/8" (L) x 6-1/4" (W) x 1/8" (H)

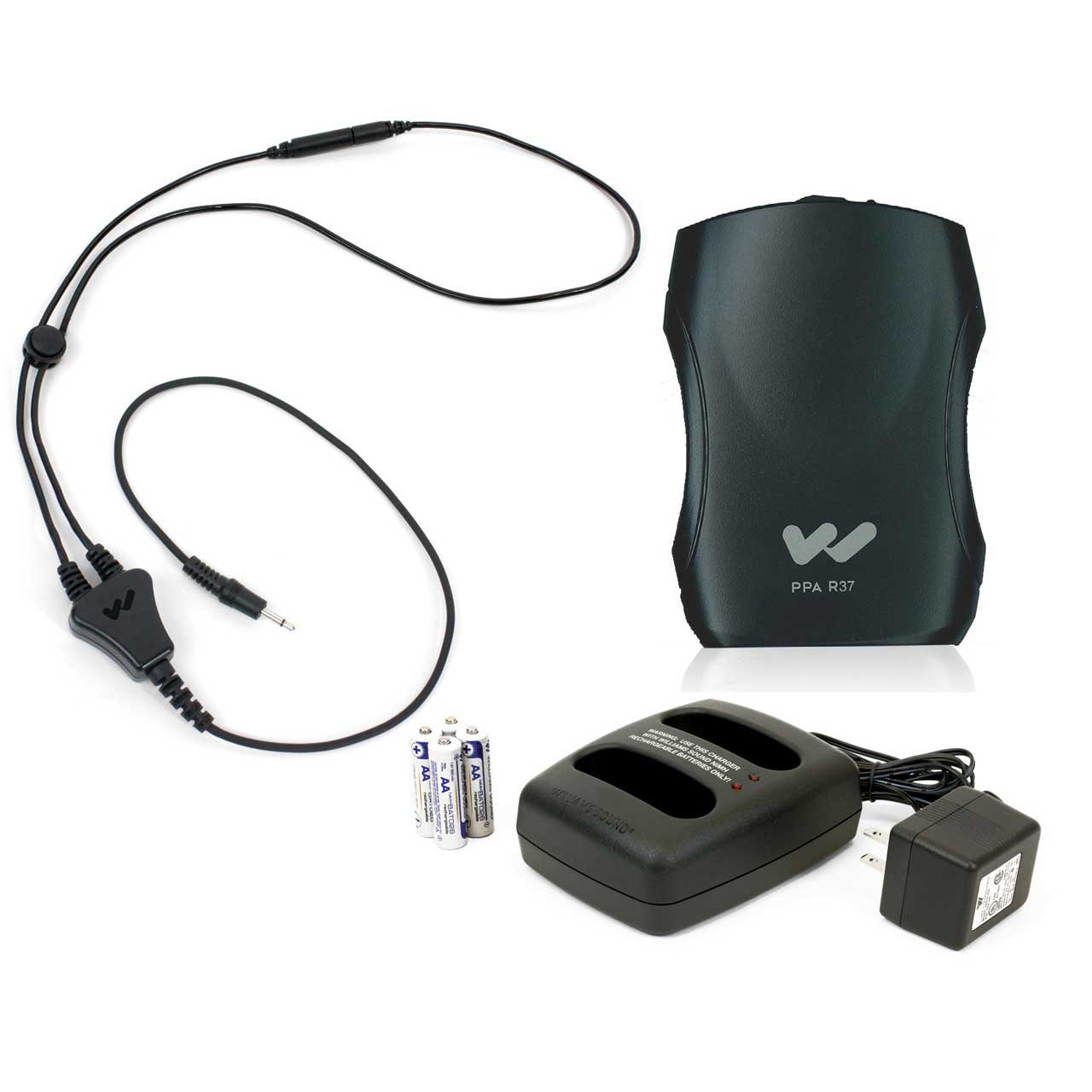

      ppa r37n
    • Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
    • Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
    • Color: Black
    • Battery Type: (2) AA Alkaline or 2 x AA NiMH
    • Battery Life: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
    • Current Consumption: 52mA nominal
    • Temperature Range: 0 to 50C
    • Channels: 17
    • Operating Freq.: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
    • Intermediate Freq.: 75 kHz
    • FM Deviation: 75 kHz
    • De-Emphasis: 75 µS
    • LED Indicator: Power: Green; Low Battery: Flashes Green
    • AFC Range: ± 120 kHz
    • Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
    • Input Overload: 100 mV
    • Frequency Response: 200 15 kHz
    • Modulation: FM, +/- 75 kHz peak deviation
    • Signal-to-Noise Ratio: 65 dB min @ 100 uV
    • Receive Antenna: Integral with earphone/headphone cord
    • Audio Output: 35 mW max, peak into 16 ohms
    • Output Connector: 3.5 mm stereo/mono phone jack
    • Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32 Ω
    • Approvals: FCC, Industry Canada, RoHS, WEEE

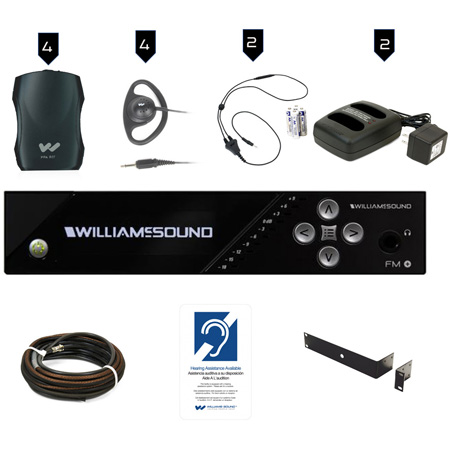

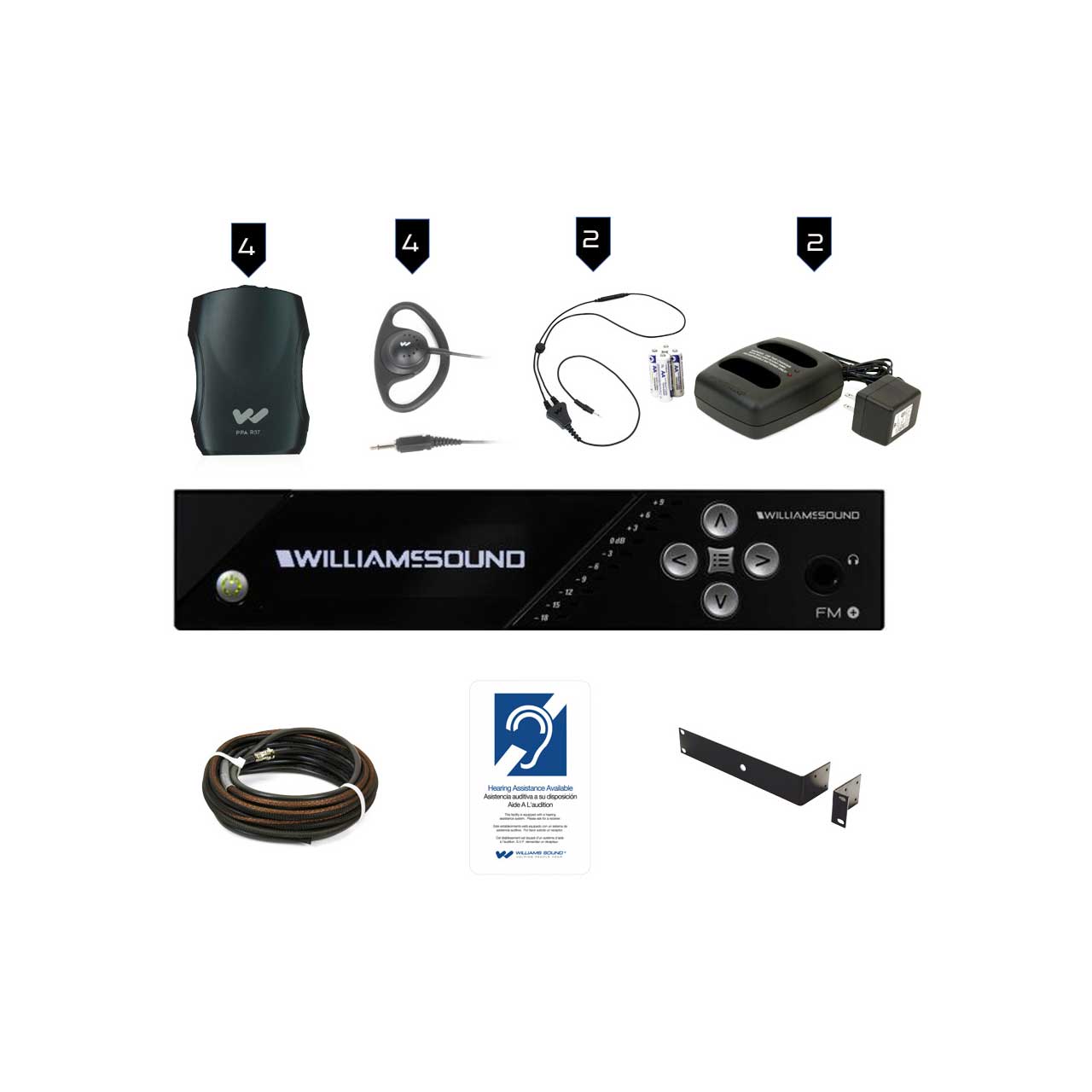

  • Item Includes:

    • x1 FM T55 D transmitter
    • x4 PPA R37N receivers
    • x4 EAR 022 surround earphones
    • x2 NKL 001 neckloops
    • x2 BAT KT6 two-bay chargers and rechargeable batteries
    • x1 ANT 005 remote coaxial antenna
    • x1 IDP 008 ADA wall plaque
    • x1 RPK 005 rack panel kit

  • Warranty:

    • 2-year parts and labor
