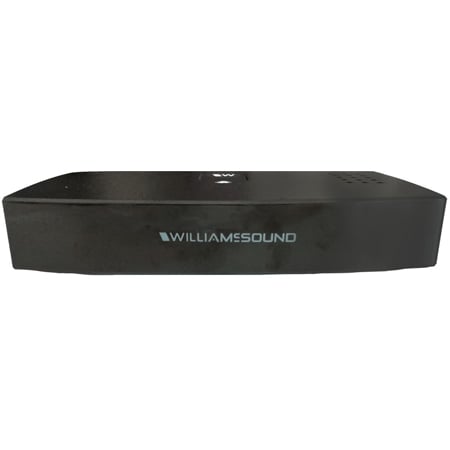

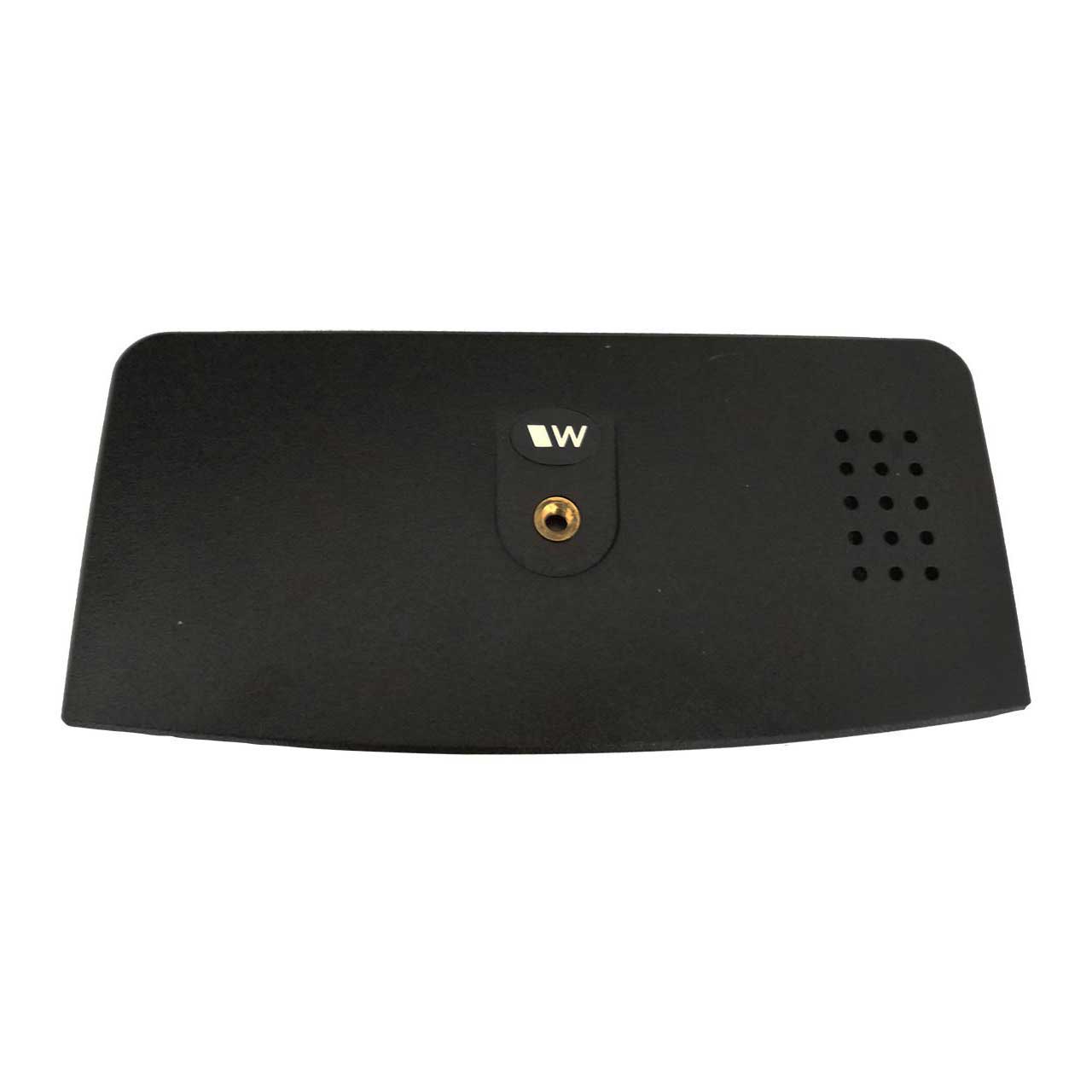

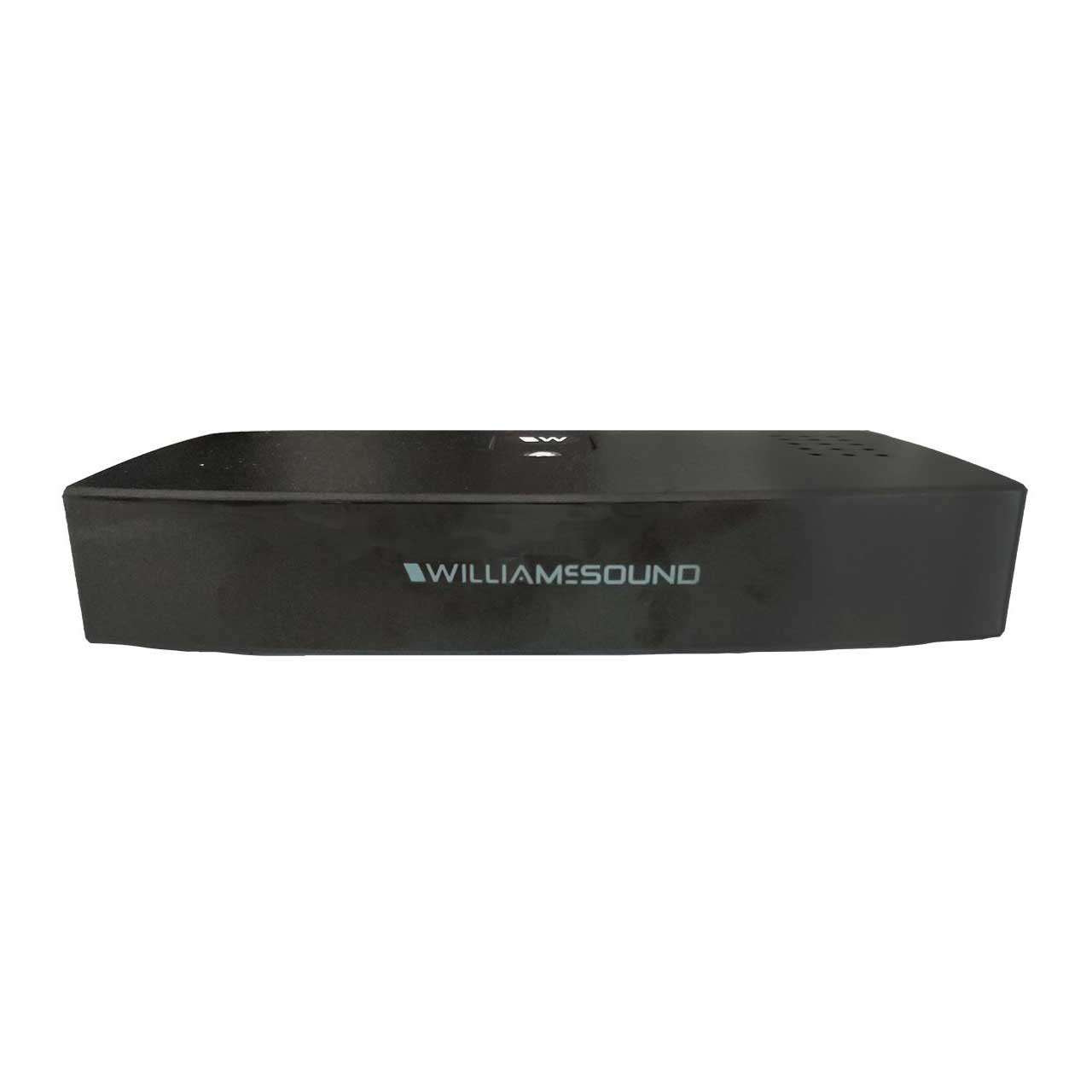

WILLIAMS AV IR E4 IR + Infrared Emitter includes (1) BKT 024 Omnidirectional Wall/Ceiling Mount

ITEM #: WLS-IR-E4 MFG #: IR E4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$590.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


IR E4 - Overview

The IR+ features a distributed IR emitter array architecture allowing up to four emitters either stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations.

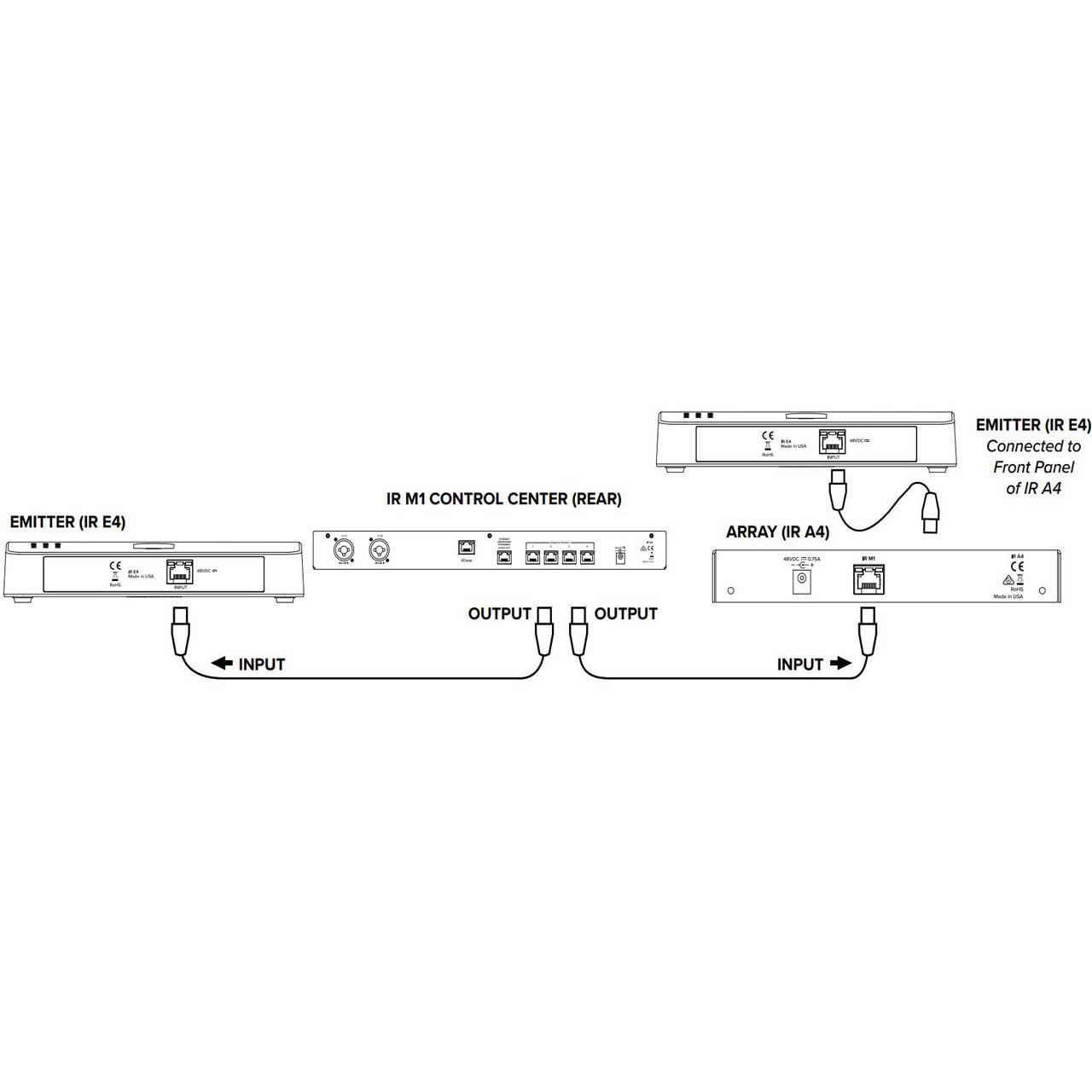

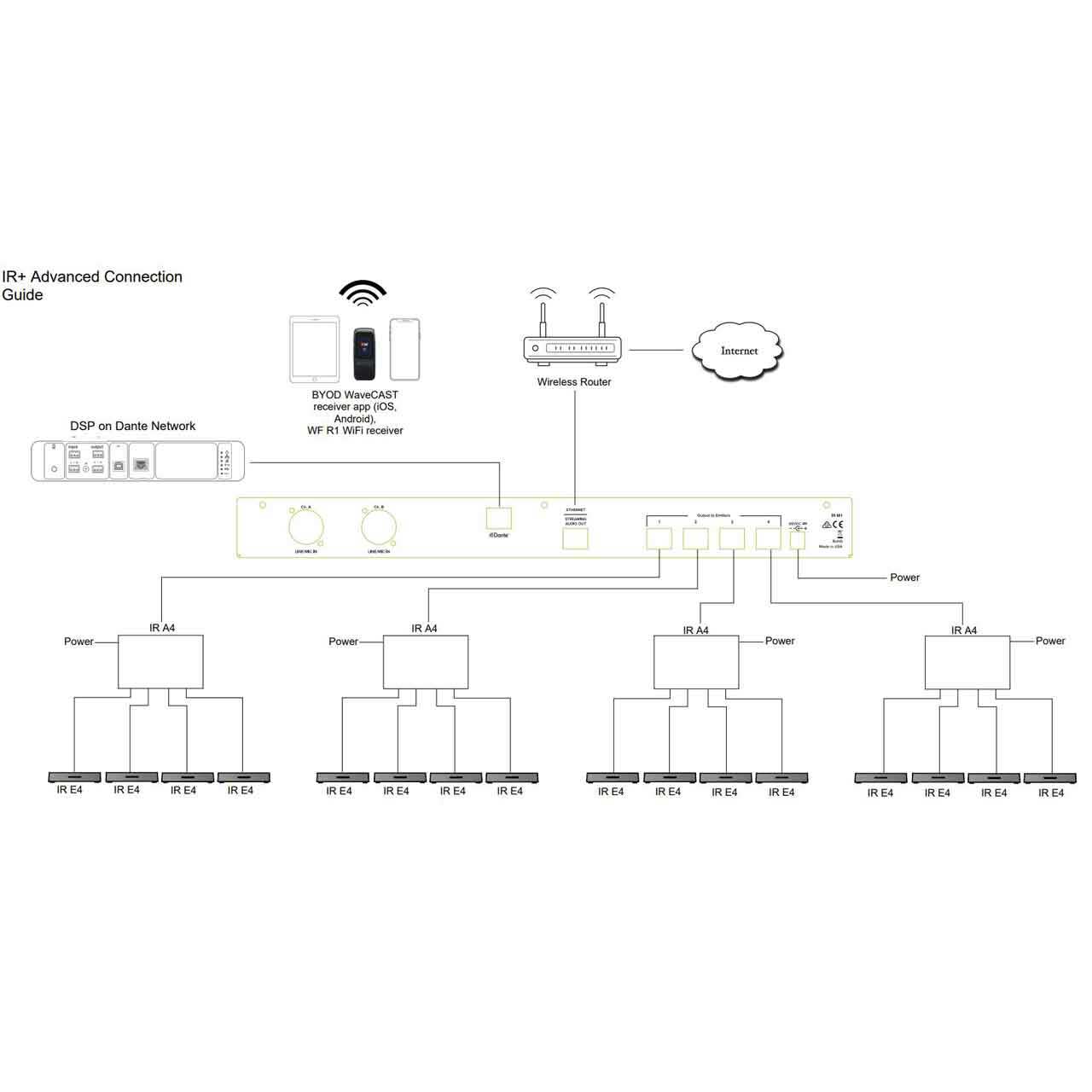

The WILLIAMS AV IR E4 Emitter can be paired with an IR M1 modulator. Up to 4 emitters can be connected to the IR M1 directly, and up to 16 emitters can be connected with the use of IR A4 arrays.

Please note! The IR E4 is not a stand alone system and requires an IR M1 modulator to function.

  • Specifications:

    • Dimensions: 7.5" (W) x 1.4" (H) x 3.6" (D)
    • Weight: 0.8 lb
    • Color: Black
    • Power: 48 VDC supplied by IR M1 via CAT 5e cable.
    • Coverage Area: Up to 18,000 (1670 m2) square feet in single channel mode

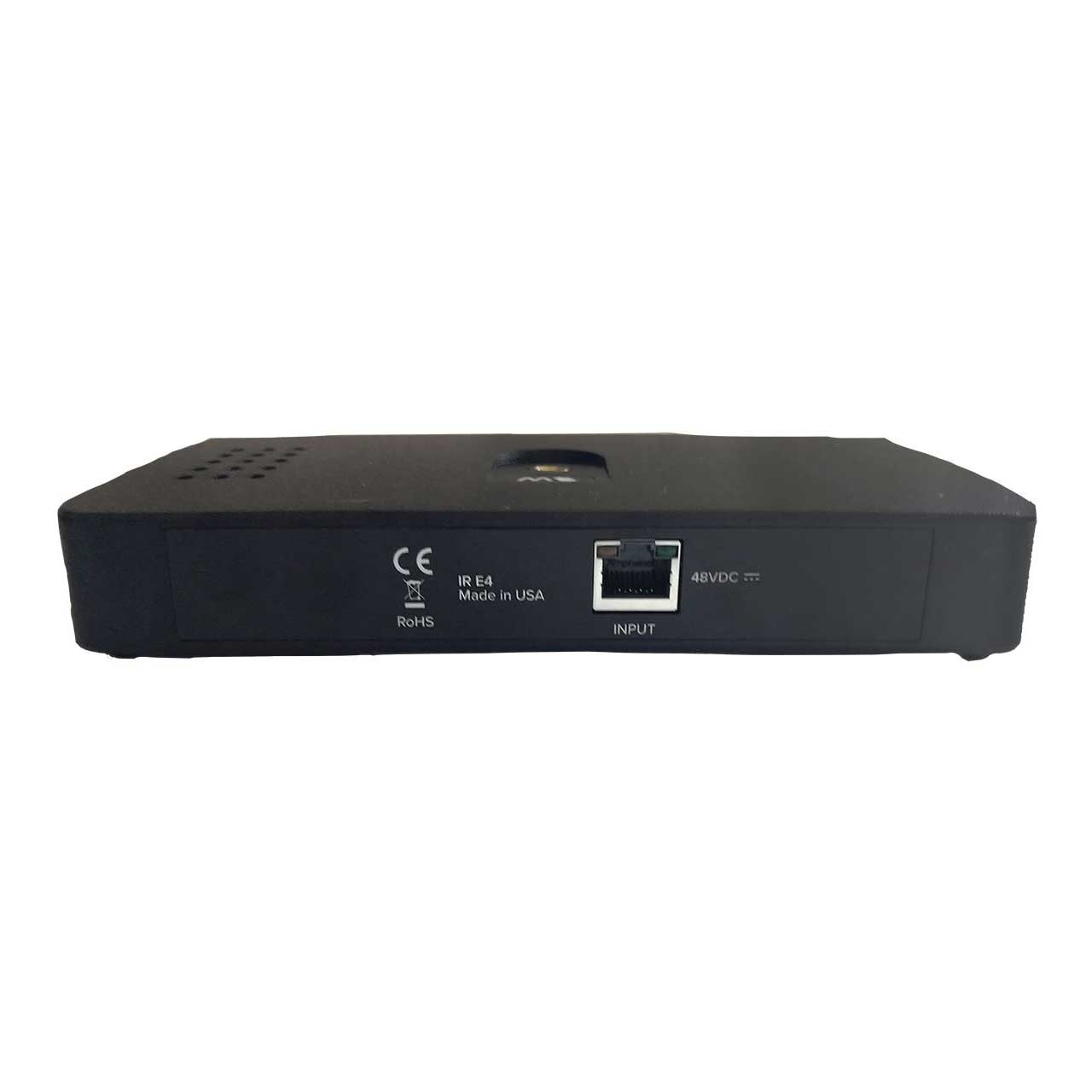

    • Connectivity: +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1
    • Operating requirements: 0-50°C ambient temperature, non-condensing, non-corrosive atmosphere
    • Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
    • Warranty: 2 years on Emitter; 90 days on accessories

  • Item Includes:

    • (1) BKT 024 wall / ceiling mounting bracket


IR E4 - Required Accessories
