IR M1 - Overview

The WILLIAMS AV IR M1 IR+ Control Center provides audio over Wi-Fi and Infrared. Infrared is best used for assistive audio in large spaces, or for secured audio transmission within a room. Connect the IR M1 to a Wi-Fi multicast router or in-house network you can stream audio over Wi-Fi to the Williams AV WaveCAST app (available in the iOS app store or Google Play store).

The IR+ Control Center features a distributed infrared emitter array architecture allowing up to four emitters either stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations.

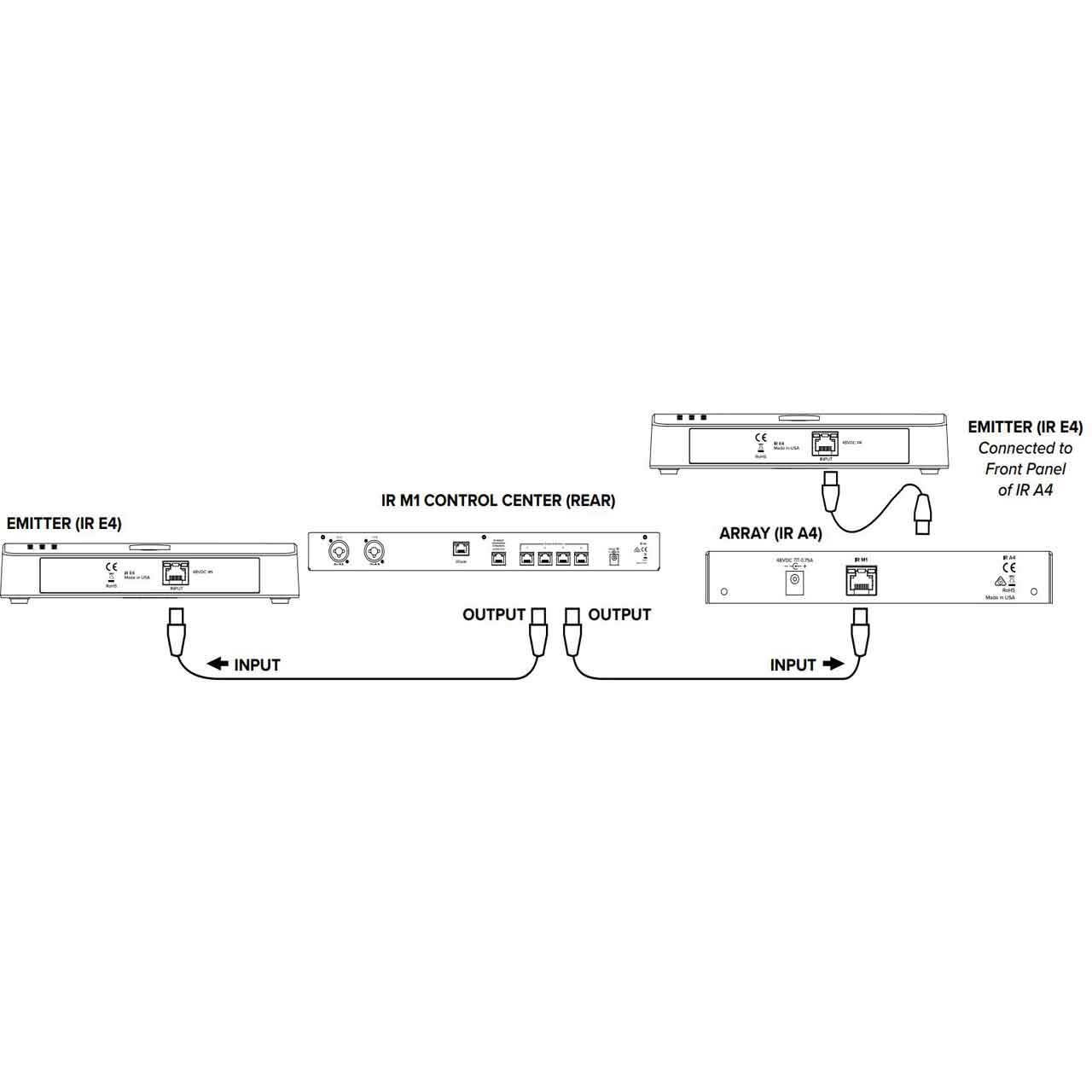

The rack mounted or remotely located IR M1 Control Center comes standard with support for up to four IR emitters. Each emitter runs back to the modulator via a CAT5e cable, providing the audio and power needed to support the remote emitter. Each emitter has a coverage area of 18,000 sq. ft.

*Note: Firmware is model specific. Firmware updates are currently unable to be completed on Mac computers.

Non Dante version

Features:
- Discrete and efficient IR E4 Emitter
- Each emitter provides 18,000 ft coverage (5486.4 meters)
- Simple Cat 5e/6 installation
- No power plug needed - uses PoE from M1
- Emitters can be placed up to 328 feet (100 meters) from modulator
- Up to 4 IR E4 emitters can be used with one IR M1 Distributed Control Center

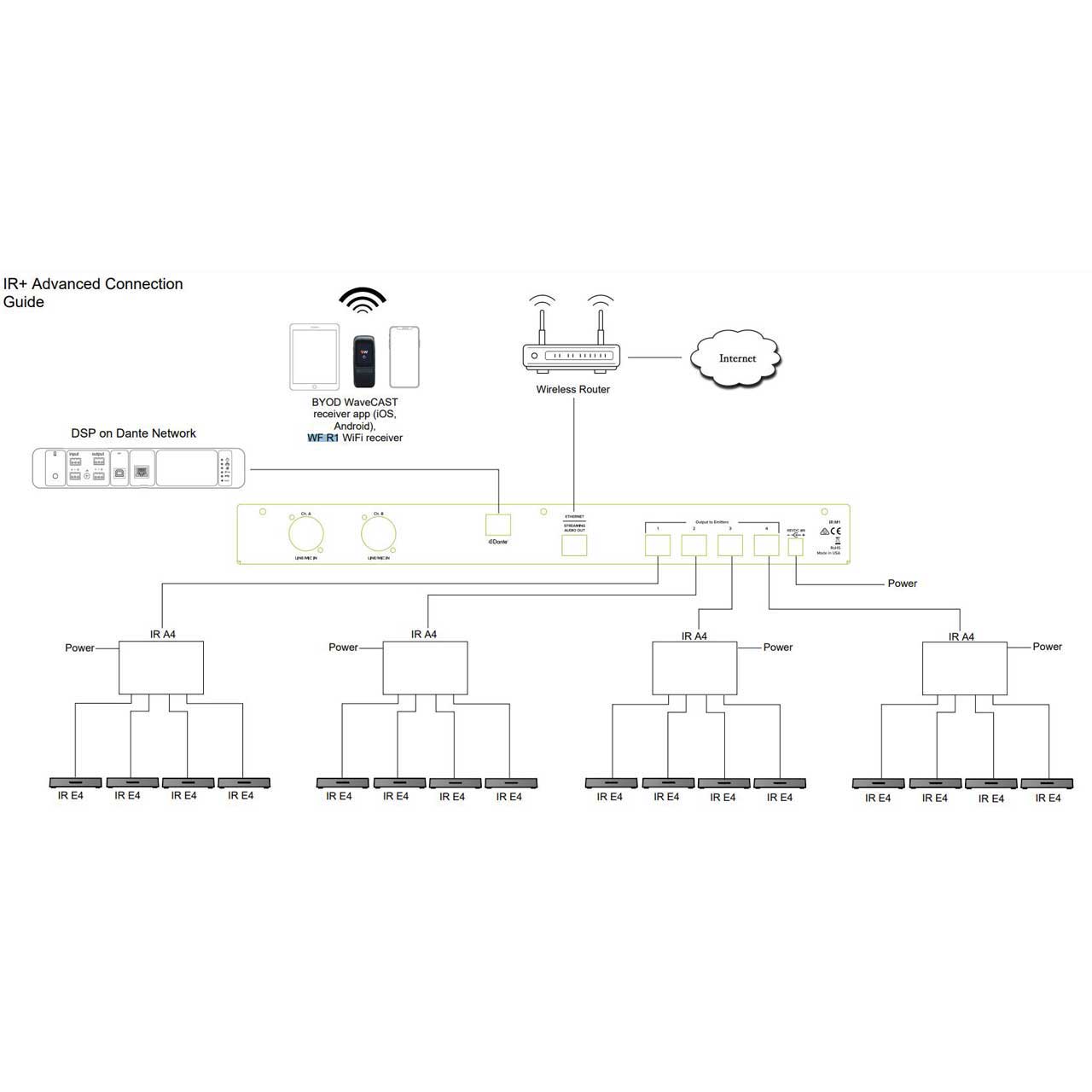

- Up to 4 IR A4 distributed arrays can be used for a total of 16 IR E4 emitters
- True DSP backbone allows for optimization of assistive listening for the venue
Specifications:
- Dimensions: 19" (W) x 1.75" (H) x 8.2" (D)
- Weight: 5.2lb
- Color: Black
- Rack Mount: Single Rack Unit
- Power Supply: International Desktop Supply
- Input: 36 W, 110-240 VAC 50-60 Hz
- Output: +48VDC, 0.75A center-positive
- Power Switch: Rocker switch with LED
- Signal to Noise Ratio: 67 dB (typical)
- Modulation: FM Wideband, +50kHz deviation, 50uS pre-emphasis
- Carrier Frequency: Selectable, 2.3/2.8 or 3.3/3.8MHz
- Frequency Response: 40 to 16,000Hz, +1 dB, -3dB, electrical response
- Total Harmonic Distortion: Less than 2%, electrical response
- Audio Processor Functions: DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
- Auto Carrier Shut-Off: Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
- Infrared Test LED: Dual IR LED for receiver testing, monitoring, and audio signal testing.
- Audio Input: (2x) Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
- Dante: Optional
- Internal Test Tone: 400 Hz internal test tone selectable as audio input source for setup and diagnostics
- Remote Configuration: Available through embedded website
- Headphone Output: (2) 1/4" headphone jacks on front panel for monitoring CH A and CH B audio inputs

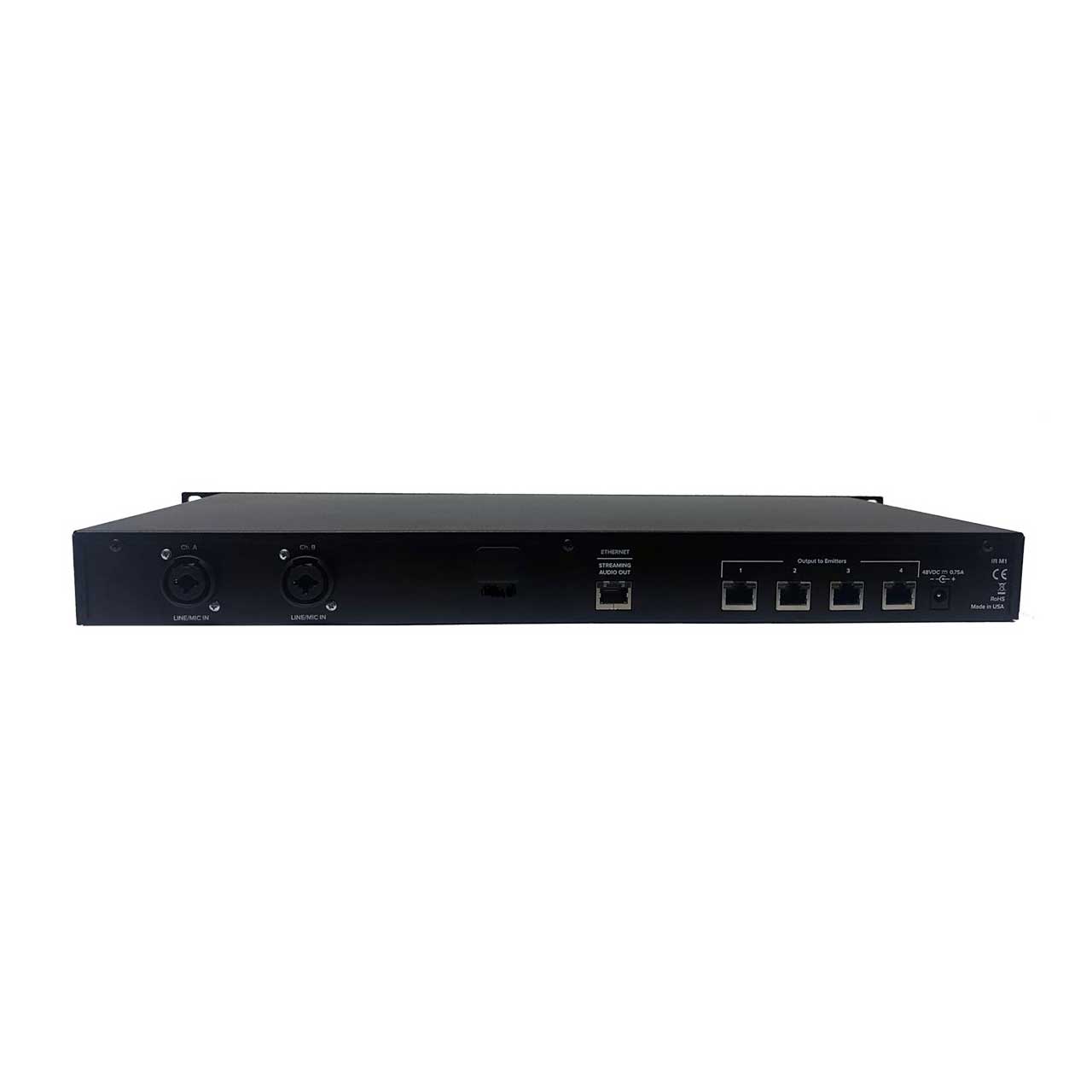

- Emitter Output Jack: Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
- Operating requirements: 0-50°C ambient temperature, non-condensing, non-corrosive atmosphere
- Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Item Includes:
- 1x WILLIAMS AV IR M1 IR + Control Center / Wi-Fi Server
Warranty:
- 2 years on Modulator, 90 days on accessories

IR M1 - Recommended Accessories

WILLIAMS AV IR E4 IR + Infrared Emitter includes (1) BKT 024 Omnidirectional Wall/Ceiling Mount
WLS-IR-E4
Our Price: $590.00
Sescom Mic Cable Canare Star-Quad 3-Pin XLR Male to 3-Pin XLR Female - Black - 10 Foot
SC10XXJ
Our Price: $19.49
Sescom Pro Audio Hum Eliminator Inline with Isolation
IL-19
Our Price: $50.49
Sescom Audio Cable Canare Star-Quad 1/4 TRS Balanced Male to 1/4 TRS Balanced Male - Black - 10 Foot
SC10SZSZ
Our Price: $25.49
Luxul Dual-Band Wireless AC1200 Gigabit Router with Power Cord
LUXU-XWR-1200
Our Price: $186.00
WILLIAMS AV IR RX20 Stereostethoscope - Shaped Infrared Receiver
WLS-IR-RX20
Our Price: $185.00

IR M1 - Reviews

IR M1 - Attachments

Please see the IR M1 Users Guide (pdf)

Overview

IR M1 - Overview

*Note: Firmware is model specific. Firmware updates are currently unable to be completed on Mac computers.

Non Dante version

Features:
- Discrete and efficient IR E4 Emitter
- Each emitter provides 18,000 ft coverage (5486.4 meters)
- Simple Cat 5e/6 installation
- No power plug needed - uses PoE from M1
- Emitters can be placed up to 328 feet (100 meters) from modulator
- Up to 4 IR E4 emitters can be used with one IR M1 Distributed Control Center
- Up to 4 IR A4 distributed arrays can be used for a total of 16 IR E4 emitters
- True DSP backbone allows for optimization of assistive listening for the venue
Specifications:
- Dimensions: 19" (W) x 1.75" (H) x 8.2" (D)
- Weight: 5.2lb
- Color: Black
- Rack Mount: Single Rack Unit
- Power Supply: International Desktop Supply
- Input: 36 W, 110-240 VAC 50-60 Hz
- Output: +48VDC, 0.75A center-positive
- Power Switch: Rocker switch with LED
- Signal to Noise Ratio: 67 dB (typical)
- Modulation: FM Wideband, +50kHz deviation, 50uS pre-emphasis
- Carrier Frequency: Selectable, 2.3/2.8 or 3.3/3.8MHz
- Frequency Response: 40 to 16,000Hz, +1 dB, -3dB, electrical response
- Total Harmonic Distortion: Less than 2%, electrical response
- Audio Processor Functions: DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
- Auto Carrier Shut-Off: Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
- Infrared Test LED: Dual IR LED for receiver testing, monitoring, and audio signal testing.
- Audio Input: (2x) Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
- Dante: Optional
- Internal Test Tone: 400 Hz internal test tone selectable as audio input source for setup and diagnostics

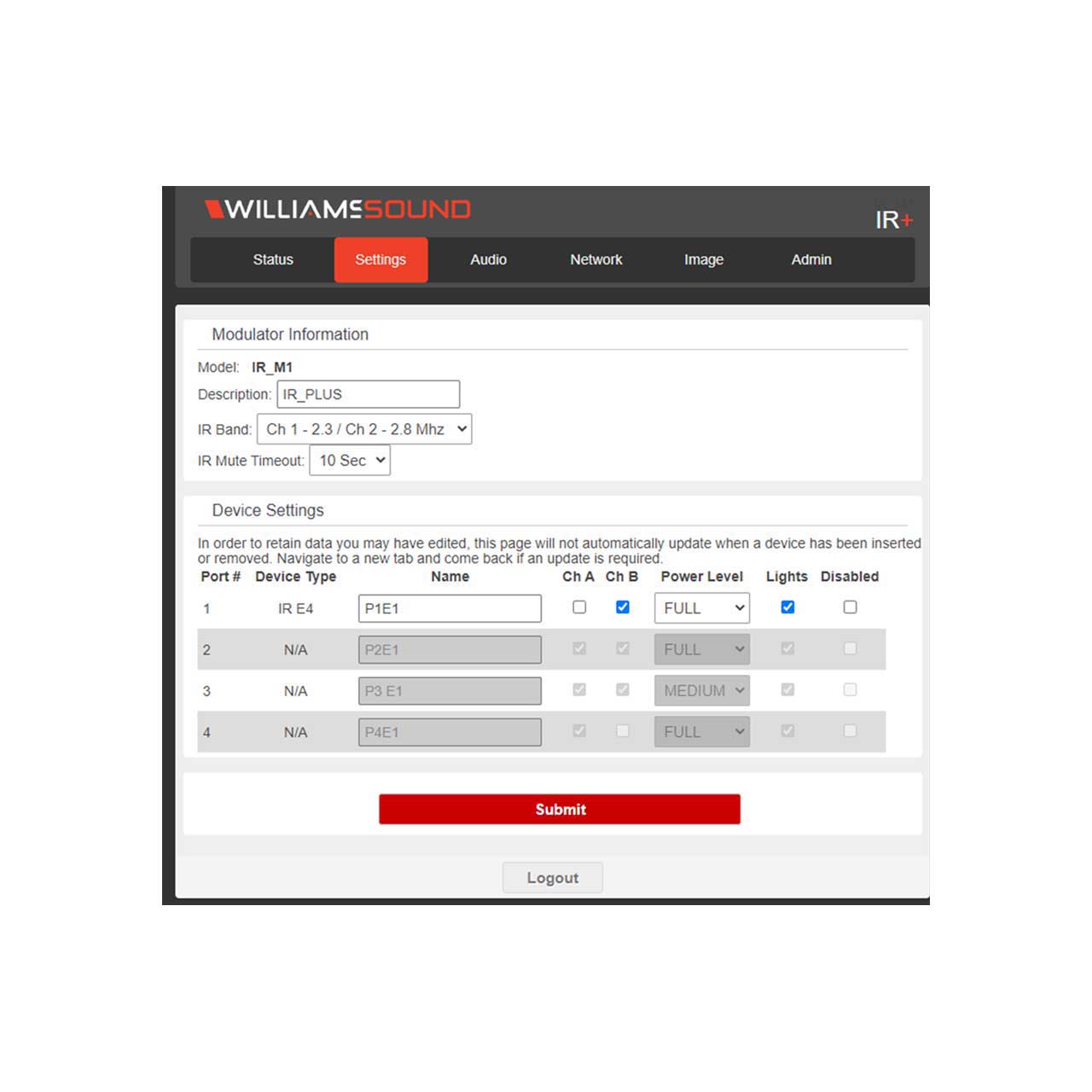

- Remote Configuration: Available through embedded website
