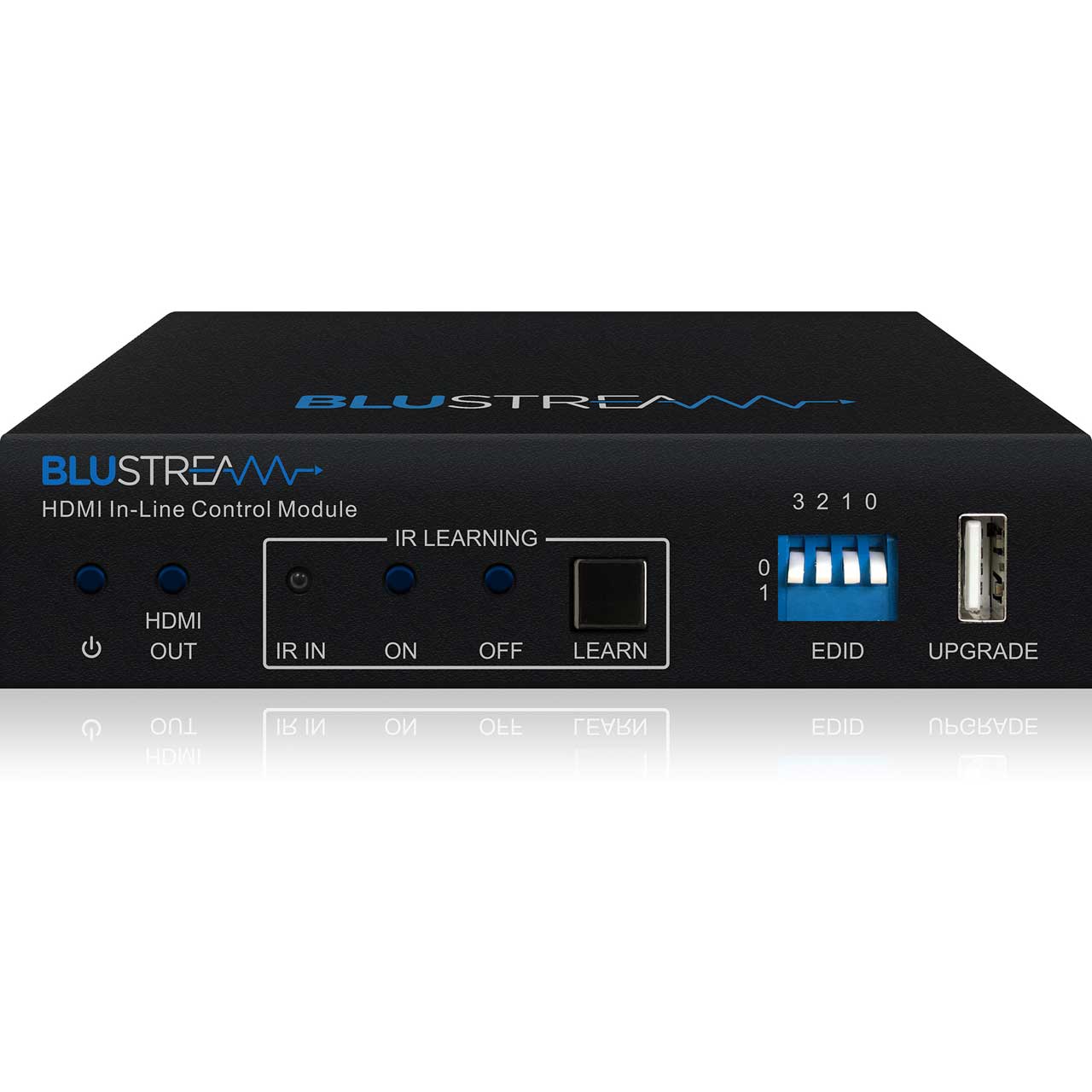

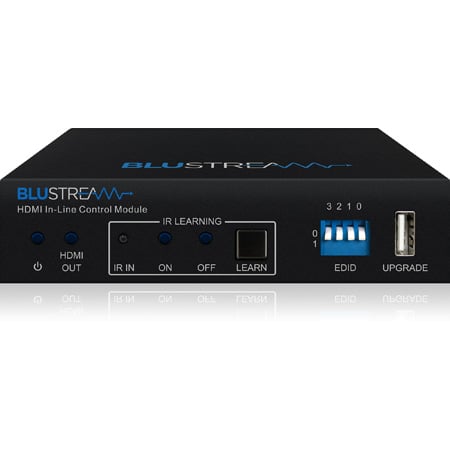

Blustream HD11CTRL HDMI In-line Controller IR - RS232 - CEC - 12V Trigger Outputs

HD11CTRL - Overview

• Features:

  • Automated in-line HDMI control module
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports resolutions up to 4K UHD 60Hz 4:4:4 8-bit (18Gbps)
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues
  • Automatic display On / Off control via CEC, RS-232 or IR
  • Relay control for interface to third-party devices such as automated projector screens
  • Contact closure input for connection from third-party devices such as sensors or switches
  • HDCP 2.2 compliant with advanced EDID management


• Specifications:

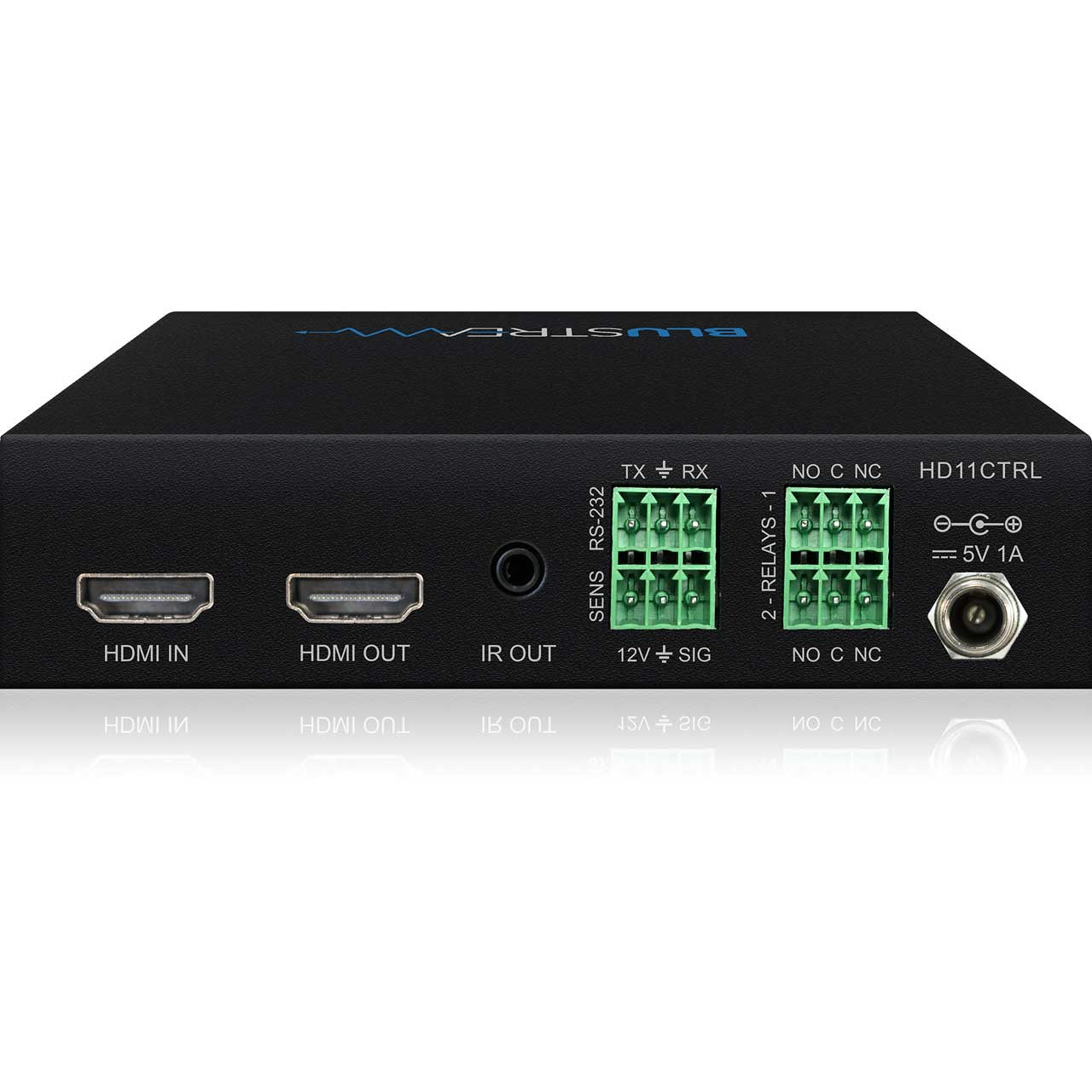

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female
  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector
  • IR Output Port: 1 x 3.5mm mono jack
  • Relay Control: 2 x 3-Pin Phoenix connector
  • Sensor Input: 1 x 3-Pin Phoenix connector
  • EDID: 4-PIN DIP switch
  • Product Upgrade: 1x USB Type A female
  • Casing Dimensions (W x H x D): 120mm x 28mm x 84mm
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 5V/1A DC


• Item Includes:

  • 1x HD11CTRL
  • 1x 5V/1A DC Power Supply
  • 1x IR Emitter
  • 1x RS-232 Control Cable
  • 1x Mounting Kit
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003133
