Kramer PT-5R/T IR Extender & Repeater

PT-5R/T - Overview

Up to 250m (820ft) via twisted pair!

• Features:

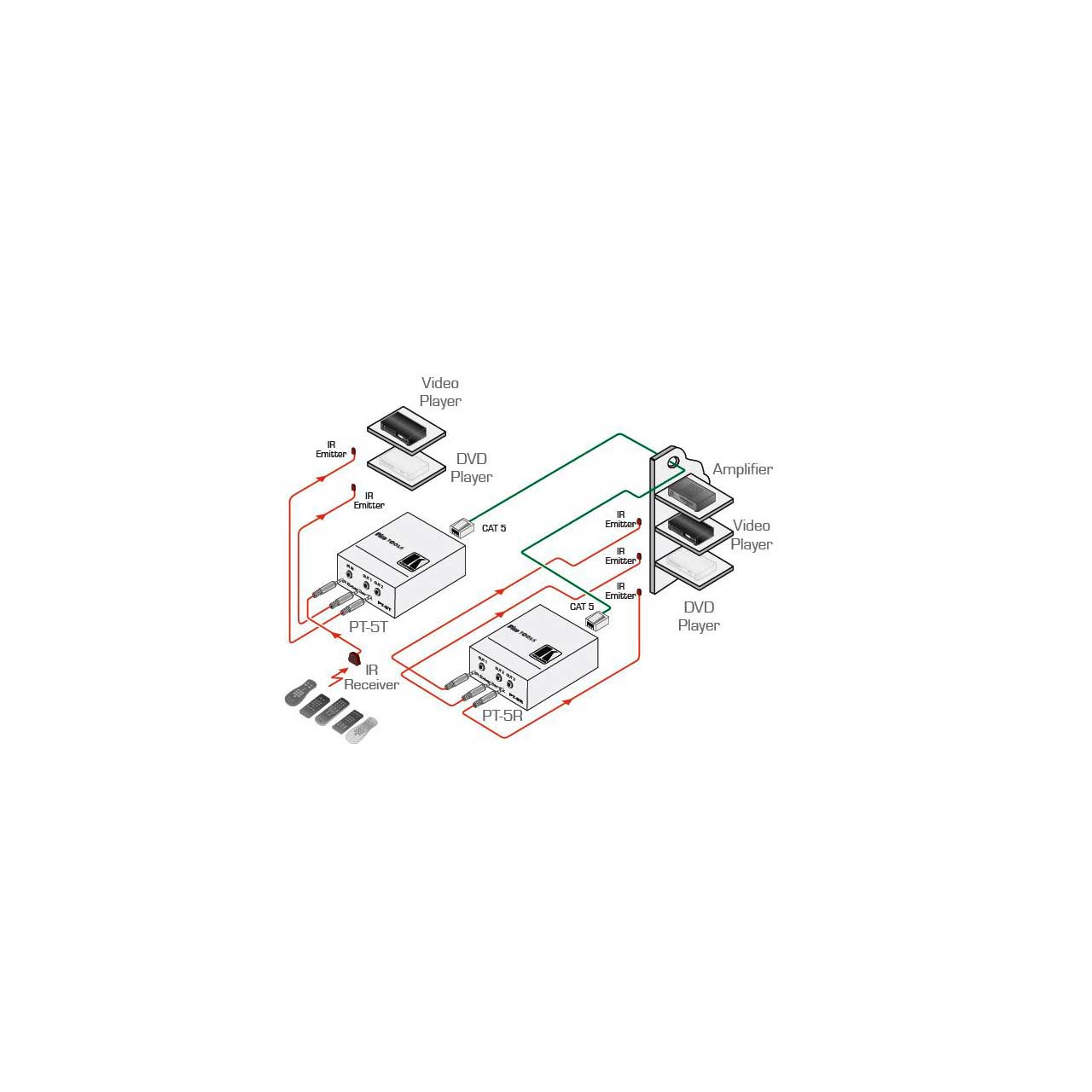

  • Multi-Unit IR Control - Controls 2 local and 3 remote devices (DVDs, amplifiers, air conditioners, etc.) over their IR ports.
  • Range - Up to 250m (820ft) via twisted pair.
  • Flexible Operation - Operates devices that are stacked away in closets, cabinets and other rooms.

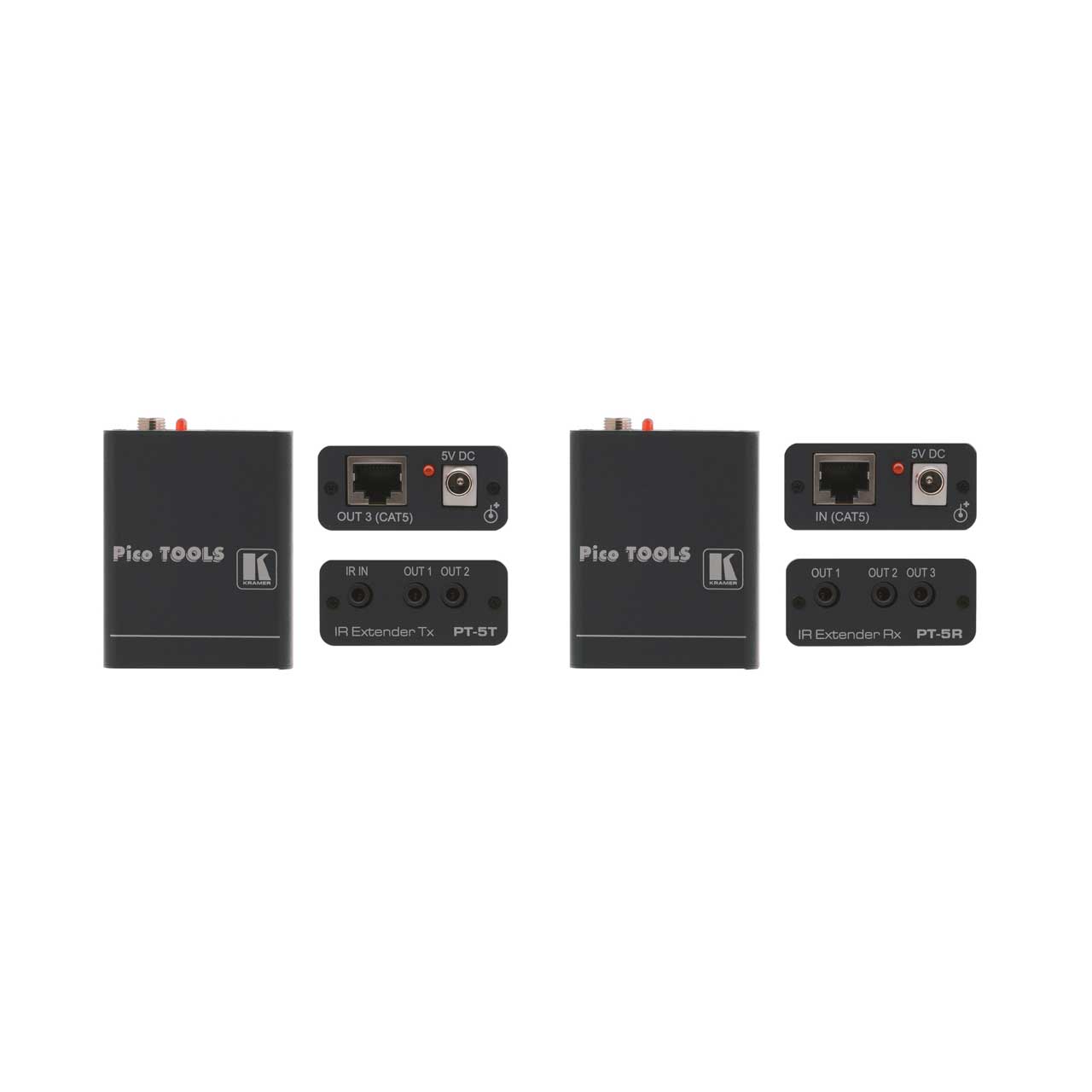

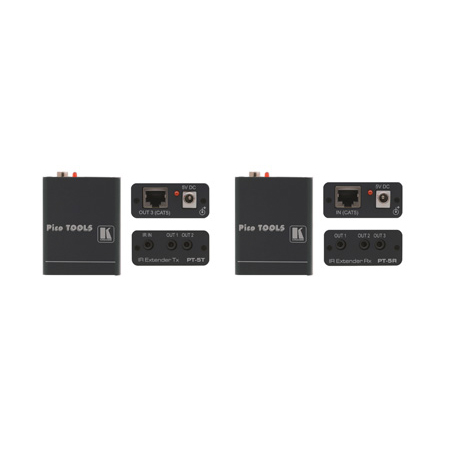

  • PT-5T - Input: 1 IR receiver on a 3.5mm mini jack; outputs: 2 IR emitters on 3.5mm mini jacks; 1 twisted pair on an RJ-45 connector.
  • PT-5R - Input: 1 twisted pair on an RJ-45 connector; outputs: 3 IR emitters on 3.5mm mini jacks.
  • Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
  • Sold as a Pair.


• Specifications:

  • INPUTS
  • 1 IR receiver on a 3.5mm mini jack (PT-5T)
  • 1 twisted pair on a RJ-45 connector (PT-5R)


  • OUTPUTS
  • 2 IR emitters on 3.5mm mini jacks, 1 twisted pair on a RJ-45 connector (PT-5T)
  • 3 IR emitters on 3.5mm mini jacks (PT-5R)


  • MAX. OPERATING DISTANCE
  • 250m (820ft)


  • CARRIER FREQUENCY
  • 36-40kHz


  • POWER CONSUMPTION
  • 5V DC: 7mA (PT-5T), 6mA (PT-5R)


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • PT-5T and PT-5R and receiver pair
  • Power supply 5V DC (2)
  • IR receiver with 2m cable and 3.5mm mini jack (1)
  • IR emitters with 2m cables and 3.5mm mini jacks (5)
  • Rubber Feet (8)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063008680
