18/2 Plenum Speaker Cable - 500 Feet - Black

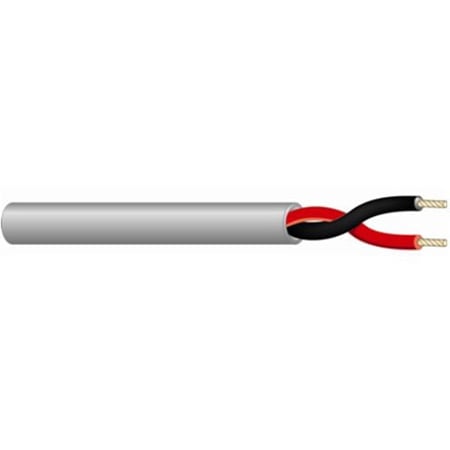

The 25224b by West Penn is a 1 pair 18 AWG Unshielded Plenum speaker cable. This cable features 2 pairs of bare copper conductors and plenum PVC Insulation. This cable is also RoHS compliant.
-
- ASTM bare copper
- Polymer alloy insulation
- Twisted pair unshielded
- Two conductors twisted to form a pair
- Flexible plenum jacket
- Rating:
- UL or C(UL)+ listed NEC type CMP
- Constructed in accordance with UL Standard 444
- Complies with UL-910 Test Modified ASTM Steiner Tunnel Test
Applications: - Indoor within ducts, plenums and other spaces used for environmental air for:
Intercom Systems - Security Systems
- Sound and Audio
- Background Music
- Applications as defined in Article 800 Communications Circuits
Color Code: - Conductors: Black, Red
- Jacket Color: Available in Black, Gray, Green or Orange
- Special Notes:+C(UL) CMP Canadian UL accepted mark
- replaces PCC-FT6
-
- Construction and Physical
- Number of Conductors: 2
- AWG Size: 18
- Conductor Stranding: 7x26
- Conductor Type: Bare copper
- Nominal DCR: 6.2 Ohm/1000ft
- Cabling Lay Length: 3.5 in
- Twists/Foot: 3.4 twist/ft
- Insulation Type: Plenum PVC
- Insulation Thickness: 0.008 in
- Insulation Color Code: 1. Black 2.Red
- Shield Type: None
- Jacket Type: Flexible Plenum
- Jacket Thickness: 0.015 in
- Nominal Cable O.D.: 0.154 in
- Plenum: Yes
- NEC UL Rating: CMP
- RoHS Compliant: Yes
- Pull Tension: 42 lbs
- Bend Radius: 1.386 in
- Cable Weight: 17 lbs
Electrical/Optical - UL Flammability: NFPA 262 Plenum
- Operating Range: -0 to 60°C
- UL Voltage Rating: 300
-
