West Penn 25242B 4 Conductor 20AWG Unshielded Plenum CMP Communication & Control Cable - 1000 Foot - Gray

Name: West Penn 25242B 4 Conductor 20AWG Unshielded Plenum CMP Communication & Control Cable - 1000 Foot - Gray
Brand: West Penn Wire Corp
SKU: WP-25242B-1000GY
Price: 278.72 USD
Availability: PreSale

ITEM #: WP-25242B-1000GY MFG #: 25242B-1000GY

West Penn Wire Corp

List Price:

$280.90

Our Price:

$278.72

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

25242B-1000GY - Overview

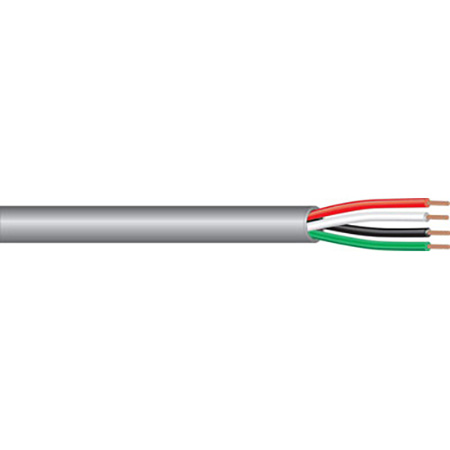

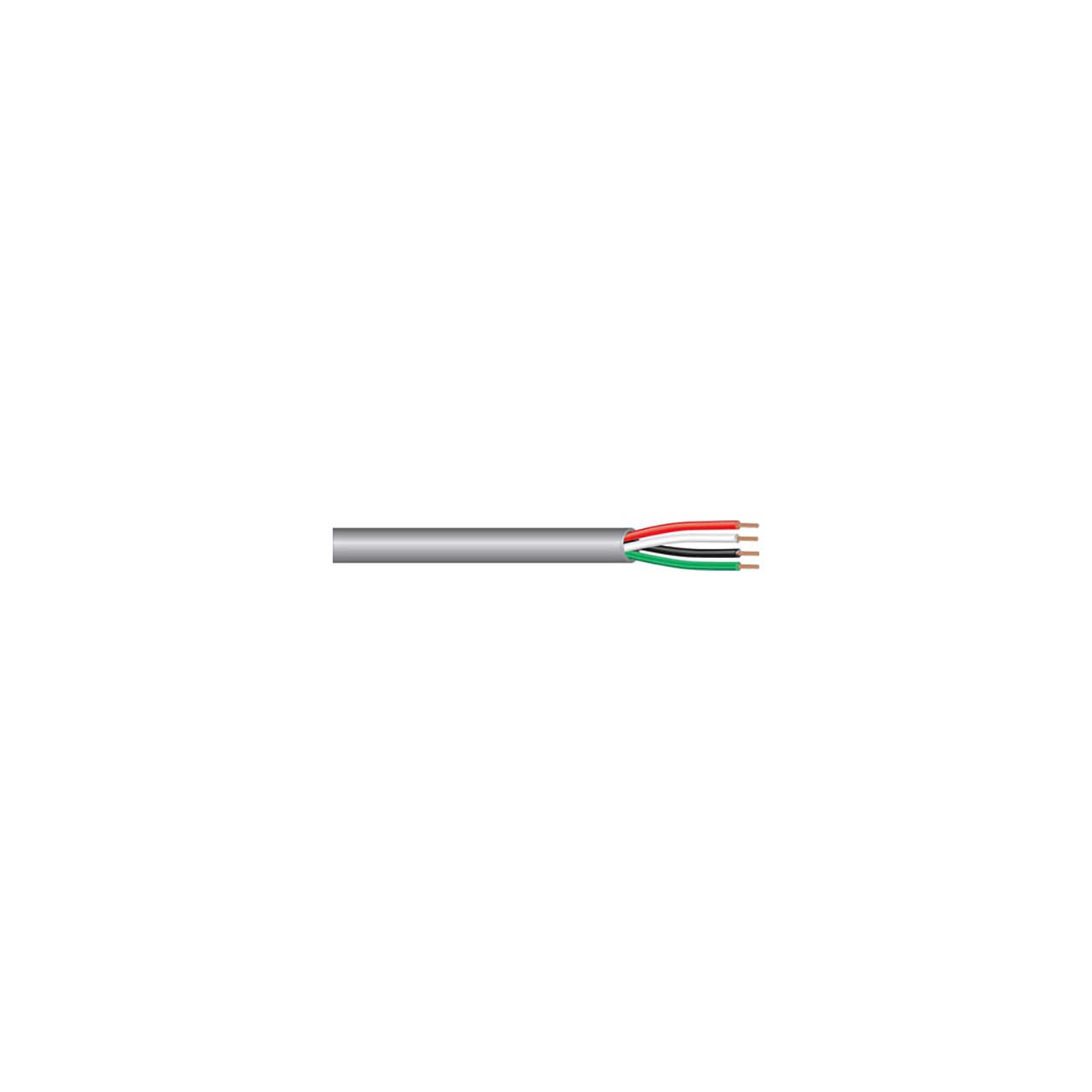

West Penn Wire Corp 25242BGY1000 is a 4 conductor, 20 AWG, and unshielded CMP cable
.
NEC RATING: CMP, NEC Article 800.
APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed.
APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Pro Audio, Intercom Systems, Security Systems, Sound, Background Music).

Specifications:
- Construction & Dimensions
- Number of Conductors: 4
- AWG Size: 20
- Conductor Stranding: 7x28
- Conductor Type: Bare copper
- Nominal DCR: 10.5 Ohm/1000ft

  Insulation Parameter
- Insulation Type: Plenum PVC
- Insulation Thickness: 0.007 in
- Insulation Color Code: 1.Black,2.Red,3.White,4.Green

  Shielding Parameter
- Shield Type: None

  Electrical Characteristics
- Jacket Type: Flexible Plenum
- Jacket Thickness: 0.015"
- Nominal Cable O.D.: 0.156"
- Plenum: Yes
- NEC UL Rating: CMP
- RoHS Compliant: Yes
- Pull Tension: 39Lbs
- Bend Radius: 1.404"
- Cable Weight: 22Lbs
GTIN:
0612825046448
