West Penn 25248B 12 AWG 4 Conductor Plenum Communication Cable Gray Jacket - 1000 Foot

ITEM #: WP-25248B-1000 MFG #: 25248B

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,332.90

Our Price:

$1,081.89

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

25248B - Overview

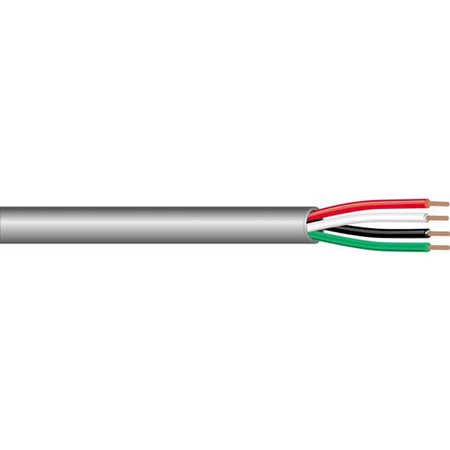

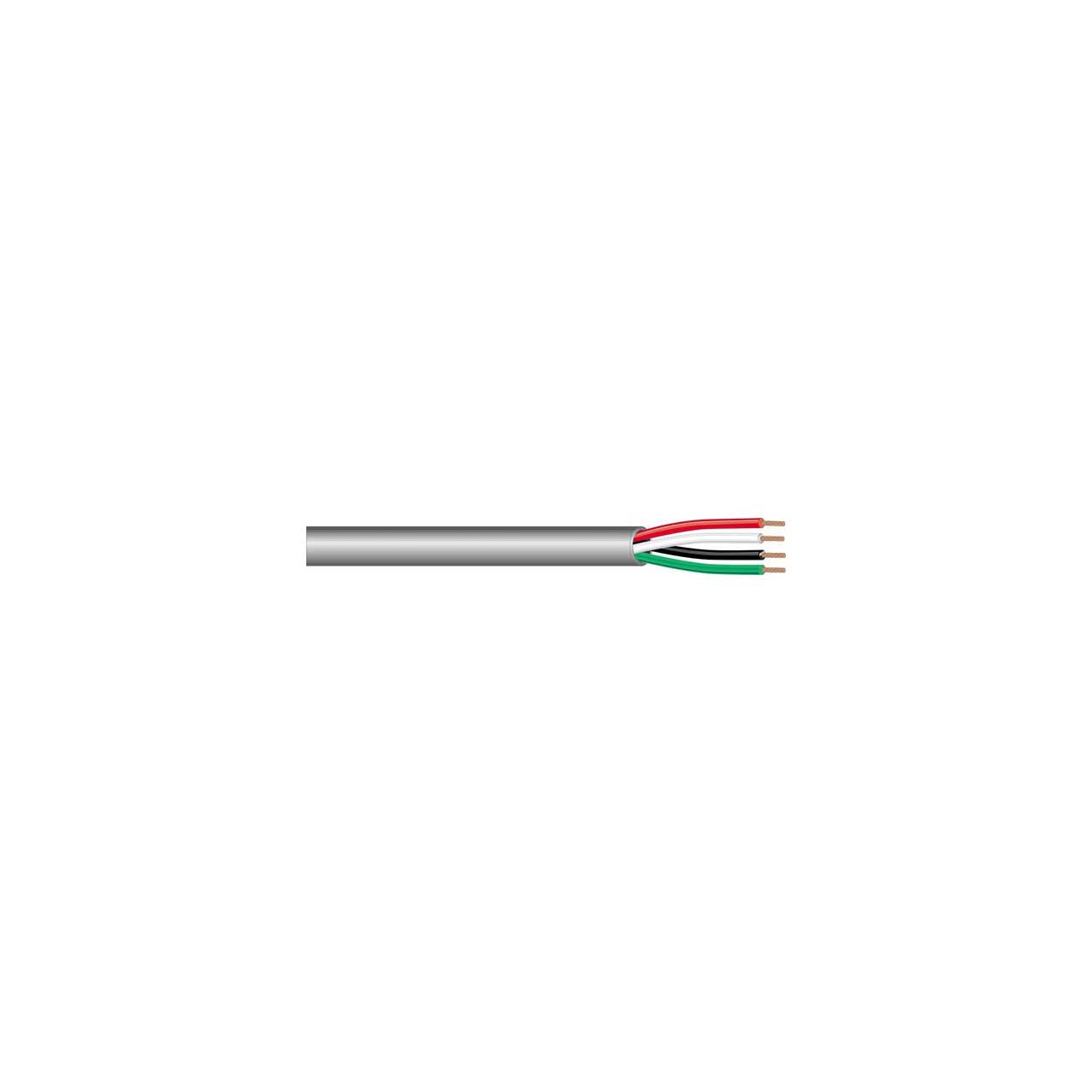

12/4 Stranded bare copper conductors, unshielded with an overall jacket.

  • Specifications:

    • Number of Conductors: 4
    • AWG Size: 12
    • Conductor Stranding: 19x25
    • Conductor Type: Bare copper
    • Nominal DCR: 1.7 Ohm/1000ft
    • Cabling Lay Length: 5.25 in
    • Insulation Type: Plenum PVC
    • Insulation Thickness: 0.012 in
    • Insulation Color Code: 1.Black,2.Red,3.White,4.Green
    • Jacket Type: Flexible Plenum
    • Jacket Thickness: 0.015 in
    • Nominal Cable O.D.: 0.308 in
    • Plenum: Yes
    • NEC UL Rating: CL3P, FPLP
    • RoHS Compliant: Yes
    • Pull Tension: 250 lbs
    • Bend Radius: 2.772 in
    • Cable Weight: 104 lbs


  • Applications

    :

    • Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music)


  • GTIN:

    0612825046790
