West Penn 25303B 3 Cond. 18 AWG Bare Copper Plenum Communication Cable- 1000ft

ITEM #: WP-25303B-1000 MFG #: 25303B

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$355.70

Our Price:

$304.72

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

25303B - Overview

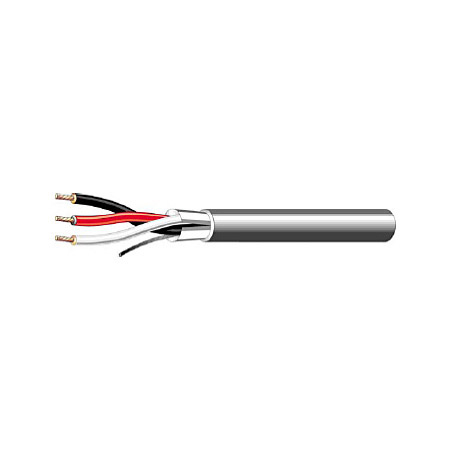

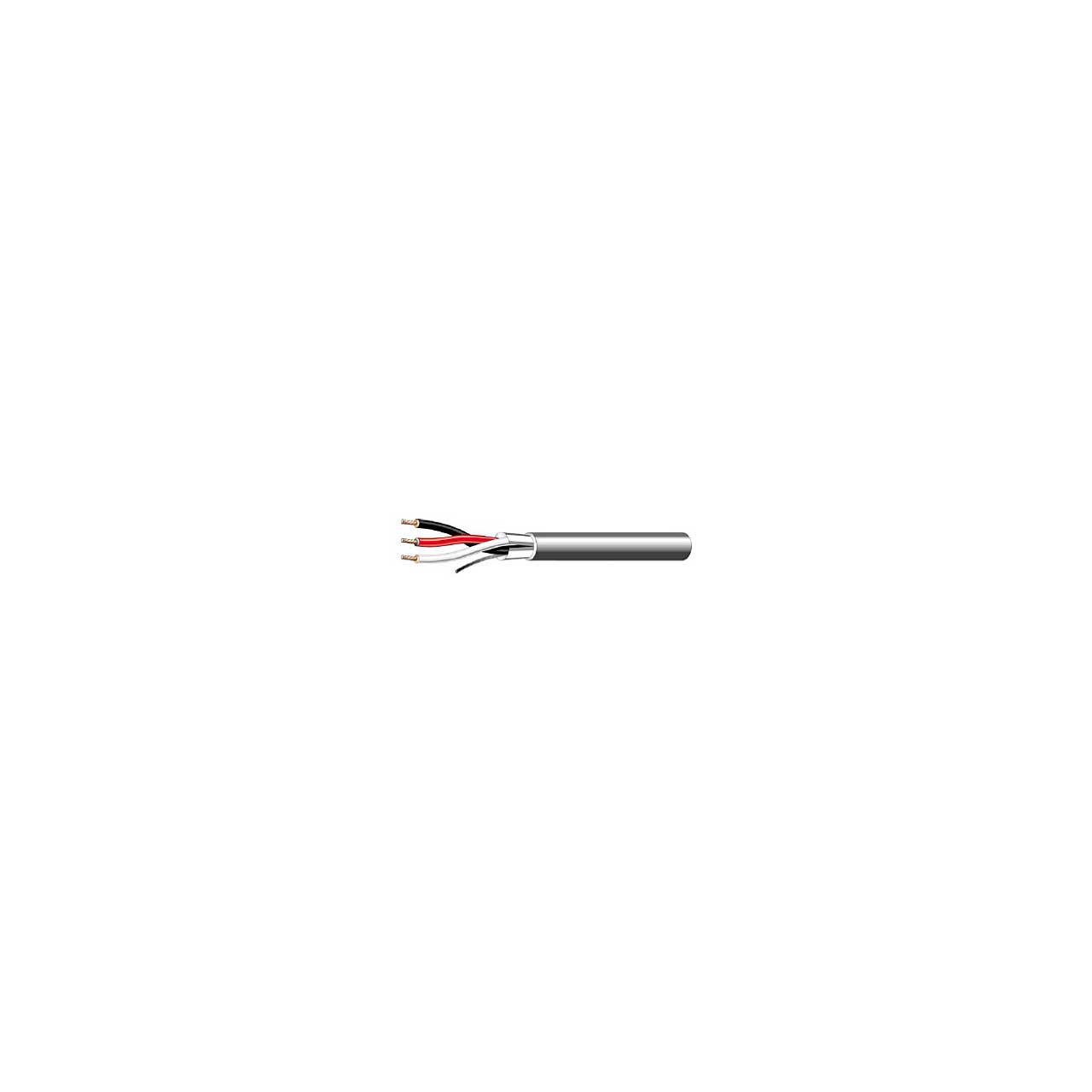

18/3 Stranded bare copper conductors, shielded with an overall jacket.

  • Features:

    • NEC RATING: CMP, NEC Article 800
    • APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed
    • APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music)


  • Specifications:

    • Conductor 18 AWG Bare Copper
    • Stranding 7x26
    • Insulation Material Polymer Alloy
    • Insulation Thickness 0.010'' Nom.
    • Number of Conductors 3
    • Shield 100% Aluminum Polyester Foil
    • Drain Stranded Tinned Copper
    • Jacket Material Flexible Plenum
    • Jacket Thickness 0.015'' Nom.
    • Overall Cable Diameter 0.175'' Nom.
    • Approximate Cable Weight 29 Lbs/1M' Nom.
    • Flame Rating NFPA 262 Flame Test


  • GTIN:

    0612825048060
