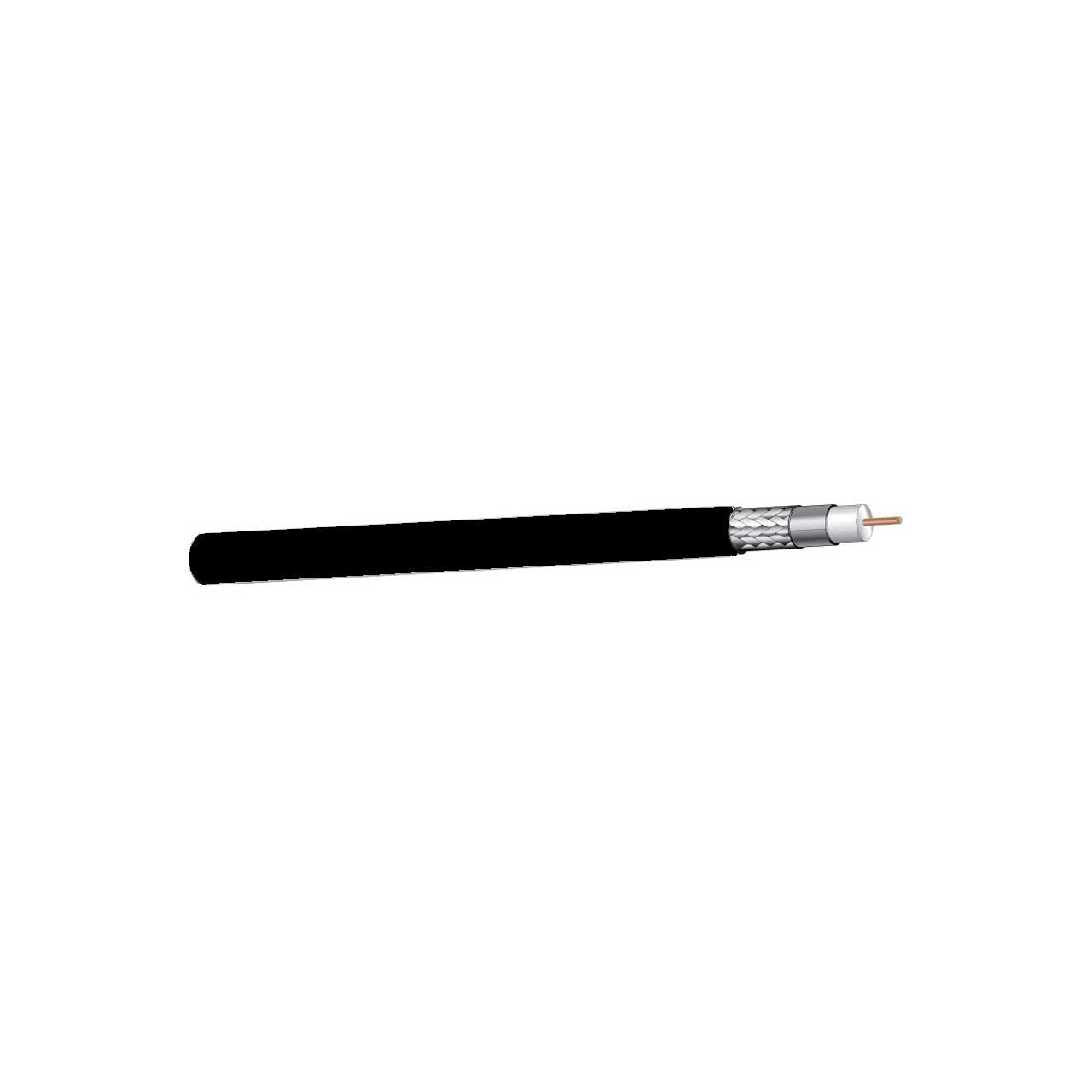

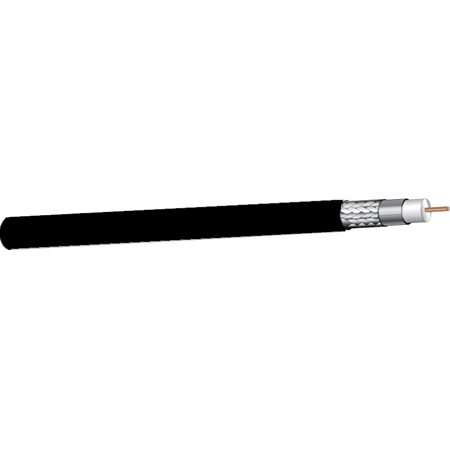

West Penn 256350 RG6/U 18AWG HD-SDI Plenum Broadcast Video Coax Cable - Black - 1000 Foot

256350BK1000 - Overview

• Specifications:

  • Number of Conductors: 1
  • AWG Size: 18
  • Conductor Stranding: Solid
  • Conductor Type: Bare Copper
  • Nominal DCR: 6.5 Ohm/1000ft
  • Insulation Type: Foam FEP
  • Insulation Thi Kness: 0.17"
  • Shield Type: Overall 100% Aluminum Foil
  • Shield Type 2: 95% Tinned Copper Braid
  • Nominal Impedance: 75 Ohm
  • Nom. Cap. Between Conductors: 16.2 pF/ft
  • Jacket Type: Flexible Plenum
  • Nominal Cable: O.D. 0.236 in
  • Plenum: Yes
  • NEC UL Rating: CMP
  • RoHS Compliant: Yes
  • Pull Tension: 75Lbs
  • Bend Radius: 2.36"
  • Cable Weight: 36Lbs
  • Nominal Velocity of Propagation (VP): 82 %
  • UL Flammability: NFPA 262 Plenum
  • Operating Range: 32° to 140°F (0° to 60°C)
  • UL Voltage Rating: 300


• GTIN:

  0612825050162
