West Penn 4811 14AWG 2-Jacket RG11 95% Bare Copper Braid Outdoor Analog CCTV Video Cable - Black - 500 Foot

ITEM #: WP-4811-500-BK MFG #: 4811BK0500

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$633.10

Our Price:

$616.07

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4811BK0500 - Overview

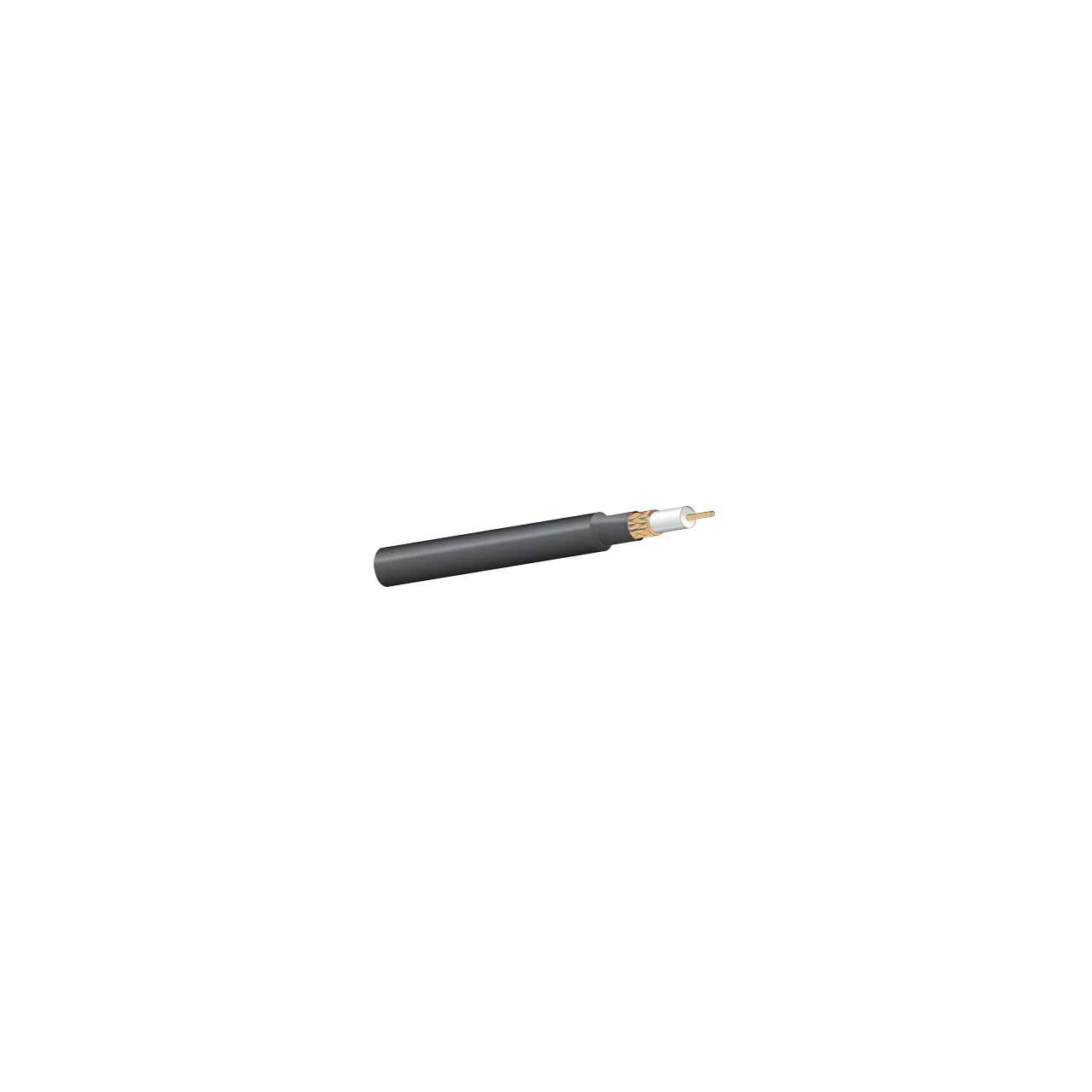

500' Outdoor RG11/U Type CCTV Coaxial Cable.

  • Specifications:

    • Number of Conductors: 1
    • AWG Size: 14
    • Conductor Stranding: Solid
    • Conductor Type: Bare Copper
    • Nominal DCR: 2.6 Ohm/1000ft
    • Insulation Type: Foam Polyethylene
    • Insulation Thickness: 0.28 in
    • Shield Type: 95% Bare Copper Braid
    • Nominal Impedance: 75 Ohm
    • Nom. Cap. Between Conductors: 16.2 pF/ft
    • Jacket Type: PVC-Polyethylene
    • Nominal Cable O.D.: 405-.455 in
    • Plenum: No
    • RoHS Compliant: Yes
    • Pull Tension: 200 lbs
    • Bend Radius: 4.55 in
    • Cable Weight: 113 lbs
    • Nominal Velocity of Propagation (VP): 82 %
    • Operating Range: -20 to 60 Deg C
    • UL Voltage Rating: 300
