West Penn AQC806 18 AWG Analog CCTV RG-6 CM AQUASEAL Coaxial Cable - 1000 Foot - Black

ITEM #: WP-AQC806BK1000 MFG #: AQC806BK1000

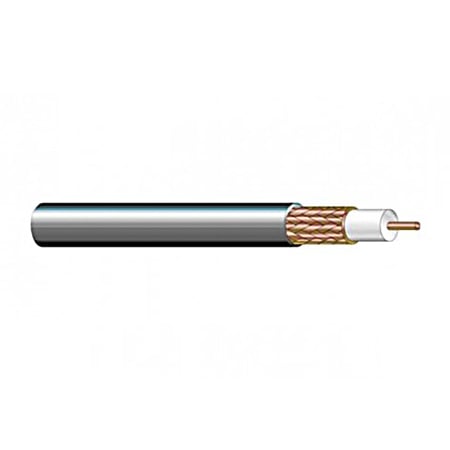

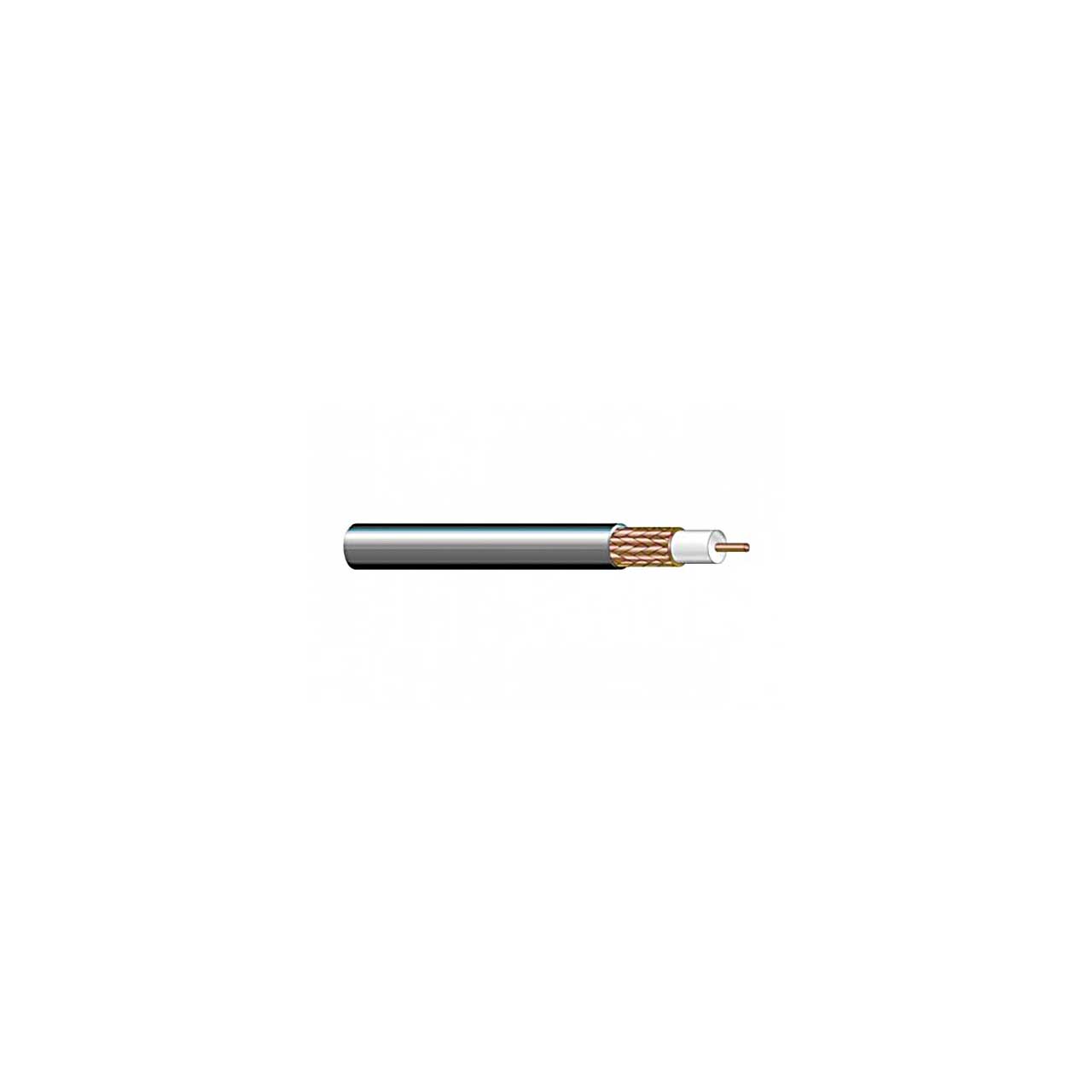

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$563.90

Our Price:

$563.47

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AQC806BK1000 - Overview

The AQC806BK1000 by West Penn is an Analog video and CCTV RG6/U CM AQUASEAL Indoor/Outdoor Coaxial bulk cable. This unterminated cable is 1000 feet in length.

  • Specifications:

    • Conductor
    • Number of Conductors: 1
    • AWG Size: 18
    • Conductor Stranding: Solid
    • Conductor Type: Bare Copper
    • Nominal DCR 6.5 Ohm/1000ft

      Insulation and Shielding
    • Insulation Type: Foam Polyethylene
    • Insulation Thickness: 0.18 in
    • Shield Type: 95% Bare Copper Braid
    • Shield Type: 2 Aquaseal Water Blocking Tape

      Overall Construction
    • Jacket Type: UV Resistant PVC
    • Nominal Cable O.D.: 0.28 in
    • Plenum: No
    • NEC UL Rating: CM
    • RoHS Compliant: Yes
    • TIA Test: TIA455-82 Water Penetration Test
    • Pull Tension: 70 lbs
    • Bend Radius: 2.8 in
    • Cable Weight: 37 lbs

      Overall Electrical/Optical Characteristics
    • Nominal Impedance: 75 Ohm
    • Nom. Cap. Between Conductors: 16.2 pF/ft
    • Nominal Velocity of Propagation (VP): 82 %
    • UL Flammability: UL1685
    • Operating Range: -20° to 60° C
    • UL Voltage Rating: 300


  • GTIN:

    0612825006459
