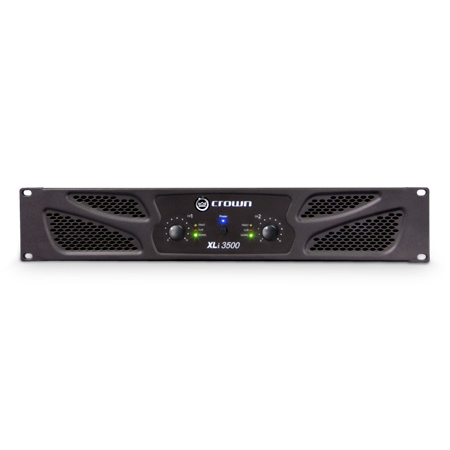

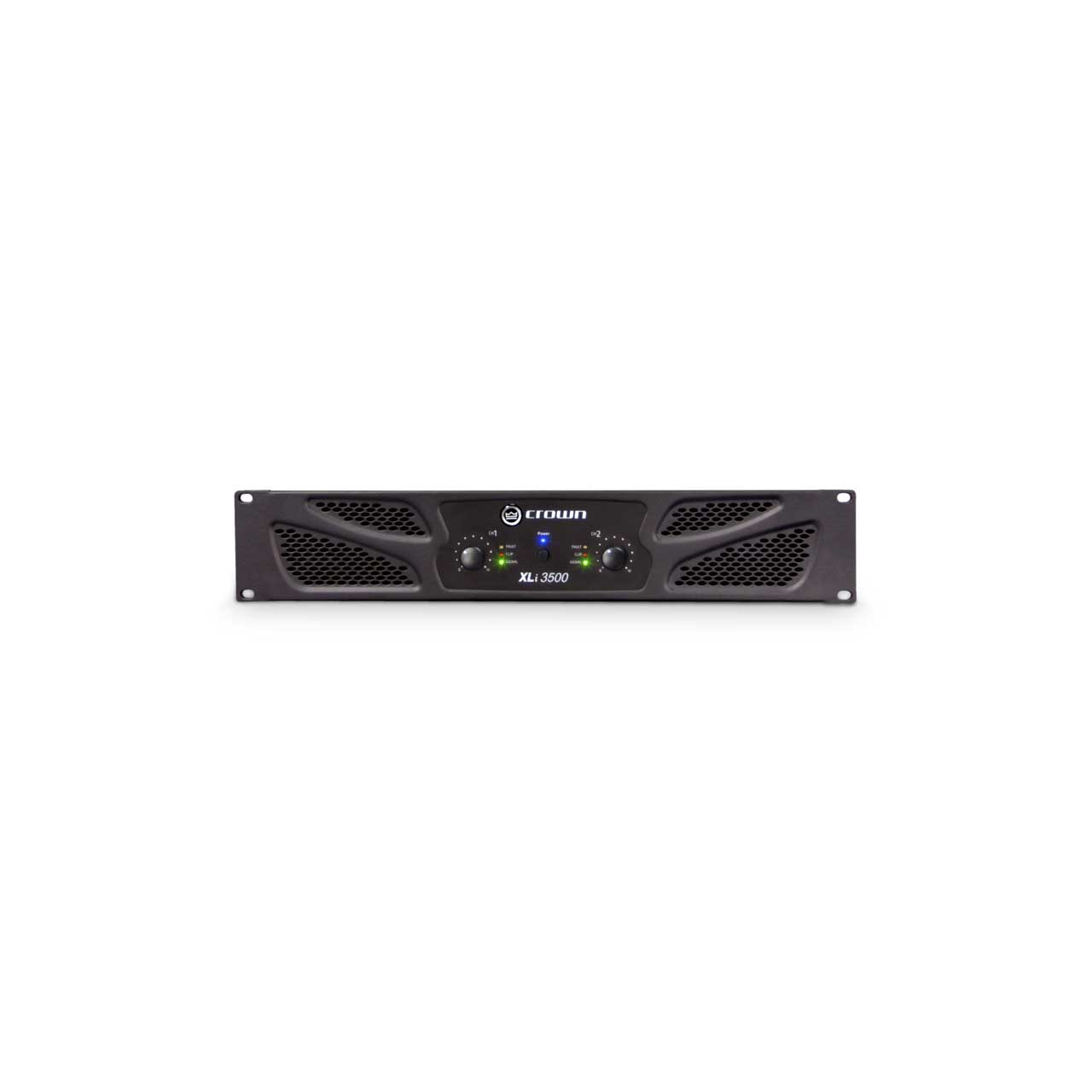

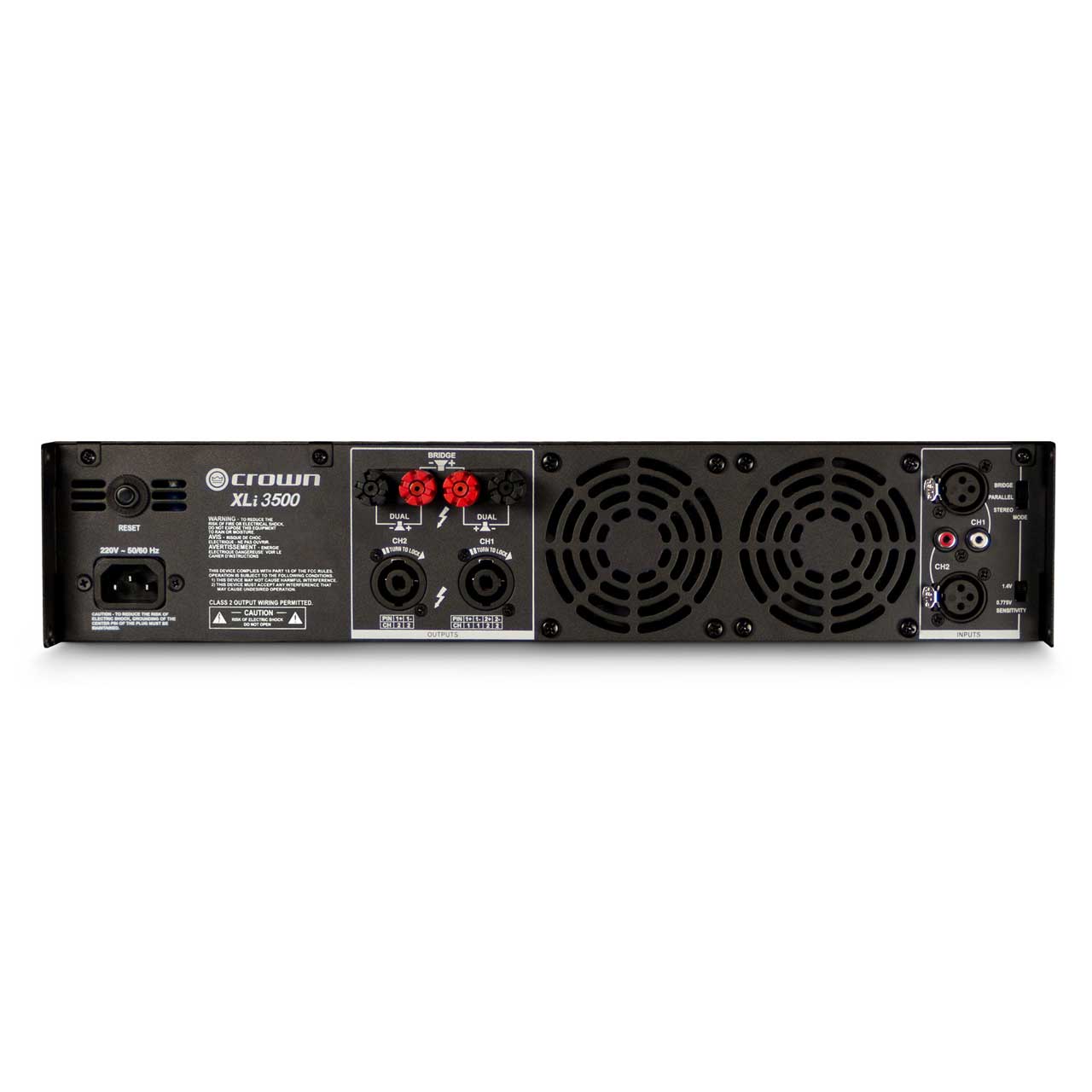

Crown XLi3500 2700 Watt 2 Channel Audio Power Amplifier

XLI3500 - Overview

• Features:

  • Stereo/parallel/bridge-mono mode
  • User selectable input sensitivity - 0.775V and 1.4V
  • Electronically balanced RCA and XLR inputs; Speakon and binding post outputs
  • Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel
  • Protection against shorts, no-load, on/off thumps and radio- frequency interference
  • Efficient forced-air cooling prevents excessive thermal buildup


• Specifications:

  • Frequency Response (at 1 Watt): 20Hz - 20kHz, +0/-1dB
  • Total Harmonic Distortion (THD): < 0.5%, 20 Hz - 20 kHz
  • Intermodulation Distortion (IMD) (60 Hz and 7 kHz at 4:1 from full rated output to -30 dB: =/ < 0.35%
  • Slew Rate: >10V/us
  • Voltage Gain: 36dB
  • Damping Factor (8ohms), 10 Hz-400 Hz: > 200
  • Signal to Noise Ratio (A-weighted): >100dB
  • Input Sensitivity for Full Rated Power at 8 Ohms: 0.775V or 1.4V
  • Input Impedance (nominal)
  • Balanced: 20 K Ohm
  • Unbalanced:10 K Ohm
  • AC Line Voltage and Frequency Configuration (+10%):
  • 120V~ 60Hz
  • 220V~ 50/60Hz
  • 230-240V~ 50/60Hz
  • Width: 19 in. (48.3cm)
  • Height: 3.5 in. (8.9cm)
  • Depth: 14.4 in. (31.5cm)
  • Weight: 43 1lbs (11.4kg)


• Warranty:

  • Crown products are covered by a 6 Year Warranty


• GTIN:

  0871015006925
