YoloLiv YoloBox Full HD Portable All-in-One Multi-Camera Live Streaming Encoder / Switcher / Monitor / Recorder

ITEM #: YL-YOLOBOX MFG #: YOLOBOX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the YL-YOLOBOX

YOLOBOX - Overview

Stream your high school or little league away games, in-person interviews, and more, with the YoloLIV Portable All-in-One Multi-Camera Live Streaming Encoder, Switcher, Monitor, Recorder!

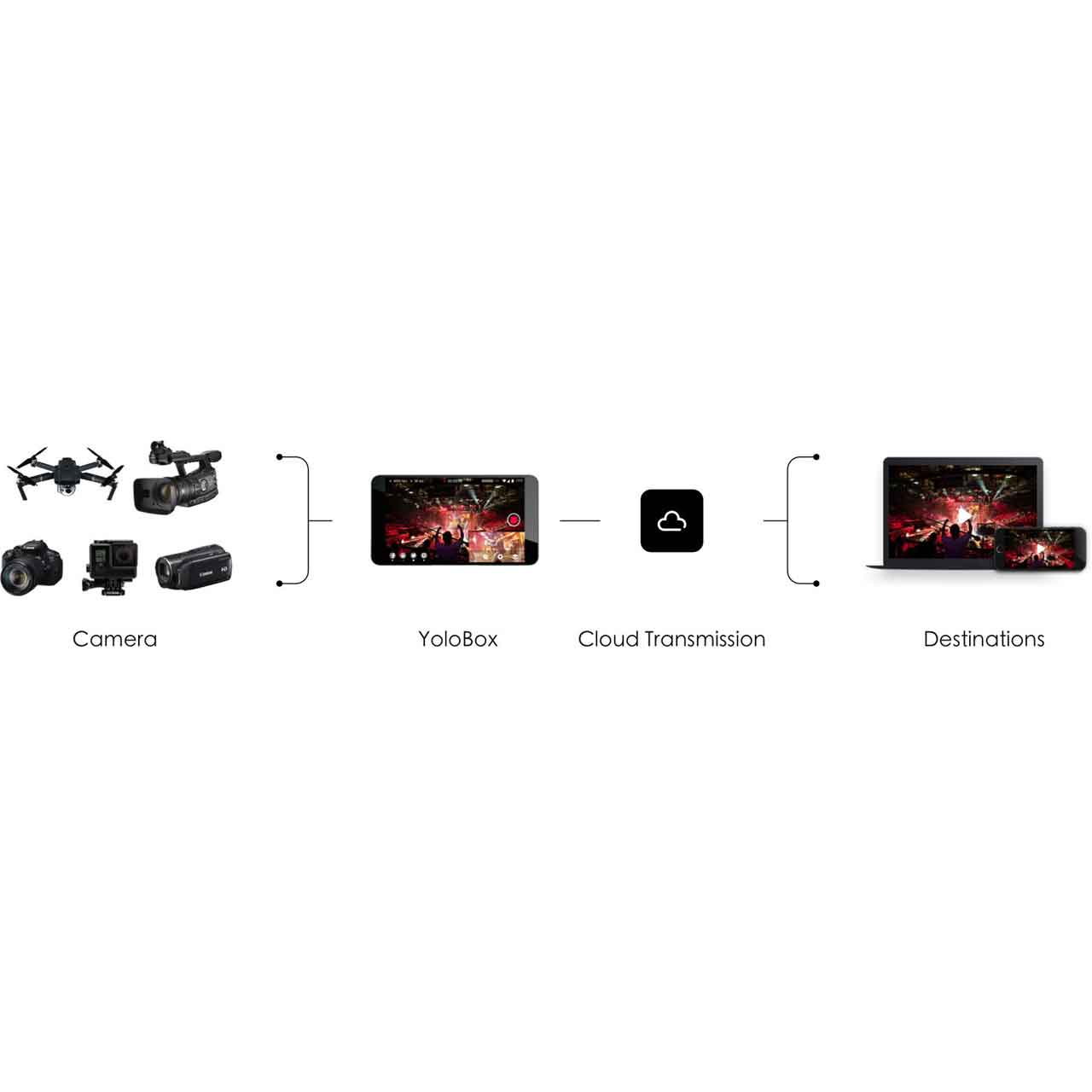

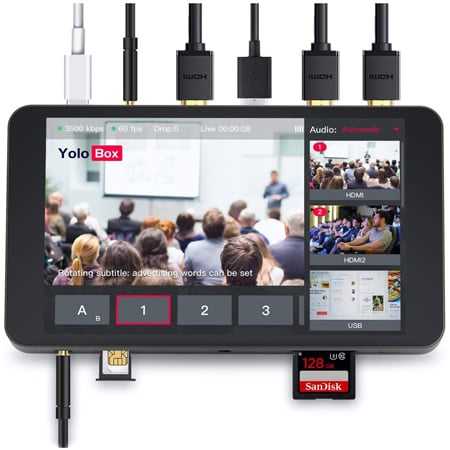

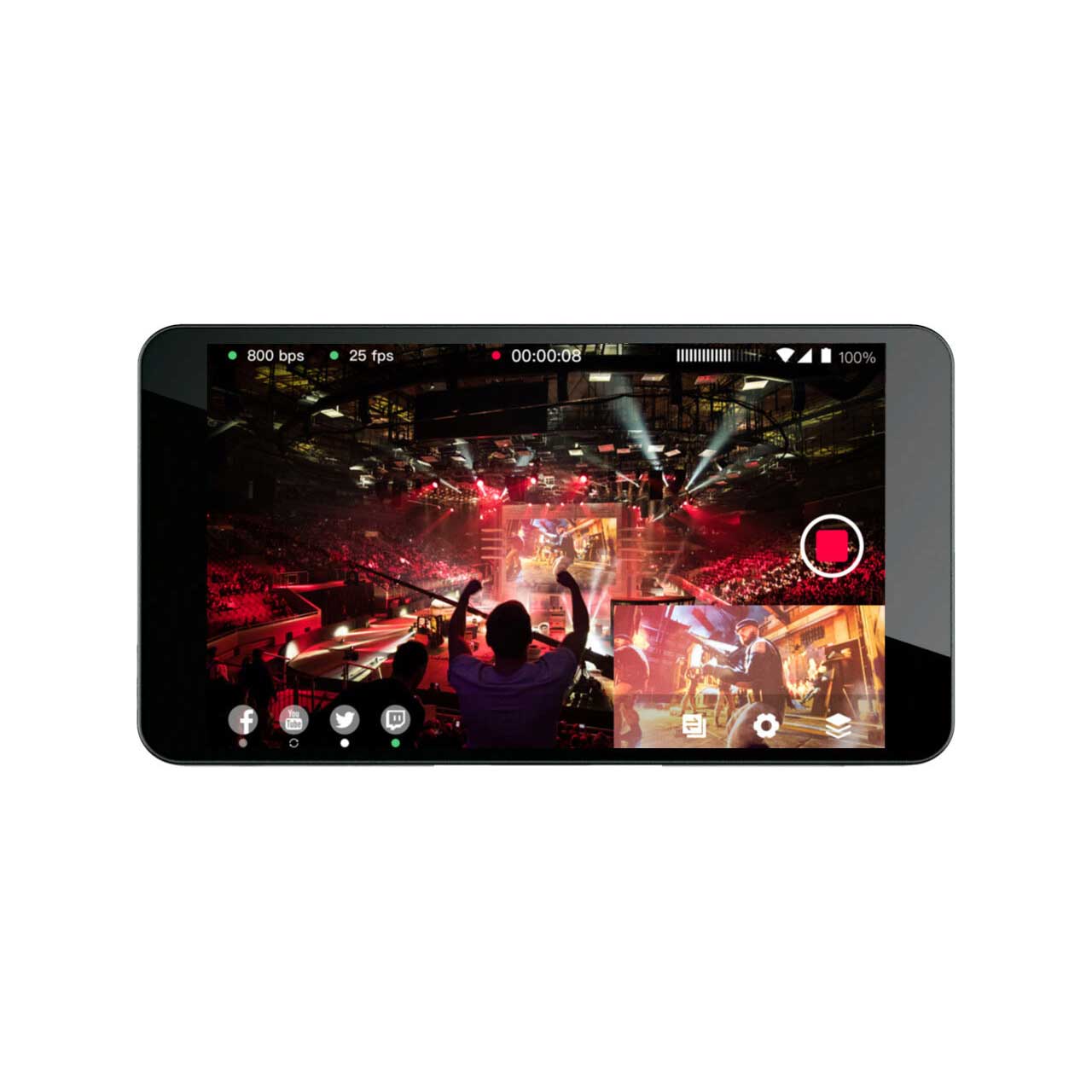

Sporting an LCD touchscreen for control, YoloLIV can simultaneously broadcast to 3 platforms. Simply connect up to 5 video sources, then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). The large touchscreen display shows the streaming image as well as the input streams; the LCD display also shows the control interface, which allows you to switch between the info sources with a touch.

The YoloBox supports input resolutions of 720p and 1080i/p, and streams at your choice of 540p, 720p, and 1080p using the H.264 codec. You can stream to YouTube via custom RTMP settings. For streaming using 4G Cellular network, use the included dongle, which is actually a cellular modem that is compatible with Verizon, T-Mobile, and AT&T. The YoloBox features an HDMI out, which allows you to display your stream locally on an HDMI device. It also has a line-level audio input, and a discrete headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card (sold separately), up to 128GB in size, using the built-in SD card slot.

  • Features:

    • Touchscreen Control Streaming Encoder
    • Simultaneous Cross-Platform Streaming
    • Encoder, Monitor, Switcher, and Recorder
    • 2 x HDMI, 1 x USB In; 1 x HDMI Out
    • 1 x HDMI Confidence Monitor Out
    • Stream via Ethernet, Wi-Fi, LTE Dongle
    • Supports 1080p and 720p Resolutions
    • H.264 Streaming Format
    • Connect to YouTube via Custom RTMP
    • Records Internally to SD Card

  • Specifications:

    • IP Encoding/Decoding
    • IP Video: H.264: 960 x 540 to 1920 x 1080 Encoding
    • IP Audio: AAC-LC: Encoding
    • Transport Protocols: RTMP
    • Simultaneous Streams: 3 Streams
    • Compatible Services: Facebook Live, Twitch, YouTube Live

      Wireless
    • Wi-Fi: 2.4/5 GHz

      Cellular
    • SIM Card Slots: 1 x Mini SIM
    • 4G LTE: LTE: 2, 4, 5, 7, 12, 13, 17, 25, 26, 41 Bands
    • SIM CARD (Sold Separately)

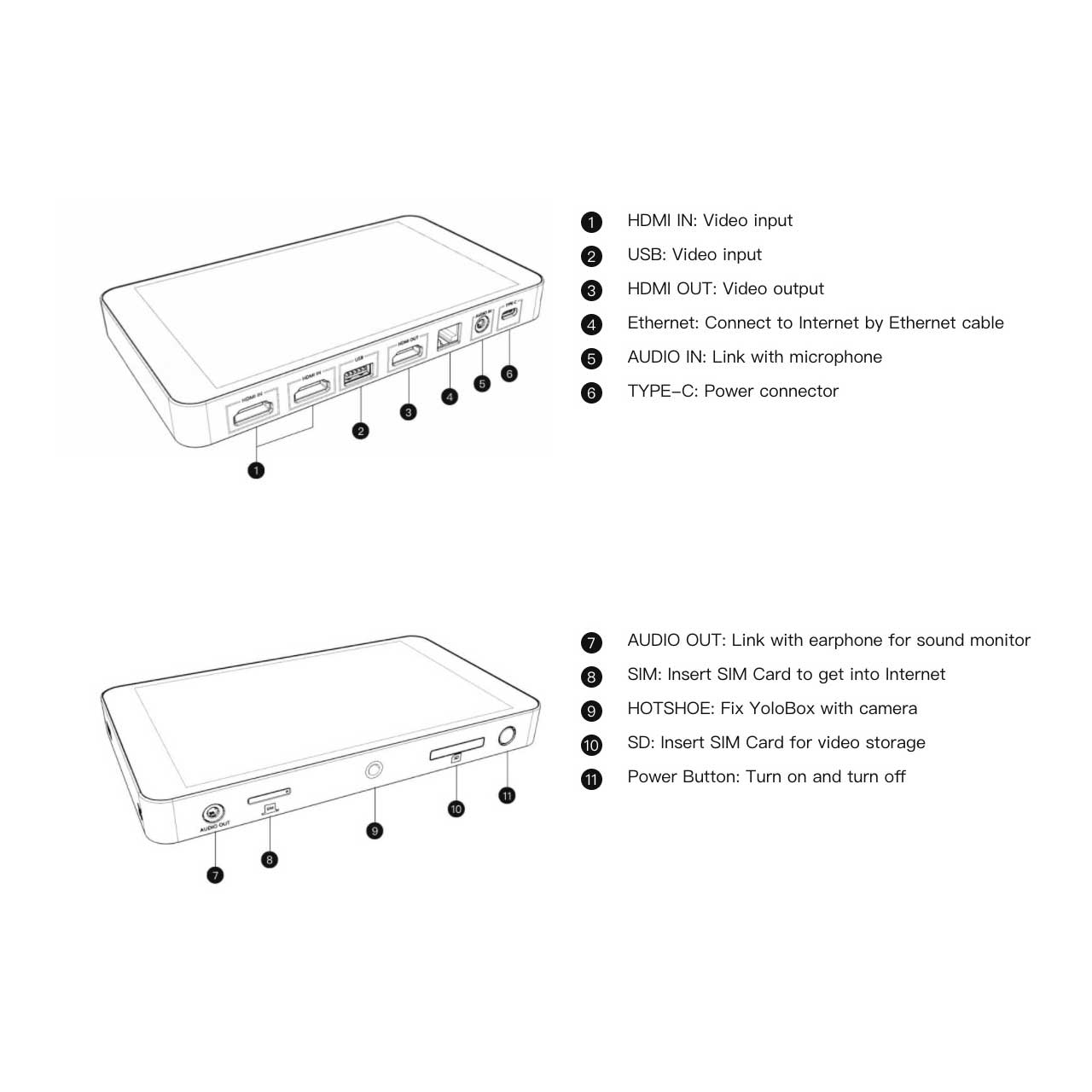

      Interfaces
    • Video Connectors: 2 x HDMI Input, 1 x HDMI Output
    • Audio Connectors: 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Input, 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Output
    • Other I/O: 1 x RJ45 Input/Output

      Internal Recording
    • Recording Media: 1 x SD (Unspecified Type)
    • Recording Modes: 1920 x 1080p up to 60 fps

      Power
    • Built-In Battery: 5700 mAh
    • Power Connector: 1 x USB Type-C Input

      Environmental
    • Operating Temperature: 41 to 104°F
    • Storage Temperature: 14 to 104°F

      General
    • Display: LCD
    • Dimensions: 7.28 x 4.21 x 0.77 Inches
    • Weight: 16.93 oz / 480 g
    • Package Weight: 3.17 lb
    • Box Dimensions (LxWxH): 9.7 x 9.2 x 3 Inches

  • Item Includes:

    • 1x YoloBox Portable Studio
    • 1x Power Adapter
    • 1x USB-C Charger Cable
    • 1x HDMI Cable Type A
    • 1x Hot Shoe Mount
    • 1x Storage Bag
    • 1x Sim Card Eject Pin
    • 1x Dongle (Cellular Modem)

  • GTIN:

    0664918139056
