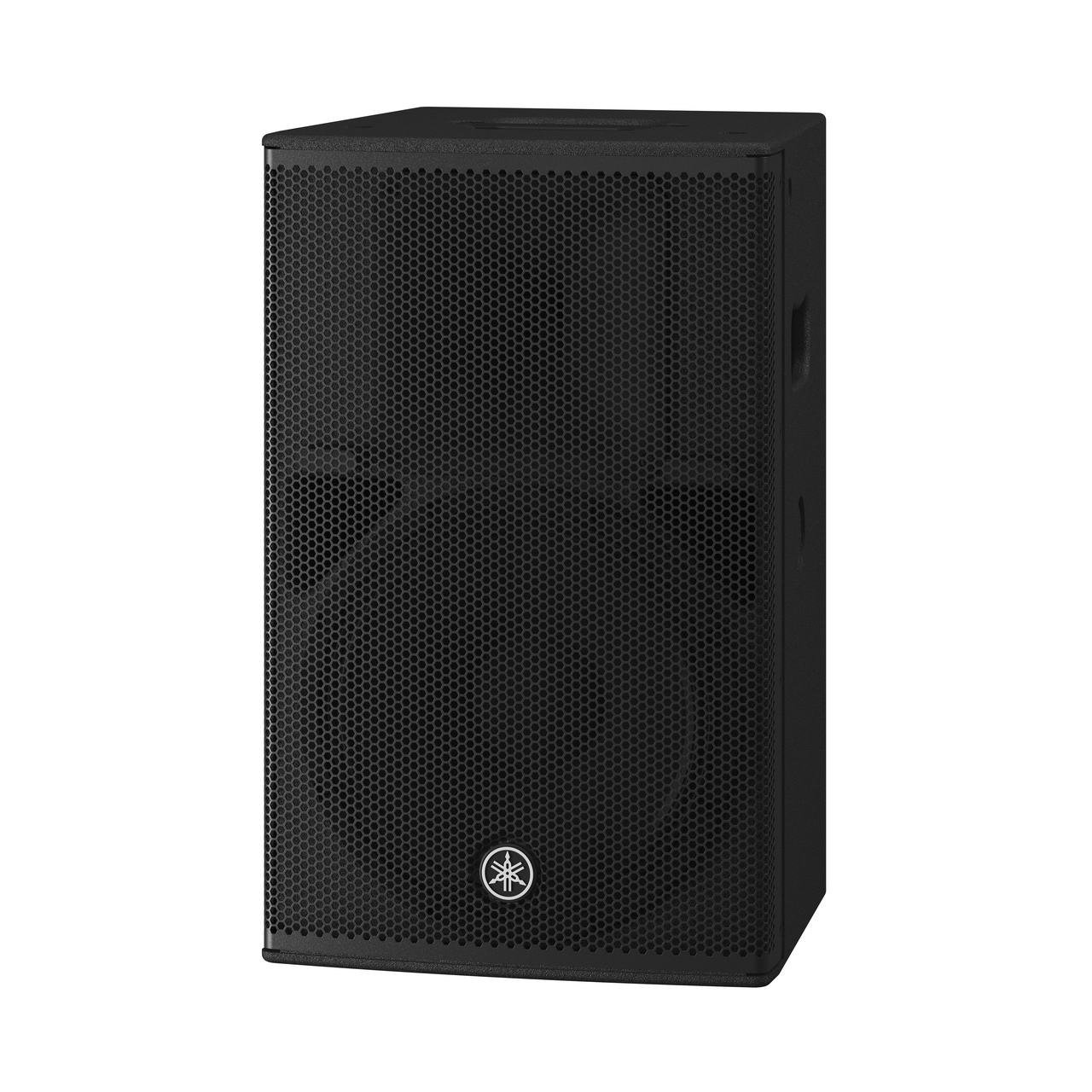

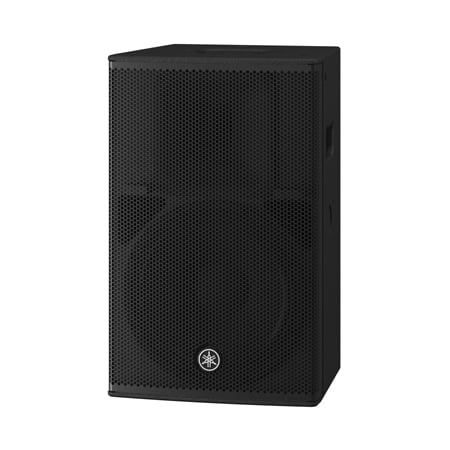

Yamaha CHR12 2-Way Passive Loudspeaker System - w/ 12 Inch woofer & 1.4-inch HF driver w/ Rigging & Pole Mounting Points

CHR12 - Overview

• Features:

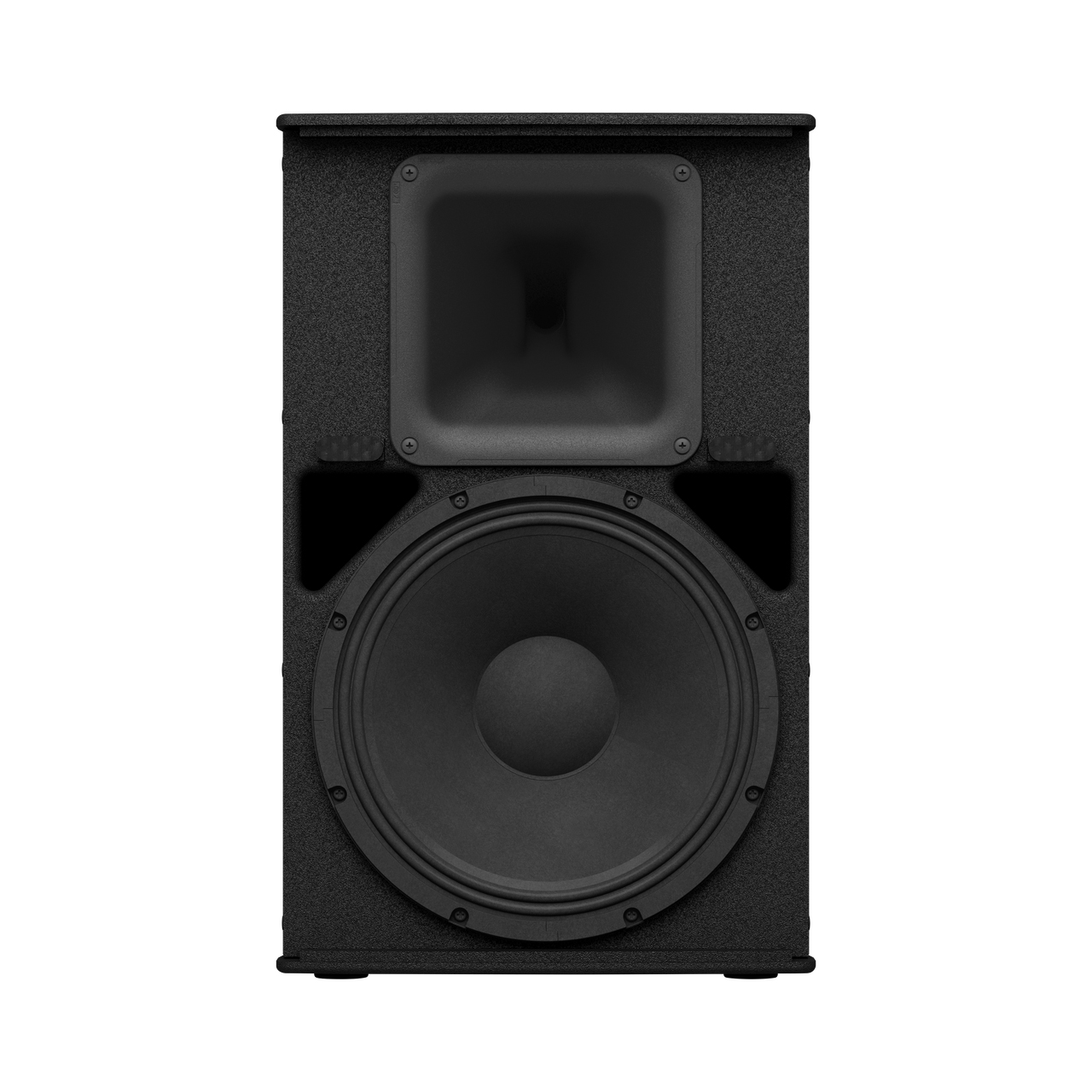

  • 12" LF driver with a 2.5" voice coil
  • 1.4" voice coil HF driver mated to a rotatable (H)90° x (V)60° Constant Directivity Horn
  • Dual 35mm pole sockets allow straight 0° or a 7° downtilt if required
  • Maximum 124dB SPL of output and wide frequency response range of 54Hz-20kHz
  • 3 rigging points (Top x 2, Rear x 1) for M10
  • Optional UB-DXRDHR12 wall mount bracket
  • Durable polyurea coated compact plywood enclosure


• Specifications:

  • System Type: 2-way Speaker, Bass-reflex
  • Frequency Range (-10db): 54Hz - 20kHz
  • Coverage Angle: H90° x V60° (rotatable)
  • Crossover Frequency: 2.0 kHz
  • Normal Impedance: 8Ω

    Power Rating (EPA 426-A)
  • NOISE: 250W
  • PGM: 500W
  • MAX: 1000W


  • Sensitivity (1W, 1m): 94dB SPL
  • Maximum SPL: 124dB SPL

    Transducer
  • LF Diameter: 12" Cone
  • LF Voice Coil: 2.5"
  • LF Magnet: Ferrite
  • HF Diaphragm: 1.4" PET
  • HF Type: 1" Throat Compression Driver
  • HF Magnet: Ferrite

    Enclosure
  • Material: Plywood
  • Finish: Dureable Polyurea coating
  • Color: Black
  • Dimensions: 359 x 578 x 340mm (14.1"x 22.8"x 13.4")
  • Net Weight: 17.1 kg (37.7 lbs)
  • Handles: Top x1, Side x2
  • Pole Socket: Φ35 mm x2 (0° or -7°)
  • Rigging Points for Eyebolts: Top x2, Rear x1 (Fit for M10 x 30-50mm Eyebolts), Bottom x2, Side x2 (Fit for M8 x 55mm UB-DXRDHR12)

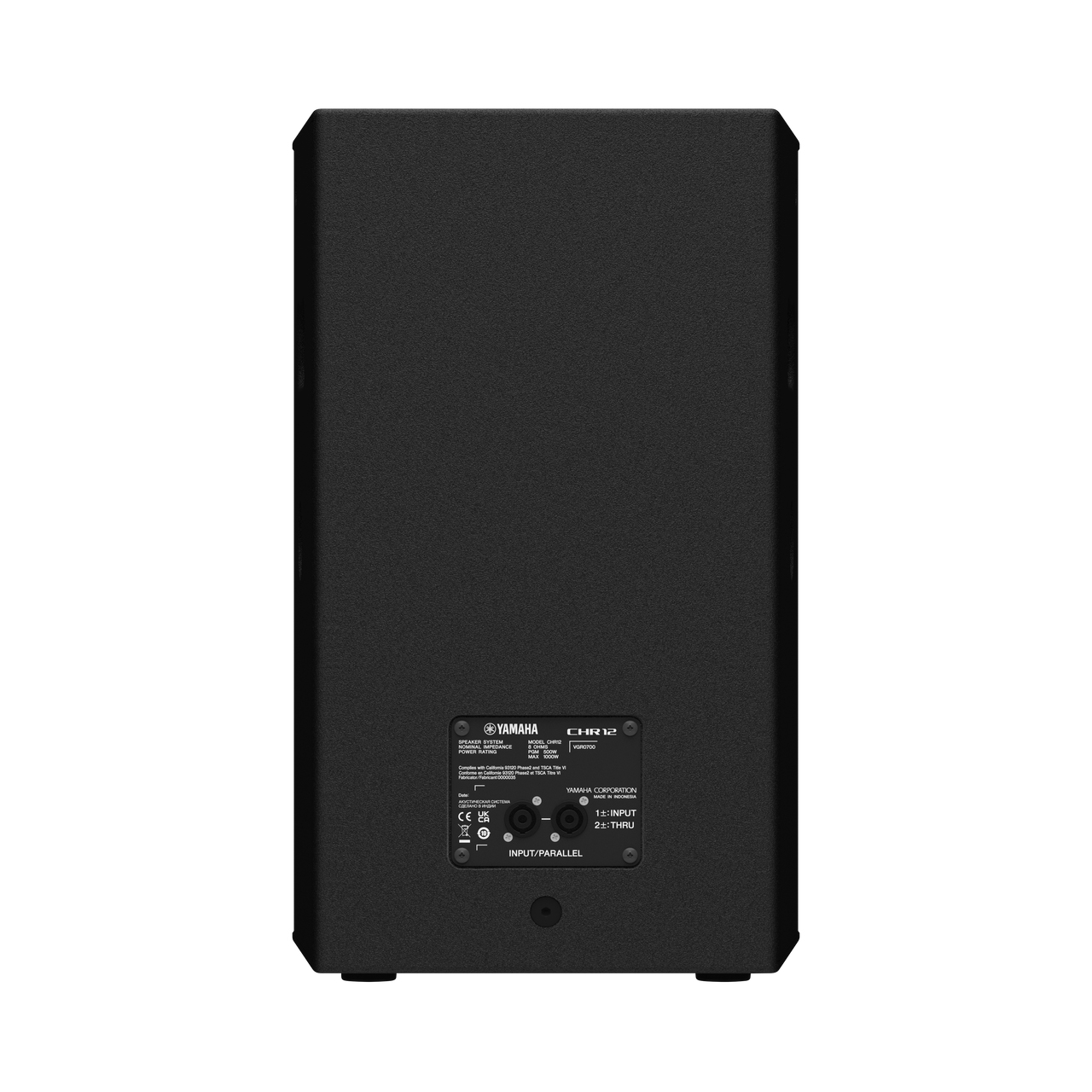

  • Conductors: SpeakON NL4MP x2 (Parallel)
  • Speaker Bracket Options: UB-DXRDHR12


• Item Includes:

  • 1x CHR Loudspeaker Unit
  • 1x Owner's Manual


• GTIN:

  0889025155663
