Yamaha CHR15M 2-Way Passive Loudspeaker System - 15 Inch

CHR15M - Overview

• Features:

  • 15" LF driver with a 3" voice coil
  • The CHR15M delivers extremely high SPL from its compact, low profile enclosure

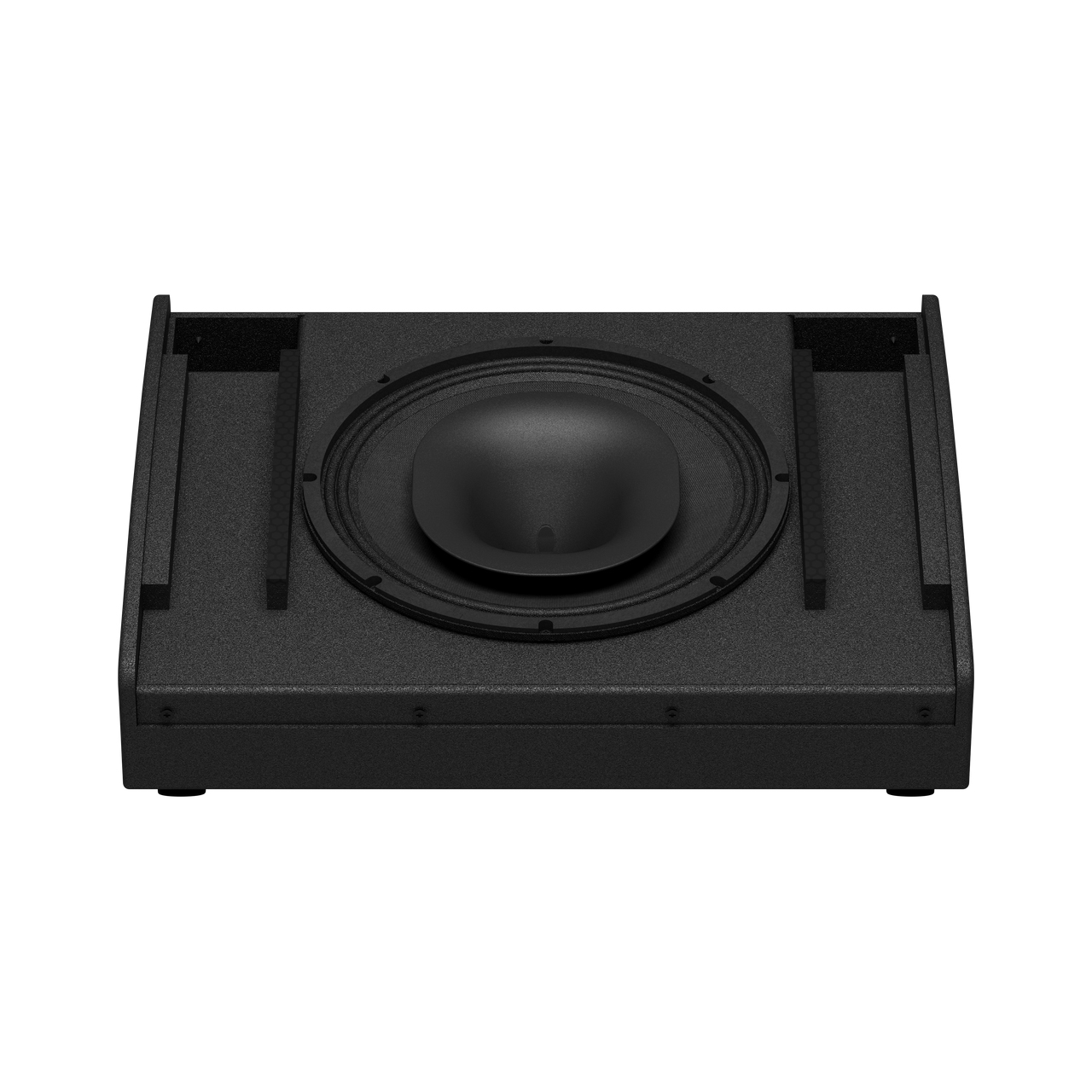

  • Equipped with a 1.75" HF compression driver coaxially mounted in the LF unit

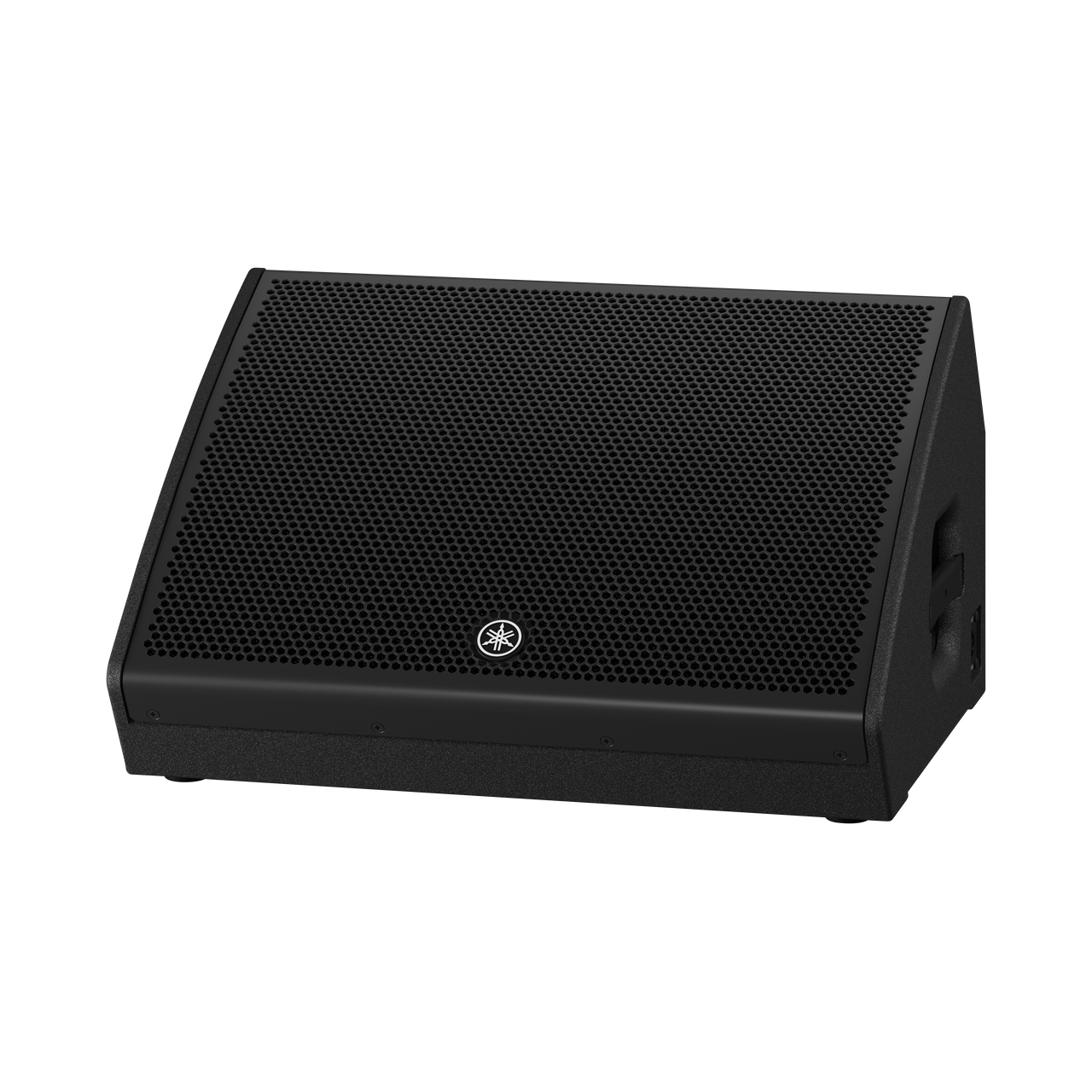

  • A heavy steel grille protects the drivers and looks great onstage
  • Triple Speakon connections wired in parallel for easy stage cabling
  • Durable polyurea coated compact plywood enclosure
  • 35mm socket to allow placement on a stand or pole


• Specifications:

  • System Type: 2-way Speaker, Bass-reflex
  • Frequency Range (-10db): 58Hz - 20kHz
  • Coverage Angle: H65° x V75°
  • Crossover Frequency: 2.0 kHz
  • Normal Impedance: 8Ω

    Power Rating (EPA 426-A)
  • NOISE: 275W
  • PGM: 550W
  • MAX: 1100W


  • Sensitivity (1W, 1m): 95dB SPL
  • Maximum SPL: 125dB SPL

    Transducer
  • LF Diameter: 15" Cone
  • LF Voice Coil: 3"
  • LF Magnet: Ferrite
  • HF Diaphragm: 1.75" PET
  • HF Type: 1" Throat Compression Driver, Coaxial
  • HF Magnet: Ferrite

    Enclosure
  • Material: Plywood
  • Finish: Dureable Polyurea coating
  • Color: Black
  • Floor Monitor Angle: 57&Deg;
  • Dimensions: 642 x 369 x 505mm (25.3"x 14.5"x 18.9")
  • Net Weight: 21.3 kg (47.0 lbs)

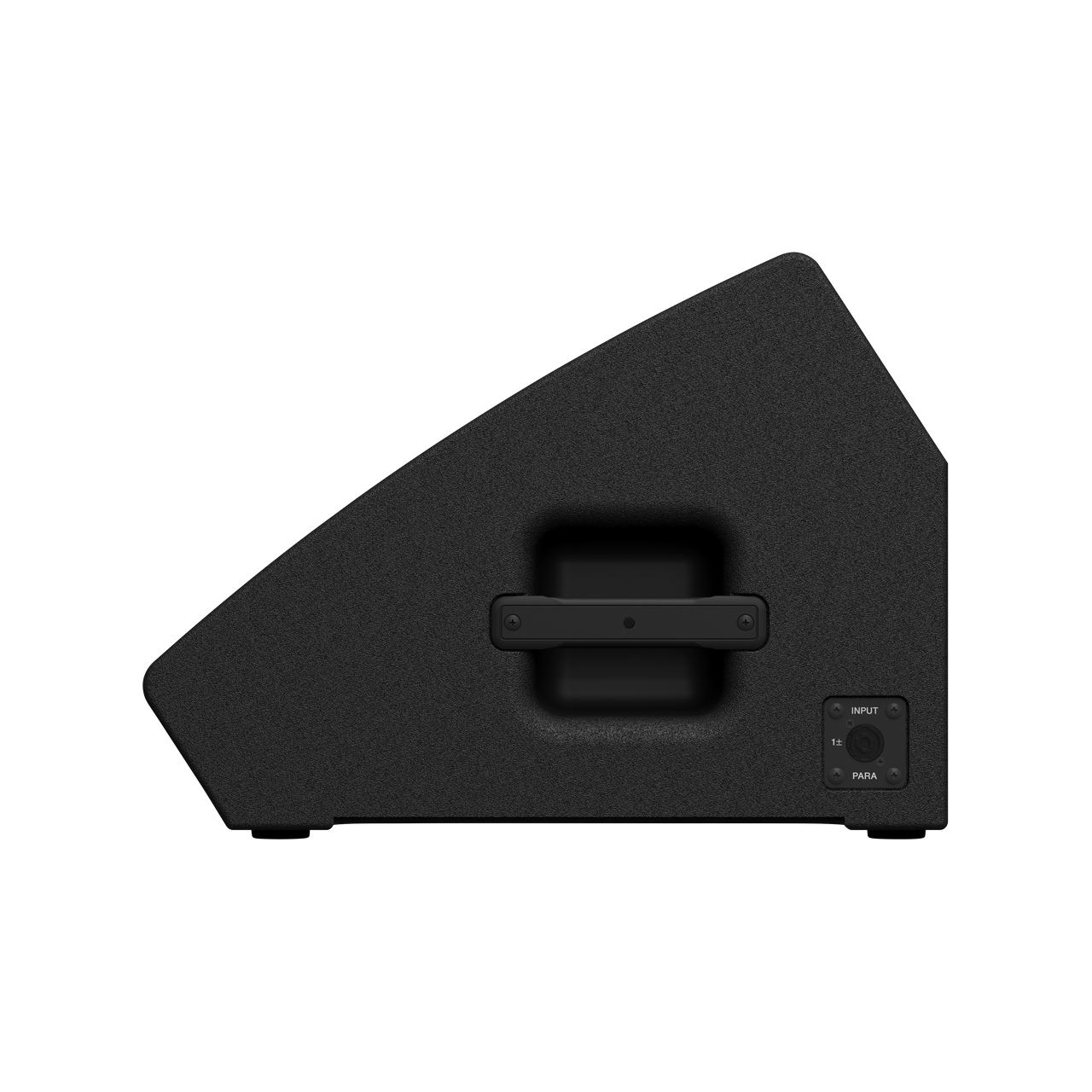

  • Handles: Side x1

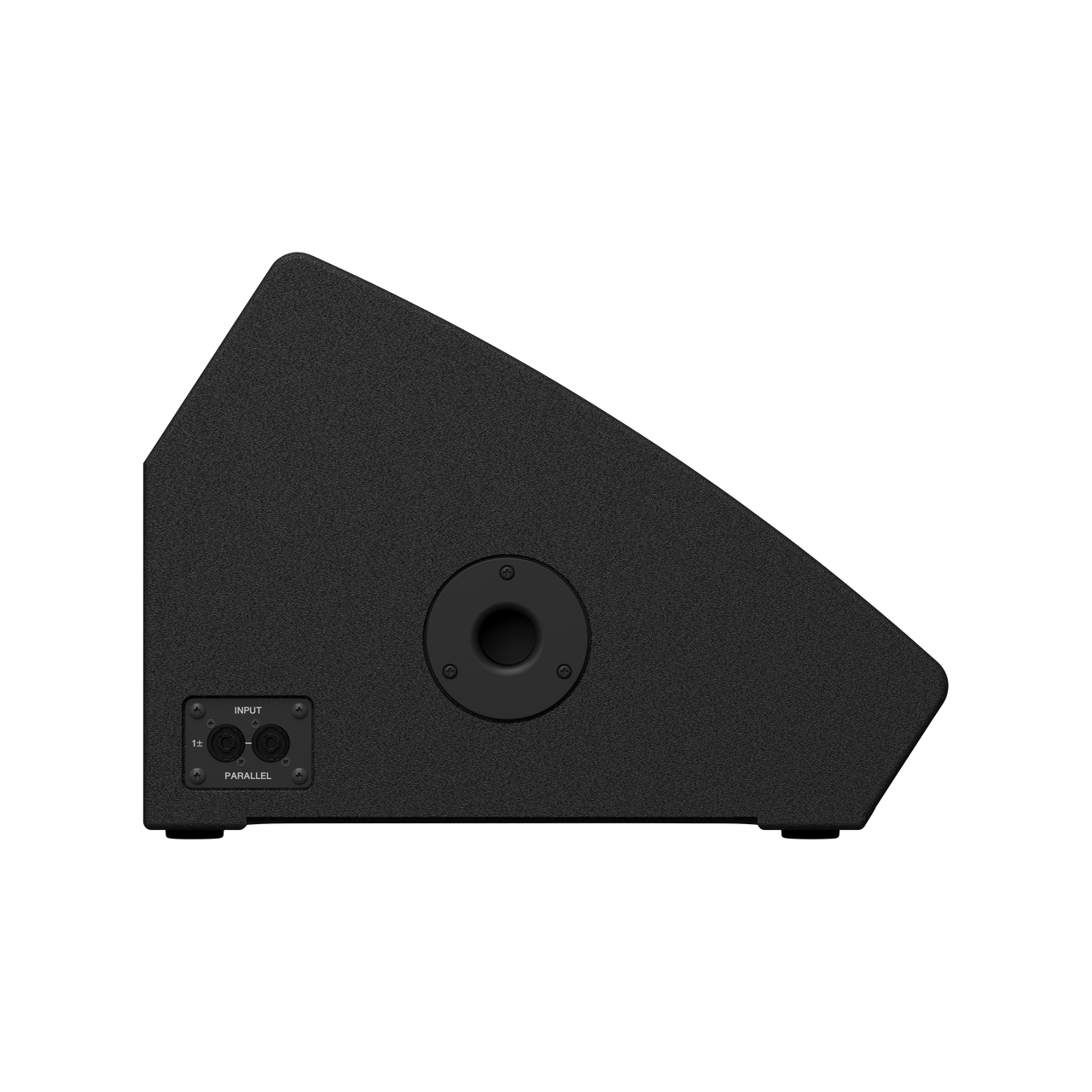

  • Pole Socket: Φ35 mm x1
  • Conductors: SpeakON NL4MP x3 (Parallel)


• Item Includes:

  • 1x CHR Loudspeaker Unit
  • 1x Owner's Manual


• GTIN:

  0889025155656
