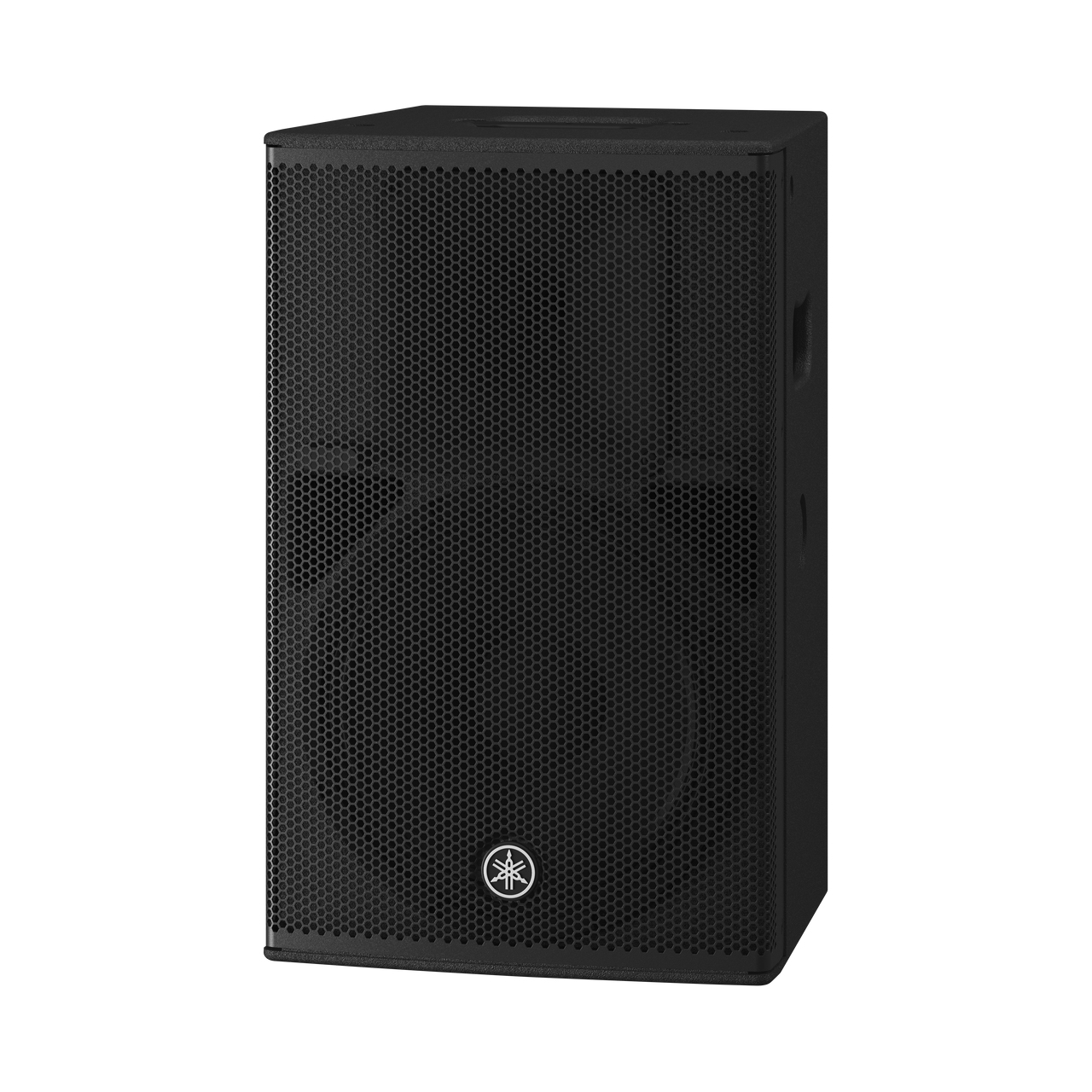

Yamaha DHR12 2-Way Powered Loudspeaker with FIR-X Tuning - 12 Inch

DHR12 - Overview

• Features:

  • 12" powered loudspeaker with 1000W of class-D power
  • Compact and portable yet capable of high SPL for a wide range of applications
  • 1.4" HF compression driver mated to a rotatable 90 x 60 degree CD horn
  • Maximum output of 130dB SPL and wide frequency response range of 48Hz-20kHz
  • Ultra-Precise 48bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
  • Durable polyurea coated compact plywood enclosure
  • Dual pole sockets to allow straight 0° placement or a 7° downtilt to cover your audience's needs
  • Optional UB-DXRDHR12 wall mount bracket


• Specifications:

  • System Type: 2-way Bi-amped Powered Speaker, Bass-reflex
  • Frequency Range (-10db): 48Hz - 20kHz
  • Coverage Angle: H90° x V60° (Rotatable)
  • Crossover Type: FIR-X tuning™ (Linear phase FIR filter)
  • Crossover Frequency: 1.8 kHz
  • Maximum SPL: 130dB SPL

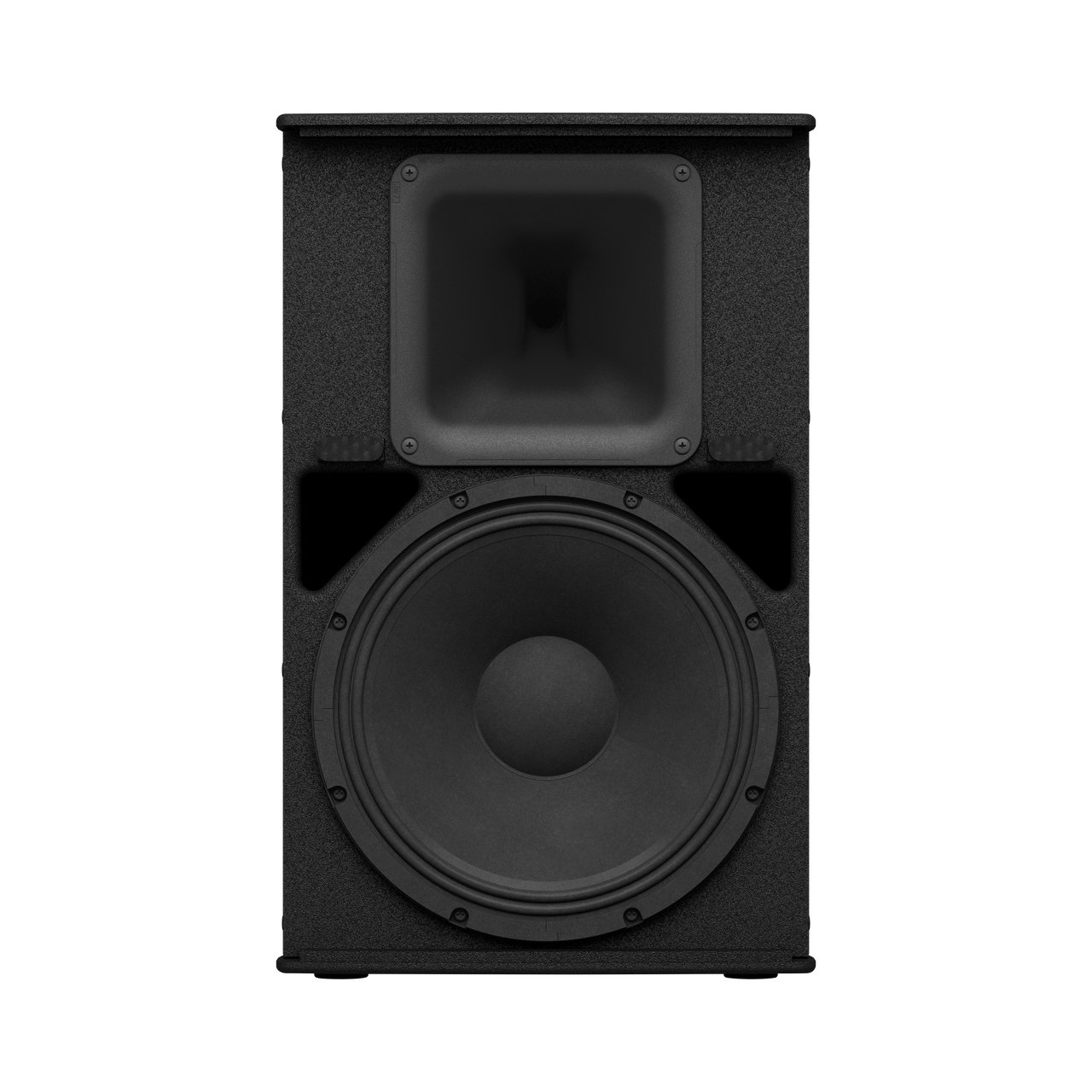

    Transducer
  • LF Diameter: 12" Cone
  • LF Voice Coil: 2.5"
  • LF Magnet: Ferrite
  • HF Diaphragm: 1.4" PET
  • HF Type: 1" Throat Compression Driver
  • HF Magnet: Ferrite

    Enclosure
  • Material: Plywood
  • Finish: Dureable Polyurea coating
  • Color: Black
  • Dimensions: 359 x 578 x 340mm (14.1"x 22.8"x 13.4")
  • Net Weight: 19.2 kg (42.3 lbs)
  • Handles: Top x1, Side x2
  • Pole Socket: Φ35 mm x2 (0° or -7°)
  • Rigging Points for Eyebolts: Top x 2, Rear x 1 (Fit for M10 x 30-50mm Eyebolts), Bottom x2, Side x 2 (Fit for M8 x 55mm UB-DXRDHR12)
  • Speaker Bracket Options: UB-DXRDHR12

    Amplifier & DSP
  • Amplifier Type: Class-D
  • Dynamic Power Rating: 1000W (800W LF, 200W HF)
  • Continuous Power Rating: 465W (400W LF, 65W HF)
  • Cooling: Fan cooling, 4 speeds
  • AD/DA: 24 bit / 48 kHz sampling
  • HPF/LPF: OFF, 100, 120Hz 24dB/oct HPF
  • DSP Control, Preset: D-CONTOUR (FOH/MAIN, MONITOR, OFF)
  • Speaker Protection: Clip limiting, Integral Power Potection, DC-fault
  • Amplifier Protection: Thermal, Output over current
  • Power Supply Protection: Thermal, Output over voltage, Output over current

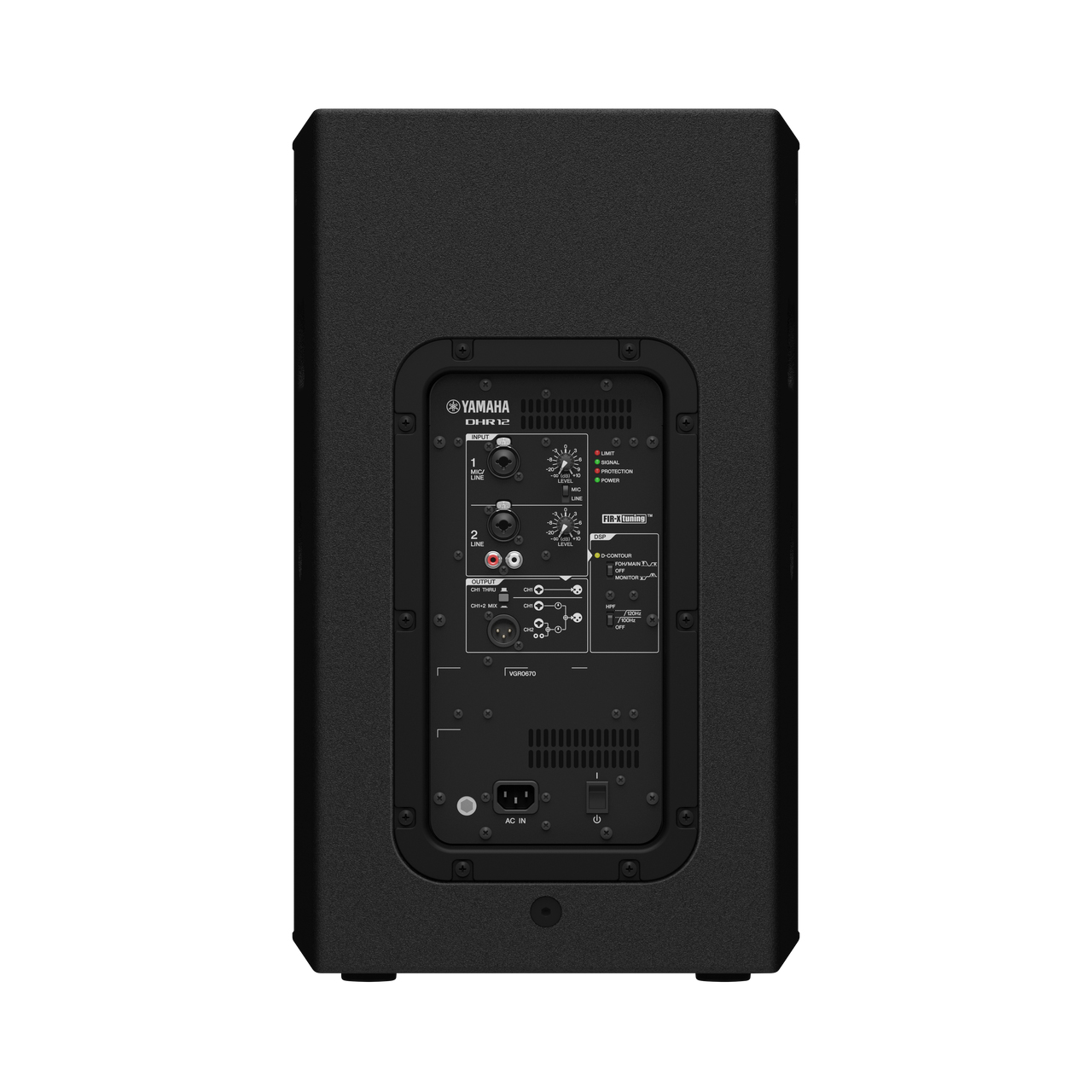

  • Analog Input Connectors:
    - INPUT 1: Combo x1
    - INPUT 2: Combo x1 + RCA-pin x2 (Unbalanced)
  • Analog Output Connectors: XLR3-32 x1 (CH1 Parallel Through or CH1+CH2 Mix)
  • AC IN Connectors: IEC AC inlet x1
  • Analog Input Impedance:
    - INPUT 1 (XLR, TRS Phone): 3kΩ
    - INPUT 2 (XLR, TRS Phone, RCA Pin): 10kΩ
  • Maximum Analog Input Sensitivity:
    - INPUT 1: LINE: 0dBu, MIC: -32dBu
    - INPUT 2: 0dBu
  • Center Analog Input Sensitivity:
    - INPUT 1: LINE: +10dBu, MIC: -22dBu
    - INPUT 2: +10dBu
  • Maximum Analog Input Level:
    - INPUT 1: LINE: +24dBu, MIC: -8dBu
    - INPUT 2: +24dBu
  • Controls: LEVEL x2, LINE/MIC, HPF, D-CONTOUR, THRU/MIX, POWER
  • Idle Power Consumption: 18W
  • 1/8 Power Consumption: 74W
  • Power Requirements: 100V, 110-120V, 220-240V, 110V/127V/220V(Brazil), 50/60Hz


• Item Includes:

  • 1x DHR Loudspeaker Unit
  • 1x AC Power Cable
  • 1x Owner's Manual


• GTIN:

  0889025155649
