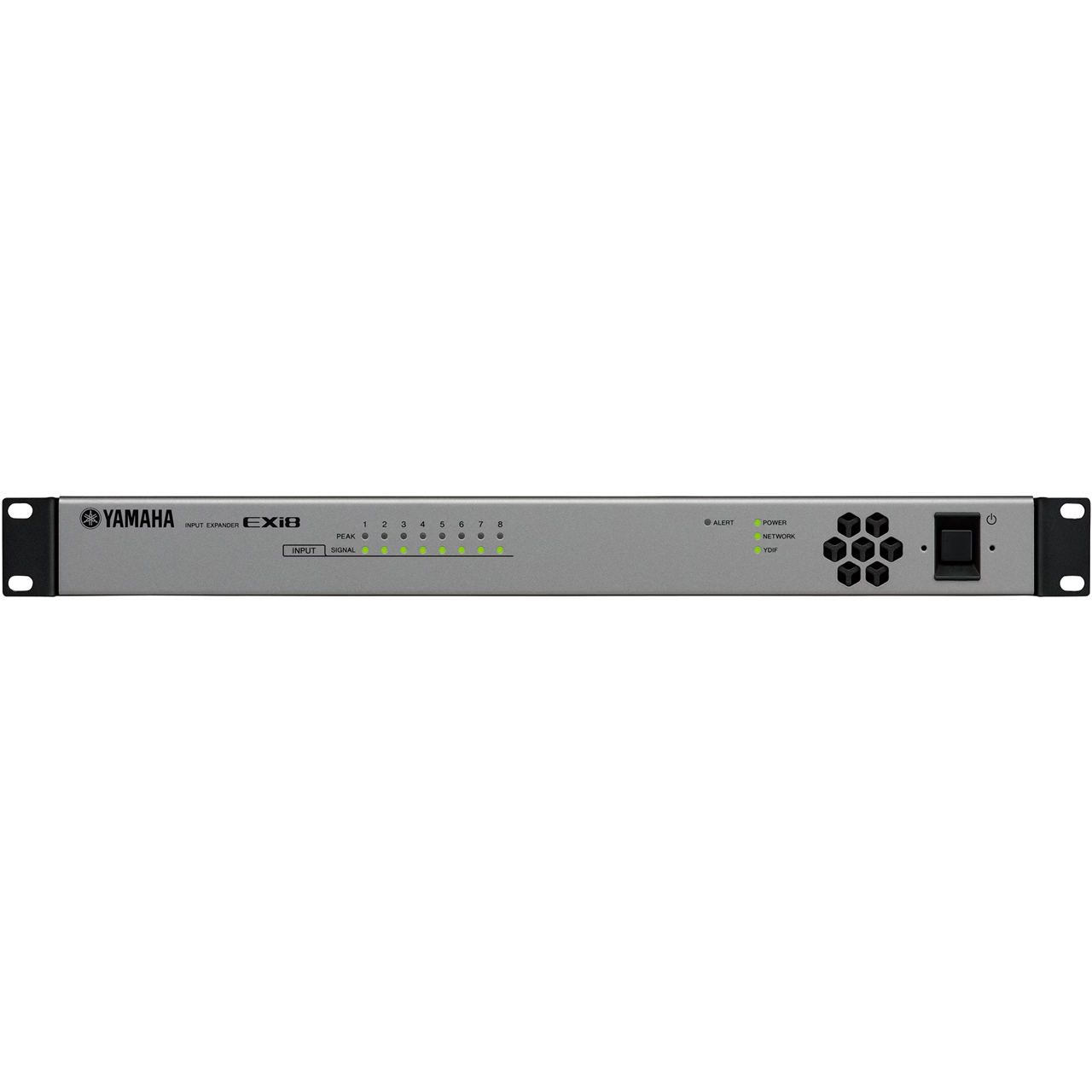

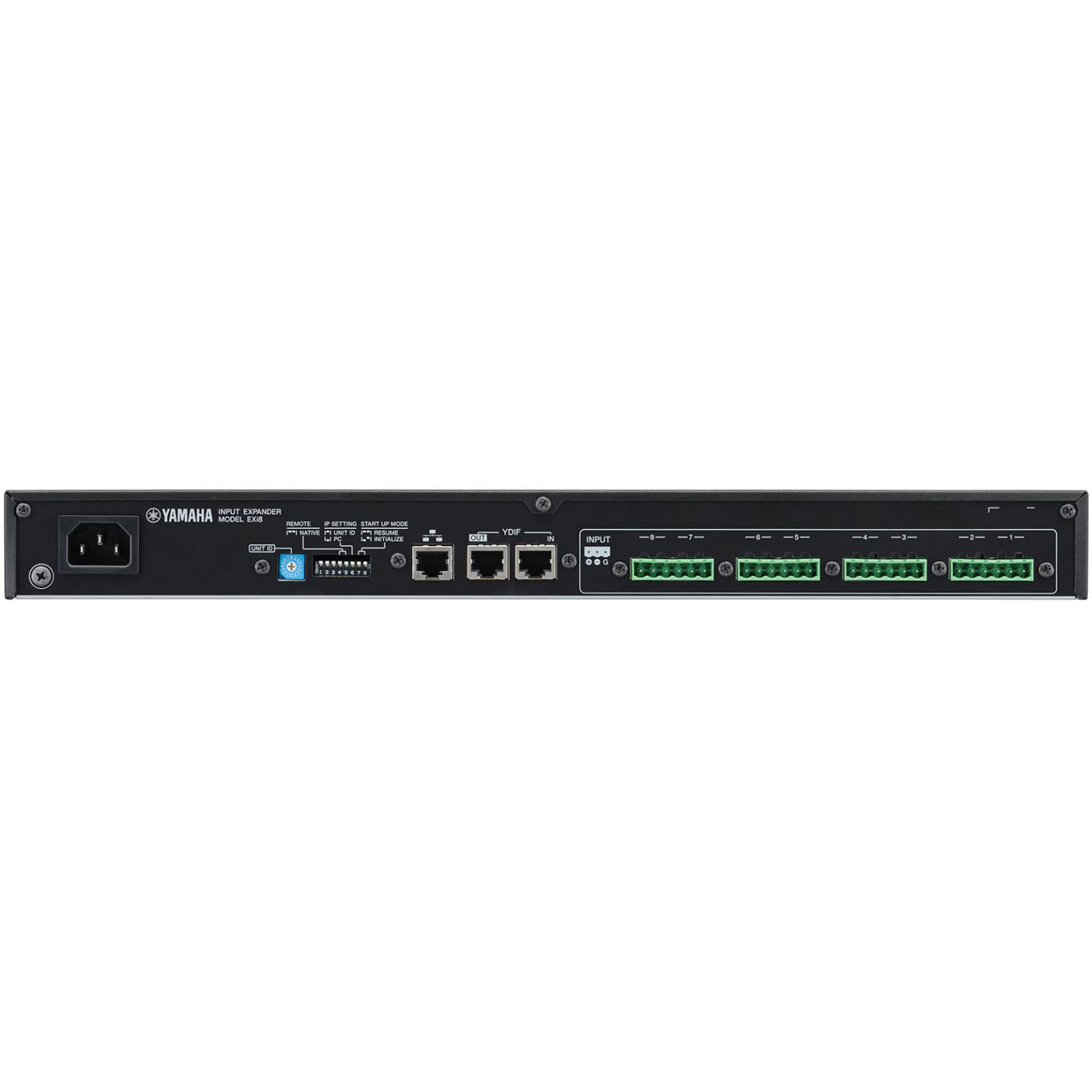

Yamaha EXI8 1RU Input Expander with 8 Channels of DA Converters for MTX/MRX Series Processors

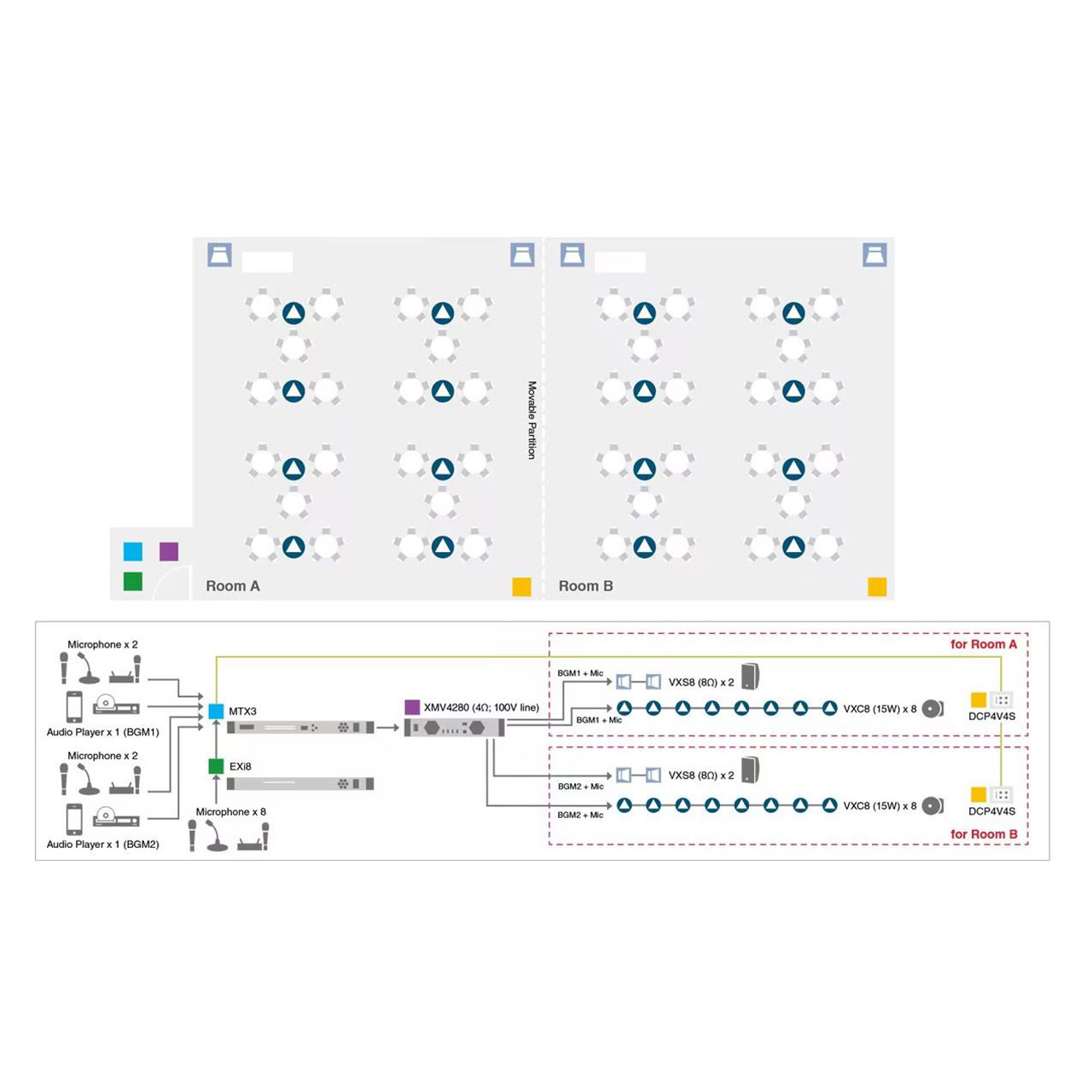

EXI8 - Overview

• Features:

  • Compact 1U Chassis
  • Installation Flexibility
  • Converts Analog Mic/Line Audio to Digital and Transmits via YDIF
  • Less than 2.5ms Signal Delay
  • 48kHz/44.1kHz Sampling Frequency
  • Support for the Newly-Developed "YDIF" Digital Audio Transmission Format


• Specifications:

  General
  • Dimensions (WxHxD): 18" x 1.7" x 13.2", 1U
  • Weight: 9.5lbs (4.3kg)
  • Power Supply Voltage:
    - Japan: 100V 50/60Hz
    - US/Canada: 110V - 240V 50/60Hz
    - Others: 100V - 240V 50/60Hz
  • Power Consumption: 25W max
  • Heat Dissipation (per hour): 21.5 kcal max.
  • Operating Temperature Range: 32°F - 104°F
  • Storage Temperature Range: -4°F - 140°F
  • NC Value: 24 (1m from the front panel)
  • Power Cord Length: 8.2ft (2.5m)

    Electrical
  • Sampling Frequency: 48kHz/44.1kHz
  • Signal Delay: Less than 2.5ms
  • Frequency Response: 20Hz - 20kHz, -1.5dB min, 0dB typ., +0.5dB max.
  • Total Harmonic Distortion: Less than 0.05% (+4dBu, Gain:-6dB); less than 0.1% (+4dBu, Gain:+66dB)
  • Dynamic Range: 107dB (Gain:-6dB)
  • Equivalent Input Noise (EIN): -126dBu (Gain: +66dB)
  • Crosstalk/Channel Separation: -100dB (@ 1kHz)
  • Maximum Cable Length [YDIF] Connector: 3.2ft (Cable length between devices)
  • Indicators:
    - Input Peak: Red -3dBFS
    - Input Signal: Green -40dBFS
  • Phantom Power: +48V (per channel; individually settable)

    Connector
  • Format Network Connector: 100Base-TX
  • Cable Specifications: [YDIF] connector: CAT5e or better Ethernet STP cable (Straight connected. All 8 pins must be connected.)
  • Network Connector: CAT5e or better Ethernet STP cable


• Item Includes:

  • 1x Yamaha EXI8 Input Expander
  • 1x Power Cord
  • 8x Euroblock Plugs (3-pin, tabbed)
  • 8x Cable Ties


• Warranty:

  • 1 Year Limited Warranty
