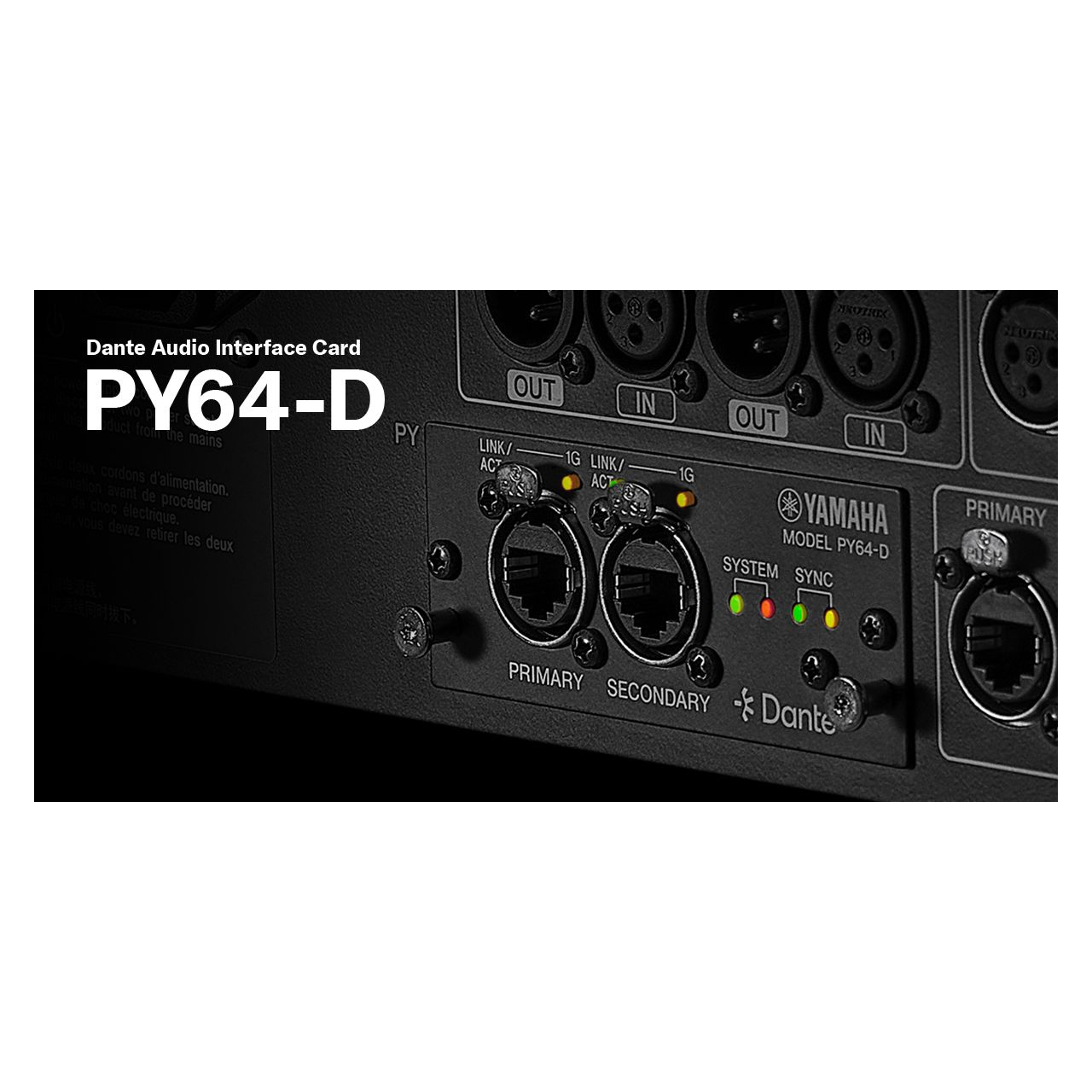

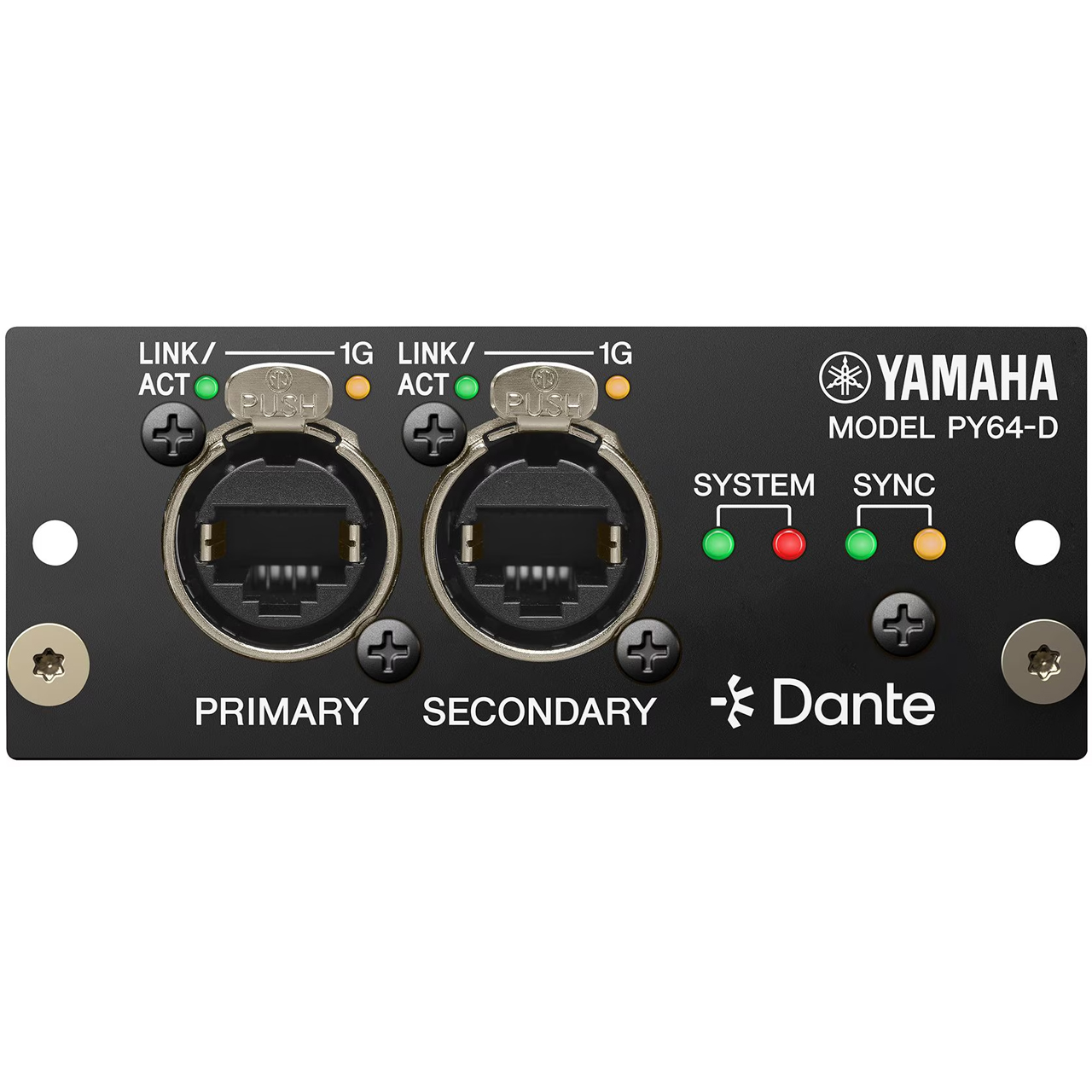

Yamaha PY64-D 64x64 96kHz Dante Expansion Card with SRC for DM7 Series Mixers

PY64-D - Overview

• Features:

  • Provides 64in/out at 96kHz with SRC

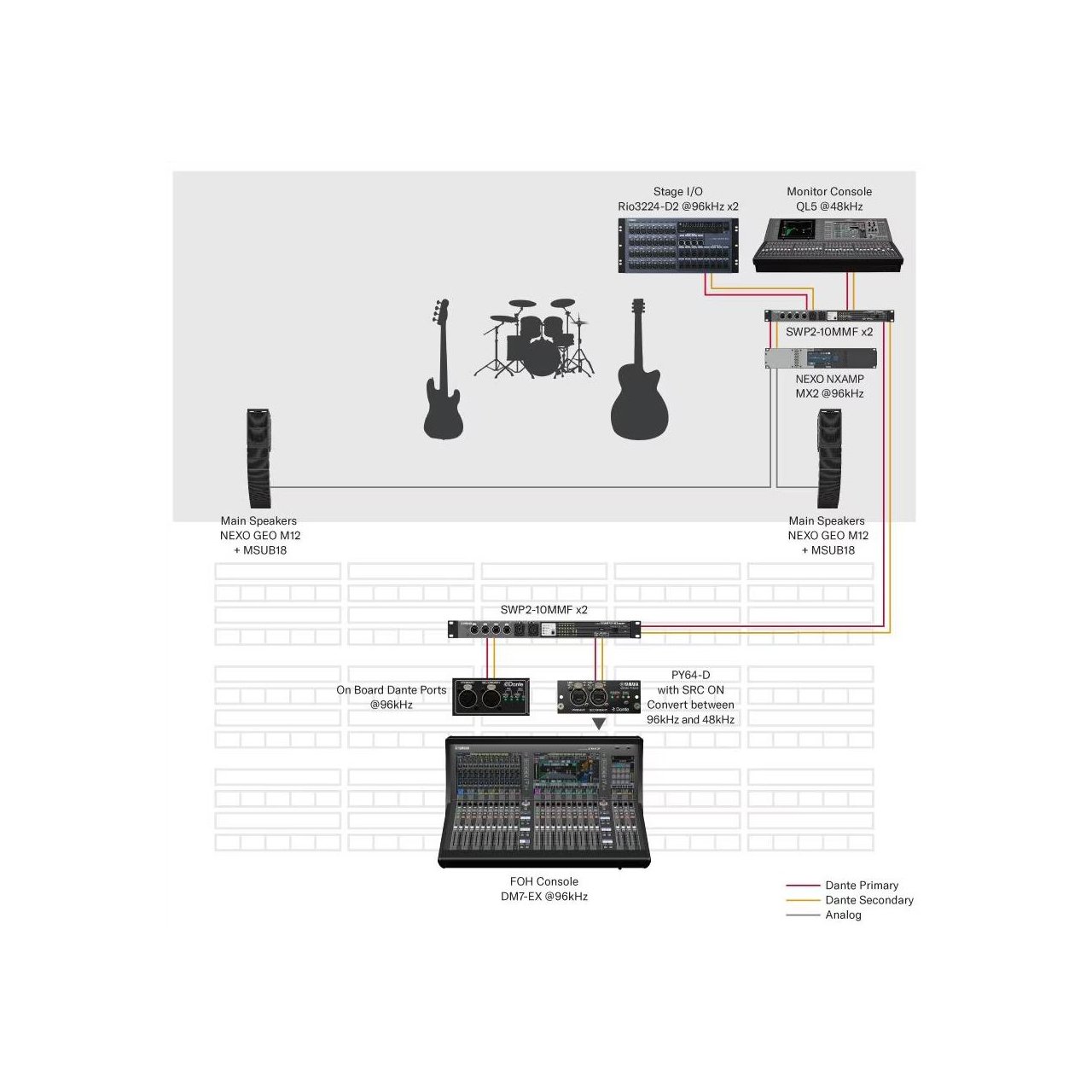

  • Both synchronous and asynchronous SRC options available, ensuring straightforward connections for complex systems and devices using different sample rates
  • SRC settings available directly from the console GUI
  • Redundant connections are supported with primary and secondary connectors
  • Daisy chain connections are also supported


• Specifications:

  • Dante Clock: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz (-4%/-0.1%/+0.1%/+4.167%)
  • Sampling Rate Converter: From 44.1 kHz -4% to 96 kHz +4.167%
  • Operating Temperature Range: 32 to 104° F (0 to 40° C)
  • Storage Temperature Range: -4 to 140° F (-20 to 60° C)

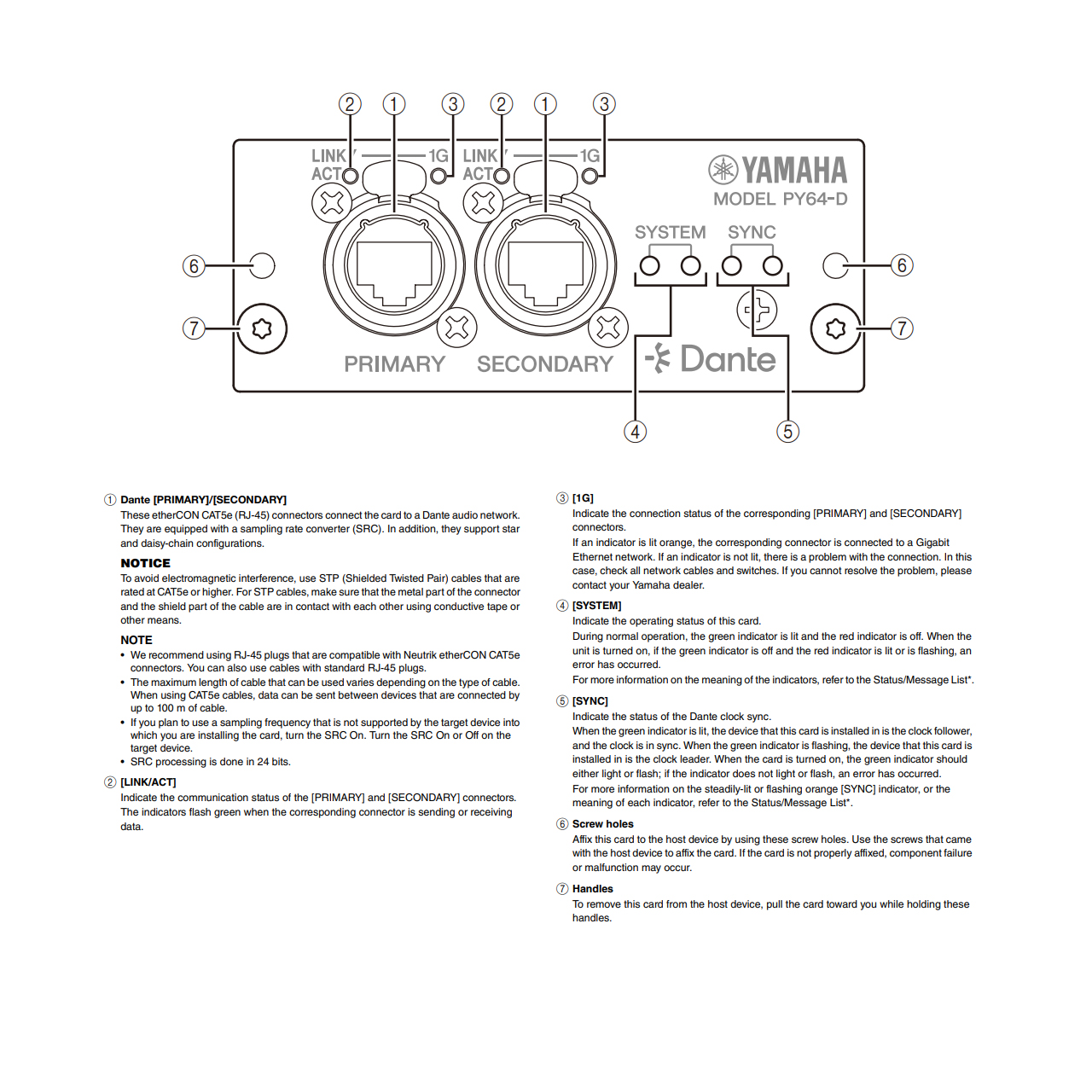

  • Terminal: Primary, Secondary
  • Format: Dante
  • Data Length: 24-bit / 32-bit *1
  • Level: 1000BASE-T
  • Audio: 64x64
  • Connector: etherCON CAT5e *2 *3
  • Power Consumption: 5.5 W
  • Dimensions (W x H x D): 3.94 inches x 1.57 inches x 5.31 inches
  • Net Weight: .66 lbs.
    *1 Features a sampling rate converter. Supported data length: 24-bit only Supported frequency: From 44.1 kHz -4% to 96 kHz +4.167%
    *2 CAT5e or higher cable is used for connection.
    *3 STP cable is recommended for connection.


• Item Includes:

  • 1x Yamaha PY64-D 64x64 96kHz Dante Expansion Card with SRC for DM7 Series Mixers


• GTIN:

  0889025162814
