Yamaha VXL1W-16 16 Full Range - 1.5 Inch Drivers - 40W - Program At 16 Ohm - White

ITEM #: YMH-VXL1W-16 MFG #: VXL1W-16

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$949.00

Our Price:

$807.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


VXL1W-16 - Overview

VXL series line source loudspeakers offer a unique combination of outstanding sound quality and slim form-factor that is ideal for a variety of environments. VXL line source loudspeakers offer excellent projection as well as uniform volume and sound quality over a wide listening area, making them a great choice for highly reflective rooms, lecture halls, conference rooms, and other facilities that require maximum intelligibility throughout the listening area.

The VXL series includes three models VXL1-8, VXL1-16 and the VXL1-24 each featuring 1.5 inch full range drivers, that can be combined to optimally serve a variety of installations and spaces. The slim 2.1-inch (54mm) wide enclosures feature elegantly curved grille designs that blend beautifully with any décor to deliver superior and uniform speech and music reproduction in a wide variety of applications.

  • Features:

    • 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
    • 170° horizontal dispersion for uniform SPL over a wide listening area
    • Vertical coverage can be selected as 20°(Standard) or 40°(Wide)
    • Slim design complements any interior décor
    • Available in black or white
    • Enclosures can be painted to match surroundings

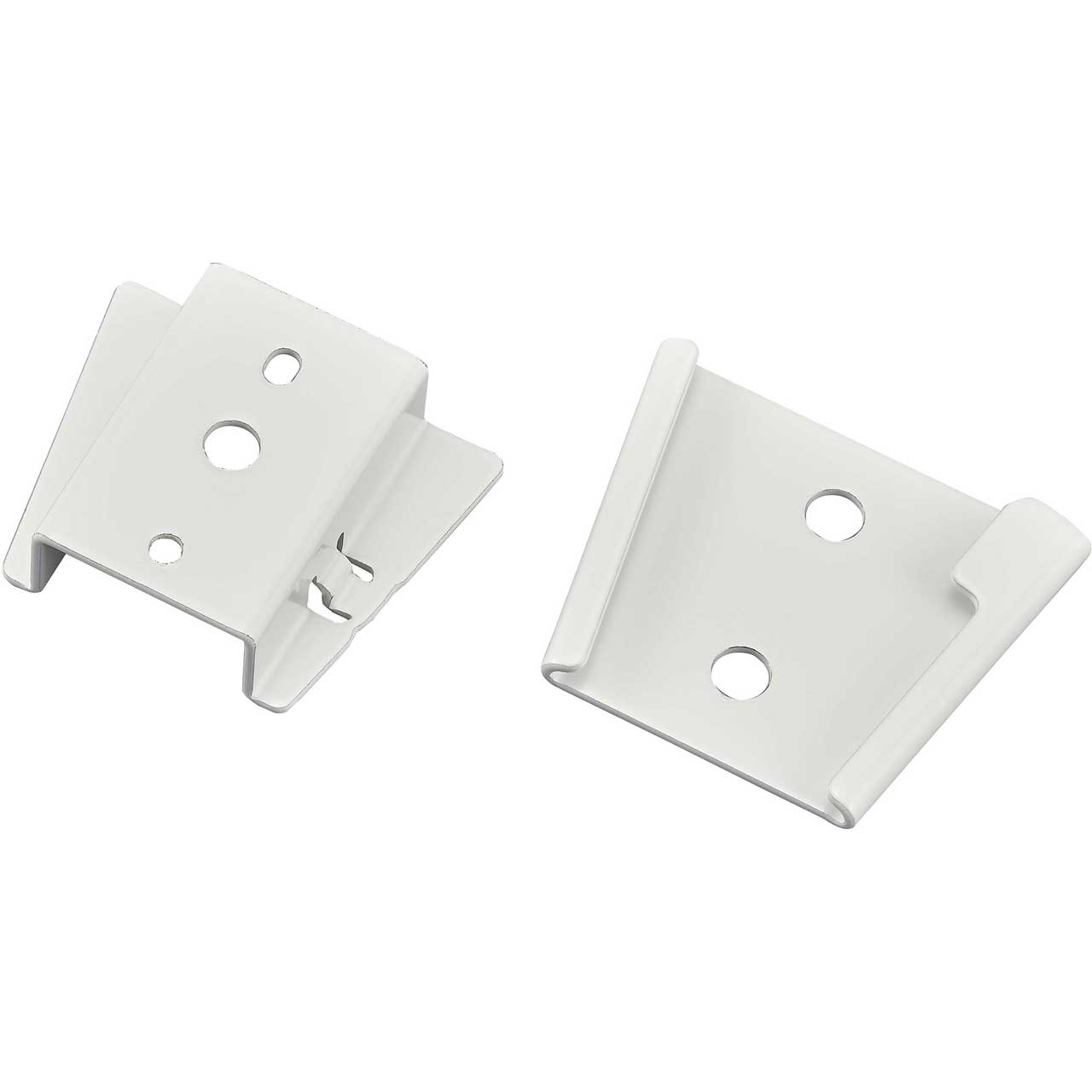

    • Wall mount bracket supplied
    • Optional hardware for a wide range of installation needs

  • Specifications:

    • Speaker Type: FUll-range, Bass reflex
    • Frequency Range (-10dB): 81 Hz - 20 kHz 108 Hz - 20kHz 1 (w/ port cover)
    • Coverage Area: Horizontal: 170°, Vertical:20°( +10° - -10°) (NORMAL), 40°(+10° - -30°) (WIDE)
    • Components (LF-HF): 1.5" (3.75 cm) Cone + 16
    • Power Rating (Noise/PGM/Peak): 80 W / 160 W / 320 W
    • Nominal Impedance: 12Ω
    • SPL Sensitivity (W; 1m on axis): 91 dB SPL (1 m/1 W)
    • SPL Peak (Calculated): 116 dB SPL (1 m)
    • I/O Connectors: Euroblock (2 pin) + 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
    • Load Protection: Full-range power limiting to protecting network and transducers
    • Finish: White painting (approximate value: Munsell N9.0)
    • IP-Rating: Dust and water resis tant : IP35
    • Dimensions (W x H x D): 2.1 x 33.3 x 4.1 in. (54 x 846 x 104 mm) - Speaker Only, 2.1 x 33.3 x 4.4 in. (54 x 846 x 111.5 mm) - with Included Bracket
    • Weight: 3.9 kg / 8.6 lbs (Speaker only)

  • GTIN:

    0889025115261
