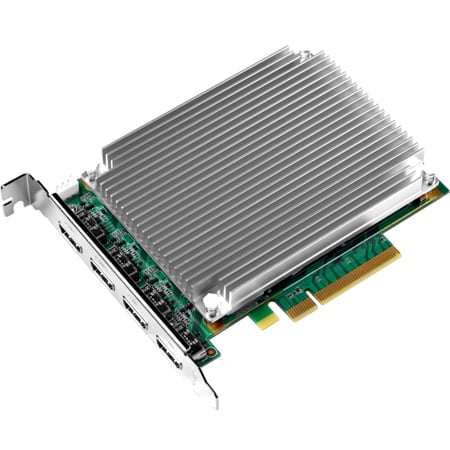

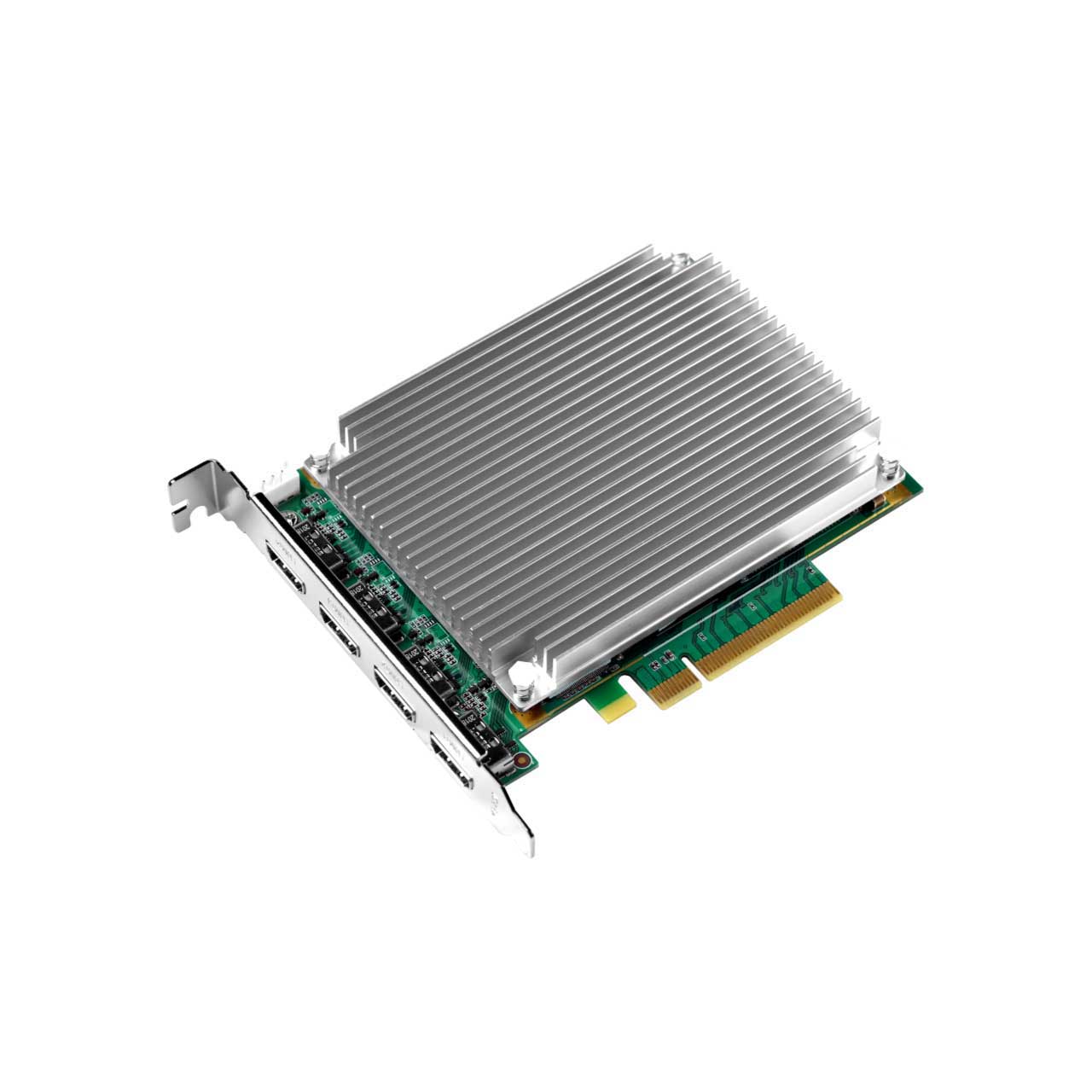

Yuan High-Tech SC720-N4-HDMI2 4 Channel 4K DCI 60p HDR HDMI Capture Card - PCIe x8 interface

ITEM #: YN-SC720-N4HDMI2 MFG #: YN-SC720-N4-HDMI2

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$699.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


YN-SC720-N4-HDMI2 - Overview

Yuan High-Tech SC720N4 HDMI 2.0 is a PCI Express Gen2 x8 video capture card capable of consume up to four (4) channels of contemporaneous video and audio from HDMI sources. With this board installed in any computer you can capture high-quality video into any supported streaming and recording software, such as vMix, OBS, Zoom, or Skype.

Each input supports up to 4K (4096x2160) resolution at up to 60 fps. The SC720N4 HDMI 2.0 also supports high color depth at up to 4:4:4 8-bit RGB32 and 4:2:0 10-bit P010. This ensures that you are able to capture the most accurate reproduction of your video sources without quality loss.

  • Specifications:

    • Inputs
    • 4x HDMI 2.0

      Computer Interface
    • PCI Express 2.0 x8

      Supported Video Resolutions
    • 4096x2160@60/50/30/25/24fps
    • 3840x2160@60/50/30/25/24fps
    • 2560x1440p@144fps
    • 1920x1080p@240/144/120/100fps
    • 1920x1080p@60/50fps
    • 1920x1080p@30/25/24fps
    • 1920x1080i@60/50fps
    • 1280x720p@60/50fps
    • 1280x1024p@60fps
    • 1280x960p@60fps
    • 1024x768p@60fps
    • 800x600p@60fps
    • 640x480p@60fps
    • 720x480p@60fps
    • 720x576p@50fps
    • 720x480i@60fps
    • 720x576i@50fps

      Video Processing
    • Video Cropping and Scaling
    • Auto Signal Detection
    • Deinterlace Engine
    • Multi Instances

      Color Formats
    • 4:4:4 8Bit RGB24
    • 4:4:4 8Bit RGB32
    • 4:2:2 8Bit YUY2
    • 4:2:0 8Bit YV12, NV12
    • 4:2:0 10Bit P010

      Audio
    • 4x Embedded Stereo Audio Channels, Up to 16-bit / 48KHz

      Supported Software
    • vMix
    • OBS
    • ZOOM
    • Skype
    • Teams
    • Discord
    • Slack
    • Cisco Webex
    • GoToMeeting
    • (Other software applications that support Windows DirectShow or Linux V4L2 drivers are also generally compatible)

      Operating System Support
    • Windows 7/Windows 8/Windows 8.1/Windows 10
    • Linux 2.6.14 or Higher (32-bit and 64-bit)
    • Linux ARM
    • NVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX

      Physical
    • Weight: 1Lbs
    • Dimensions: 10 x 7 x 3"

  • GTIN:

    0653559999402
