ZF8N - Overview

Some Make Sound. Others Make History!

When ZOOM was developing the F8n, it was their mission to provide every sound professional with the tools to create something exceptional. With features such as Advanced Look-Ahead Hybrid Limiters, ZOOM AutoMix™, and mic/line options for both XLR and TRS inputs, the F8n is the next generation of professional field recording.

Advanced Look-Ahead Hybrid Limiters
The F8n is equipped with Advanced Look-Ahead Hybrid Limiters that provide overload protection no matter what comes your way. By adding a 1 millisecond delay, the limiters "look ahead" anticipating clipping before it's recorded. Limiting is applied to each of the 8 channels simultaneously at full resolution, with 10 to 20dB of headroom to ensure pristine audio on every take.

Mic Preamps & Zoom AutoMix™
The F8n features a super-low noise floor (-127dBu EIN) and high gain (up to 75dB). Mic/line levels are selectable for both XLR and TRS inputs. Meet your new assistant sound editor, the ZOOM AutoMix™. This smart software automatically adjusts the levels of your mix to reduce the amount of ambient sound, so you can focus on what really matters - capturing a well-balanced mix.

Simultaneous-Recording & Dual SD Card Recording
The F8n can record to an SD card and your computer via USB simultaneously. And you can easily back up your files and stream live while recording. Record simultaneously on two SD/SDHC/SDXC cards, up to 512 GB each, allowing for redundant recording. The F8n's dual-channel recording mode allows you to create safety tracks by doubling up the recordings from inputs 1-4 onto tracks 5-8. Tracks can be controlled independently, allowing you to customize each safety track with different gain, limiting, and more.

  • Features:

    • 8-channel/10-track field audio recorder/mixer

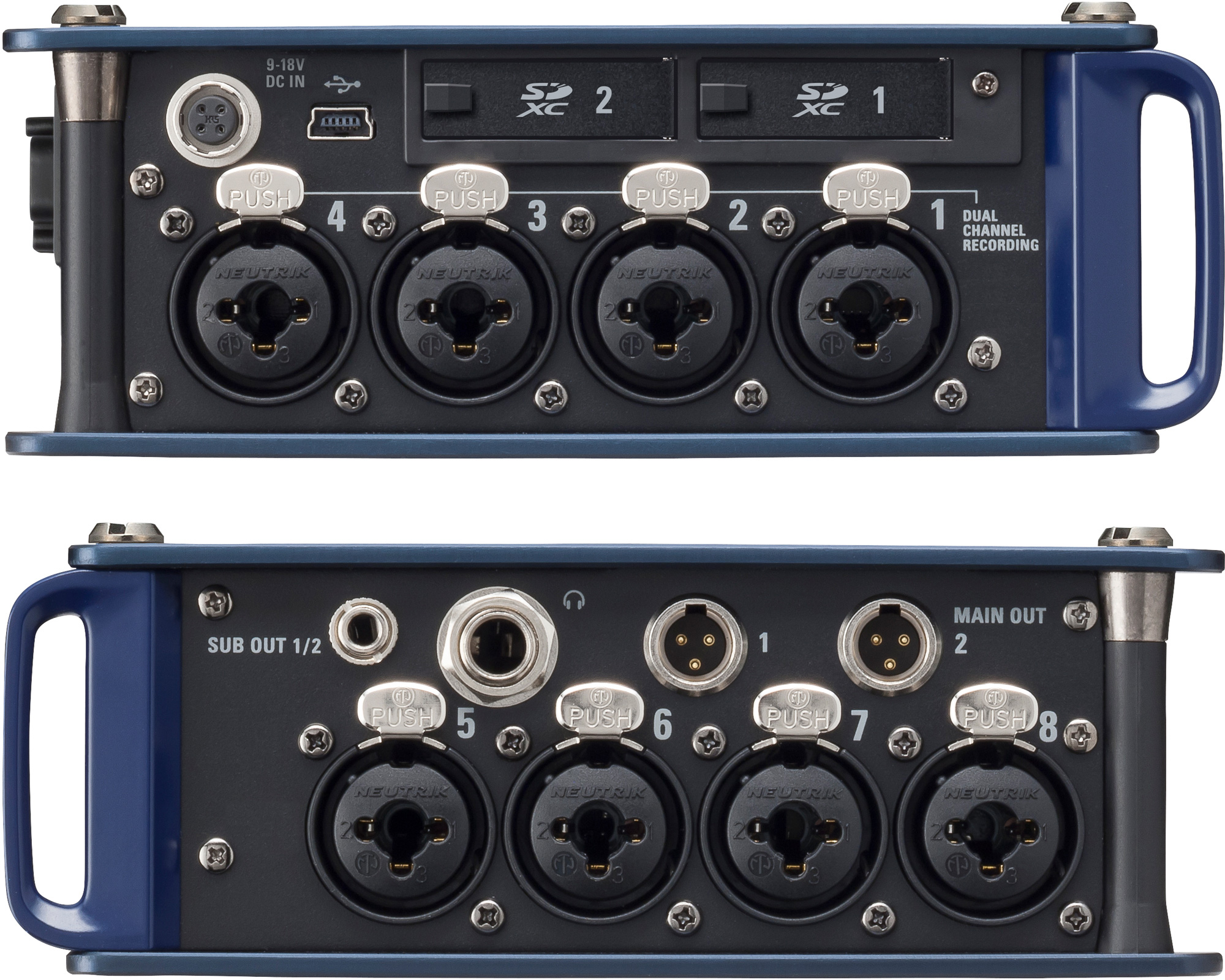

    • 8 discrete inputs with locking Neutrik XLR/TRS combo connectors
    • Compact and lightweight aluminum chassis, weighing just 2 pounds (without batteries)
    • High quality mic preamps with upto75dB gain and less than -127 dBu EIN
    • Switchable +4dB inputs with mic/line options for both XLR and TRS
    • Advanced Look-Ahead Hybrid Limiters
    • Zoom AutoMix™ software
    • Support for upto24-bit/192 kHz recording and 44.1 kHz, plus 47.952 kHz/48.048 kHz for HD video compatibility; 16-/24-bit resolution

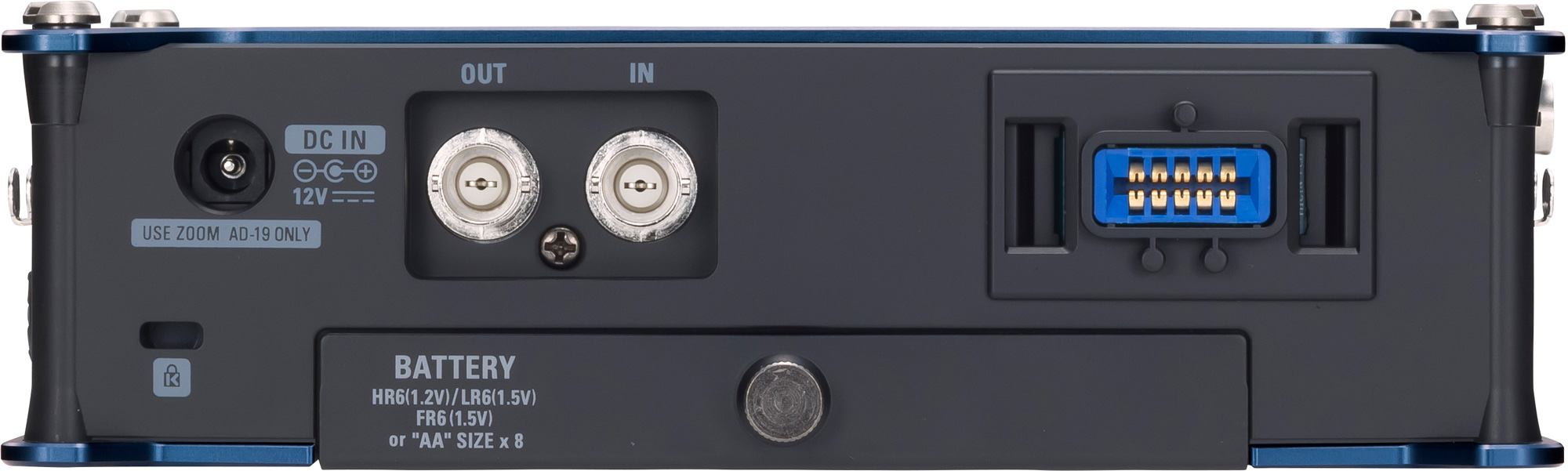

    • Accurate Time Code (0.2 ppm when on and up to 0.2 ppm when powered off) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync

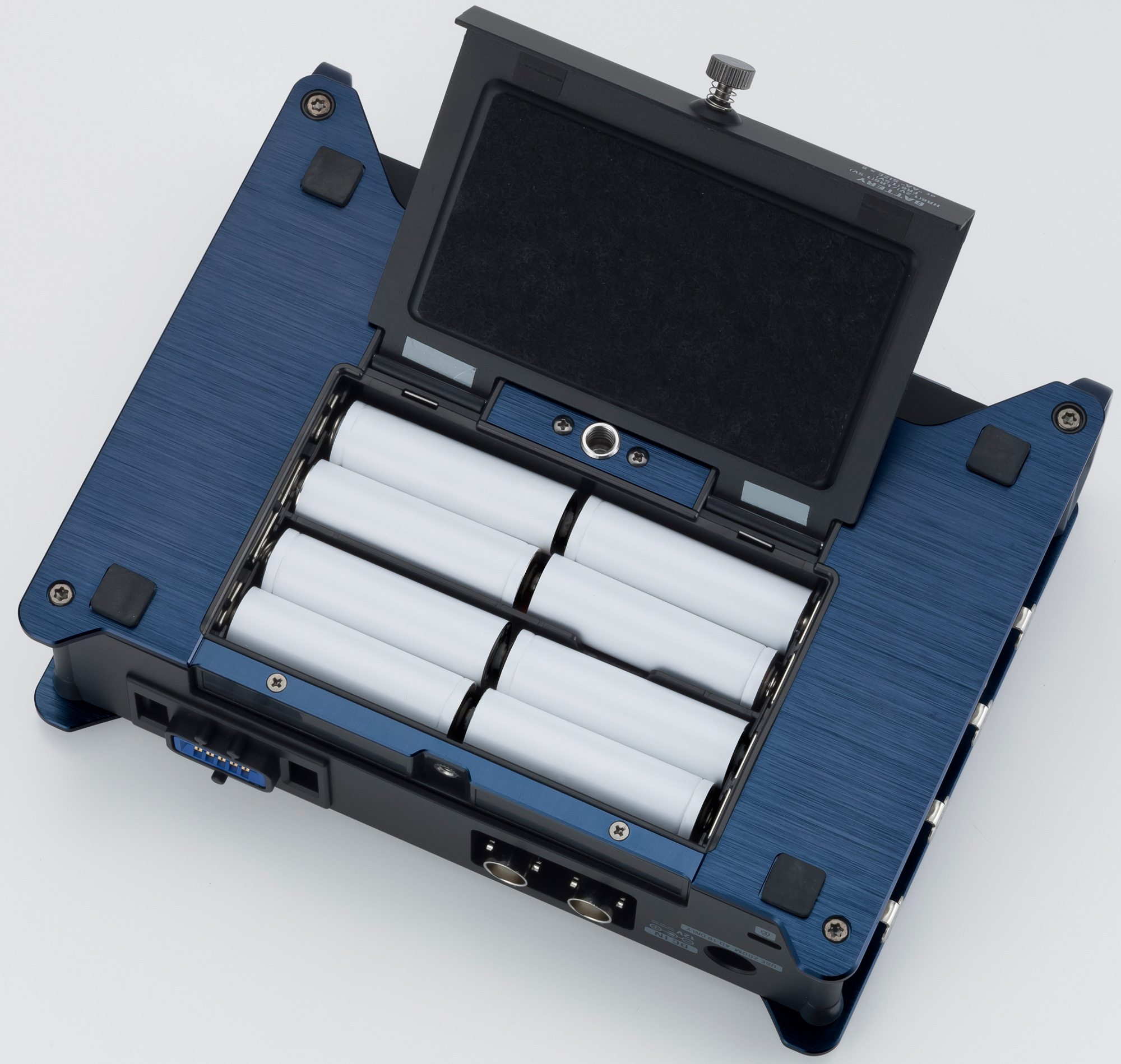

    • Three different power supply options: 8xAA batteries, external DC battery pack with Hirose connector, or 12VAC adapter (AA's and DC battery pack not included)

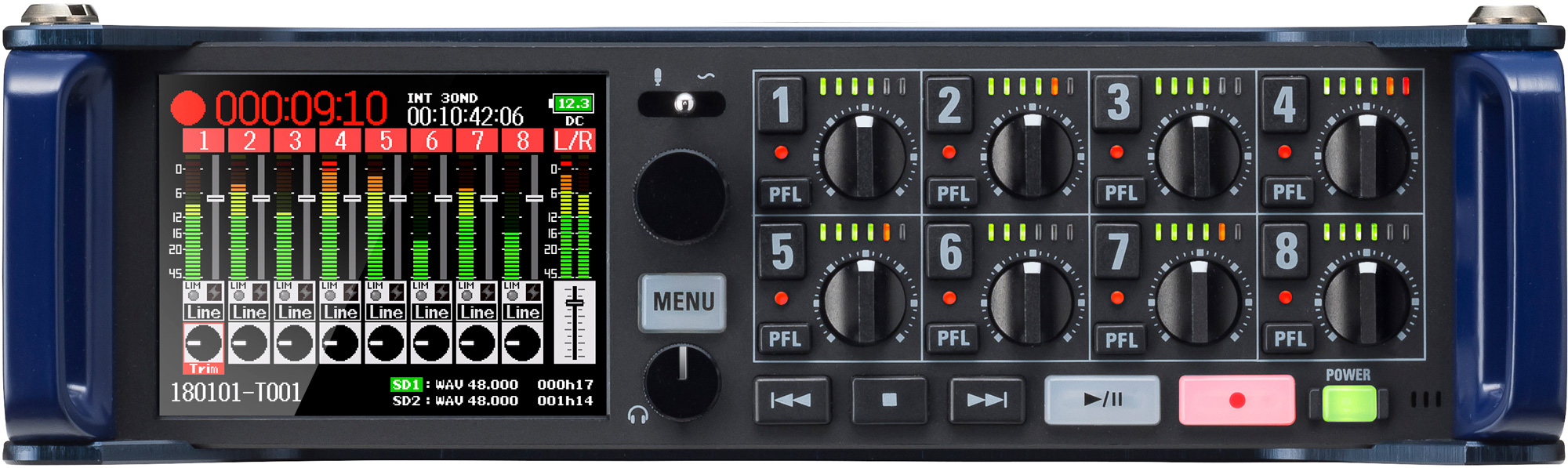

    • Dedicated gain control knob, 6-segment LED level meter, and PFL/Solo switch for each channel
    • High pass filter, phase invert, and Mid-Side decoder
    • Input delay of up to 30 msec per channel / output delay of up to 10 frames per output
    • Compatible with Zoom microphone capsules; optional extender cable enables remote positioning
    • Dual mini-XLR (TA3) balanced Main Outs plus 1/8" stereo mini-jack Sub Out
    • Dedicated headphone output (100 mW) with front panel volume control
    • 2.4" full-color backlit LCD with monochromatic mode
    • Dedicated PFL display with viewable trim settings
    • Dual SD/SDHC/SDXC card slots, up to 512GB each
    • Records in BWF-compliant WAV or MP3 file formats
    • Support for extensive metadata (BWF and iXML); input time, date, project, scene number, etc.
    • Built-in slate mic/slate tone with front panel switch
    • Use as an 10-in/4-out USB audio interface (@96 kHz)
    • Free Zoom F8 Control App for iOS allows wireless remote control, file renaming, and metadata entry

  • Specifications:

    • General
    • Recording Media: Dual SD card slots support 16MB-2GB SD cards, 4GB-32GB SDHC cards and 64GB-512GB SDXC cards
    • Recording Formats: WAV, MP3
    • Recording Time (Using a 32GB Card): 30:51:00 (48kHz), 7:42:00 (192kHz)
    • Display: 2.4" Full-color LCD - 320x240
    • USB: USB 2.0

      Inputs
    • Input 1-8: XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
    • Mic Input Gain: +10 - +75 dB
    • Mic Input Impedance: 2 kΩ
    • Mic Maximum Input Level: +14 dBu (at 0 dBFS, limiter ON)
    • Line Input Gain: -10 - +55 dB
    • Line Input Impedance: 2.6 kΩ
    • Line Maximum Input Level: +24 dBu (at 0 dBFS, limiter ON)
    • Phantom Power: +24/+48V 10mA maximum for each channel
    • Equivalent Input Noise: -127 dBu or les (A-weighted, +75dB input gain, 150Ω input)

      Output
    • Frequency characteristics: 10Hz-80 kHz +0.5dB/-1dB (192kHz sampling rate)
    • A/D dynamic range: 120dB typical (-60dBFS input, A-weighted)
    • Crosstalk: -90dB or less (between adjacent channels, 1kHz)
    • MIC IN: ZOOM mic capsule input (use disables Inputs 1/2)
    • SLATE MIC: Built-in mic for voice memos can be assigned to tracks freely
    • Main Out: TA-3 connectors, balanced output (2: hot); 150Ω Impedance
    • Sub Out 1/2: 3.5mm stereo mini unbalanced output jack; 100Ω Impedance
    • Headphone: 1/4" unbalanced stereo output jack; 15Ω Impedance
    • D/A dynamic range: 106dB typical (-60dBFS input, A-weighted)

      Physical
    • Power Supply: 8 AA batteries; AD-19 DC12V 2A (center plus) AC Adapter; HIROSE HR10A-7R-4S 4-pin connector external DC Power Supply
    • Power Consumption: 15 W
    • Dimensions (W x D x H): 7" x 5.5" x 2.1"
    • Weight: 2.2 lbs

  • Item Includes:

    • Zoom AD-1912VAC Adapter
    • Cubase LE and WaveLab LE download codes
    • Operation manual

  • GTIN:

    0884354019037
