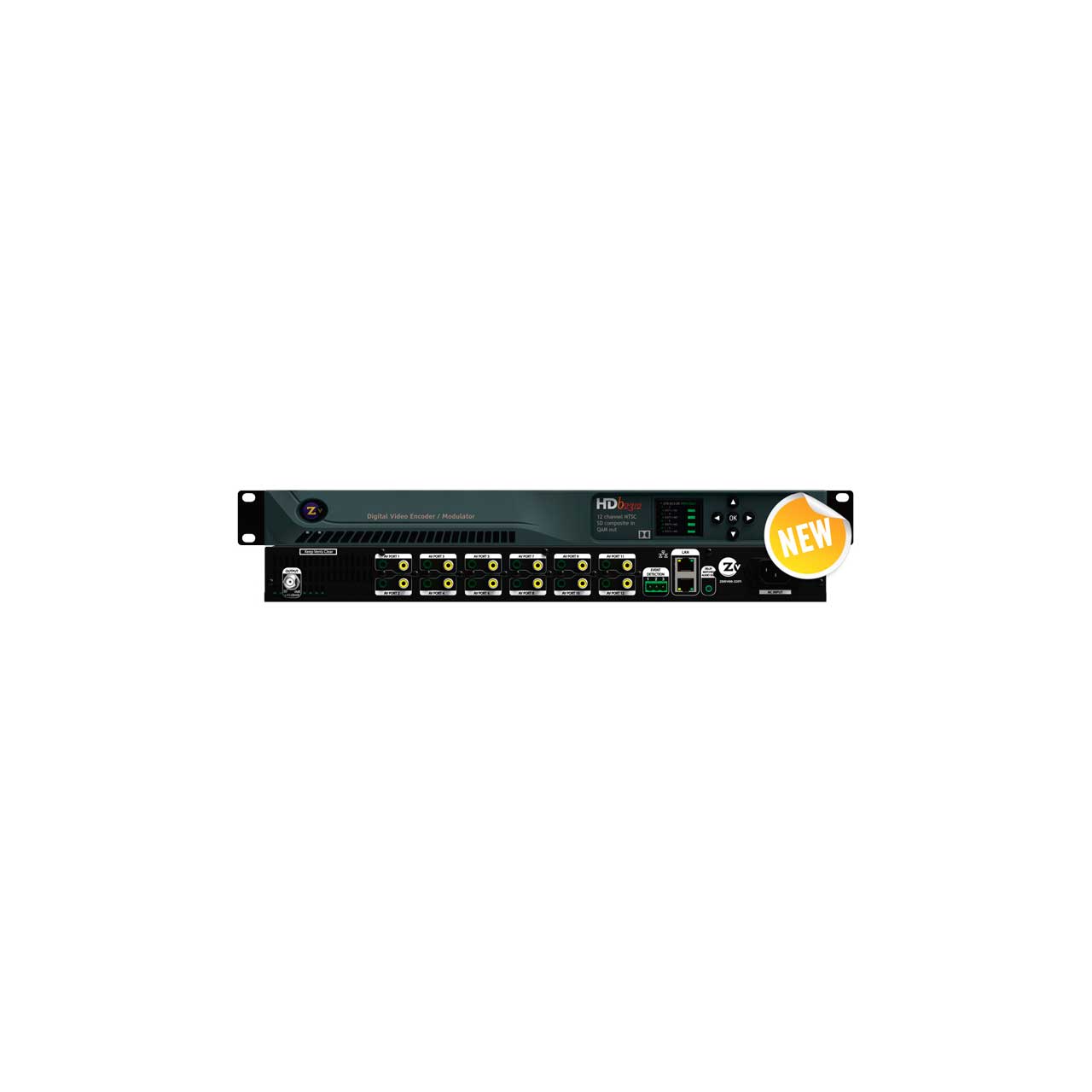

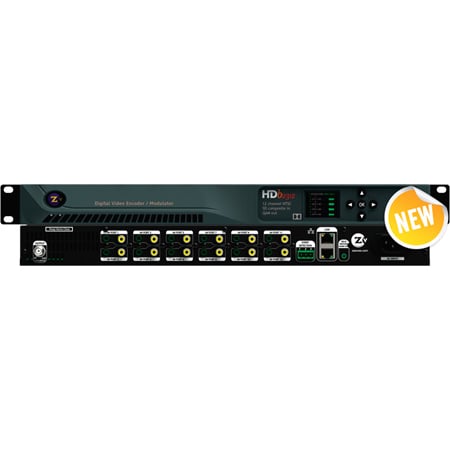

ZeeVee HDB2312 12SD Channel HDbridge Encoder / Modulator

HDB2312 - Overview

• Specifications:

  • Video Input:
  • Composite Video x 12 RCA connector, 75 Ohm 0 to 0.7v, 480i input 59.94 fields per second
  • Closed Caption EIA/CEA-608 captions accepted over composite video input


  • Audio Input:
  • Stereo Audio Input x 12 3.5mm Stereo Female, 75 Ohm 0 to 1.0 v per channel
  • Internally encoded into Dolbyr Digital AC-3


  • Video Encoder:
  • Encoder Video Profile MPEG2 HD Profile 2: ISO13818-2 MP@HL
  • Traffic Shaping Variable Bit Rate
  • Video Transport Bit Rate 38.78 Mbps
  • Video Encoding Data Rates Variable, 2 Mbs - 12 Mbs per channel
  • Average Encoding Data Rate 10-12 Mbs per channel
  • Encoding Latency Programmable 100 msec to 400 msec
  • Color Profile 4:2:0
  • GOP Size 24
  • Video, Audio PID Programmable
  • Program Information Programmable


  • Audio Encoder:
  • Encoder Audio Profile ATSC A/52, Dolby(r) Digital (AC-3)


  • Modulator/Upconverter:
  • Modulation Types QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only
  • Cable Standard HRC, IRC or STD or User defined (varies by region)
  • Frequency Range Independently Frequency Agile from 54 to 864MHz (Channels 2-135) 2 kHz resolution
  • +/- 30 ppm accuracy
  • +/- 35 ppm stability
  • Output Power +45 dBmV typical
  • Output Level Adjust 25 - 45 dBmV in 1dBmV steps
  • MER 40 dB typical
  • I/Q Amplitude Imbalance < 1% typical
  • Spectral Tilt <= 1dB over 6MHz typical


  • Control/Setup:
  • Network interface 10/100 mb Ethernet via RJ45 connection
  • IP address via DHCP or set by user
  • HTML/Javascript served web interface for easy configuration
  • Telnet connection for CLI scripting
  • Easy firmware updates
  • All settings saved in NV storage
  • Front Panel Color Display View channel settings and audio/video utilization on full color LCD


  • General :
  • Power 100-240VAC 50/60Hz, 60W max. 30W Typical. IEC 60320-C14
  • Cooling Dual Internal cooling fans, Front Inlet, Rear Exhaust
  • Mounting Rack ears shipped attached, 1RU high
  • Enclosure Type Metal
  • Enclosure Dimensions 1.72" H x 17.33" W (without rack mount ears) x 6.9" D
  • 43.6mm H x 440.2mm W x 175.3mm D
  • System Weight 6.5lb (2.95 kg)
  • Carton Dimensions (individual) 4.25" H 30.875" W 12.125" D
  • 108 mm H 785 mm W 308 mm D
  • Shipping Weight 7.6 lbs (3.45 kg)
  • Temperature/Humidity Operating +32F to +113F (0C to +45C) / 10% to 80%, non-condensing
  • Vibration NSTA 1A in carton
  • MTBF 62,000 hours
  • Compliance FCC Class A
  • Part number HDb2312-NA
  • Model name HDb2312
  • Warranty 5 years


• Warranty:

  • 5 Years


• GTIN:

  0812254010564
