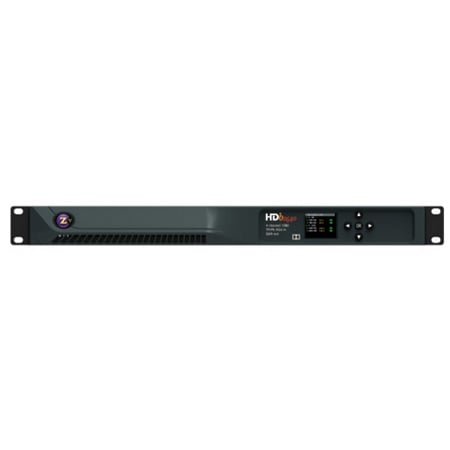

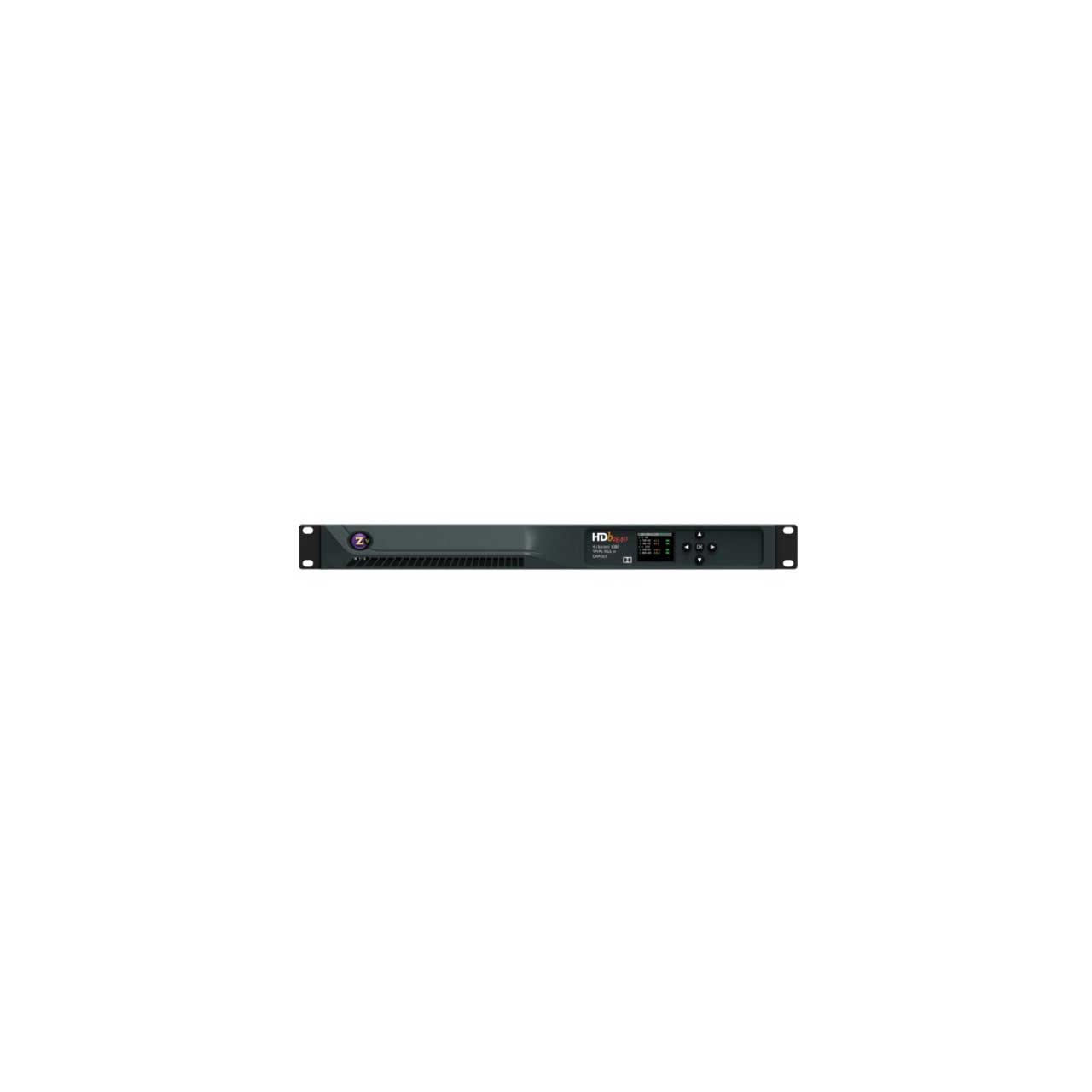

ZeeVee HDB2640DT 4-Channel HD MPEG2 Digital Video Encoder/Modulator - DirecTV Version

HDB2640DT - Overview

• Features:

  • Use existing coaxial cabling - saves time, money and disruption
  • Compatible with any HDTV - use the built-in tuner
  • MPEG2 video and AC3 or Mpeg-1 Layer 2 audio encoding - standards based assurance
  • QAM or DVB-T/C - varies by region
  • Optimized rack space - 2, 4 or 8 channels in a single 1RU
  • Front to back cooling - no special racking requirements
  • Consolidated cabling - durable, snug connectors
  • Maestro headend management software - Connect locally or remotely from any browser-based device
  • Front-Panel color LCD - for channel status
  • Local and/or remote management - configure all channels at once - from anywhere!


• Specifications:

  • Power: A8 100-240 VAC 50/60 Hz, 60W max. 30W Typical IEC 60320-C14
  • Cooling: Dual internal cooling fans, Front inlet, Rear exhaust
  • Temperature/Humidity: Operating +32 F0 to +113 F0 (0 C0 to +45 C0) / 10% to 80%, non-condensing
  • MTBF: 62,000 hours
  • Compliance: FCC Class A, IEC60065, EN61000 (see manual 70-00031-00), CE, RoHS, RCM C-Tick
  • Enclosure Type: Metal
  • Mounting: Rack ears shipped attached, 1RU high
  • System Weight: 6.25 lbs. (2.84 kg)
  • Warranty: 5 years
  • Component Video X2 Or X1: DIN connector HDbridge end, RCA connectors for HD source up to 1080
  • Computer VGA (Analog) X2 Or X1: HD-15 connector, 75 Ohm RGB 0 to 0.7V, Separate H and V sync
  • VGA Resolutions Supported: 640x480, 720x480, 800x600, 1024x768, 1152x864, 1176x664, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1440x900 at 60 70, 72, 75, 85 Hz. 1680x1050 and 1920x1080 at 60 Hz.; VGA resolutions are broadcast centered in the best vertical fit into
  • Stereo Analog And Digital Audio X4 Or X2: Line level input per channel DIN connector HDbridge end, RCA connector or digital SPDIF audio input. 3.5 mm pigtail connector with VGA
  • Encoder Video Profile: MPEG2 HD: ISO13818-2 Main Profile @ High Level
  • Traffic Shaping: Variable Bit Rate
  • Video Encoding Data Rates: Variable, 10 Mbs - 24 Mbs per channel
  • Average Encoding Data Rate: 18 Mbs per channel
  • Encoding Latency: Programmable 200 msec to 400 msec
  • Color Profile: 4:02:00
  • GOP Size: 16
  • Video, Audio PID: Programmable starting value
  • Program Information A62: Programmable program name, EIT
  • Encoder Audio Profile: ATSC A/52, Dolbyr Digital (AC-3)
  • Modulation Types: QAM 256 and 64 (ITU-T J83 Annex B) Interleaving modes: (64,2) only
  • Cable Standard: HRC, IRC or STD
  • Frequency Range: A69 Up to 4 paired, frequency-agile QAM RF CATV Channels 2-135; 2 kHz resolution; +/- 30 ppm accuracy; +/- 35 ppm stability
  • Output Power: +45 dBmV typical
  • Output Level Adjust: 25 - 45 dBmV in 1dBmV steps
  • MER: > 38 dB typical
  • I/Q Amplitude Imbalance: < 1% typical
  • Network Interface: 10/100 Mb Ethernet via RJ45 connection; IP address via DHCP or set by user; HTML/Javascript served web interface for easy configuration; Telnet connection for CLI scripting; Easy firmware updates; All settings saved in NV storage;
  • Front Panel Color Display: A87 Quickly obtain status at a glance, basic configurations, software revisions and updates


• Warranty:

  • 5 Years


• GTIN:

  0812254010724
