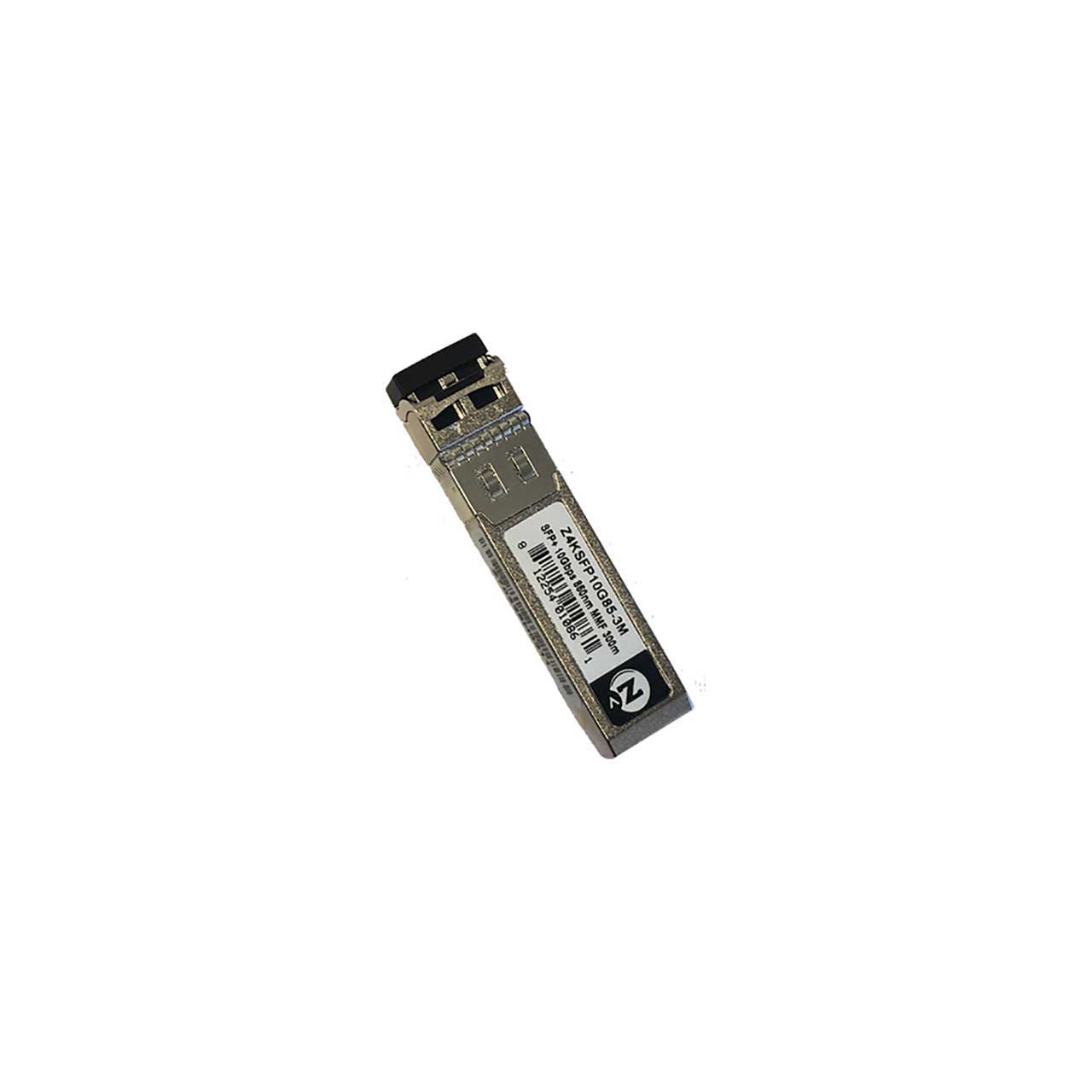

The ZeeVee Z4KSFP10G85-3M small form-factor pluggable (SFP) connector module is designed for use with the fiber optic connector on the ZyPer4K encoder and decoders, as well as the network switch. Each connector is matched to a specific fiber type and distance, but are hot swappable if you need to change the cable length or type of fiber needed.
10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-8431, SFF-8432, IEEE 802.3ae 10GBASESR/SW and 10G Fibre Channel 1200-Mx-SN-I. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The transceiver is a "limiting module", i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceivers are compliant per the RoHS Directive 2011/65/EU.
