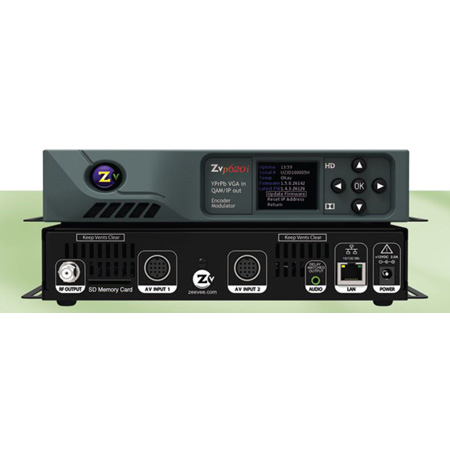

ZeeVee ZvPro 610i HD Video and Digital Signage Over Coax With Simultaneous Video-over-IP Streaming - 1 AV Input

ZVPRO 610I - Overview

ZvPro600i-NAHD Digital Encoder/ModulatorHD Video and Digital Signage Over Coax With Simultaneous Video-over-IP Streaming

• Features:

  • Emergency Alert System
  • Add an extra layer of safety to your facility by using the built in Emergency Alert System. The ZeeVee Emergency Alert System (EAS) can tie systems into national or local alert systems. ZeeVee processes alerts sent with either EAS-NET or MPEG streaming. When an alert is active, all current audio and video will be interrupted and replaced with the alert.

  • Send HD Video directly to your display using your built in Digital (QAM) Tuner or IP network

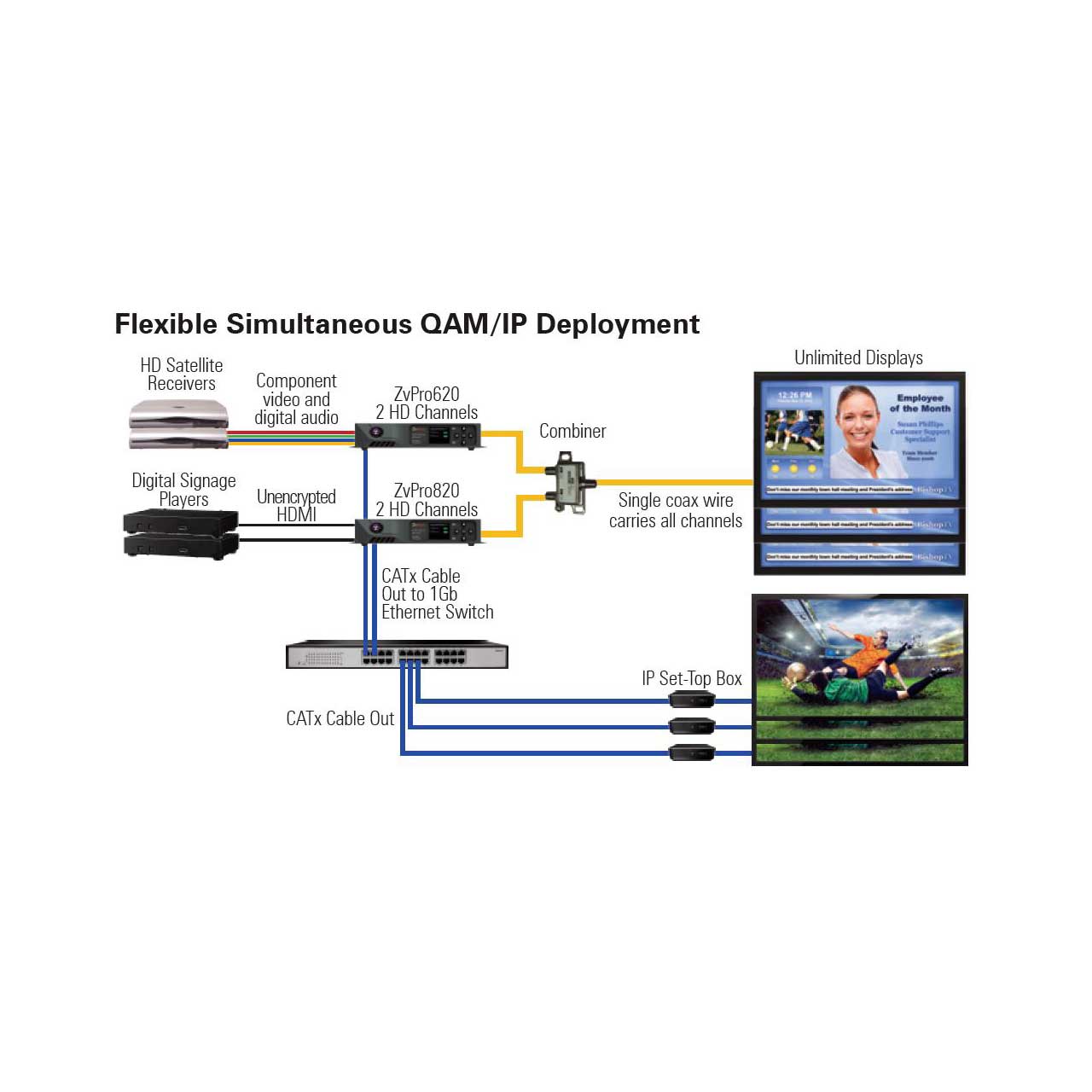

  • ZvPro converts your content to a private television channel that is sent over a coax cable - just like your existing satellite or cable box - except you control the content. If your display or projector does not have a tuner, you can purchase a ZvSync decoder to convert the signal to a HDMI output to send to your display. The iSeries of ZvPro encoders also will create a simultaneous MPEG-2 video stream that can be sent over any 1Gb network to enable viewing on computers, media players, and set-top boxes.
    Add a Digital Tuner to your display with ZvSync
  • Have a projector or other display that doesn't have a QAM or digital tuner? No problem. The ZvSync (sold seperatly) enables you to connect any display or projector to the ZvPro encoder coax connection and receive crystal clear 1080p video just as if your display was built with a digital coax tuner. Perfect for sports bars and house of worship applications that use projectors and televisions in the same space.>

  • Simultaneous IP Output to send HD video directly to your network
  • ZvPro 610i and 620i products feature simultaneous IP network output models that enables them to send HD video direct to a mobile phone, digital signage player, computer, or tablet simply by typing in the assigned address. The unit sends a standard MPEG 2 video stream that can be received by any standard device or player.

  • Made in the USA
  • The ZeeVee products is proudly designed and manufactured in the USA.
    Five Year Warranty
  • ZeeVee products are highly reliable and features a five year warranty.


• Specifications:

  • General
  • Model Names: ZvPro600 I-Series ZvPro620i | ZvPro610i
  • Part Numbers: ZvPro620i-NA | ZvPro610i-NA
  • Power: 100-240 VAC 50/60 Hz, 60W max. 30W Typical IEC 60320-C14
  • Cooling: Internal cooling fan, front inlet, rear exhaust
  • Temperature/Humidity: Operating +32 F° to +113 F° (0 C° to +45 C°) / 10% to 80%, non-condensing
  • Vibration: NSTA 1A in carton
  • MTBF: 62,000 hours
  • Compliance: FCC Class A, IEC60065, EN61000 (see manual 70-00031-00), CE, RoHS, RCM C-Tick
  • Enclosure Type: Metal
  • Mounting: Shelf mount flange or rack ears (ordered separately), 1 RU high
  • Enclosure Dimensions:
  • 8 in. (H) x 10 in. (W) x 1.75 in. (H)
  • 20.32 cm (H) x 25.4 cm (W) x 4.445 cm (H)
  • System Weight: 3.1 lbs. (1.4 kg)
  • Carton Dimensions (individual):
  • 2.75 in. (H) 14 in. x (W) 12 in. (D)
  • 6.985 cm (H) 35.56 cm (W) x 30.48 cm (D)
  • Shipping Weight: 5 lbs. (2.3 kg)
  • Warranty: 5 years

    Video Input
  • Component Video x2 or x1: DIN connector HDbridge end, RCA connectors for HD source up to 1080
  • Computer VGA (Analog) x2 or x1: HD-15 connector, 75 Ohm RGB 0 to 0.7V, separate H and V sync
  • VGA Resolutions Supported:
  • 640x480, 720x480, 800x600, 1024x768, 1152x864, 1176x664, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1440x900 at 60 70, 72, 75, 85 Hz. 1680x1050 and 1920x1080 at 60 Hz.
  • VGA resolutions are broadcast centered in the best vertical fit into 1920x1080p30 or 1280x720p60
  • Closed Caption: EIA/CEA-608 captions accepted over composite video input

    Audio Input
  • Stereo Analog and Digital Audio x4 or x2: Line level input per channel DIN connector HDbridge end, RCA connector or digital SPDIF audio input. 3.5 mm pigtail connector with VGA

    Video Encoder
  • Encoder Video Profile: MPEG2 HD: ISO13818-2 MainProfile@HighLevel
  • Traffic Shaping: Variable Bit Rate
  • Video Encoding Data Rates: Variable, 10 Mbs - 24 Mbs per channel
  • Average Encoding Data Rate: 18 Mbs per channel
  • Encoding Latency: Programmable 200 msec to 400 msec
  • Color Profile: 4:2:0
  • GOP Size: 16
  • Video, Audio PID: Programmable starting value
  • Program Information: Programmable program name, EIT

    Audio Encoder
  • Encoder Audio Profile: ATSC A/52, Dolby Digital (AC-3)

    Modulator / Upconverter
  • Modulation Types: QAM 256 and 64 (ITU-T J83 Annex B) Interleaving modes: (64,2) only
  • Cable Standard: HRC, IRC or STD
  • Frequency Range: Up to 2 paired, frequency-agile QAM RF CATV channels 2-135
  • 2kHz resolution
  • +/- 30 ppm accuracy
  • +/- 35 ppm stability
  • Output Power: +45 dBmV typical
  • Output Level Adjust: 25 - 45 dBmV in 1dBmV steps
  • MER: > 38 dB typical
  • I/Q Amplitude Imbalance: < 1% typical
  • Spectral Tilt: ≤ 1 dB over 6 MHz typical

    IP Stream Output

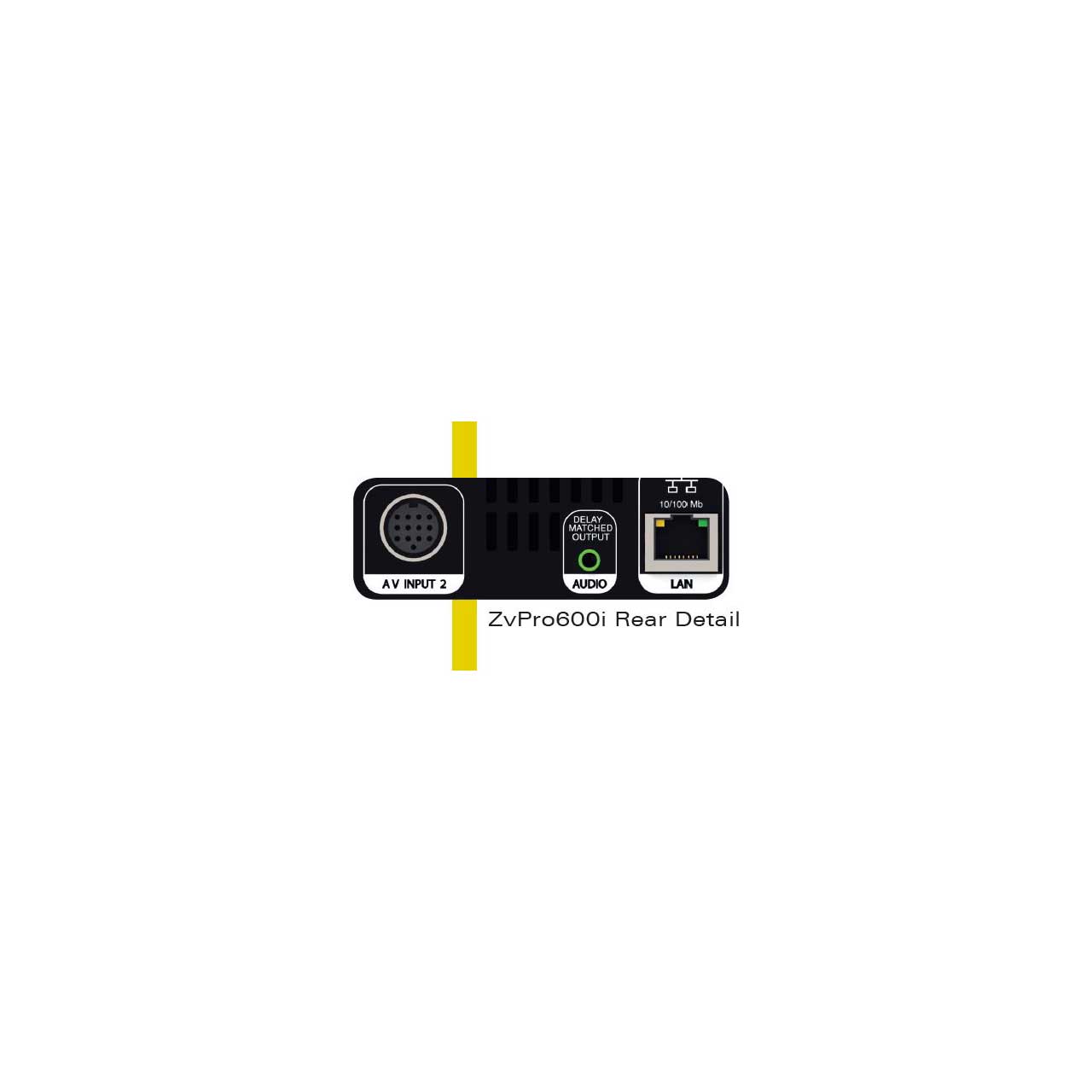

  • Stream Details: RJ-45 10/100Mb Ethernet connection
  • Up to 2 SPTS, one for each encoded video stream
  • UDP unicast or multicast, IPV4
  • User programmable destination address / port

    Control Set-Up
  • Network Interface:
  • 10/100 Mb Ethernet via RJ45 connection
  • IP address via DHCP or set by user
  • HTML/Javascript served web interface for easy configuration
  • Telnet connection for CLI scripting
  • Easy firmware updates
  • All settings saved in NV storage

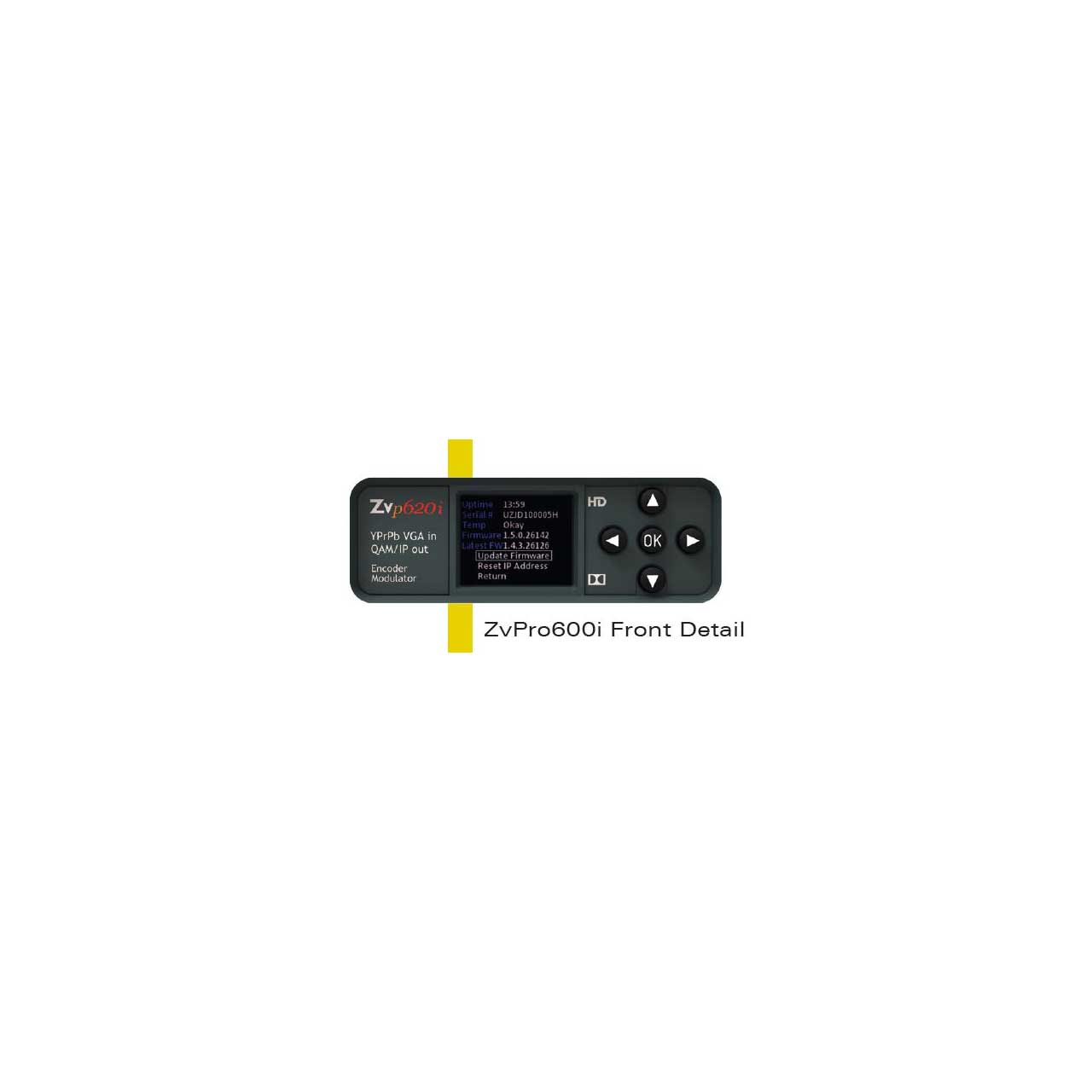

  • Front Panel Color Display: Quickly obtain status at a glance, basic configurations, software revisions and updates


• Warranty:

  • Five Year


• GTIN:

  0812254011042
