ZeeVee ZvPro 620 Dual Channel Component/VGA Encoder/QAM Modulator

ITEM #: ZVPRO620 MFG #: ZVPRO620

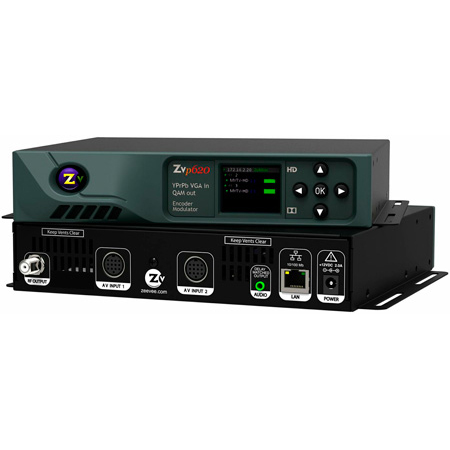

Primary Image

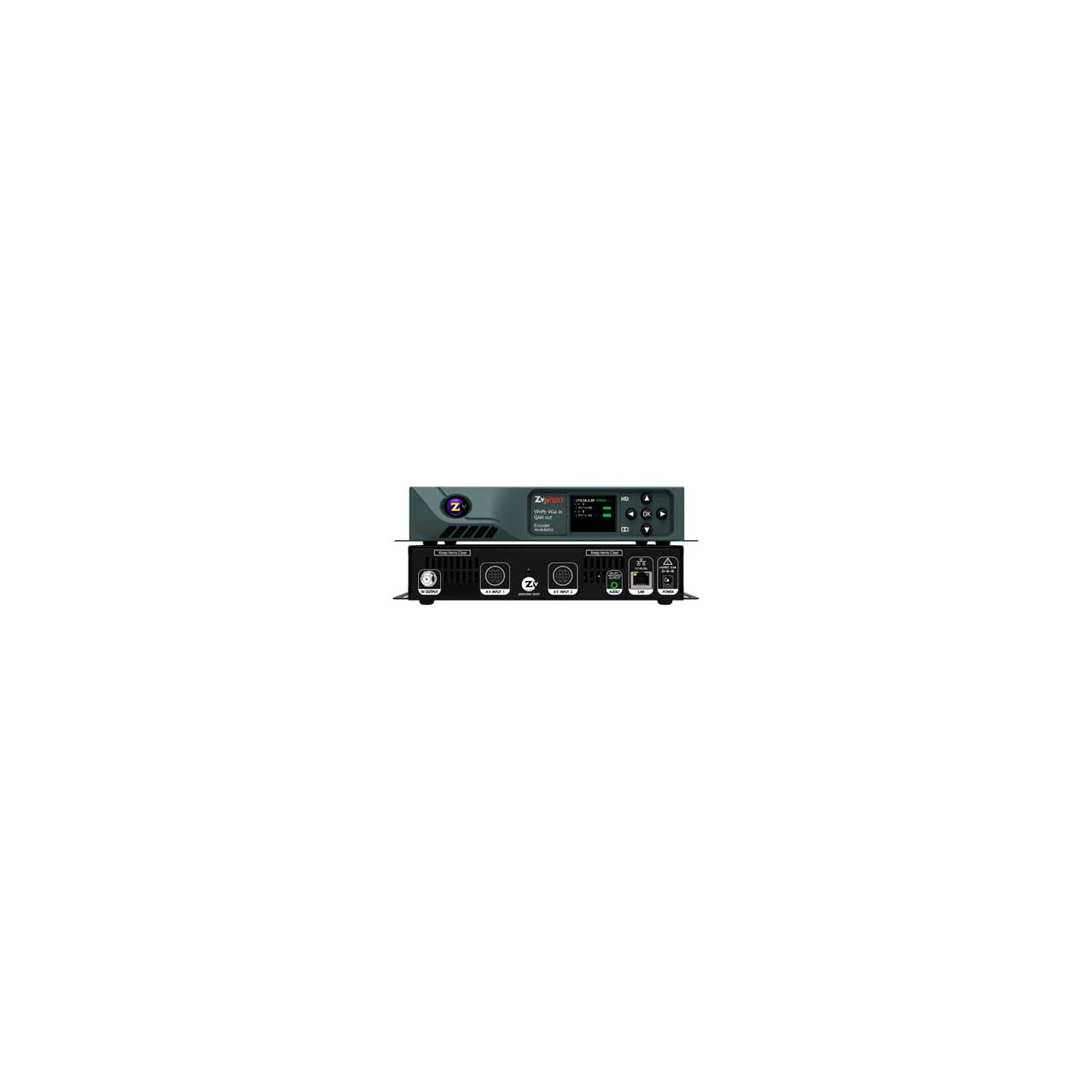

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
ZeeVee
Free Shipping with $49 Minimum Order

Our Price:

$3,010.68

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

ZVPRO620 - Overview

Create Your Own HDTV Cable Channel & Broadcast VGA or Component Using Coax Wiring!

Based on the same technology used by TV stations and cable companies, ZvPro 620 makes it affordable to convert your VGA or Component video into an HDTV channel and broadcast it over simple to use COAX wiring to everyon-premise. Its standard QAM cable channel output can be receivedby practically any off-the-shelf digital cable-ready HDTV without requiring an additional box at the TV.

Note: Breakout cables are required & sold separately. (ZV709-6, ZV710-6)
Five-Year Warranty - ZeeVee is extending the warranty on all ZvPro and HDbridge products to five years. This warranty further demonstrates our confidence in the reliability and longevity of the ZeeVee equipment. Product needs to be manufactured in 2014 in order to qualify for the 5-year warranty. If it was manufactured prior to 2014 it will be covered by our two year warranty.

  • Features:

    • Dual Component/Composite or VGA with Audio Input (Hydra AV Breakout Cable Required- sold separately)
    • Power web-based interface for configuring and monitoring
    • Color front panel configuration and status at a glance
    • Compact, fan-cooled package
    • High power 45dBmv output
    • Shelf or rack mount - via integral flanges or optional mounting kit
    • Front-Panel Color LCD - for Configuration and Status
    • Web-based mangement - local or remote setup and monitoring
    • Component/VGA input - two choices, from a full sized DIN connector:
    • Hydra cables with 7 inputs (component HD video, analog and digital audio) for clean wiring, easy diagnostics and maximum flexibility
    • VGA with analog audio input
    • Analog and Digital Audio - internally encoded and broadcast as AC-3 or MPEG1 Layer 2 Audio Encoding (varies by region)
    • Integrated Closed Caption support - required for ADA compliance in many applications.
    • High power output - up to 45dBmV
    • Strong retention force power connector
    • Two year warranty
    • Proudly designed in Massachusetts and Built in the USA


  • Specifications:

    • Video Inputs
    • YPrPb or RGB Video 2 ports - DIN connector HDbridge end, RCA connectors for HD source
    • Computer VGA (Analog) - HD-15 connector, 75 Ohm RGB 0 to 0.7V, Separate H and V sync
    • VGA Resolutions Supported - 640x480, 720x480, 800x600, 1024x768, 1152x864, 1176x664, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1440x900 at 60 70, 72, 75, 85 Hz. 1680x1050 and 1920x1080 at 60 Hz. VGA resolutions are broadcast centered in the best vertical fit into 1920x1080p30 or 1280x720p60.
    • Closed Caption - EIA/CEA-608 captions accepted over composite video input

    • Audio Inputs
    • Analog Audio Input - 75 Ohm 0 to 0.7v at Line-level input, RCA R/W Connectors on DIN->RCA Cable, Combined 3.5mm stero connector on DIN-> VGA cable
    • Digital Audio - Digital S/PDIF on DIN->RCA Cable (N/A on DIN->VGA cable)
    • Encoding - Internally encoded into Dolbyr Digital AC-3 or MPEG1 Layer 2 (varies by region)


  • Warranty:

    • Five Year


  • GTIN:

    0812254010380
