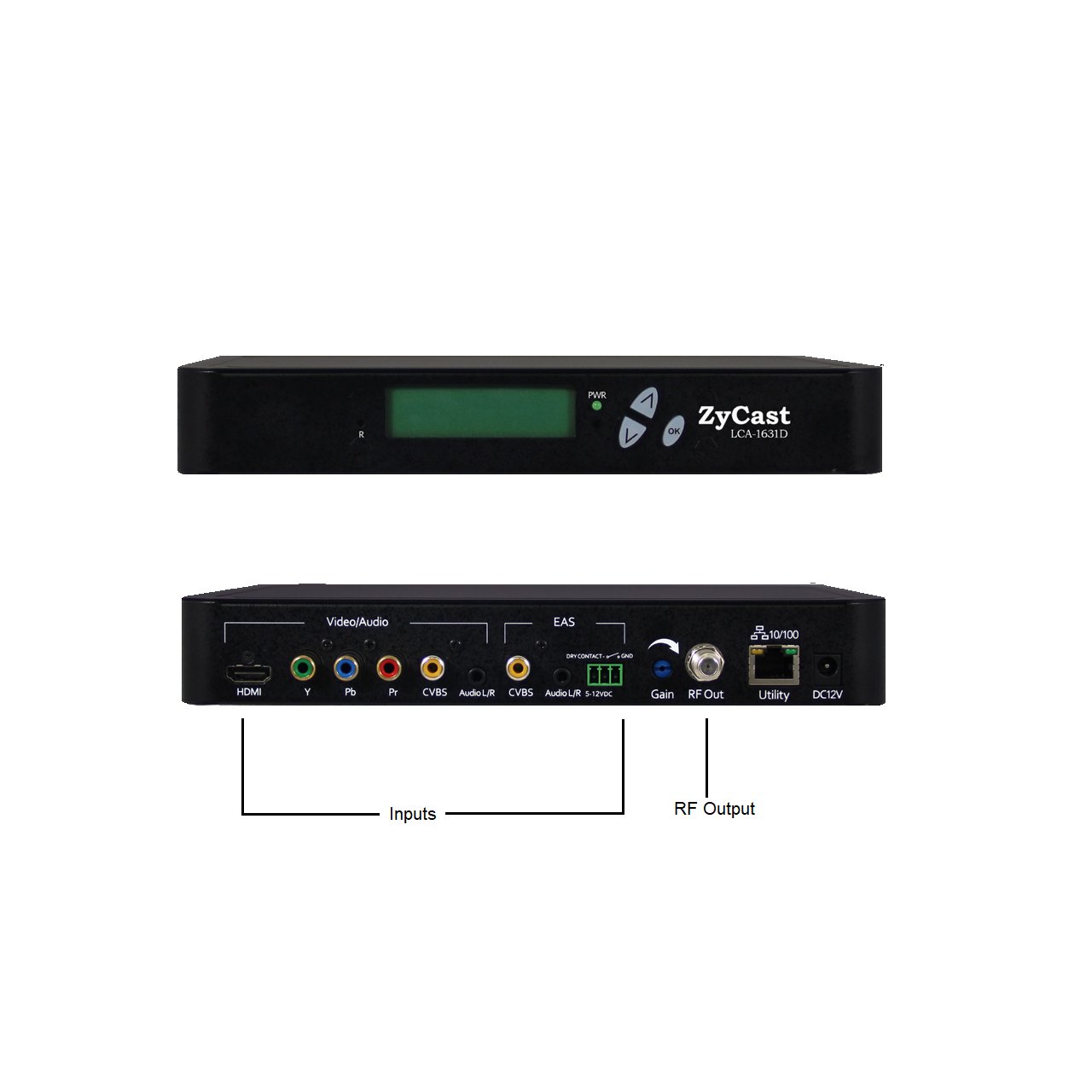

ZyCast LCA-1631E Single Channel Modulator with HDMI / Component and Composite Inputs

ITEM #: ZYC-LCA-1631E MFG #: LCA-1631E

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$610.00

Our Price:

$549.00

Availability: In Stock
iAvailability Description Popup


LCA-1631E - Overview

The Zycast 1631E LCA Series of single-channel compact and cost-effective High Definition (HD) encoder-modulators are designed for multi-video distribution solutions in the commercial and institutional market. The family of encoders are ideal for hotels, motels, sports bars, restaurants, hospitals, casinos, business and university campuses, digital signage, home entertainment systems, and other similar establishments.

The Zycast series of versatile encoder-modulators enables the users to convert the HD video content into a digital signal and distribute it across various television sets using the existing coaxial cable. The LCA family of encoder-modulators has an integrated HDMI input that can accept video signals up to 1080p resolution, and it is capable of encoding MPEG-2 video signals.

Designed to operate in a wide range of frequencies, from 57MHz to 861MHz, user-friendly and easy to install with a variety of built-in features including a comprehensive web interface, and convenient front panel LCD.

  • Features:

    • Modulation Standards: User Selectable
    • Adjutable Output Bitrate
    • Adjustable Attenuation
    • Front Panel LCD for Easy Setup
    • User-Friendly Web GUI : Configure, Manage, and Monitor with Ease

  • Specifications:

    • Video/Audio Input
    • HDMI 1.4:
      - Connector: Single
      - Audio Embedded: PCM
      - HDCP Compliance (Test Mode): 1.4
    • Component/Composite:
      - Connector: 1x RCA Set for Each
      - Audio: Analog 3.5mm (Phone Jack)
    • EAS:
      - Connectors: 1x RCA Set
      - Audio Analog: 3.5mm (Phone Jack)
      - Trigger Mechanism: 5-12 VDC & Dry Contact Closure (Terminal Strip)

      Video/ Audio Encoding Profile
    • Video:
      - Video Codecs MPEG-2 VBR
      - Bitrate(Adjustable)
      - J.83 Annex B:
      - HD: 12.0 to 24.0Mbps
      - SD: 4.0 to 9.0Mbps
    • Resolution Output:
      Same as Input, Accepting Resolution as Follows:
      - 1080p30/1080p25
      - 1080i60/1080i50
      - 720p60/720p50
      - 576p/480p
      - 576i/480i
    • Audio:
      - Audio Codecs MPEG1 Layer II/MPEG4 AAC
    • Closed Captioning:
      - Composite EIA-608; 1x RCA (CC)

      Output
    • Standard: J.83 Annex B
    • Connector: 1x "F" Female
    • Output Level: 95 dBµV Typical (With 20dB Range Manually Adjustable)
    • Flatness Across Full Band: ±2dB Typical
    • MER: 38 dB Typical @ 663.0000 MHz
    • Output Impedance: 75 ohm
    • RF Output Return Loss: 10dB Typical

      Modulator STD - J.83 Annex B
    • RF Mode Normal / Inverted
    • Channel Type J.83B: STD / HRC / IRC
    • Frequency Range (Under STD Mode): 177.000 MHz to 861.000MHz (Channel 7 to Channel 135)
    • Interleaver: I=128, J=1
    • Constellation (Output Bitrate, Max): 64-QAM (26.970Mbps) / 256-QAM (38.810Mbps)
    • VCN: Auto (Major & Minor)/Manual (Major & Minor)/Manual (One Part)

      General
    • Local Monitoring: LCD
    • Web GUI Supported: Firefox, Chrome
    • Password Protected GUI: User Settable
    • Power Supply: 12VDC 1.5A
    • Consumption: 5W
    • Operation Temperature: 32°F - 131°F (0°C - 55°C)
    • Storage Temperature: -4°F - 158°F (-20°C - 70°C)
    • Dimension Housing: 9.3" x 5.7" x 1.33" (236mm x 145mm x 34mm)
    • Weight: 3.6lbs
    • Language: English

  • Item Includes:

    • 1x ZyCast LCA-1631E Single Channel Modulator with HDMI / Component and Composite Inputs
