ZyCast U5 Single Channel 4K HEVC Encoder-Modulator with Simultaneous RF and IP Outputs

ITEM #: ZYC-U5 MFG #: U5

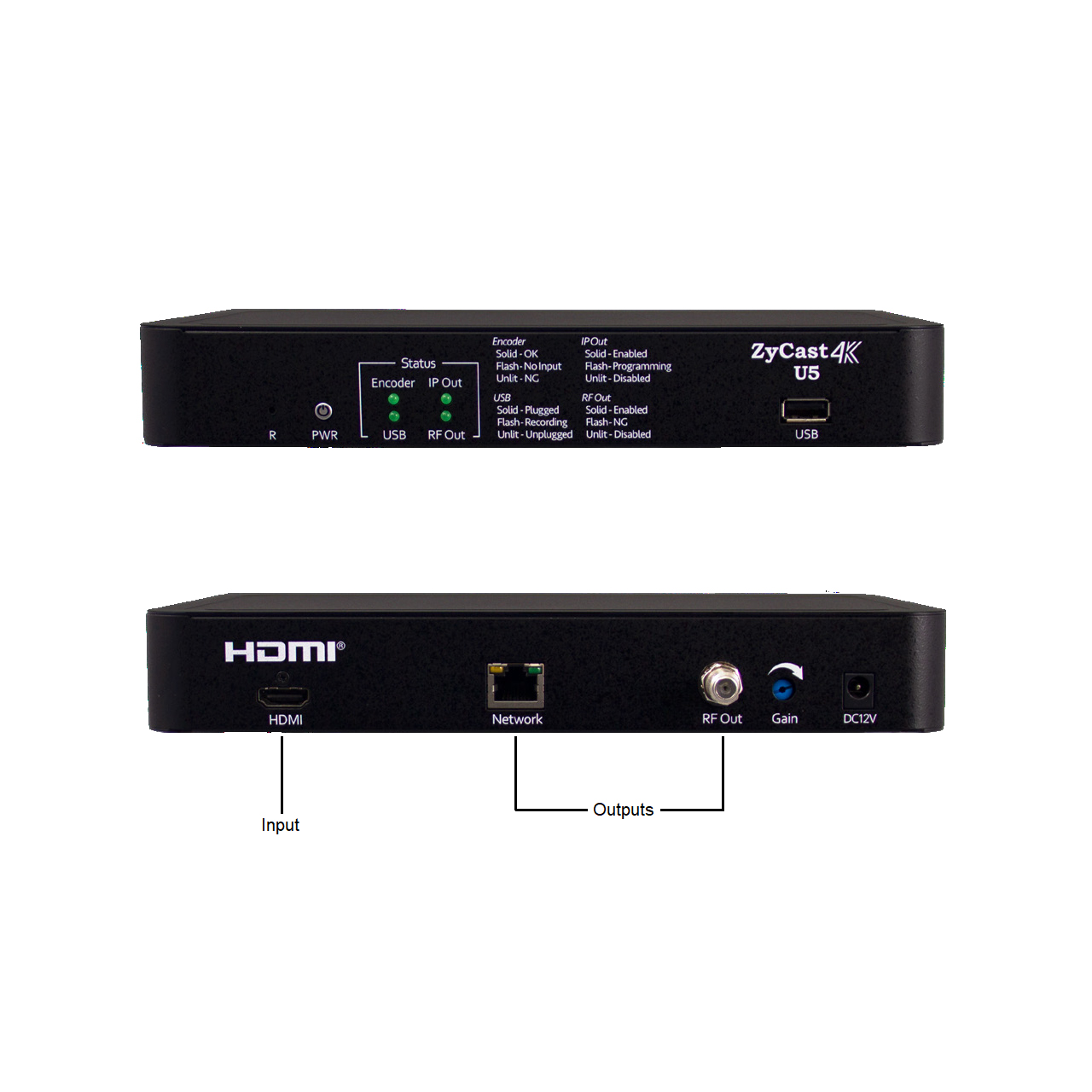

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,400.00

Our Price:

$2,160.00

Availability: In Stock
iAvailability Description Popup


U5 - Overview

Compact Single-Channel 4K (Ultra HD) HEVC Encoder-Modulator with Simultaneous RF and IP Out
Introducing the ZyCast Single Channel U5 HEVC Encoder, a cutting-edge broadcasting solution that combines versatility, efficiency, and ultra high-definition video encoding. Designed to meet the demands of modern broadcasters and content creators, this encoder is engineered to deliver exceptional performance and flexibility.

With the ZyCast Single Channel U5 HEVC Encoder, you can effortlessly encode video content into the RF standard of your choice( DVB-C, DVB-T/T2, J.83B, ISDB-Tb). Whether you require RF output or prefer the convenience of an IP video stream, this encoder has you covered.

Equipped with state-of-the-art HEVC (High-Efficiency Video Coding) technology, the ZyCast U5 encoder maximizes video compression efficiency, reducing bandwidth requirements without compromising on visual quality. This advanced encoding capability allows for the delivery of stunning, high-resolution content up to 4096 x 2160 pixels, ensuring an immersive viewing experience for your audience.

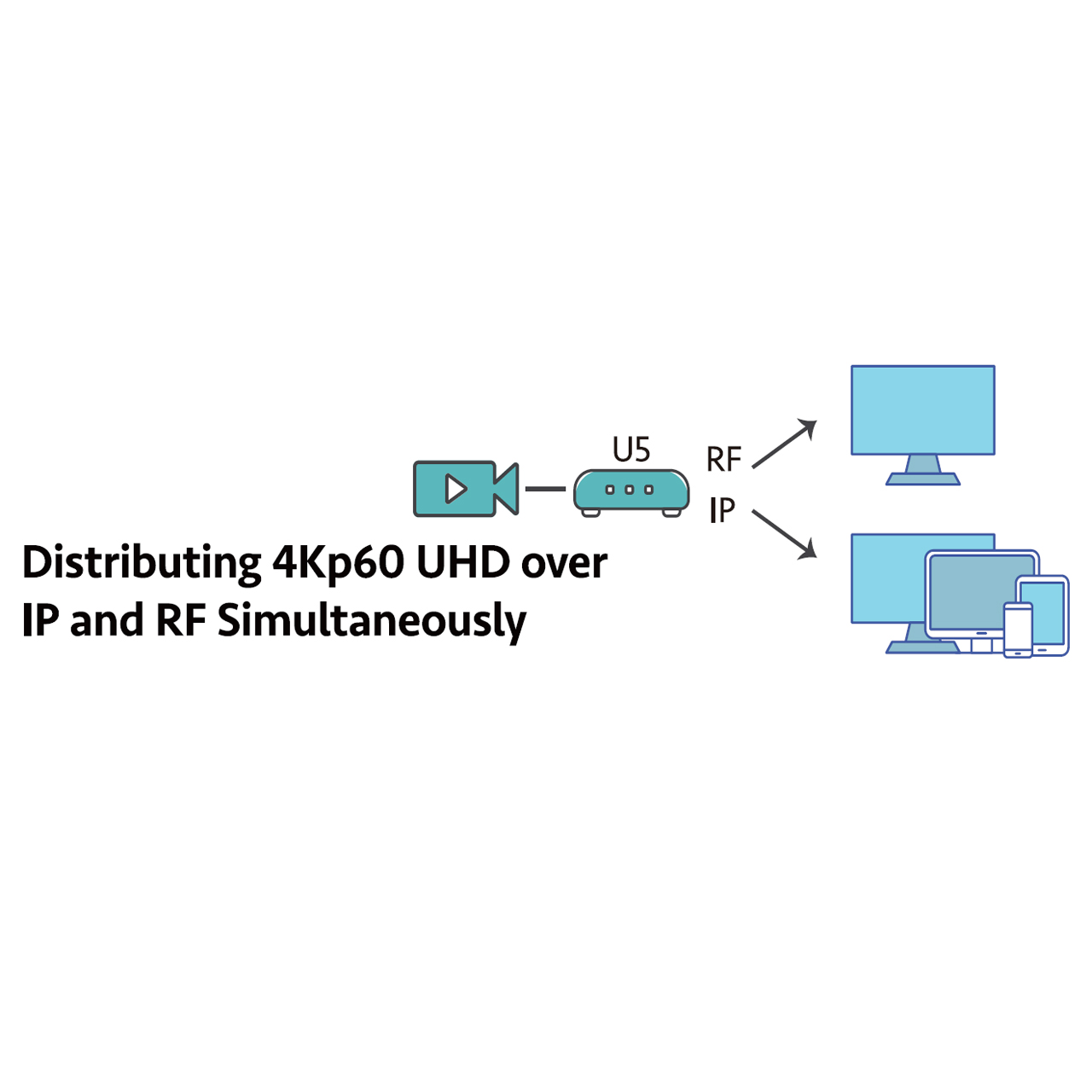

Thanks to its simultaneous RF and IP output capabilities, this encoder offers exceptional flexibility in content distribution. Whether you need to broadcast content over traditional RF networks or deliver content over IP-based platforms (UDP/RTP Multicast/Unicast, RTSP, SRT). The U5 supports SRT which provides a secure and high-performance streaming experience on unpredictable networks such as the public Internet. SRT allows users to transport a high quality video stream to their endpoint.

In summary, the ZyCast Single Channel U5 HEVC Encoder combines the power of HEVC encoding, multiple standard RF output, and simultaneous IP streaming in resolutions up to 4096 x 2160 pixels. This encoder is the ideal solution for broadcasters and content creators seeking to deliver exceptional video content across various platforms. Upgrade your broadcasting capabilities with the ZyCast U5 encoder and unlock a world of possibilities.

  • Features:

    • RF and IP Output Simultaneously
    • Video Encoding Up to 4096x2160p60
    • Supports H.265/H.264
    • Offers SRT (Secure and Reliable Transport) Streaming
    • Simultaneously Records to USB while Streaming
    • Intuitive GUI for Easy Set-Up
    • Low Power Comsumption
    • Informative Status for LED Indicators
    • Multi-Language GUI

  • Specifications:

    • Video/Audio Input
    • HDMI 2.0: Single Connector
    • Loopthrough: To Be Developed
    • HDCP: Compliance 2.2

      Encoding Profile
    • Input/Encode Resolution:
      - 4096 x 2160p (60/59.94/50/30/29.97/25Hz)
      - 3840 x 2160p (60/59.94/50/30/29.97/25Hz)
      - 1920 x 1080p (60/59.94/50/30/29.97/25Hz)
      - 1280 x 720p (60/59.94/50Hz)
      - 720 x 576p (50Hz)
      - 720 x 480p (60/59.94Hz)
    • HEVC (H.265) Tiers and Levels:
      - 4096 x 2160p, Main Tier/Level 5.1
      - 3840 x 2160p, Main Tier/Level 5.1
      - 1920 x 1080p, Main Tier/Level 5.1
      - 1280 x 720p, Main Tier/Level 5.1
      - 720 x 576p, Main Tier/Level 5.1
      - 720 x 480p, Main Tier/Level 5.1
    • HEVC (H.265):
      - Profile Main: 4:2:0; 8bit
    • Video Codecs H.264:
      - 4096 x 2160p High Profile @ Level 4
      - 3840 x 2160p High Profile @ Level 4
      - 1920 x 1080p High Profile @ Level 4
      - 1280 x 720p High Profile @ Level 4
      - 720 x 576p High Profile @ Level 4
      - 720 x 480p High Profile @ Level 4

    • Video Bitrate: 1Mbps to 30Mbps
    • Rate Control: VBR, CBR
    • Audio Codecs: MPEG-1 Layer II/MPEG-4 AAC-LC in ADTS/AC-3
    • Encode Sampling: Freq 44.1 and 48KHz

      Recording (Simultaneous Streaming & Recording Capabilities)
    • Recording: USB 2.0 (MPEG-TS)
    • FTP Upload: (To Be Developed)

      IP Output
    • Connector: 1x RJ-45
    • Standard 1000Base-T Ethernet, Full Duplex
    • IP Streaming Protocol: HLS (TS)/RTSP/UDP Unicast, Multicast/RTP Unicast, Multicast/SRT

      RF Output
    • Connector: 1x "F" Female
    • Output Level: 35 dBmV
    • Output Impedance: 75ohm
    • Level Adjustment: 0dB - 20dB
    • Carrier Suppression: 55dB
    • Output Return Loss: 10dB Typical
    • MER: 40dB Typical

      General
    • Local Monitoring: 4x Indicator LEDs
    • GUI Supoorted: Firefox, Chrome and Edge
    • Password Protected GUI: Changeable
    • Power Supply: 12VDC 1.5Amp.
    • Consumption 0.75A ; 9W Typical
    • Dimension Housing: 16" x 8.25" x 3.25" (236mm x 145mm x 35mm)
    • Weight: 3.5lbs
    • Language: English, Spanish

  • Item Includes:

    • 1x Compact Single-Channel 4K (Ultra HD) HEVC Encoder-Modulator with Simultaneously RF and IP Out
