Liberty 24-4P-L6ASH-BLK-500 Category 6A F/UTP EN Series 23 AWG 4 Pair Shielded Cable - Black - 500 Foot Reel

ITEM #: 24-4-L6ASHBLK500 MFG #: 24-4P-L6ASH-BLK-500

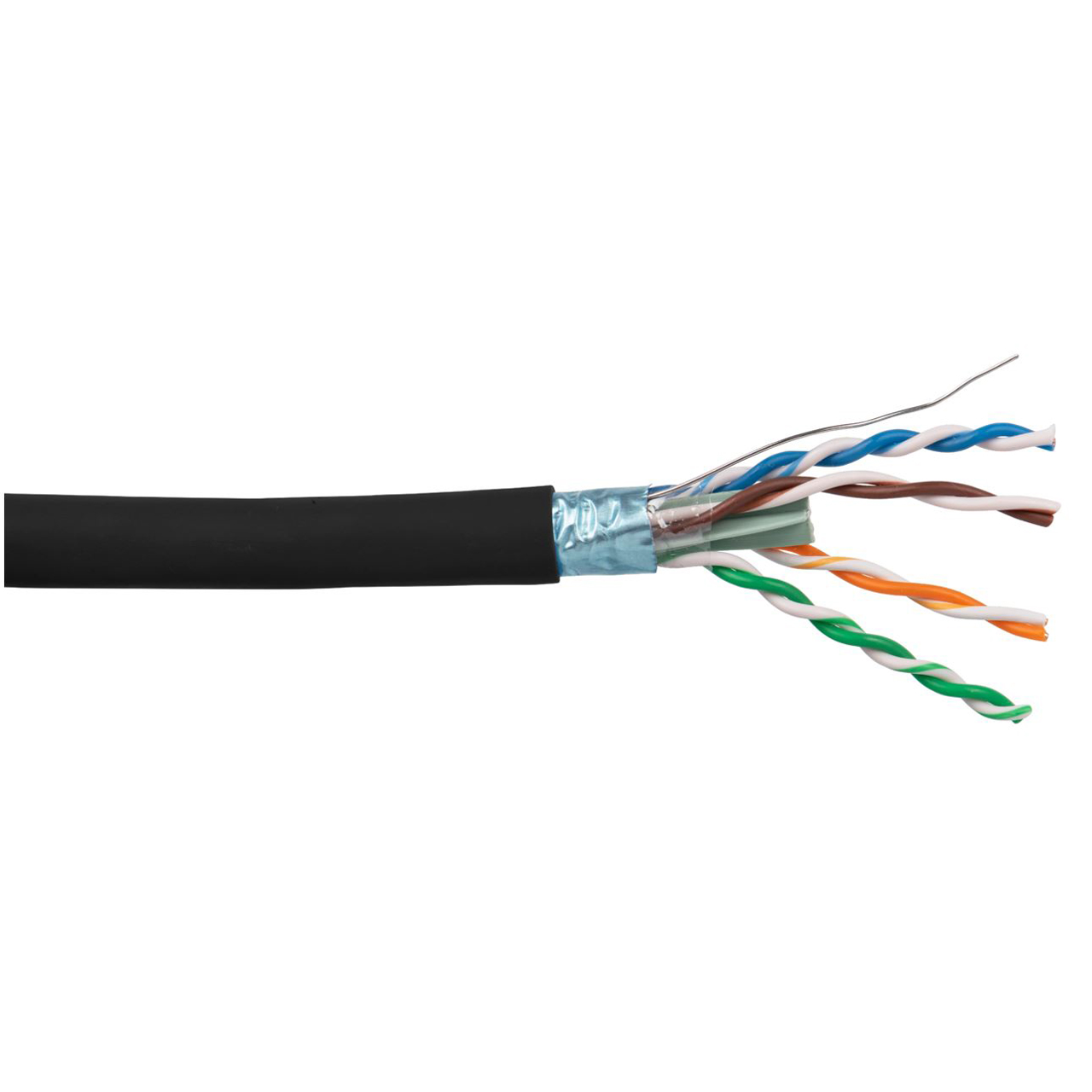

Primary Image
Liberty AV Solutions
Free Shipping with $49 Minimum Order

List Price:

$397.22

Our Price:

$357.50

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

24-4P-L6ASH-BLK-500 - Overview

Category 6A F/UTP EN Series 23 AWG 4 Pair Shielded Cable NEC type CMR and CEC type CMR FT4. Third party verified to ANSI/TIA-568C Category 6A performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. 500 foot reel in black.Applications include: Horizontal LAN 10/100/1000/10GBaseT ethernet, Audio, video, infrared, IP control, Balun infrastructure, voice, voice over IP, PoE, HDBaseT, analog and digital media.

  • Features:

    • Solid annealed bare copper conductors
    • High density polyethylene insulation
    • 4 pairs twisted in varying lays and cabled
    • Overall aluminum/poly foil shield with drain
    • Flame rated PVC jacket
    • TIA/EIA-568-C Category 6A
    • NEC CMR, CEC CMR FT4, RoHS compliant
    • 500 foot Reel


  • Specifications:

    • Conductor: 23 AWG, Solid annealed bare copper conductors, Diameter: 0.0226" / 0.574mm
    • Electrical: DC resistance: = 20.3Ω / 1000' / 66.6 Ω/KM, DCR Unbalance: = 5%, Capacitance: 17.0 pF/FT / 56.0 pF/M, Impedance: 100 ± 15Ω, Propagation Delay (Skew): 45ns/100m MAX, Velocity of Propagation: 68%, Voltage rating: 300V, Pair to ground capacitance Unbalance: = 330 pF/100M, Maximum current: 1.4A@25°C.
    • Insulation: Polyolefln, Wall thickness: 0.009" / 0.24mm, Diameter: 0.042" / 1.06mm.
    • Color Code: Pair 1: Orange, White/orange stripe, Pair 2: Blue, White/blue stripe, Pair 3: Green, White/green stripe, Pair 4: Brown, White/brown stripe.
    • Installation: Pull Tension: 25 Lbs / 111 N, Bend radius: 2.96" / 76mm unloaded, Bend radius: 5.92" / 152mm loaded.
    • Shield:100% aluminum/polyester tape foil in 24 AWG solid tinned copper drain.
    • Performance: LAN: 300 feet, Passive Baluns up to 2500 feet.
    • Jacket: Flame rated polyvinyl chloride, Colors: White, Wall thickness: 0.022" / 0.56mm, Diameter: 0.296" / 7.52mm / Final Outside Diameter (inches): 0.296.
