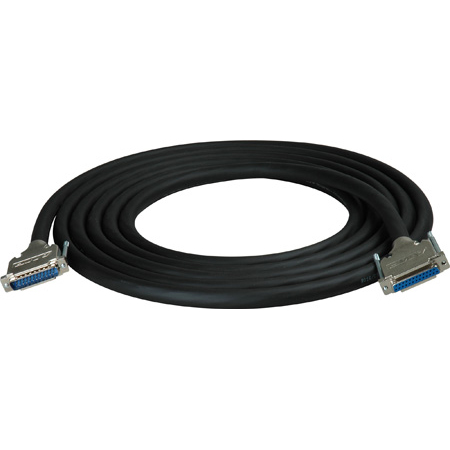

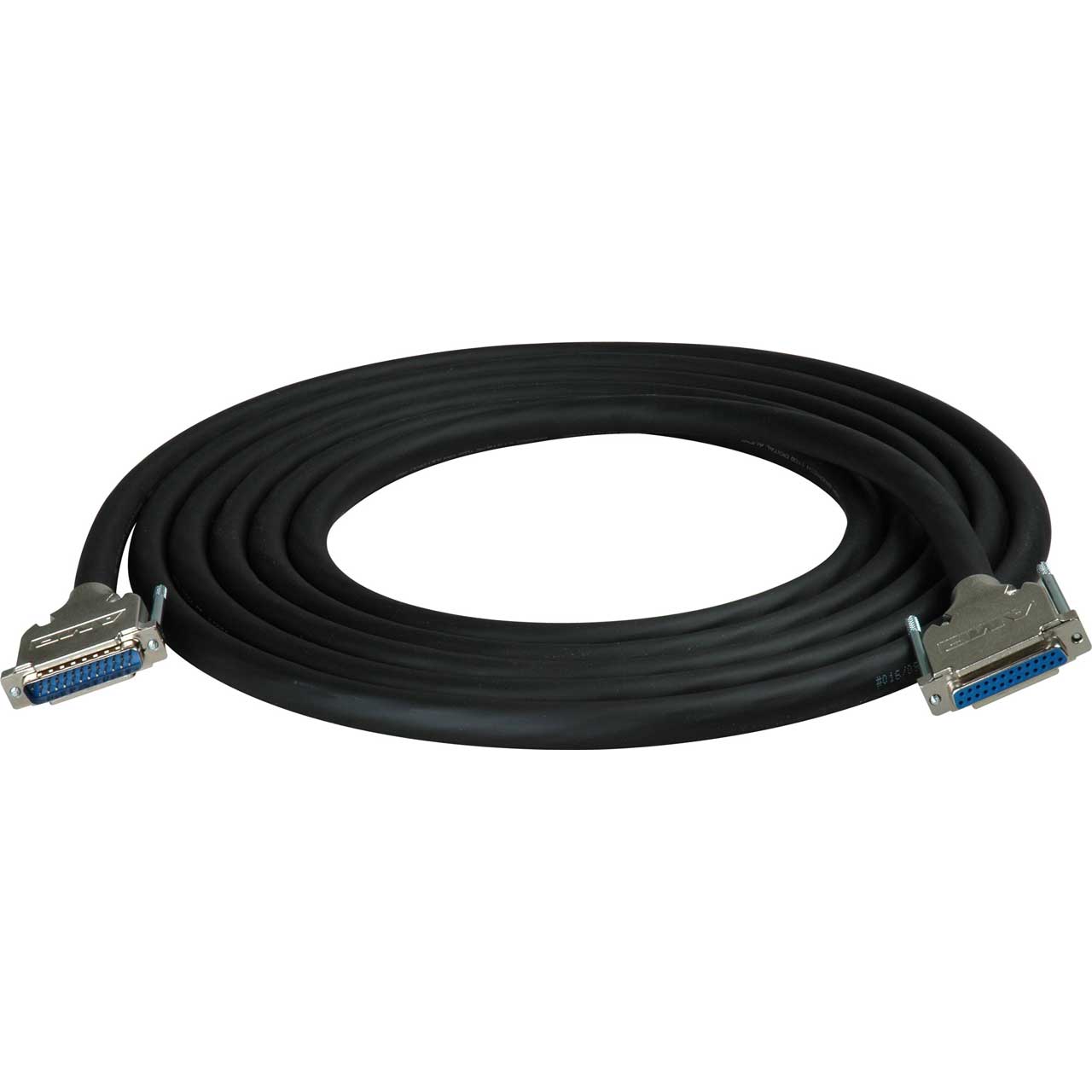

Sescom Straight 25-Pin D-Sub Male to Female Yamaha Digital Audio Extension Cable - 15 Foot

ITEM #: 25MD-25FS-Y15 MFG #: 25MD-25FS-Y15

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$130.49

Our Price:

$117.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


25MD-25FS-Y15 - Overview

Cables are crafted with multicore 110ohm AES/EBU digital audio cable. All channels are individually shielded twisted pairs of #24 AWG gauge conductors. This cable is wired straight thru for extension cable. This cable can be connected as an extension cable for all of the Yamaha pinout products listed. Wired to the Yamaha MYAE8 convention. Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Yamaha MYAE8 standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake. Compatible with Apogee, Mackie, Sony and Yamaha machines.

  • Features:

    • DB25 Male to DB25 Female with 8 Channels Digital Audio In or Out
    • Crafted with Multicore Cable, RoHS Compliant
    • All Channels are Individually Shielded & Twisted with #24AWG Gauge Conductor and #24AWG 7/32 Tinned Copper Drain
    • Industry Standard AMP 25 Pin Metal Hoods for Durability
    • Cables are Designed with Industry Standard AMP DSub Cable Hoods for the Best RF Rejection
    • Straight-through Wired Cables
    • Made in the USA

  • Specifications:

    • Cable: 25 MHz Bandwidth, Precision 110 ohm Impedance
    • Conductor to Shield: 26pF/ft
    • Between Conductors:14 pF/ft
    • Sescom 25-Pin D-Sub (Multipin) Cable Assemblies are Wired to the Yamaha MY8-AE Standard and are Comparable to Assemblies Commonly Referred to in the Industry with Terms Such as DA88 Snake, DB25 Breakout, and DB25 Snake
    • Compatible with Apogee, Mackie, Sony and Yamaha Machines

  • Warranty:

    • 1 Year
