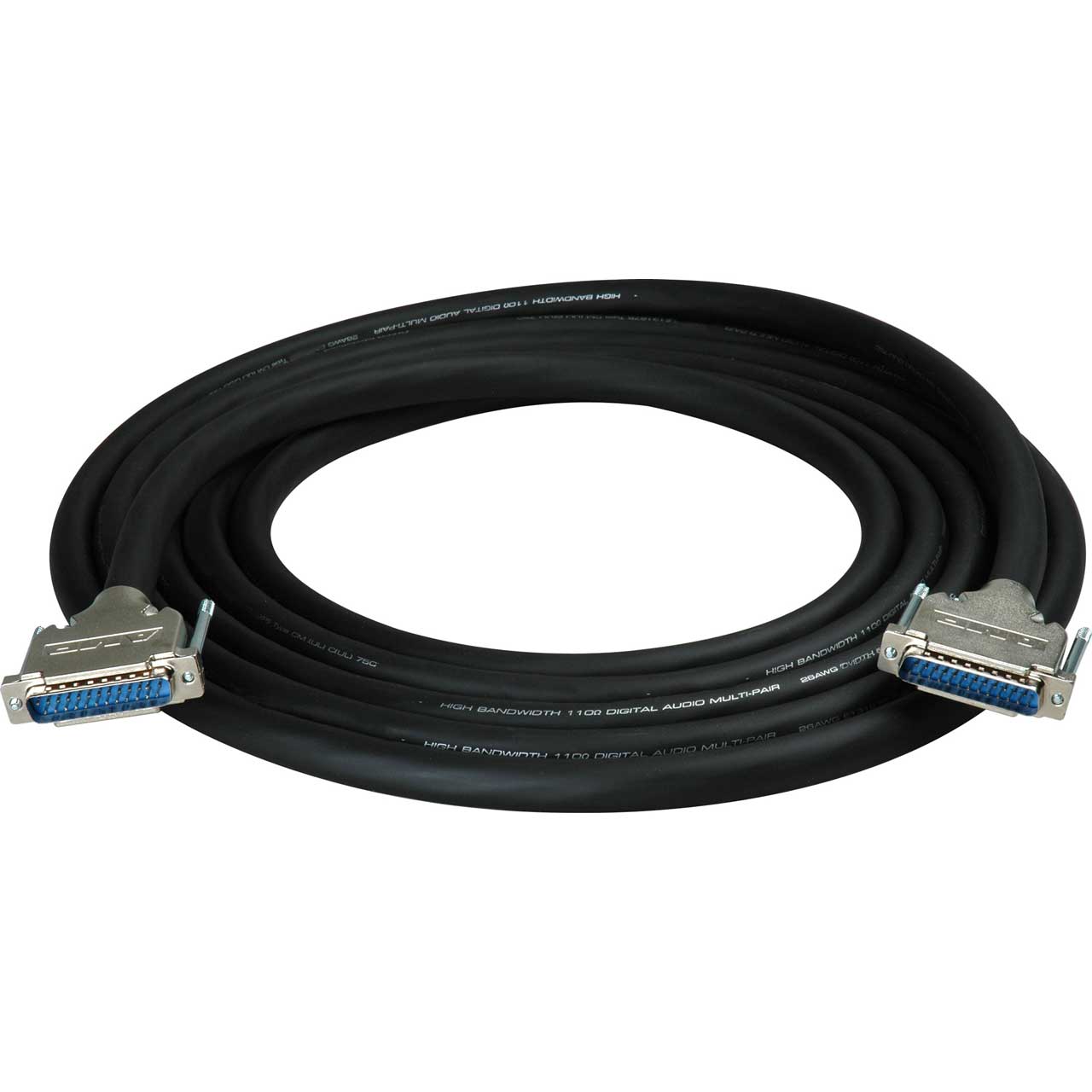

Sescom DB25 DA-88 Digital Audio Cable Mogami 25-Pin D-Sub Male to Male Straight-Thru Wiring - 5 Foot

ITEM #: 25MD-25MS-M05 MFG #: 25MD-25MS-M05

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$115.95

Our Price:

$104.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


25MD-25MS-M05 - Overview

Cables are crafted with Mogami super flexible 3162 multicore 110ohm AES/EBU digital audio cable. All channels are individually shielded twisted pairs of #24 AWG gauge conductors. Wired straight thru pin to pin for dedicated In or Out DB25 ports used with Digidesign products. Can also be used an extension with the addition of a F-F DB25 gender changer. Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Digi/Tascam D-Sub standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake. Compatible with Digi, Panasonic, Radar and Tascam machines.

  • Features:

    • DB25 Male to DB25 Male with 8 Channels Digital Audio In or Out
    • Crafted with Mogami Super Flexible 3162 Cable
    • All Channels are Individually Shielded & Twisted with #24AWG Gauge Conductor and Drain Wire
    • Industry Standard AMP 25 Pin Metal Hoods for Durability
    • Cables are Designed with Industry Standard AMP DSub Cable Hoods for the Best RF Rejection
    • Straight-Through Wired
    • Made in the USA

  • Specifications:

    • Mogami 3162 Cable: 110 ohm Impedance, 14 pF/ft Between Conductors
    • Attenuation (6MHz): 0.065dB/m
    • Connects Apogee, Mackie, Yamaha type AES 8 channel I/O to a Tascam or Digi Machine
    • Sescom 25-Pin D-Sub (Multipin) Cable Assemblies are Comparable to Assemblies Commonly Referred to in the Industry with Terms Such as DA88 Snake, DB25 Breakout, and DB25 Snake

  • Warranty:

    • 1 Year
