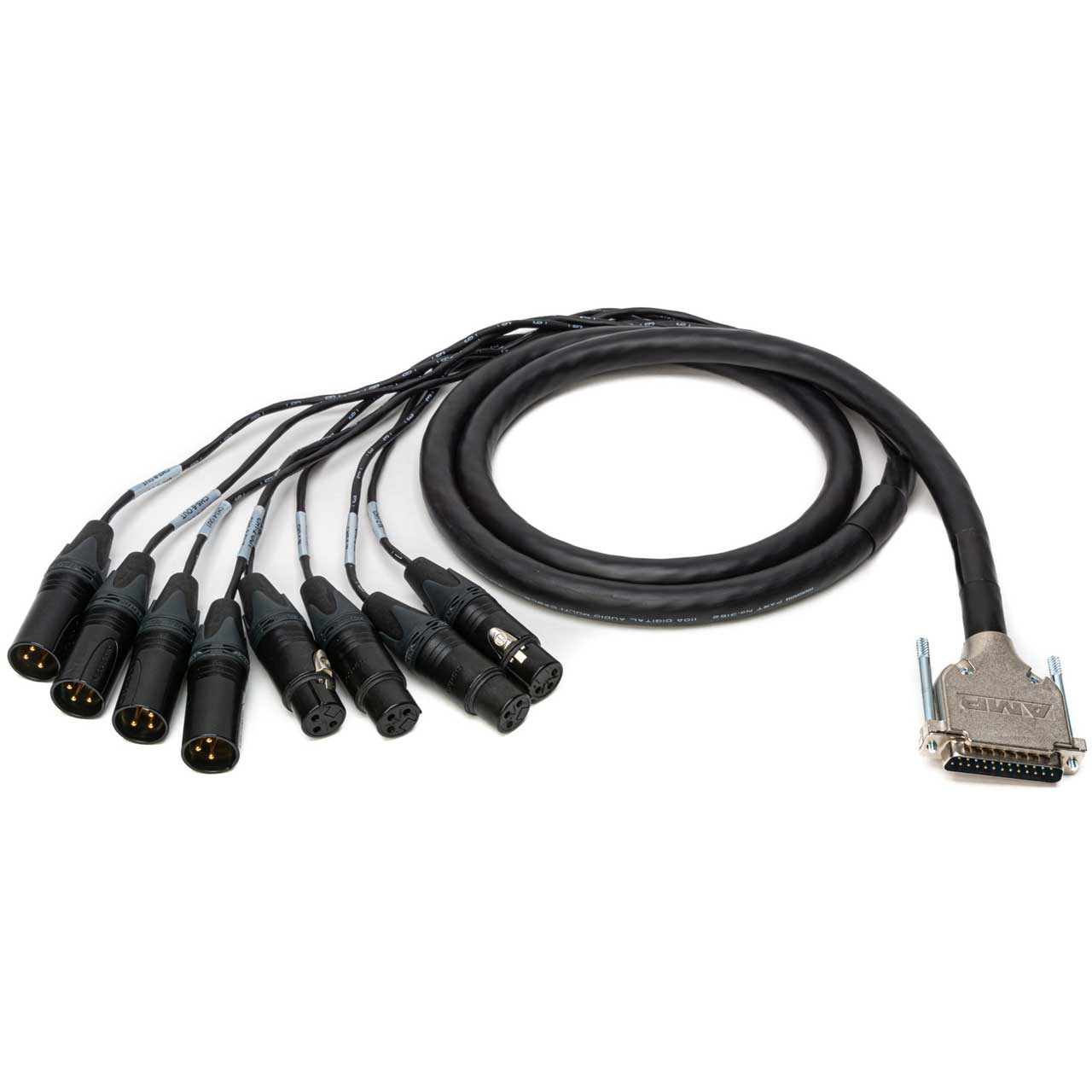

Cables are crafted with Mogami super flexible 3162 cable. All channels are numbered and individually shielded twisted pairs of #24 AWG gauge conductors. Standard fan out is 18 inches for common interface requirements. Designed for superior connectivity and strain relief, these assemblies feature the Neutrik XCC series digital AES/EBU XLR's and industry standard AMP DSub cable hood. Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Digi/Tascam D-Sub standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake. Compatible with Digi, Panasonic, Radar, Tascam and other equipment.
Features the TASCAM pinout - compatible with Tascam, Digidesign, Radar, and Panasonic. NOT compatible with equipment using the YAMAHA pinout. Please confirm your requirements before ordering or contact Sescom with any questions.
