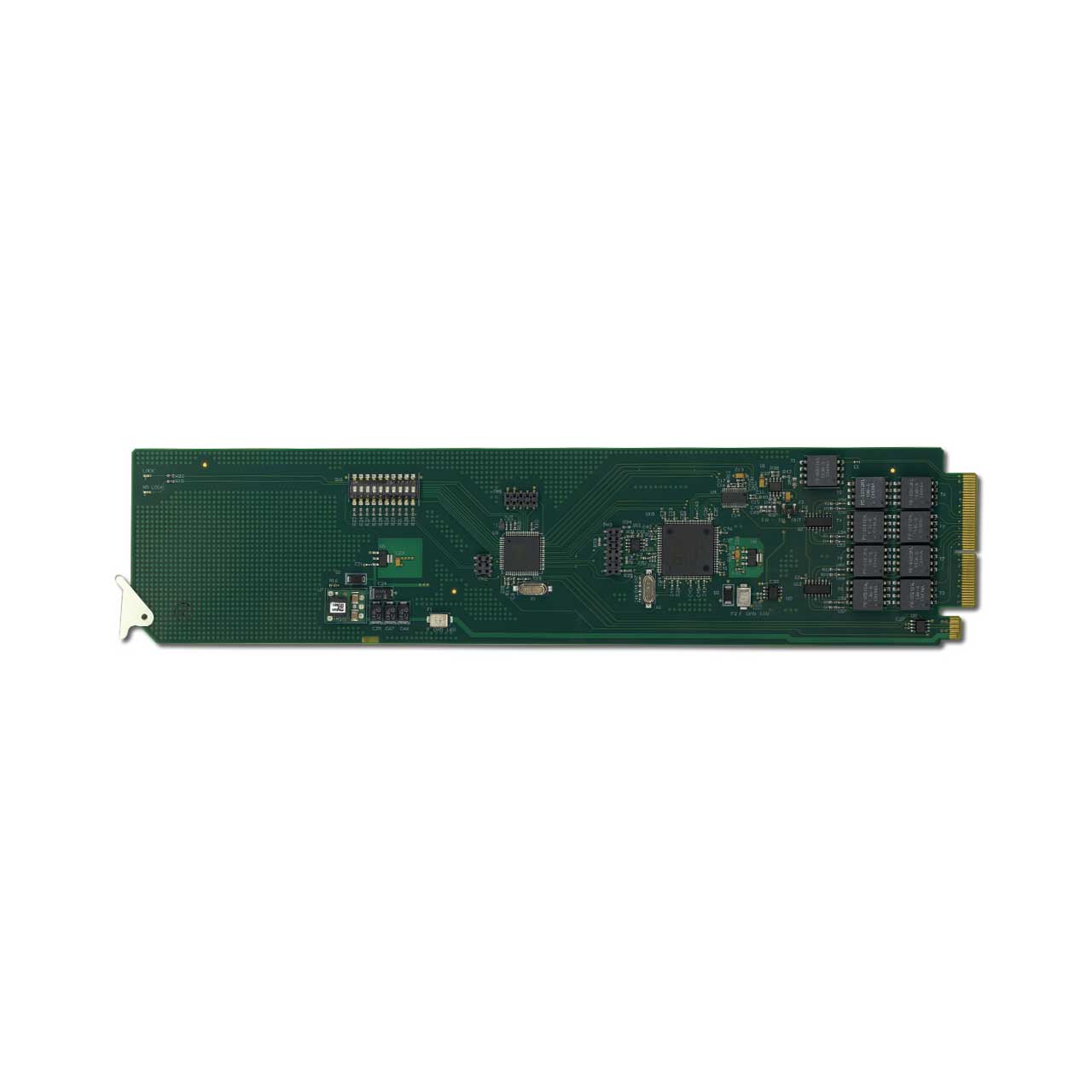

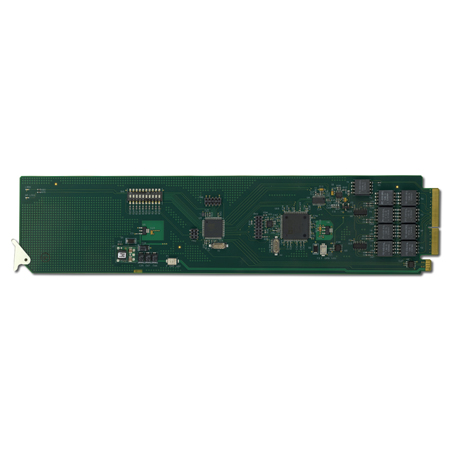

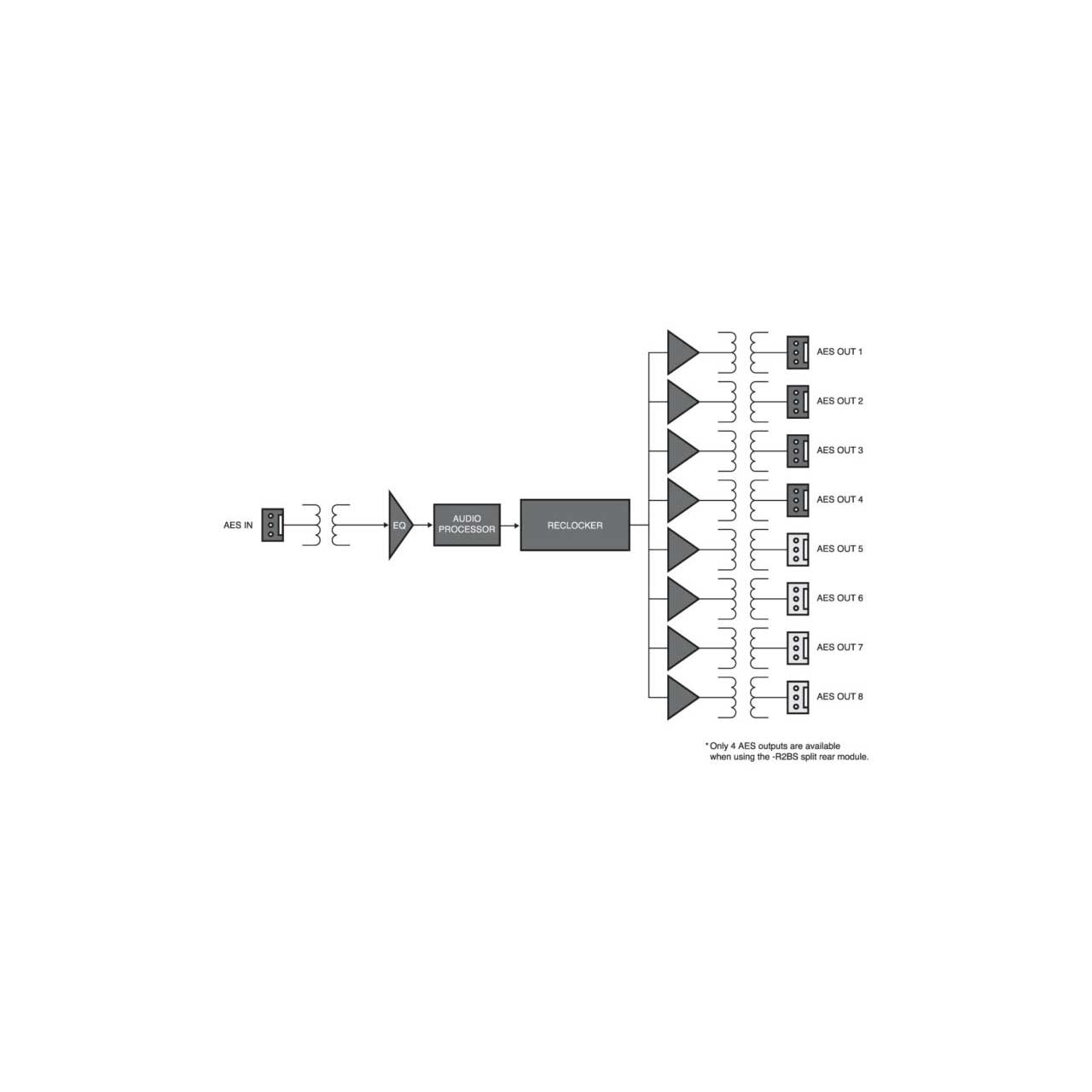

The Ross ADA-8402-B is an AES / EBU distribution amplifier designed for broadcast use. It provides 8 copies of the incoming balanced AES3 signal when used with the -R2B full rear module or 4 copies of the incoming signal when used with the -R2BS split rear module. The ADA-8402-B supports audio sampling frequencies from 32kHz to 96kHz. Cable equalization and reclocking techniques enable the ADA-8402-B to recover the incoming digital audio signal reliably.
The ADA-8402-B also includes internal audio processing for independent channel gain, sum (mono), left or right channel only, and ITU1770 LKFS loudness measurements, which are displayed in DashBoard.
