Adam Hall 841E01 ERGO 19-Inch 1RU Steel Rack Drawer with Snap-Lock Function - Covers Drawers

ITEM #: ADH-AH-874E01 MFG #: AH-874E01

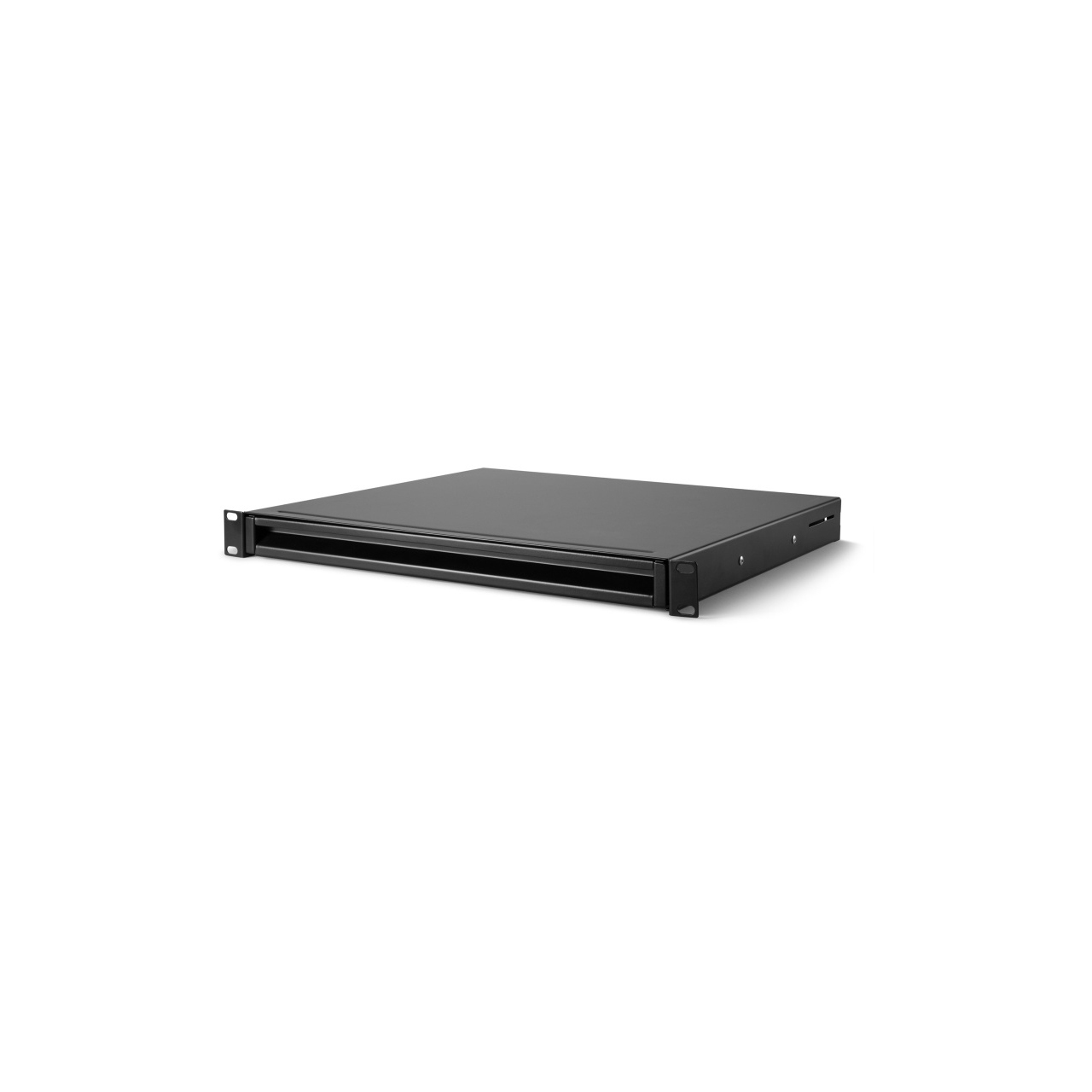

Primary Image

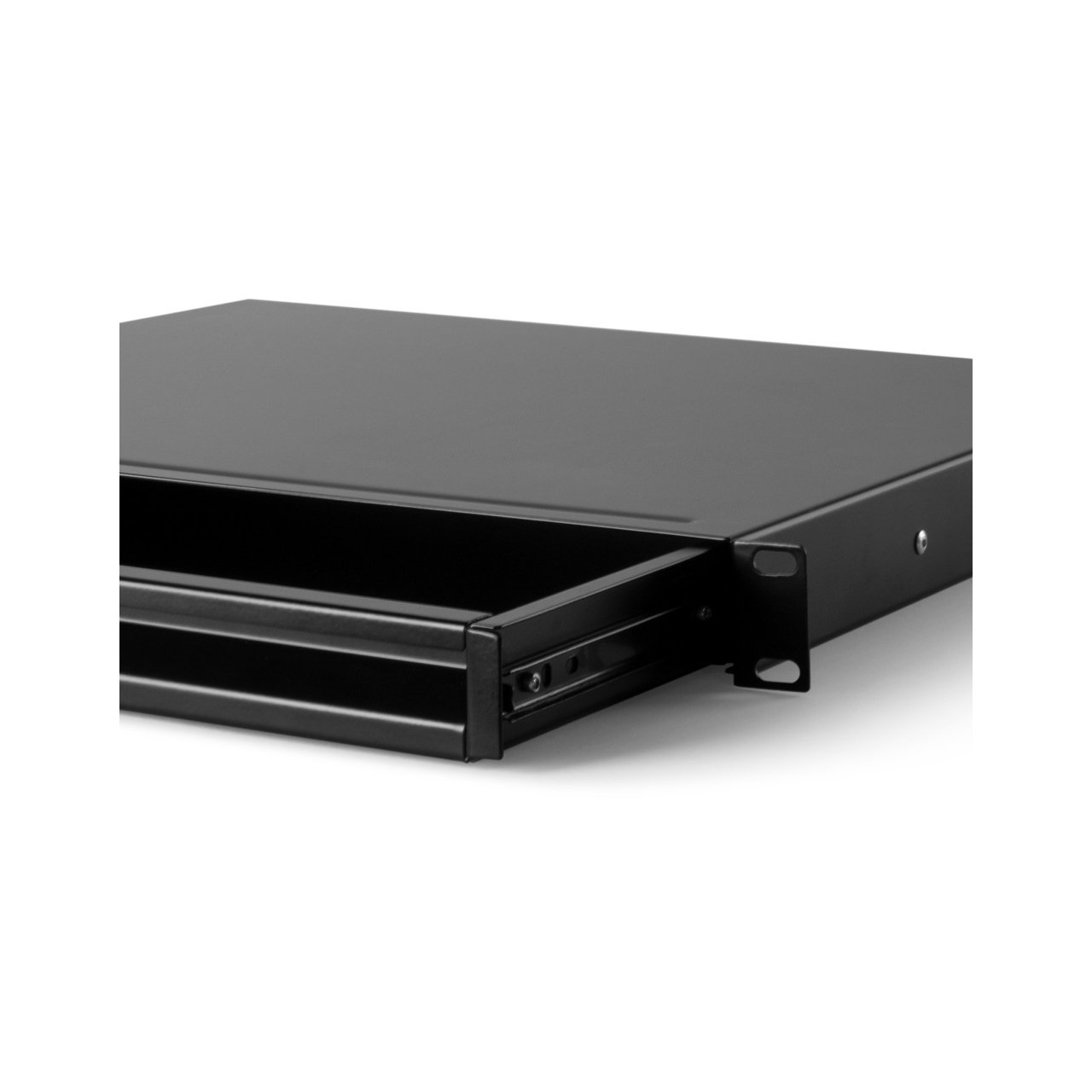

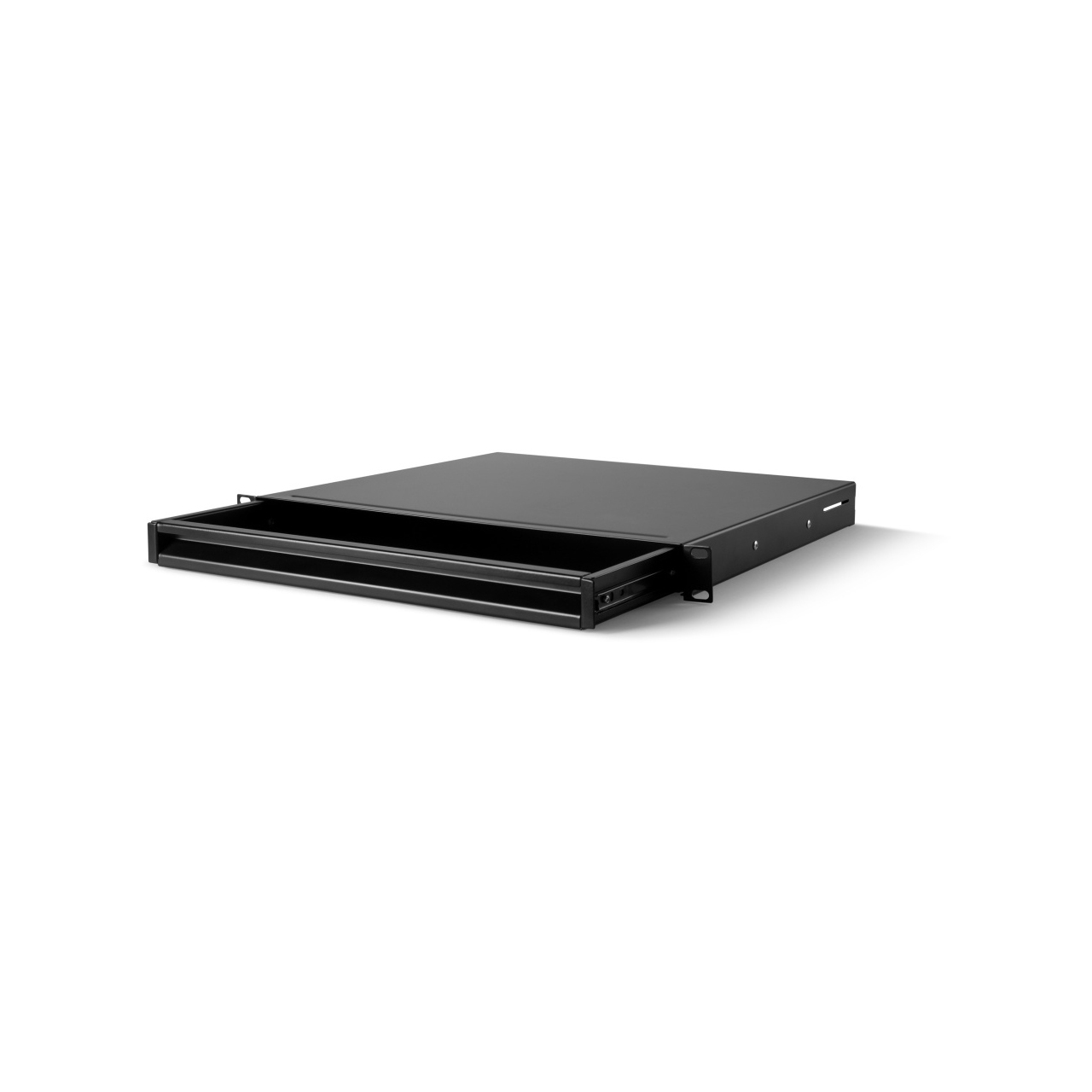

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$59.98

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    AH-874E01 - Overview

    The Adam Hall 874E01 ERGO Series Rack Drawer is a very affordable rackmount drawer with heavy-duty 0.06" (1.5mm) steel construction and easy, ergonomic operation. It integrates a recessed pull handle that runs the width of the drawer and a convenient push-to-close, pull-to-open latching mechanism with 3.31lbs (1.5kg) pull force. This economy rack drawer has a black semi-gloss powder coating finish and 22.05lbs (10kg) load capacity. It features smooth-running full extension ball bearing slides with front disconnect for easy drawer removal.

    • Features:

      • Made from powdercoated steel
      • Made with a continuous grip, allowing for ergonomic handling
      • It comes with a snap-lock function with 3.31lbs (1.5kg) tensile strength, and is detachable
      • The drawer has a full-extension runner and can be loaded up to 22.05lbs (10kg)

    • Specifications:

      • Material: Steel
      • Surface: Powder coated
      • Color: Black
      • Outside Height: 1RU
      • Outside Width: 19.1" (484.6mm)
      • Outside Depth: 15.26" (387.8mm)
      • Inside Height: 1.40" (35.6mm)
      • Inside Width: 15.98" (405.9mm)
      • Internal Depth: 14.11" (358.5mm)
      • Max. Load Capacity: 22.04lbs (10kg)
      • Material Thickness: 0.06" (1.5mm)
      • Weight: 11.02lbs (5kg)

    • Warranty:

      • 2 Year Warranty

    • GTIN:

      4049521407185
