Adam Hall 841E03 ERGO 19-Inch 3RU Steel Rack Drawer with Snap-Lock Function - Covers Drawers

ITEM #: ADH-AH-874E03 MFG #: AH-874E03

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$89.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AH-874E03 - Overview

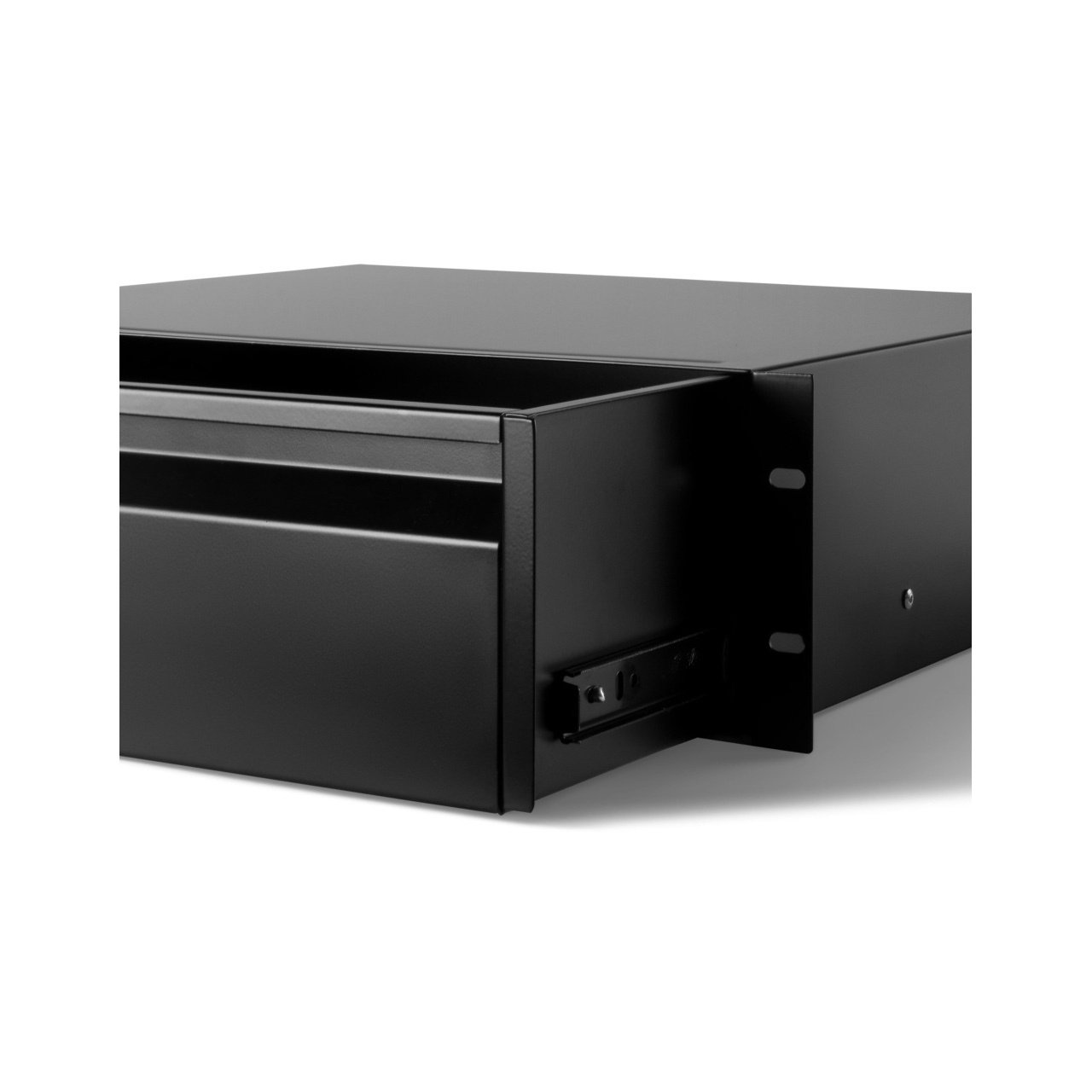

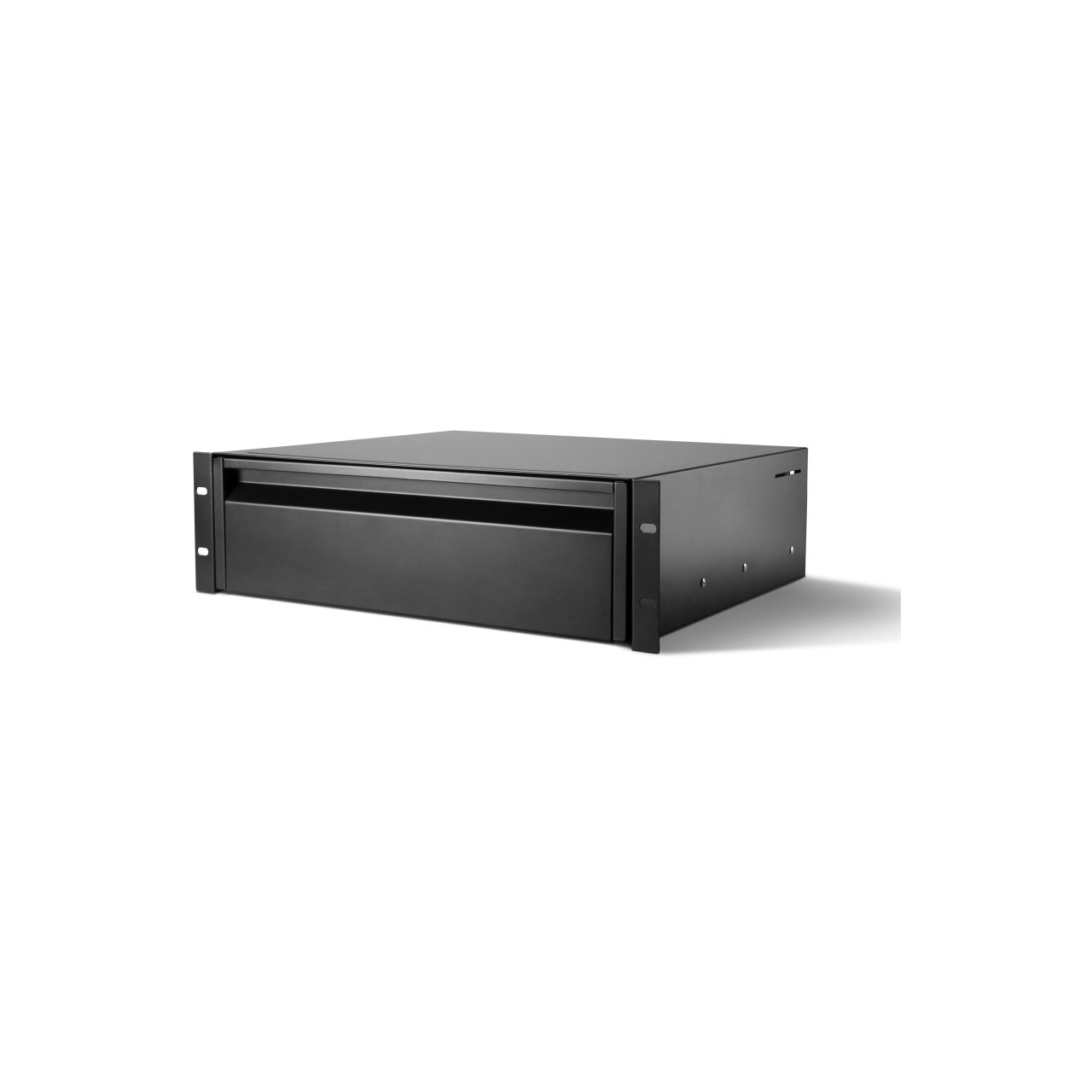

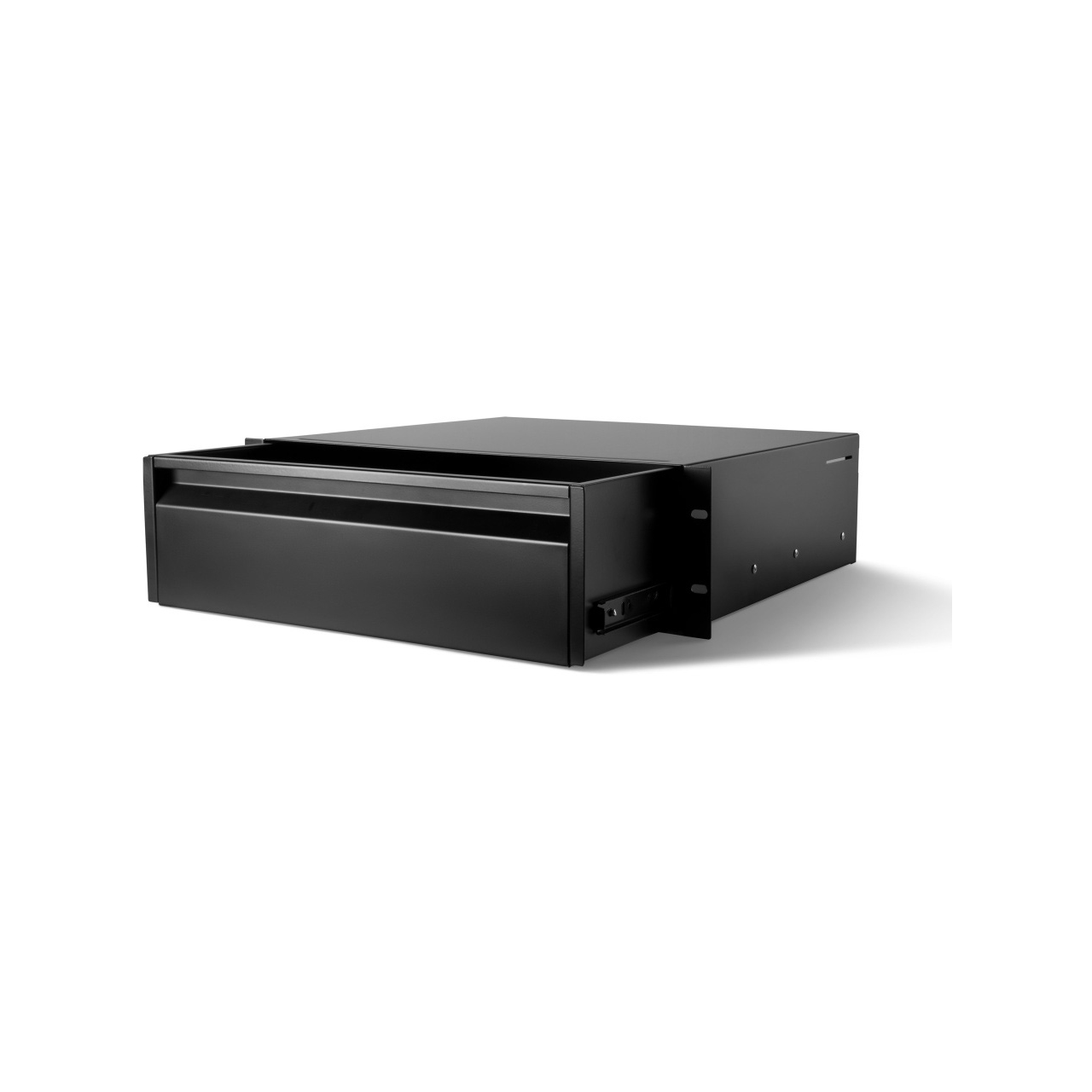

The Adam Hall 874E03 ERGO Series Rack Drawer is a very affordable rackmount drawer with heavy-duty 0.06" (1.5mm) steel construction and easy, ergonomic operation. It integrates a recessed pull handle that runs the width of the drawer and a convenient push-to-close, pull-to-open latching mechanism with 3.31lbs (1.5kg) pull force. This economy rack drawer has a black semi-gloss powder coating finish and 44.09lbs (20kg) load capacity. It features smooth-running full extension ball bearing slides with front disconnect for easy drawer removal.

  • Features:

    • Made from powdercoated steel
    • Made with a continuous grip, allowing for ergonomic handling
    • It comes with a snap-lock function with 3.31lbs (1.5kg) tensile strength, and is detachable
    • The drawer has a full-extension runner and can be loaded up to 44.09lbs (20kg)

  • Specifications:

    • Surface: Powder coated
    • Color: Black
    • Outside Height: 3RU
    • Outside Width: 19.08" (484.6mm)
    • Outside Depth: 15.27" (387.8mm)
    • Inside Height: 4.89" (24.1mm)
    • Inside Width: 15.98" (405.9mm)
    • Internal Depth: 14.11" (358.5mm)
    • Max. Load Capacity: 44.1lbs (20kg)
    • Material Thickness: 0.06" (1.5mm)
    • Weight: 16.98lbs (7.7kg)

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    4049521407192
