ADDERLink ALAV201R-US VGA AV KVM HD Extender for Digital Signage - Point-to-Point Receiver with Deskew

ALAV201R-US - Overview

Point-to-Point Receiver with Deskew

• Features:

  • Crystal clear digital audio quality at 44.1kHz Stereo
  • Crisp, sharp, fully saturated video quality even at 1000ft
  • Resolution up to 1920x1080@60Hz
  • Compact size
  • Compact rack-mountable chassis for large installations
  • Receiver units with fully adjustable de-skew ensuring maximum video quality

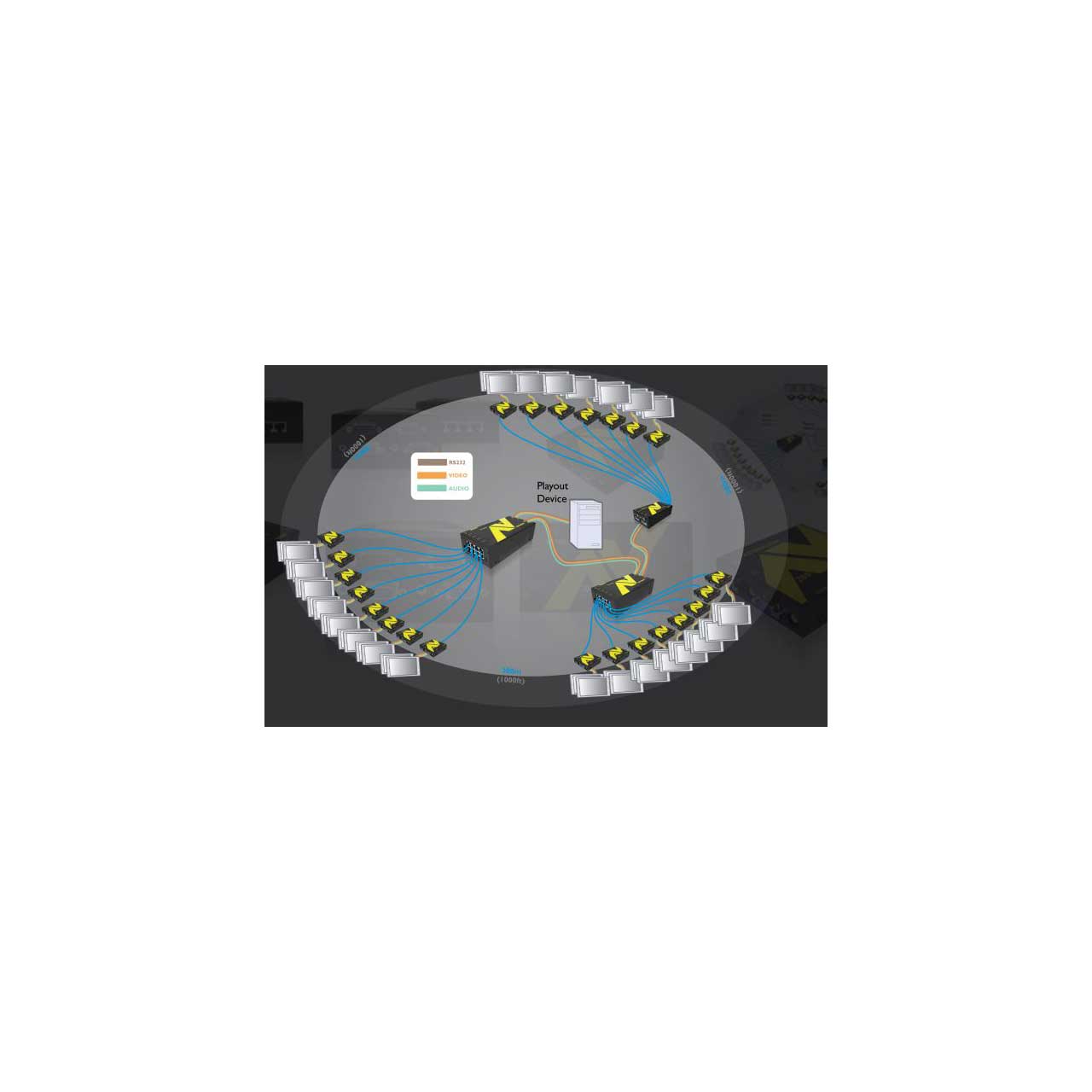

  • Cascade transmitters to support up to 64 VDUs from a single source
  • Dual video/audio output on the receiver supports back to back monitors applications


• Specifications:

  • Video Resolutions: 1920x1080 at distances up to 100 meters/325 feet, 1280 x 1024 at distances up to 300 meters/1000 feet.


  • Extension distance: Up to 300 meters/1000 feet using CATx (x=5,5e,6,7).


  • Extension technolog: Differential analogue signalling for video signals.


  • Cable Equalization: Finely adjustable cable equalisation amplifiers enable the video sharpness and brightness to be independently adjusted using the dials on the side of the receiver units.


  • Display Management via RS232: Included with AV200 transmitters, the Display Management Software gives users control and interaction with display devices over the integrated RS232 ports. This allows for bi-directional and automated communication with individual screens, groups of screens or all screens at the same time.


  • Indicators: The remote and local units are fitted with two indicators; red shows the presence of power into the module, green indicates the presence of a video input.


  • Audio: Transmitted as digital signals to ensure high fidelity and low noise levels. Phase locked sampling clocks ensure that there are no unwanted clicks when no sound is being played.


  • Rack mount options: Both the local (computer-end) and remote (display-end) units may be rack mounted in the ADDERLink AV Series rack mount chassis. The chassis enable 16 units (ALAV200T, 200R and 201R) or 8 units (ALAV204T and 208T to be mounted in 3U of 19-inch rack space. The units are rack mounted using the optional rack mount faceplate.

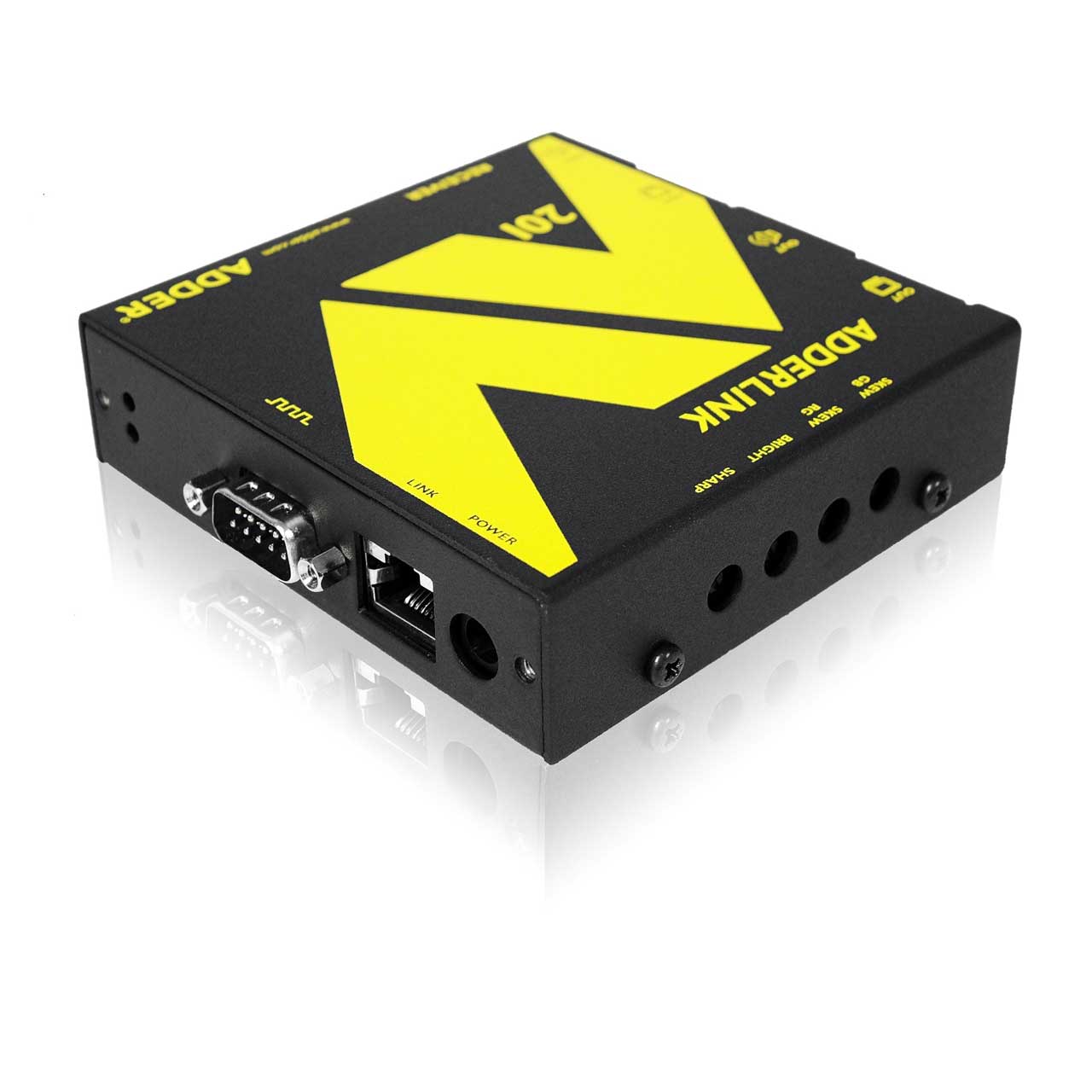

  • Connectors: (ADDERLink AV 201R)
  • 2 x blue 15-pin high-density D-type female connector for video output
  • 2 x light green 3.5mm audio jack for audio output
  • 1 x 9-pin D-type male for serial output (use splitter cable for dual serial conections)
  • 1 x RJ45 connector for CATx cable connection
  • 1 x 2.5mm DC jack for power adapter.


  • Physical: ADDERLink AV 200T and 201R Metal case (steel and stainless steel), 98mm x 95mm x 25mm. ADDERLink AV 208T Metal case (steel and stainless steel), 185mm x 95mm x 51mm


  • Power: All ADDERLink AV units are powered by an external 5.3V DC, 2A power supply with IEC power cable connection. A country specific power cord is provided. Alternatively 4 units can be powered using a 5.3V DC, 4amp power supply and the ADDER "Squid" cable.


  • Spike suppression: All ADDERLink AV units are fitted with spike suppression circuits.


  • Display Data Channel: DDC signalling is supported to enable the computer to communicate with the local monitor and thus configure its video card for optimal operation.


  • Approvals: FCC class A, CE marked


  • Power: Operating Voltage: 100-240VAC/Power Frequency: 50-60Hz/Usage: 5VDC at 500mA


  • Temperature Tolerance: 0 - 40 deg C (32 to 104 deg F)


  • Humidity Tolerance: 5 to 60% non-condensing


• Item Includes:

  • 1x ALAV201R-US VGA AV KVM HD Extender
  • 1x Power Adapter with US cord


• Warranty:

  • 2 Year Limited


• GTIN:

  0609385888021
