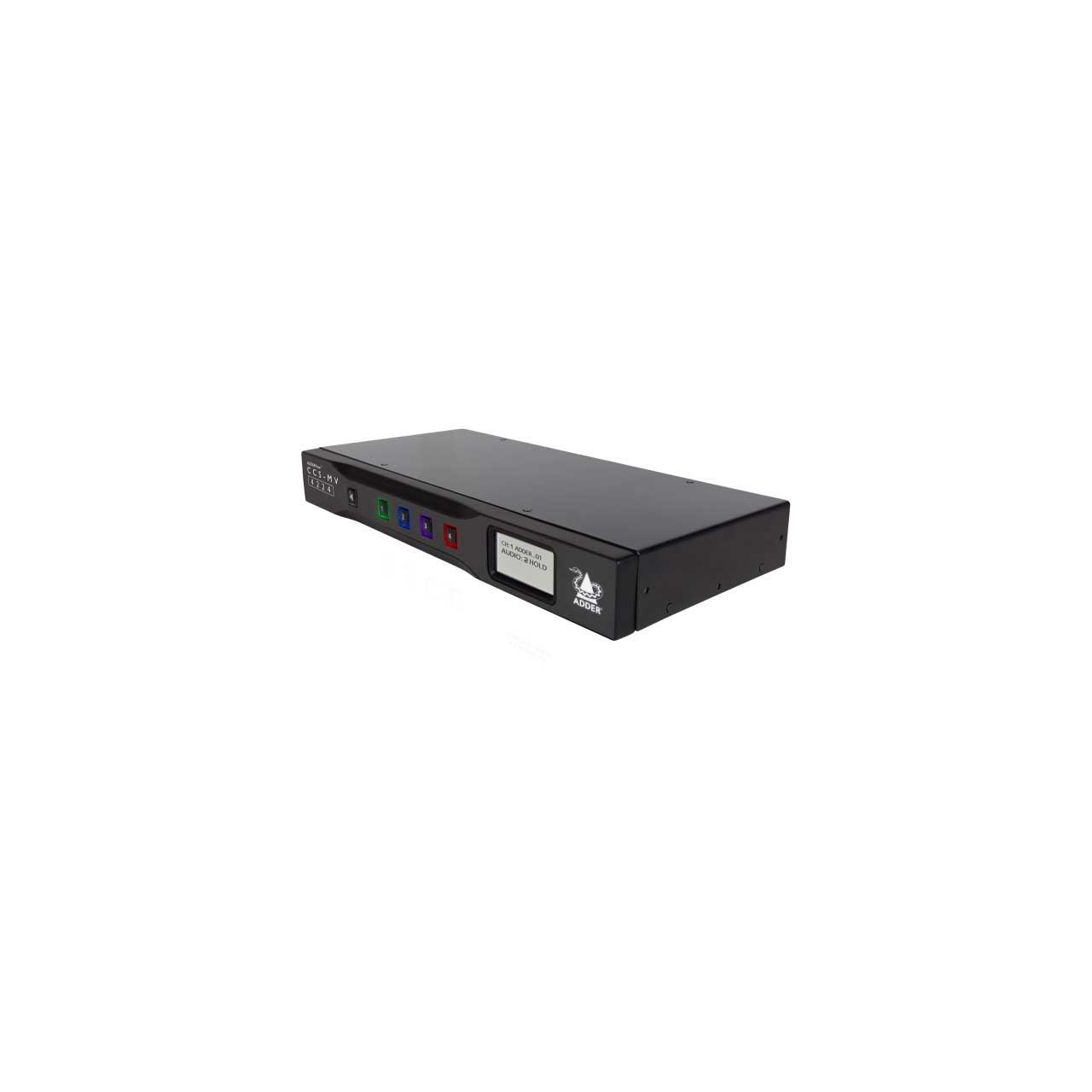

ADDERView CCS-MV 4224 4k KVMA Multi-Viewer Switch for up to 4 Computers

CCS-MV4224 - Overview

• Features:

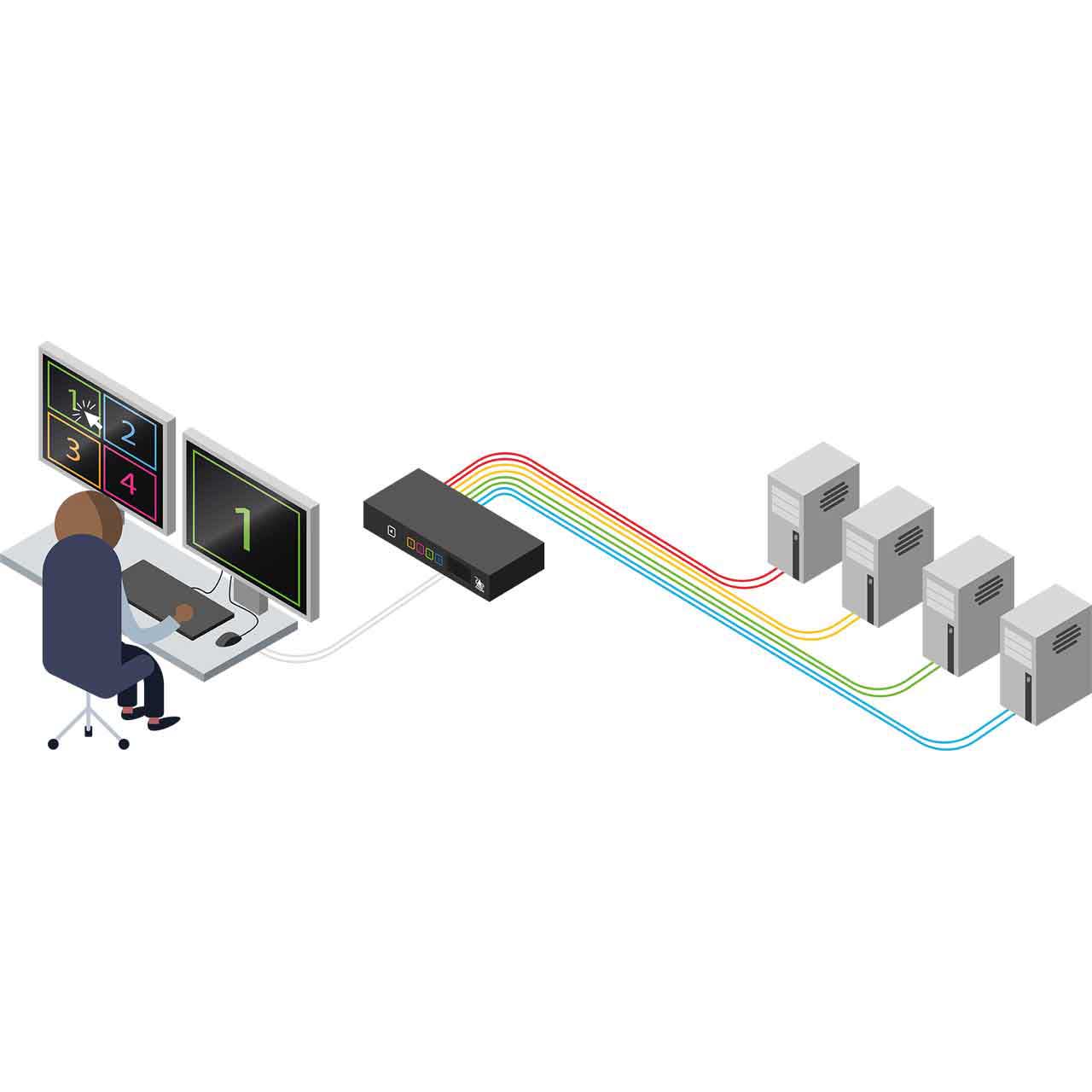

  • Directly connect a single workstation to four video, audio and USB sources
  • Access any number of sources on a network when combined with an ADDERLink® INFINITY IP KVM Matrix
  • Seamless cursor interaction with sources as if using a single desktop
  • Multiple, color-coded screen configurations for fast channel identification, real-time data visualization and improved decision making
  • Enhanced, decluttered workspace ergonomics and improved situational awareness


• Specifications:

  • Video Resolutions
  • The system supports video resolutions up to UHD 4K (3840x2160 @30Hz) at 4:4:4 with 8 bits per color

    Software Compatibility
  • Windows, Linux, Mac host computer OS's

    Console connections
  • 2x digital ports for HDMI®, 2x USB 2.0 full speed Type A, 4x USB3.0 Hi-speed Type A. Audio 3.5mm/0.13" jack for microphone and headphones, RJ12 serial port

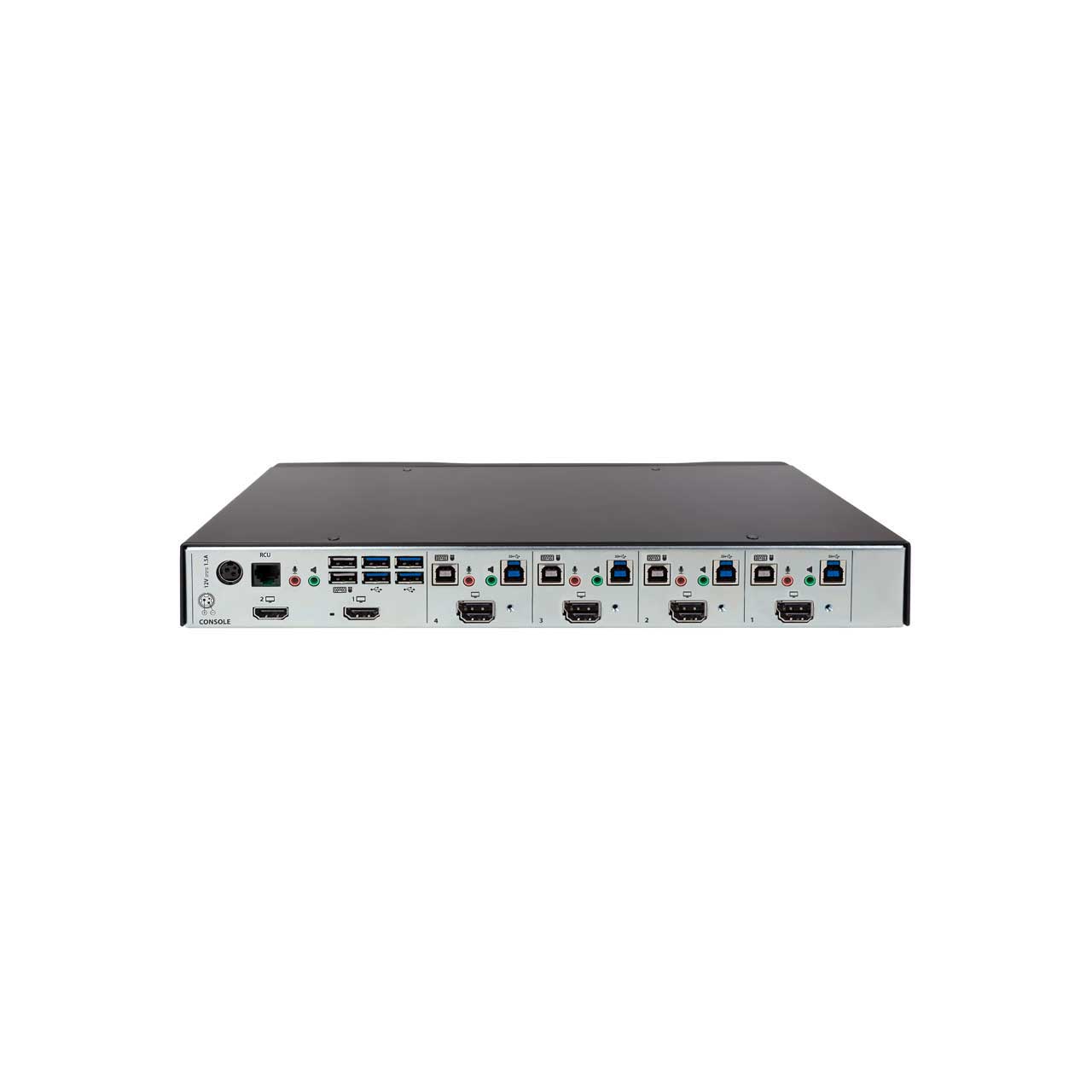

    Computer Connections
  • 4x dual ports for DisplayPort™/HDMI®, 4x USB2.0 full speed Type B, 4x USB 3.0 Hi-speed Type B, Audio 3.5mm line in and out

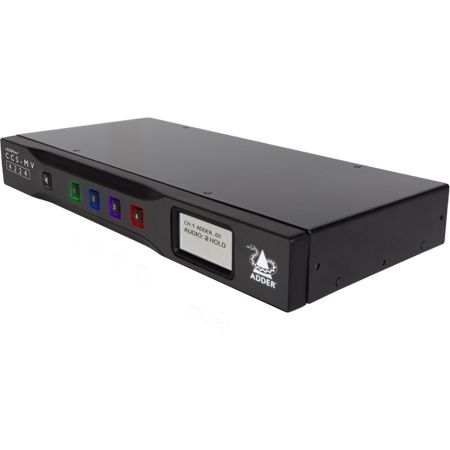

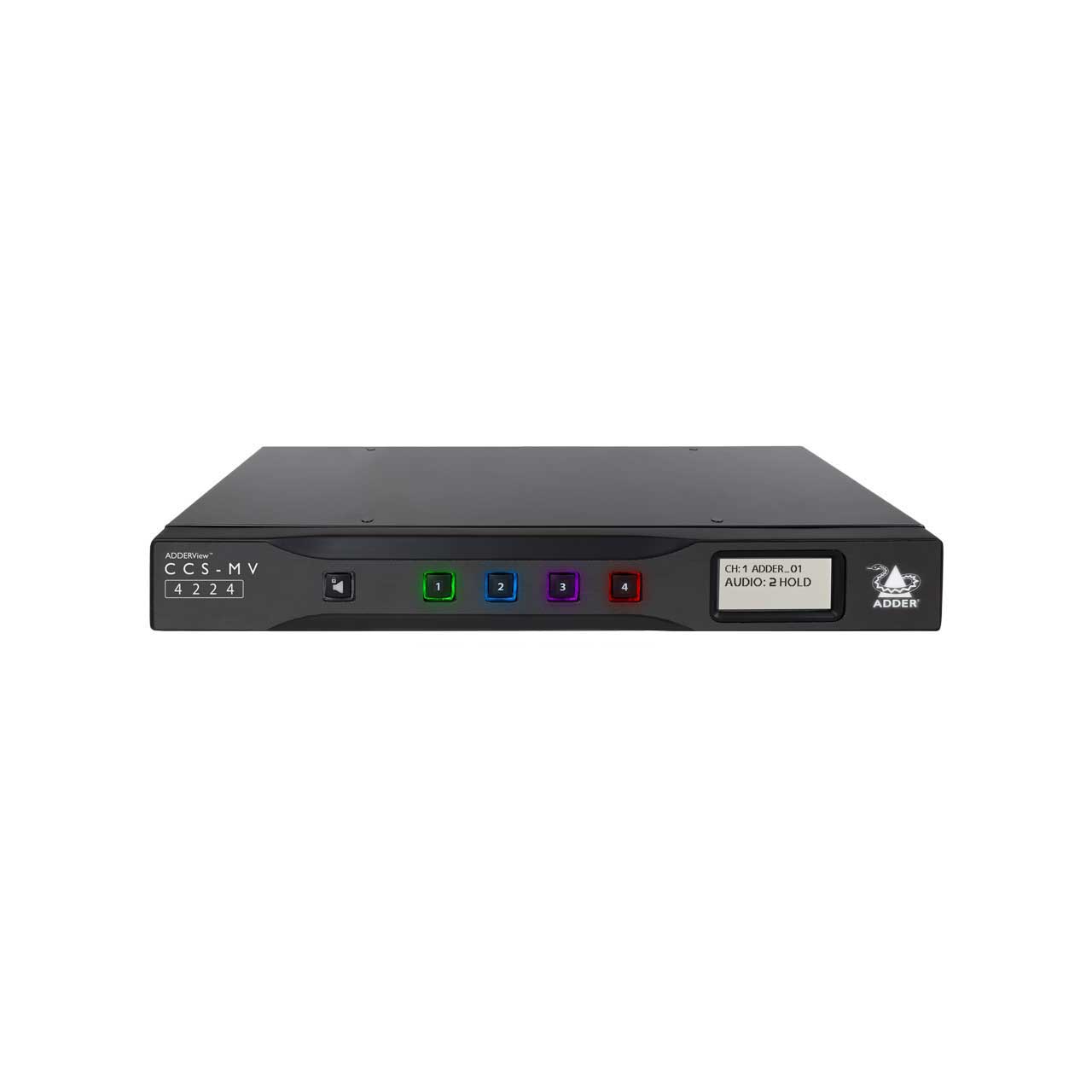

    Front Panel
  • Audio hold button and status LED, 4x Channel selection button and status LED, 212x104 E-paper status display

    Physical design
  • Robust metal construction
  • Dimensions: 6.34 x 13.54 x x 1.73 (161 x 344 x 44mm)
  • Weight: 3.53lbs (1.6kg)

    Power Supply
  • 100-240V AC, 47/63Hz
  • 12V DC 30W output from power supply unit

    Environmental
  • Operating temperature: 32° to 104°F (0° to 40°C)
  • Storage temperature: -4° to 140°F (-20° to 60°C)
  • Humidity: 0-80% RH, non-condensing
  • MTBF: 84k hours @ 140°F (40°C)


• Item Includes:

  • 1x CCS-MV 4224 4K switch
  • 1x Power supply unit with mains cable
  • 1x Quick start guide
